Steering Wheel Replacement

Tools Required

J 42578 Steering Wheel Puller

Removal Procedure

Caution

Safety precautions must be followed when handling a deployed inflator module (air bag). After deployment, the inflator module (air bag) surface may contain a small amount of sodium hydroxide, a by-product of the deployment reaction, that is irritating to the skin and eyes. Most of the powder on the inflator module (air bag) is harmless. as a precaution, wear gloves and safety glasses when handling a deployed inflator module (air bag), and wash your hands with mild soap and water afterwards.

Caution

When you are carrying an undeployed inflator module:

Do not carry the inflator module by the wires or connector on the inflator module

Make sure the bag opening points away from you

When you are storing an undeployed inflator module, make sure the bag opening points away from the surface on which the inflator module rests. When you are storing a steering column, do not rest the column with the bag opening facing down and the column vertical. Provide free space for the air bag to expand in case of an accidental deployment. Otherwise, personal injury may result.

Caution

Never rest a steering column assembly on the steering wheel with the inflator module (air bag) face down and column vertical. This is necessary so that a free space is provided to allow the inflator module (air bag) to expand in the unlikely event of accidental deployment. Otherwise, personal injury could result.

Notice

In the event deployment has occurred, inspect coil assembly wire and driver inflator module for any signs of scorching, melting or other damage due to excessive heat. If the coil or inflator module has been damaged, replace it.

Click here for detailed picture of above image.

Disable the SIR System. Refer to Disabling the SIR System in SIR.

Remove driver inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.

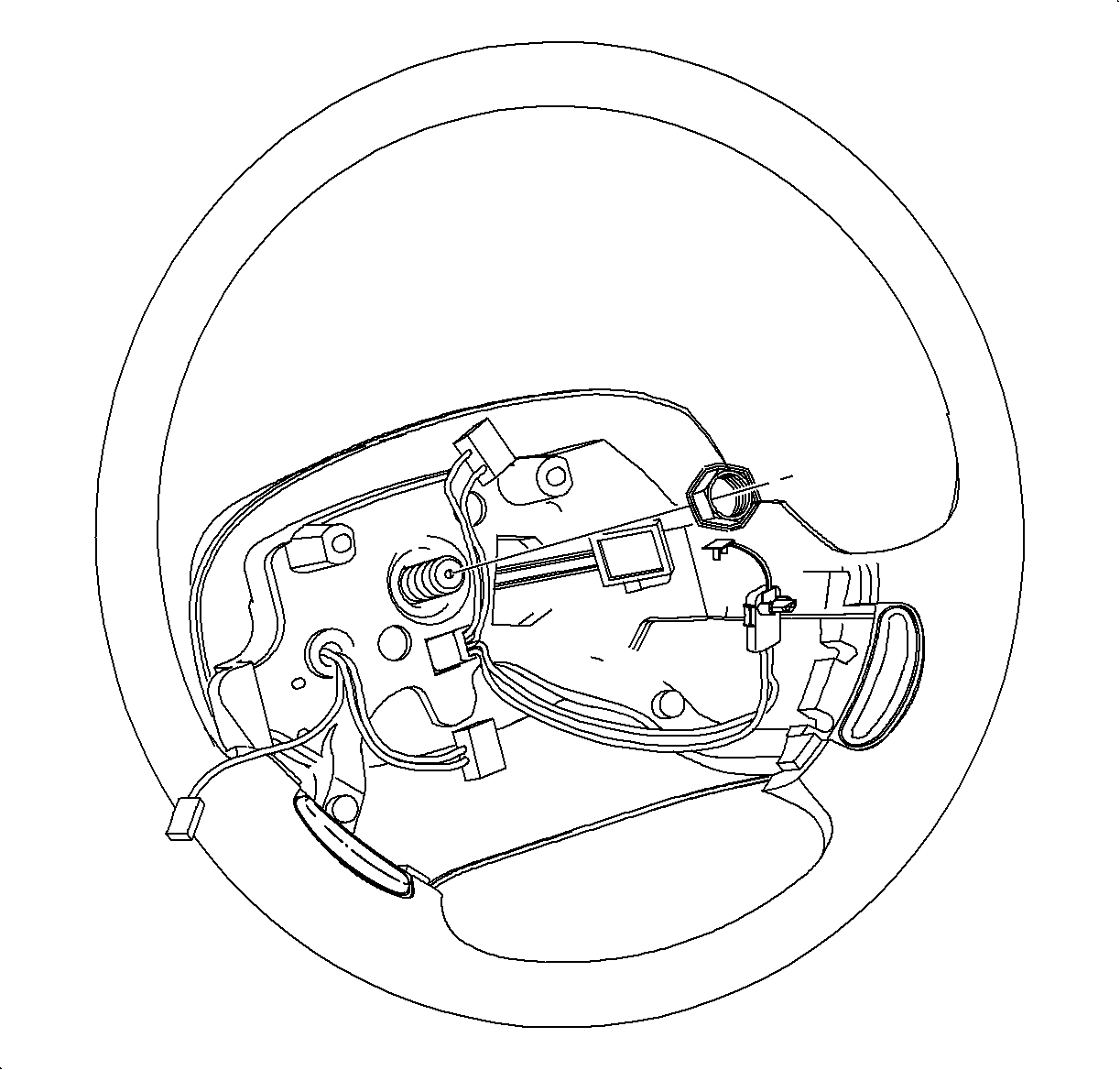

Disconnect cruise control (if equipped) switch connectors and disconnect harness from steering wheel.

Notice

If roll connector is not properly oriented to steering column assembly, it will be damaged.

Remove steering wheel attachment nut and discard.

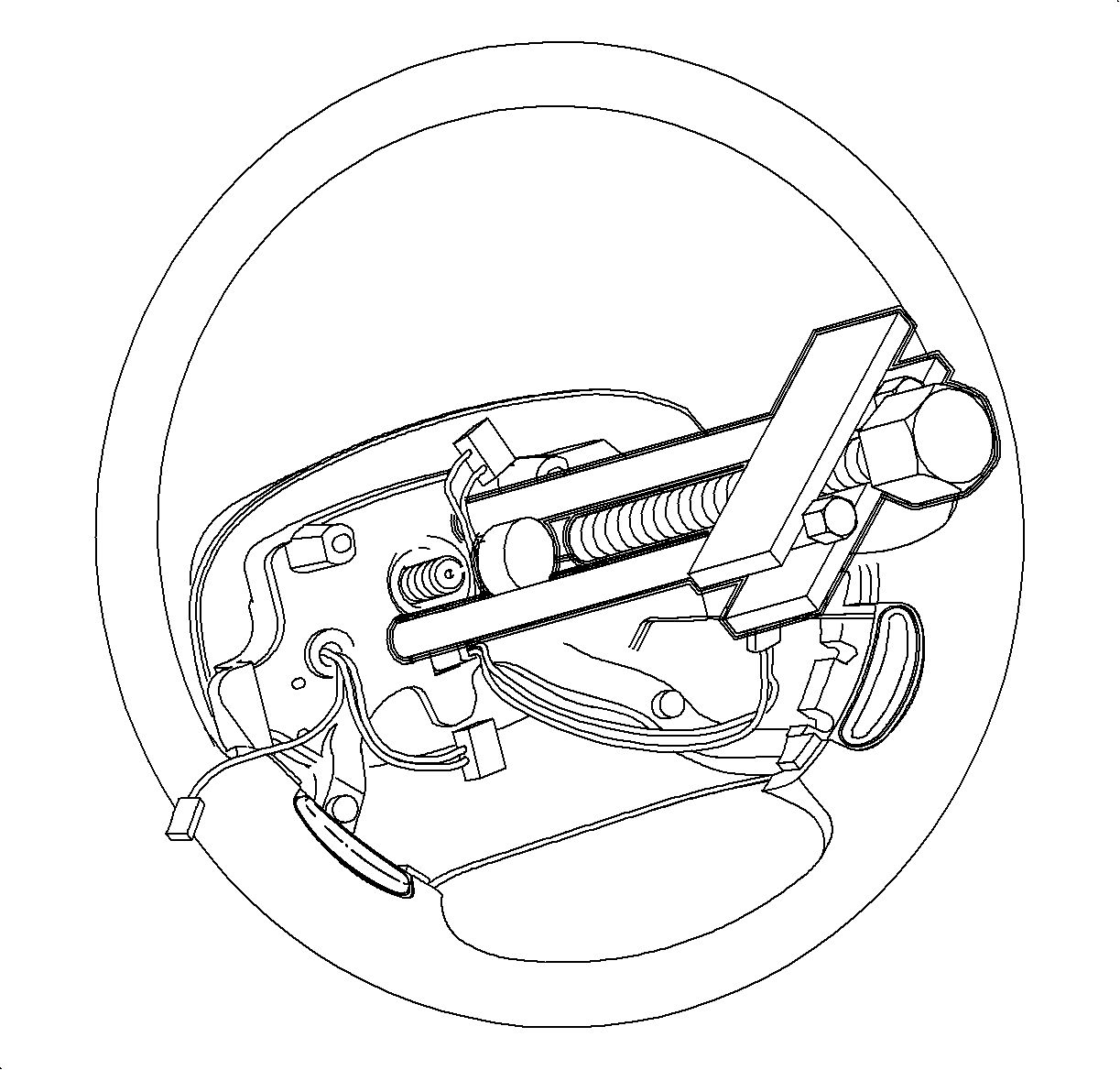

Install J 42578 by fitting puller legs into steering wheel puller holes.
Install puller bridge over puller legs and finger tighten steering wheel puller nuts on legs.
Insert center bolt through bridge and align with steering column shaft.
Tighten center bolt until steering wheel is disengaged.

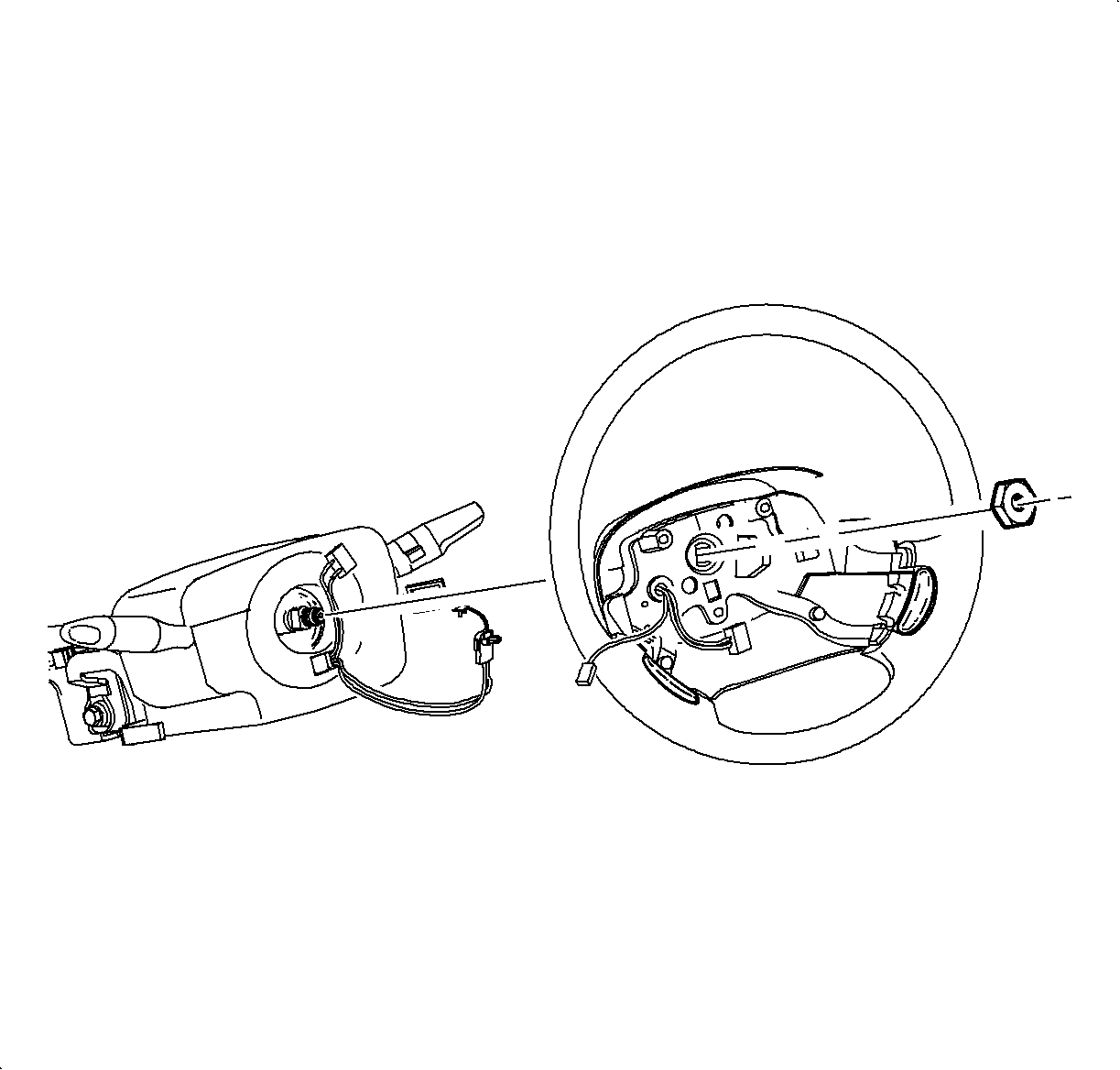

Remove steering wheel while feeding wiring through wheel opening.

Important

If yellow tab is not available, use tape to prevent roll connector from rotating.

Insert yellow tab or use a piece of tape to prevent coil assembly from rotating.

Installation Procedure

Important

If roll connector is unintentionally rotated during steering wheel service, the roll connector must be repositioned.

Remove yellow tab or tape from roll connector.
Route wiring through steering wheel and install steering wheel onto steering shaft noting orientation notch that locates steering wheel in correct position.

Notice

Refer to Fastener Notice in Cautions and Notices.

Important

A new steering wheel attachment nut must be used.

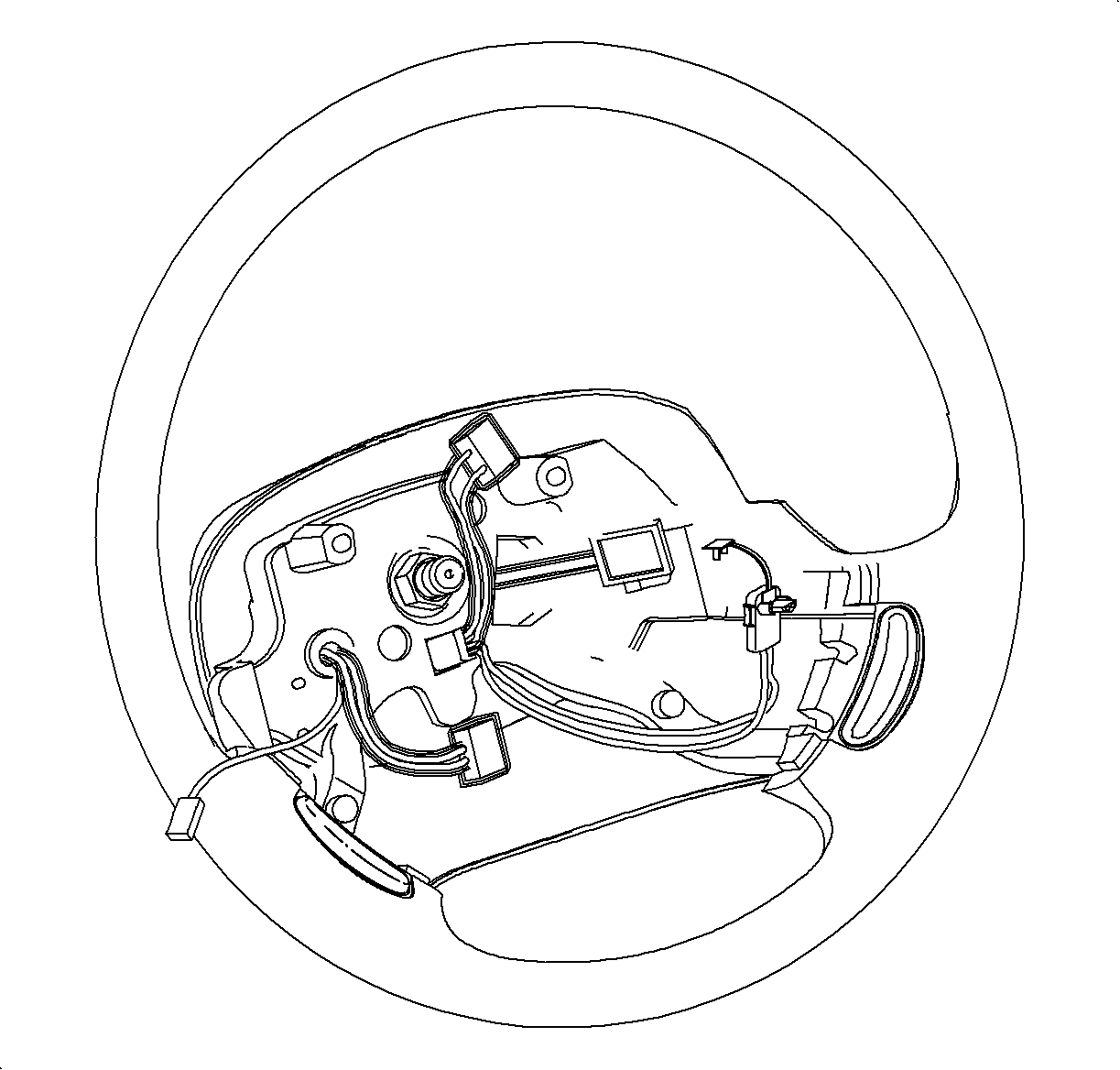

Install new steering wheel attachment nut.

Tighten

Tighten Steering Wheel Attachment Nut to 35 N·m (26 lb ft).

Connect cruise control switch connectors (if equipped) and attach harness to wheel.

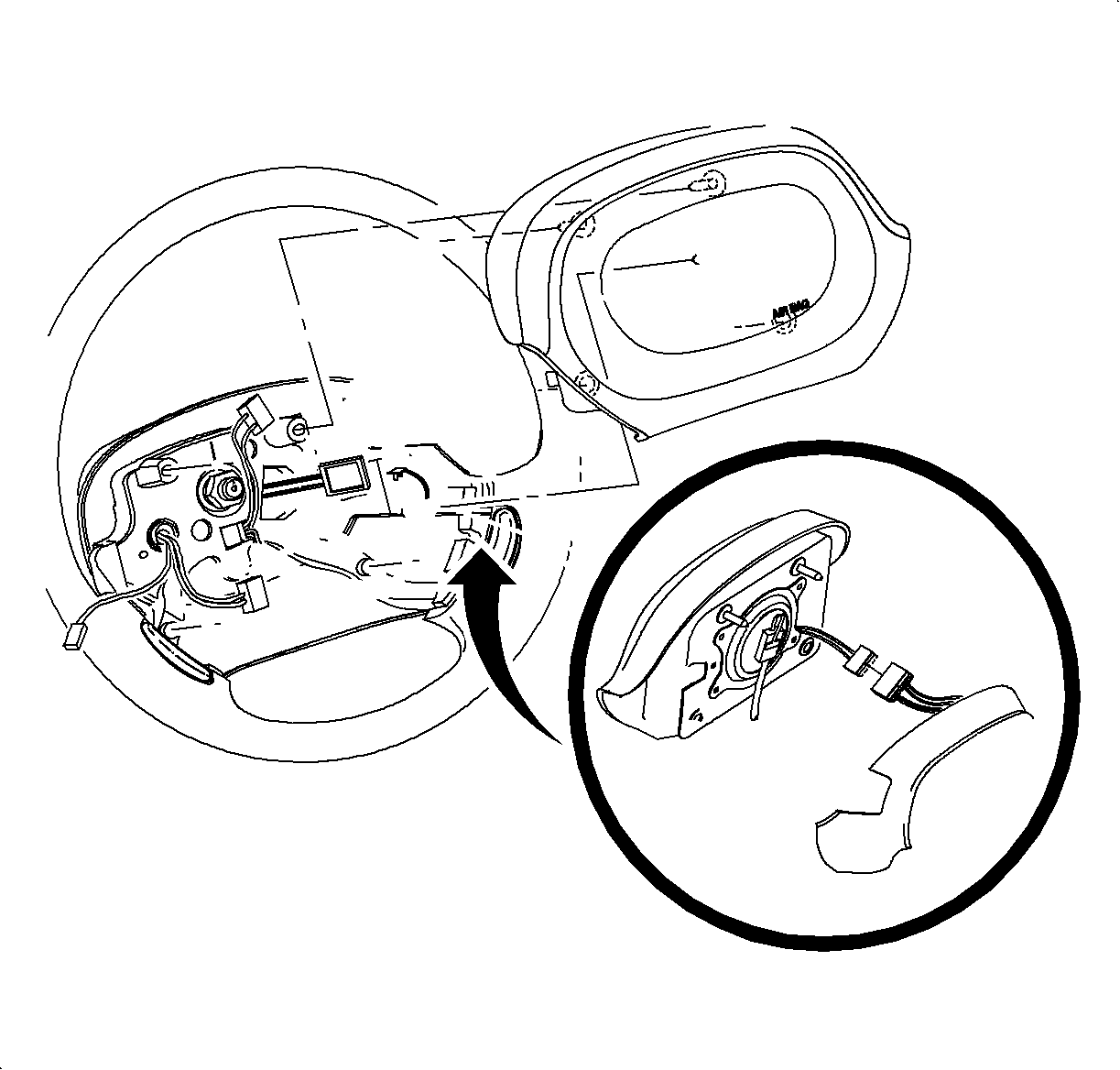

Install driver inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.
Enable the SIR System. Refer to Enabling the SIR System in SIR.
