Document ID# 874219
1998 Saturn SL2/SC2/SW2

Wheel Stud Replacement

Tools Required

SA91107NE Wheel Stud Remover

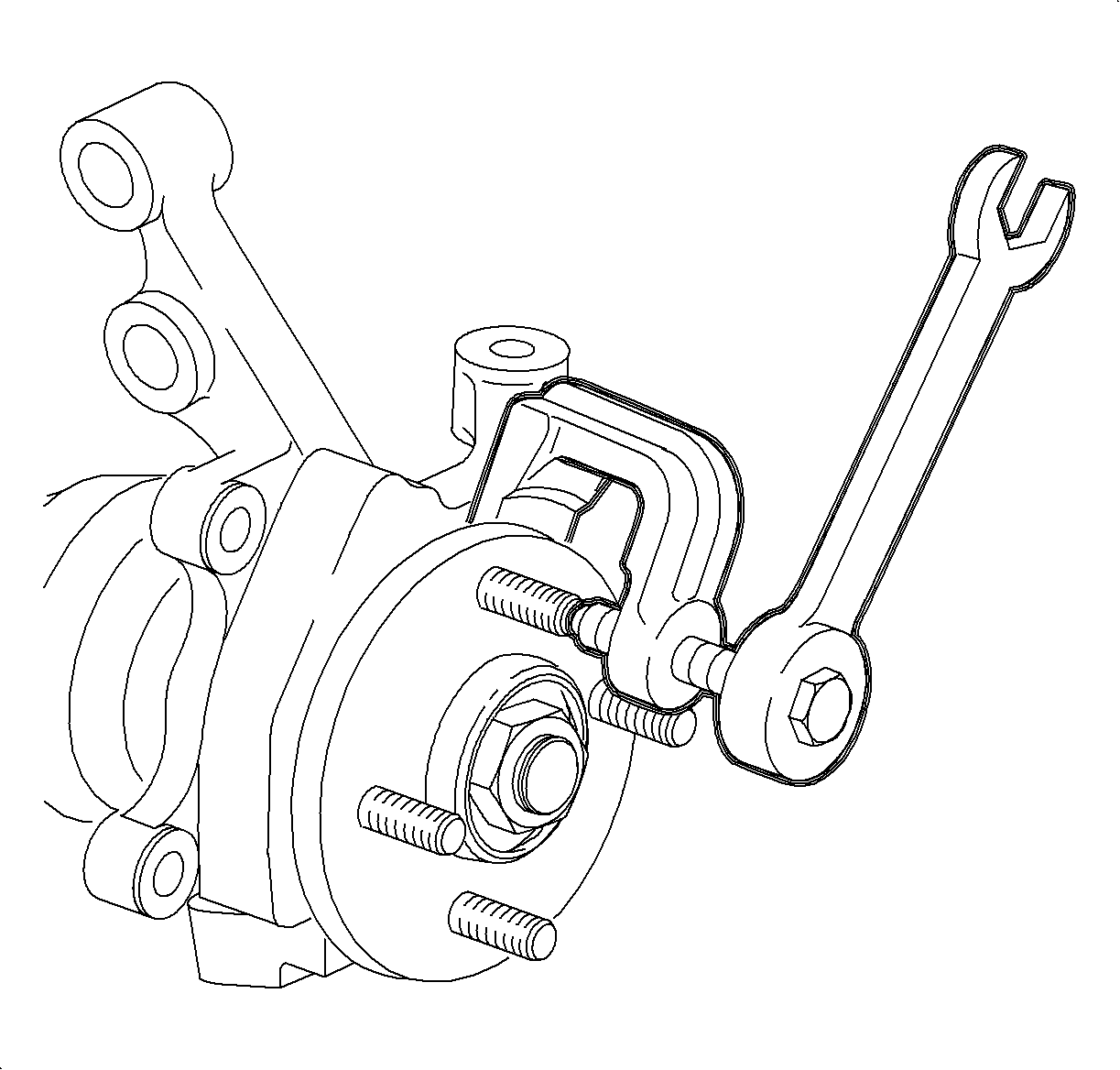

    Object Number: 861444 Size: SH
    Click here for detailed picture of above image.
  1. Using the SA91107NE or equivalent, remove wheel stud.
  2. Start the new wheel stud into the hub.
  3. Place the 4 washers over the stud.
  4. Install the wheel mounting nut with flat side toward the washer.
  5. Using an open end wrench, tighten the nut until the stud is seated.
