Document ID# 874496
1998 Saturn SL2/SC2/SW2


Dome Lamp Lens Replacement

Removal Procedure

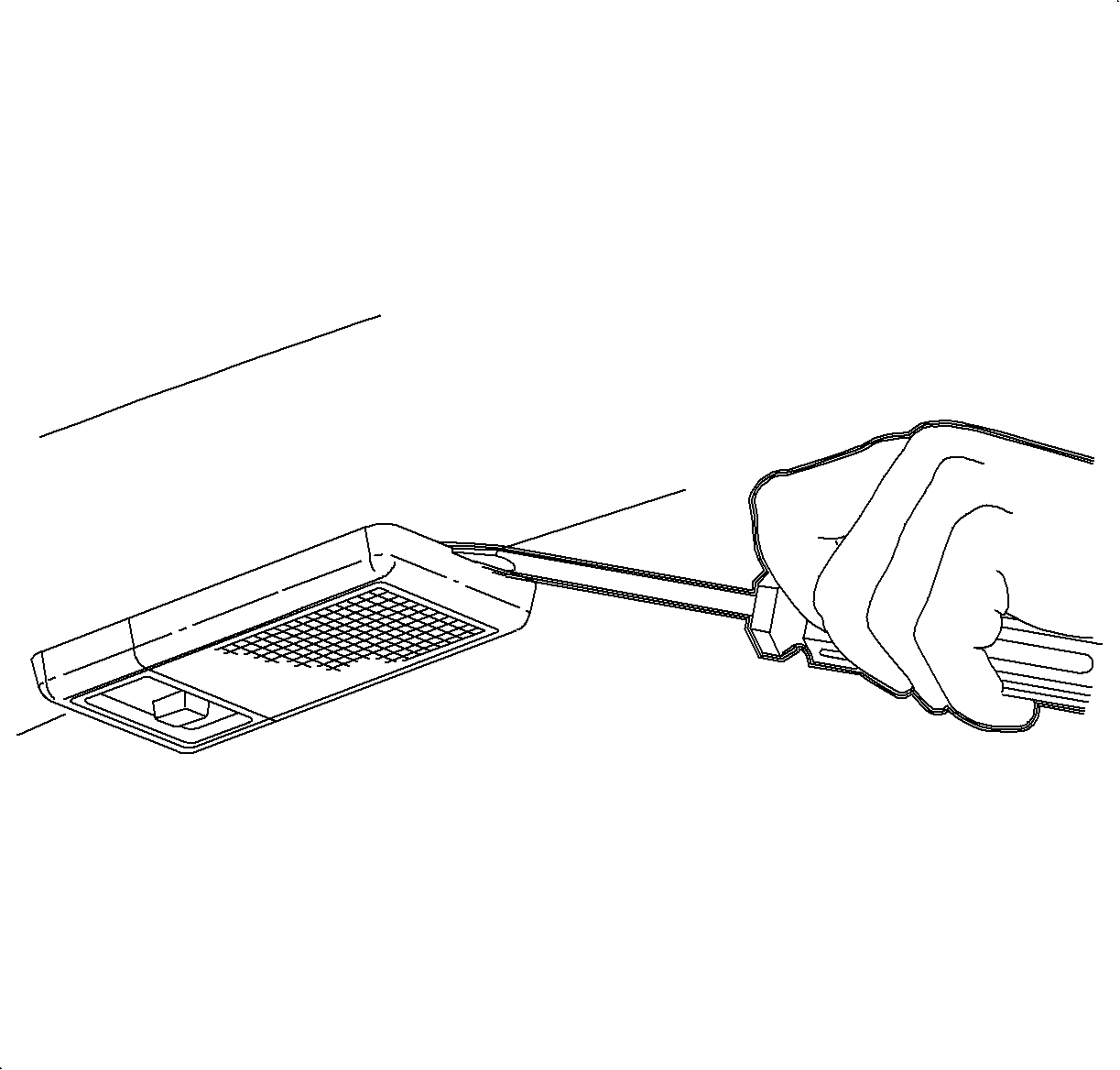

Object Number: 868099  Size: SH
Click here for detailed picture of above image.
  1. Hold the dome lamp assembly stable with hand.
  2. Important

    Be certain the screwdriver blade is placed between the dome lamp lens and the housing. Exerting pressure on the headliner may damage it and will not aid in removal of the lens.

  3. Insert a small flat blade screwdriver into the slot.
  4. Exert pressure to assembly, then twist the screwdriver to unsnap the lens from the retaining tab on the housing.
Installation Procedure
  1. Place the lens to dome lamp assembly.
  2. Press the lens into place with light pressure.
