Entertainment Connector End Views

Table 1:	CD Changer
Table 2:	Radio W/ CD Changer Jumper
Table 3:	Radio W/O CD Changer Jumper or CD Jumper Inline Harness W/ CD Changer Jumper
Table 4:	Speakers-Front/Rear
Table 5:	Speakers-Front/Rear-Right Front
Table 6:	Speakers-Front/Rear-Left Front
Table 7:	Speakers-Front/Rear-Right Rear
Table 8:	Speakers-Front/Rear-Left Rear


Connector Part Information		12047531 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	BRN/WHT	367	.35	LEFT AUDIO OUT
2	DK GRN/WHT	368	.35	RIGHT AUDIO OUT
3	BLK/WHT	372	.35	AUDIO COMMON
4	BARE	514	.35	GROUND-SHIELD
5	ORN	440	.35	POWER
6	--	--	--	--
7	BLK	350	1.0	GROUND
8	--	--	--	--
9	--	--	--	--
10	DK GRN	835	.35	E/C DATA LINE
Location: Rear Compartment-Under Package Shelf- back of CD Changer

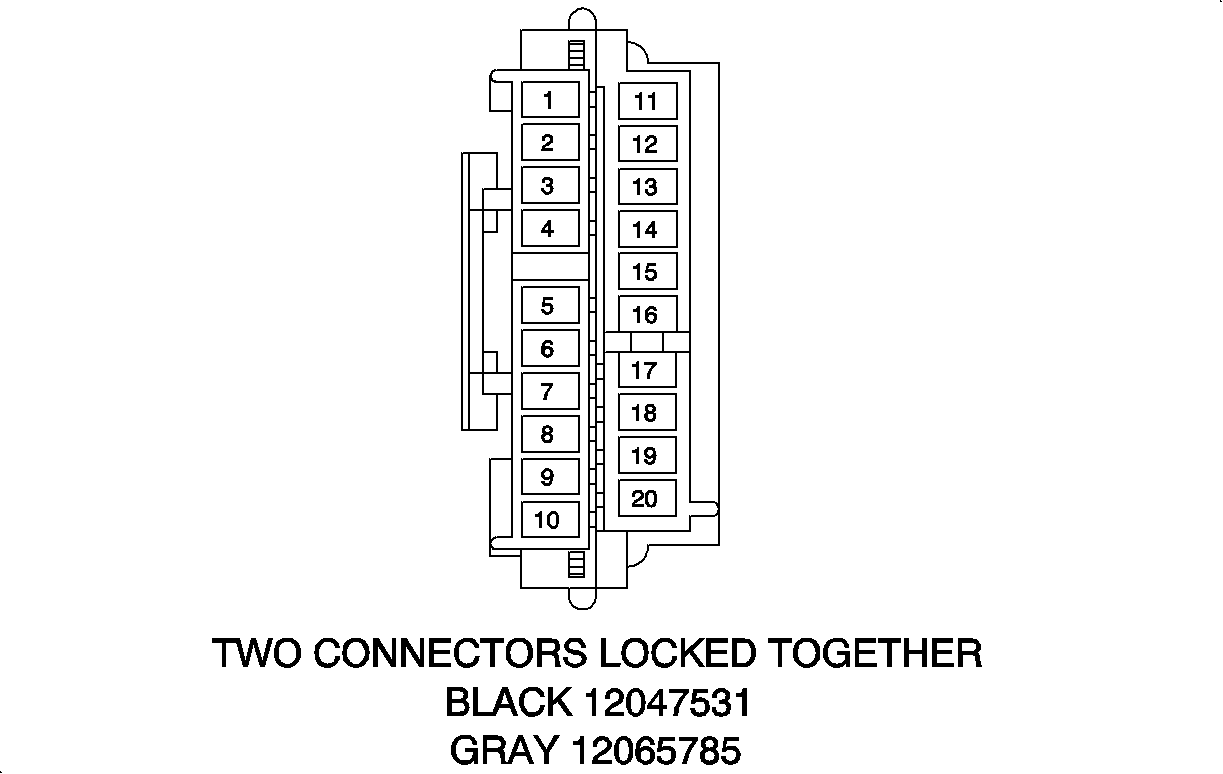

Connector Part Information		Two Connectors LockedTtogether 12047531 12065785 Black Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	GRA	118	.35	LF SPEAKER -
2	TAN	201	.35	LF SPEAKER +
3	DK GRN	117	.35	RF SPEAKER -
4	LT GRN	200	.35	RF SPEAKER +
5	BLK	350A	1.0	GROUND
6	BRN	9	.35	PARK LAMPS ON
7	DK GRN	44	.35	DIMMER ILLUM
8	--	--	--	--
9	YEL	43	.35	IGN 4
10	ORN	440A	.35	POWER
11	BRN/WHT	367	.35	LF AUDIO
12	BLK/WHT	372	.35	COMMON AUDIO
13	DK GRN/WHT	368	.35	RT AUDIO
14	BARE	514	.35	GROUND-SHIELD
15	--	--	--	--
16	DK GRN	835	.35	E/C DATA LINE
17	LT BLU	115	.35	RR SPEAKER -
18	DK BLU	46	.35	RR SPEAKER +
19	YEL	116	.35	LR SPEAKER -
20	BRN	199	.35	LR SPEAKER +
Location: I/P Center-Behind Radio

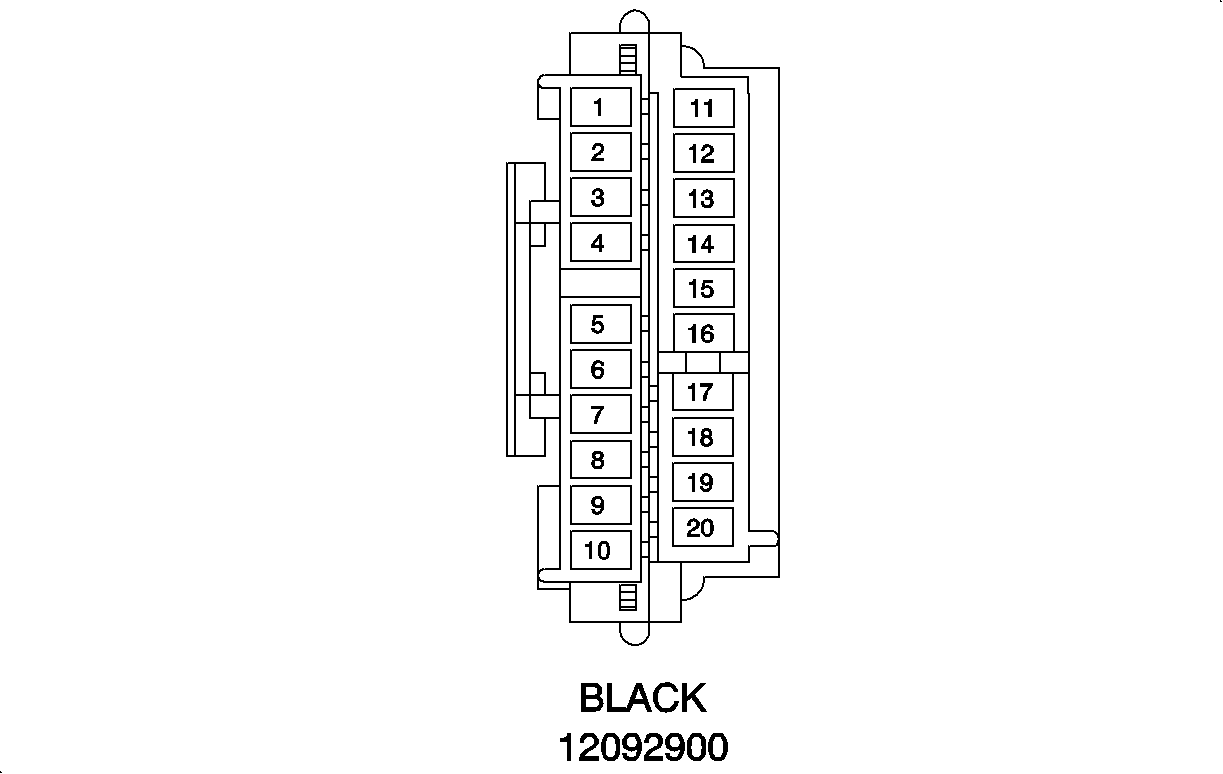

Connector Part Information		12092900 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	GRA	118A	.35	LF SPEAKER -
2	TAN	201A	.35	LF SPEAKER +
3	DK GRN	117A	.35	RF SPEAKER -
4	LT GRN	200A	.35	FR SPEAKER +
5	BLK	350A	1.0	GROUND
6	BRN	9M	.35	PARK LAMPS ON
7	DK GRN	44H	.35	DIMMER ILLUM
8	--	--	--	--
9	YEL	43	.35	IGN 4
10	ORN	440F	.35	BATT+
17	LT BLU	115A	.35	RR SPEAKER -
18	DK BLU	46A	.35	RR SPEAKER+
19	YEL	116A	.35	LR SPEAKER -
20	BRN	199A	.35	LR SPEAKER +
Location:I/P Center-Behind Radio

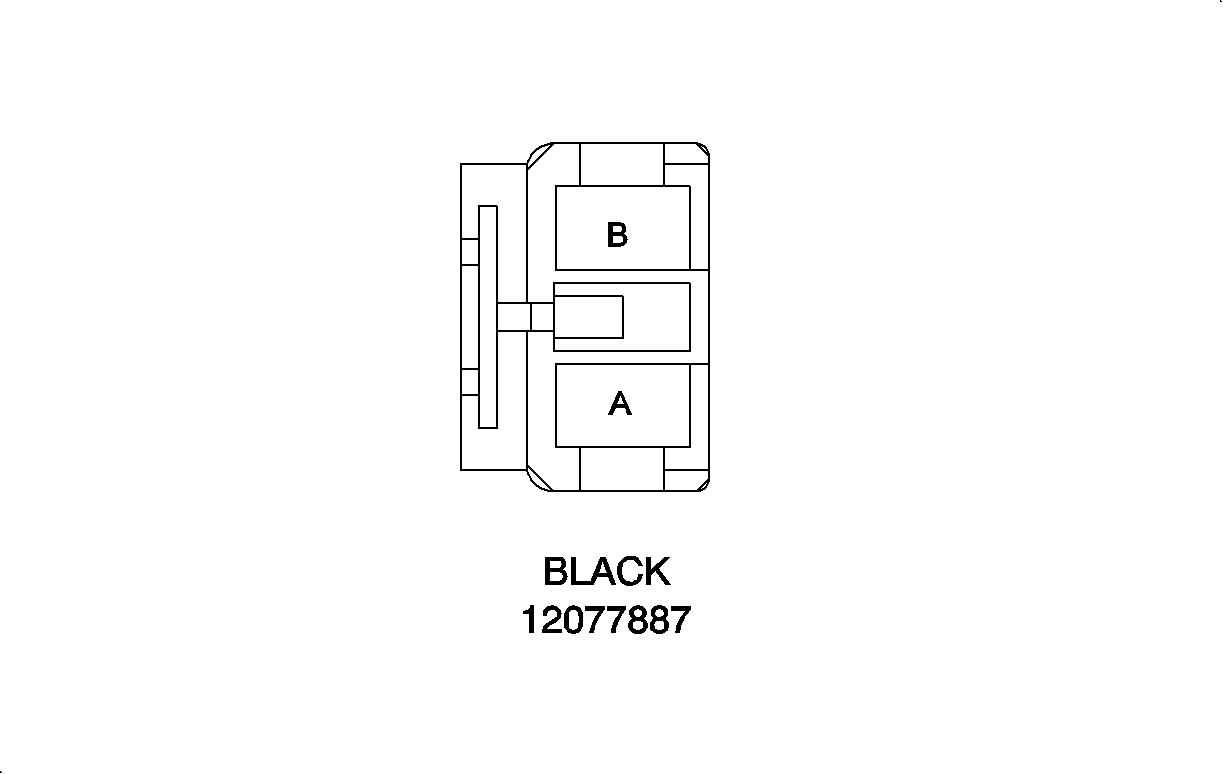

Connector Part Information		12077887 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	115	.35	SPEAKER -
B	DK BLU	46	.35	SPEAKER +
Location: Package Shelf- Right
