HVAC Connector End Views

Table 1:	Blower Motor
Table 2:	Blower Motor Resistors
Table 3:	HVAC Control Head-A/C and Recirc
Table 4:	HVAC Control Head-Mode Lever and Fan Switch Dim Illum
Table 5:	HVAC Control Head-Fan Switch
Table 6:	Recirc Door Motor

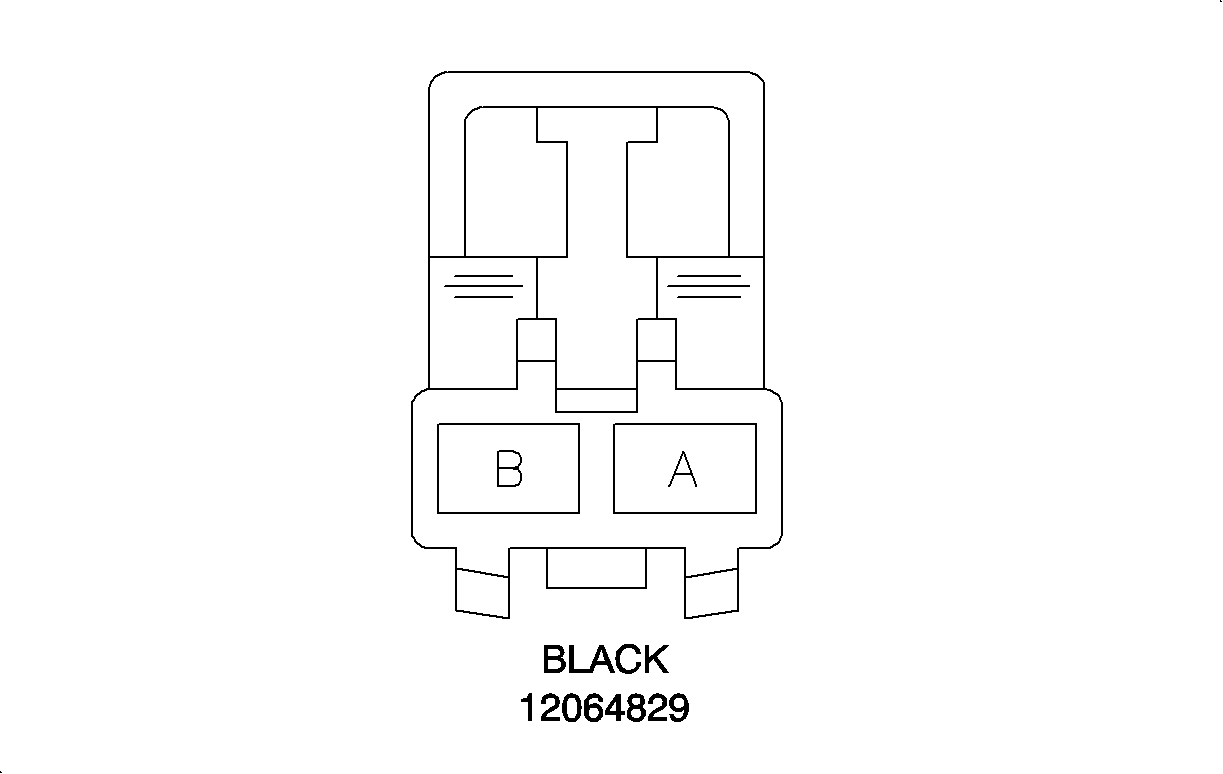

Blower Motor


Connector Part Information		12064829 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	GRA	350	3.0	GROUND
B	PPL	65	3.0	BLOWER RELAY
Location: I/P -- Right Lower

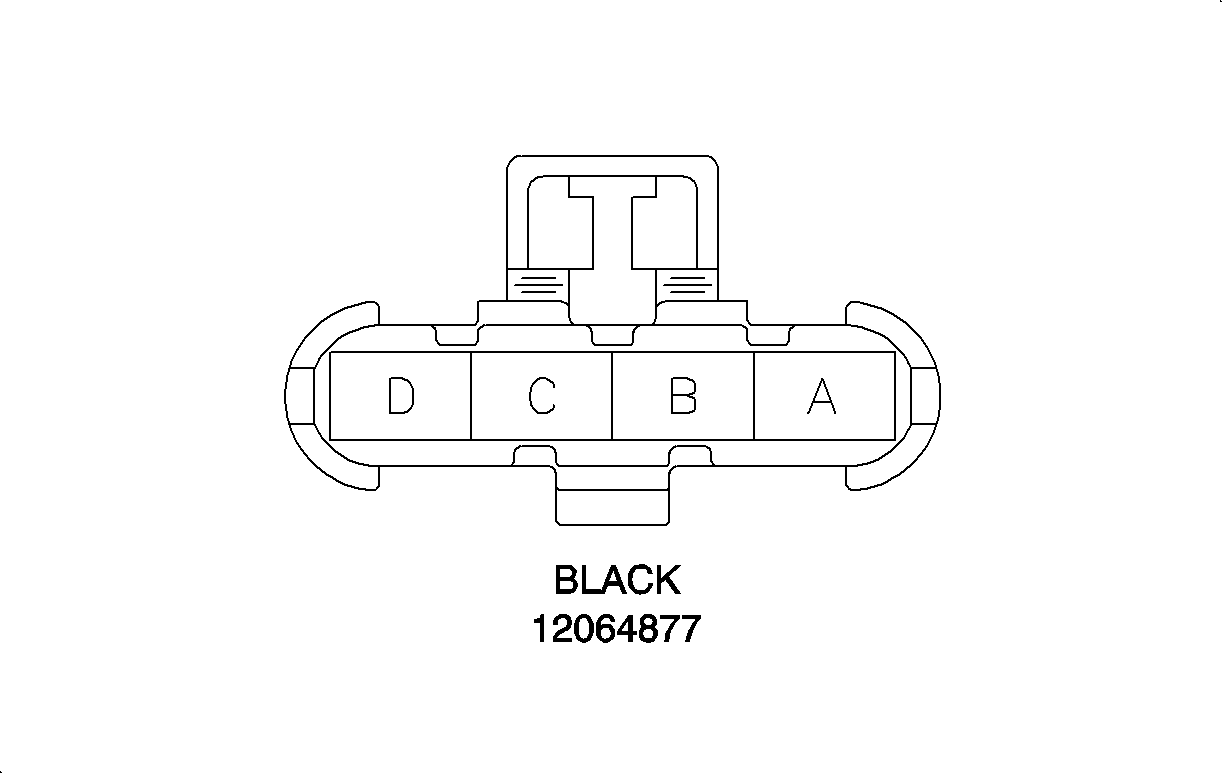

Blower Motor Resistors


Connector Part Information		12064877 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	72	.50	MED 2
B	TAN	63	.50	MED
C	PPL	101	.50	RELAY BLOWER MOTOR
D	YEL	60	.50	LO
Location: I/P -- Right Lower

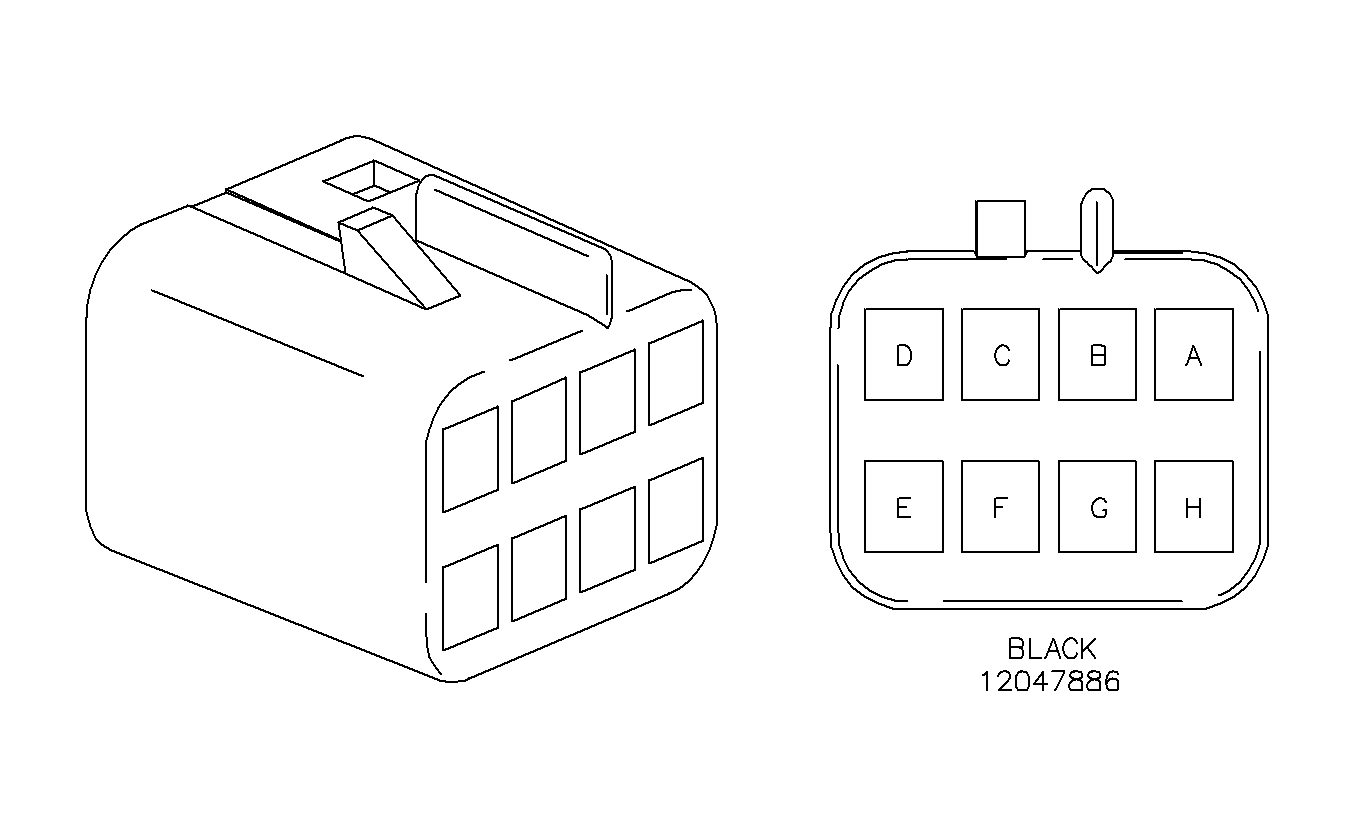

HVAC Control Head-A/C and Recirc


Connector Part Information		12047886 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK GRN	44P	.35	ILLUM FROM DIMMER SW
B	LT GRN/BLK	1647	.35	RECIRC SWITCH-CLOSED
C	PPL	1614	.35	RECIRC SWITCH B+
D	BRN	9AP	.35	ILLUM BULBS
E	LT GRN	66A	.35	A/C SWITCH
F	BLK	350B	.35	GROUND
G	PNK/WHT	1648	.35	RECIRC SWITCH + OPEN
H	--	--	--	--
Location:Center I/P

HVAC Control Head-Mode Lever and Fan Switch Dim Illum


Connector Part Information		12052832 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9AB	.35	ILLUM BULBS
B	DK GRN	44B	.35	ILLUM BULBS FROM DIMMER SW
Location:Center I/P

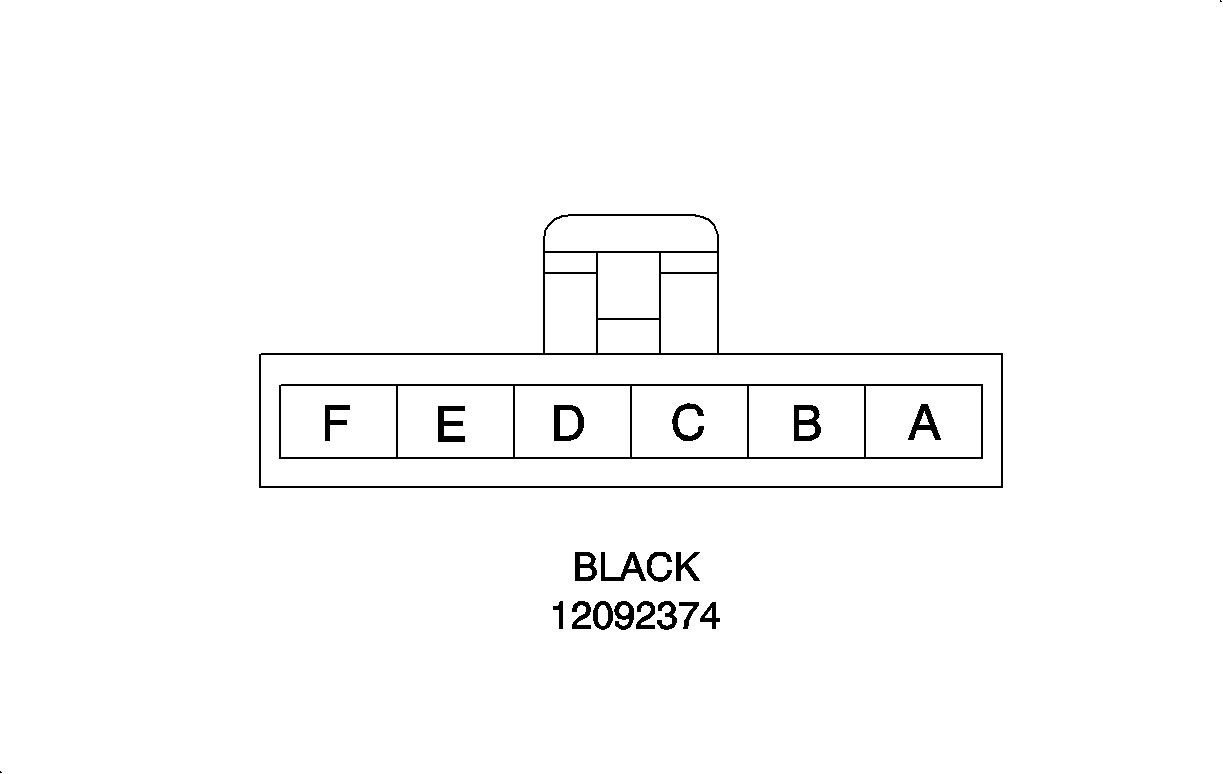

HVAC Control Head-Fan Switch


Connector Part Information		12092374 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	52	3.0	HI
B	LT BLU	72	2.0	MED 2
C	ORN	41	3.0	B+
D	TAN	63	2.0	MED
E	YEL	60	2.0	LO
F	DK GRN	1614	2.0	RECIRC SWITCH
Location: Center I/P

Recirc Door Motor


Connector Part Information		12064993 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
5	PNK/WHT	1648	.35	MOTOR FEED_OPEN
6	LT GRN/BLK	1647	.35	MOTOR FEED_CLOSED
7-10	--	--	--	--
Location: I/P Right Upper
