Weatherstrip Replacement - Rear Door Coupe (Left Side) (1st Design)

Removal Procedure

1. Remove hinge pillar garnish/sill molding. Refer to Garnish Molding Replacement - Hinge Pillar in Interior Trim.

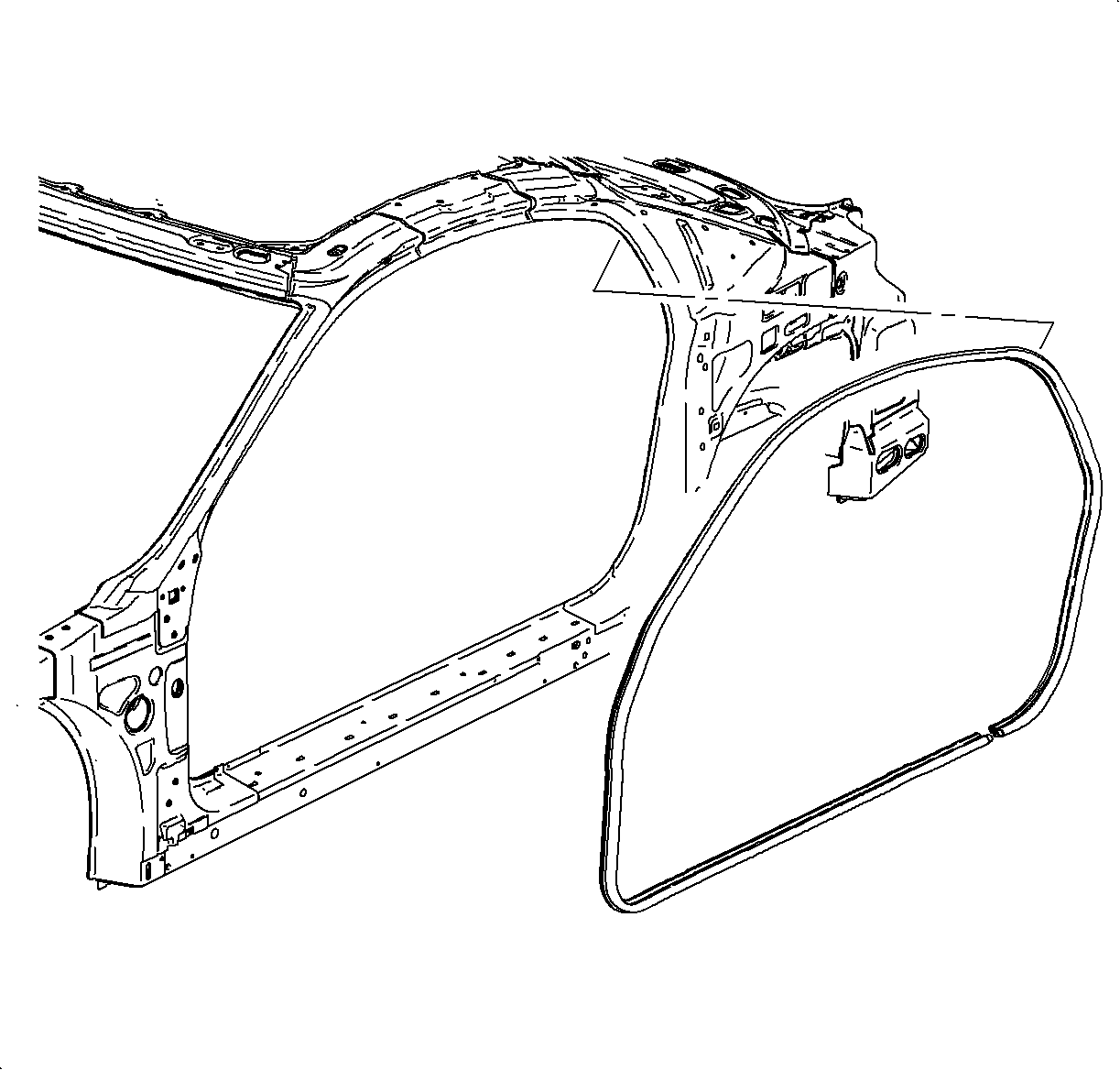

2. Noting position, slowly separate and remove weatherstrip from door opening starting at the seal joint at bottom of the door opening.

Installation Procedure

Notice

Do not us sharp tools or abrasive materials that may damage surfaces.

1. Clean old adhesive off of flange area.
Start seal over flange area at previous joint location. Install seal plug to other side when the joint is reached and firmly seat seal over the flange.
2. Install hinge pillar garnish/sill molding. Refer to Garnish Molding Replacement - Hinge Pillar .
