Fascia Replacement - Front Bumper Coupe

Removal Procedure

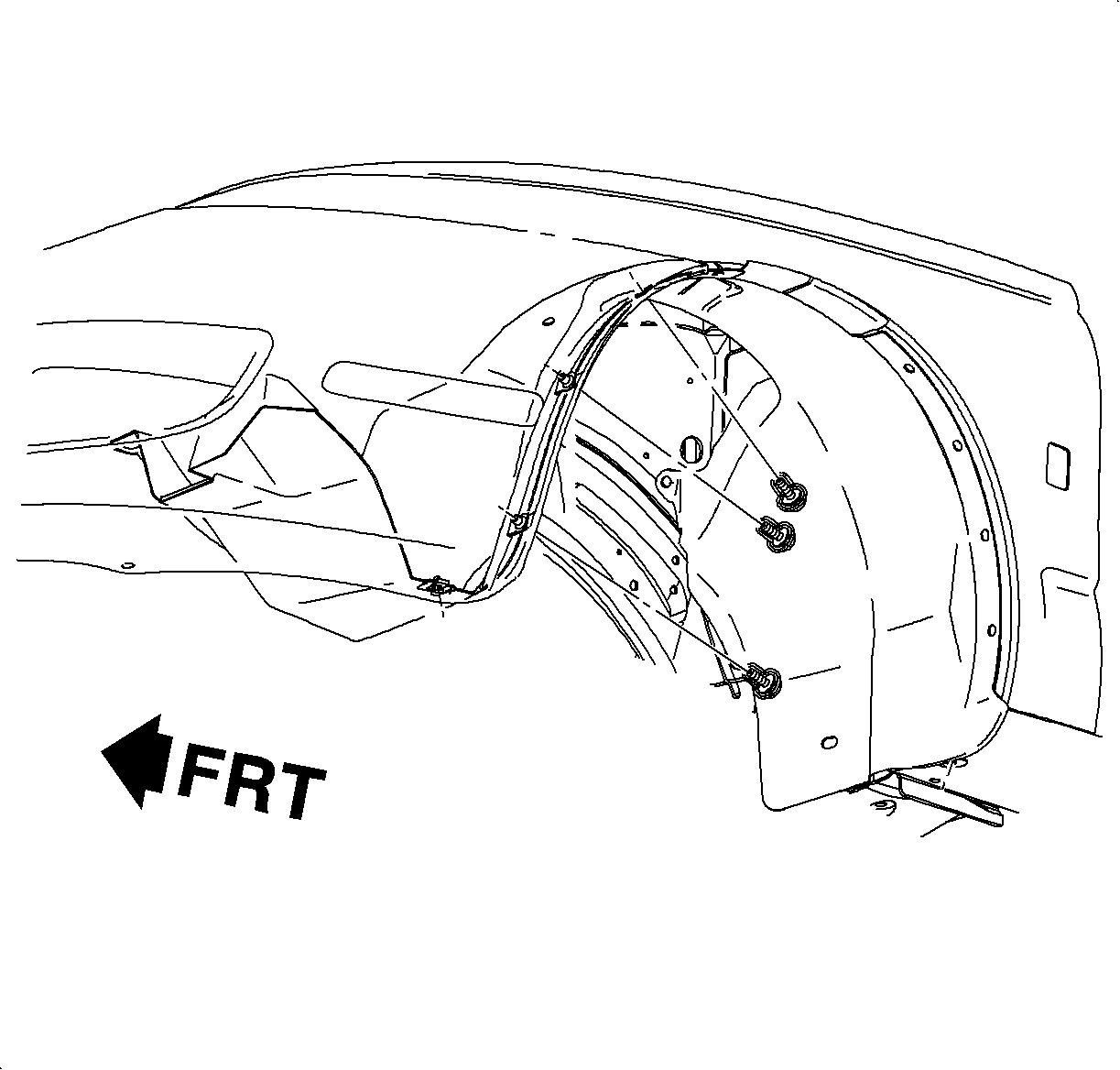

1. Remove the retainers from the wheelhouse to the fascia.
2. Remove the side marker lamps from the fascia and disconnect the wiring.




3. Remove the upper and lower retainers from the fascia.
4. Slide the fascia forward to remove.

Installation Procedure

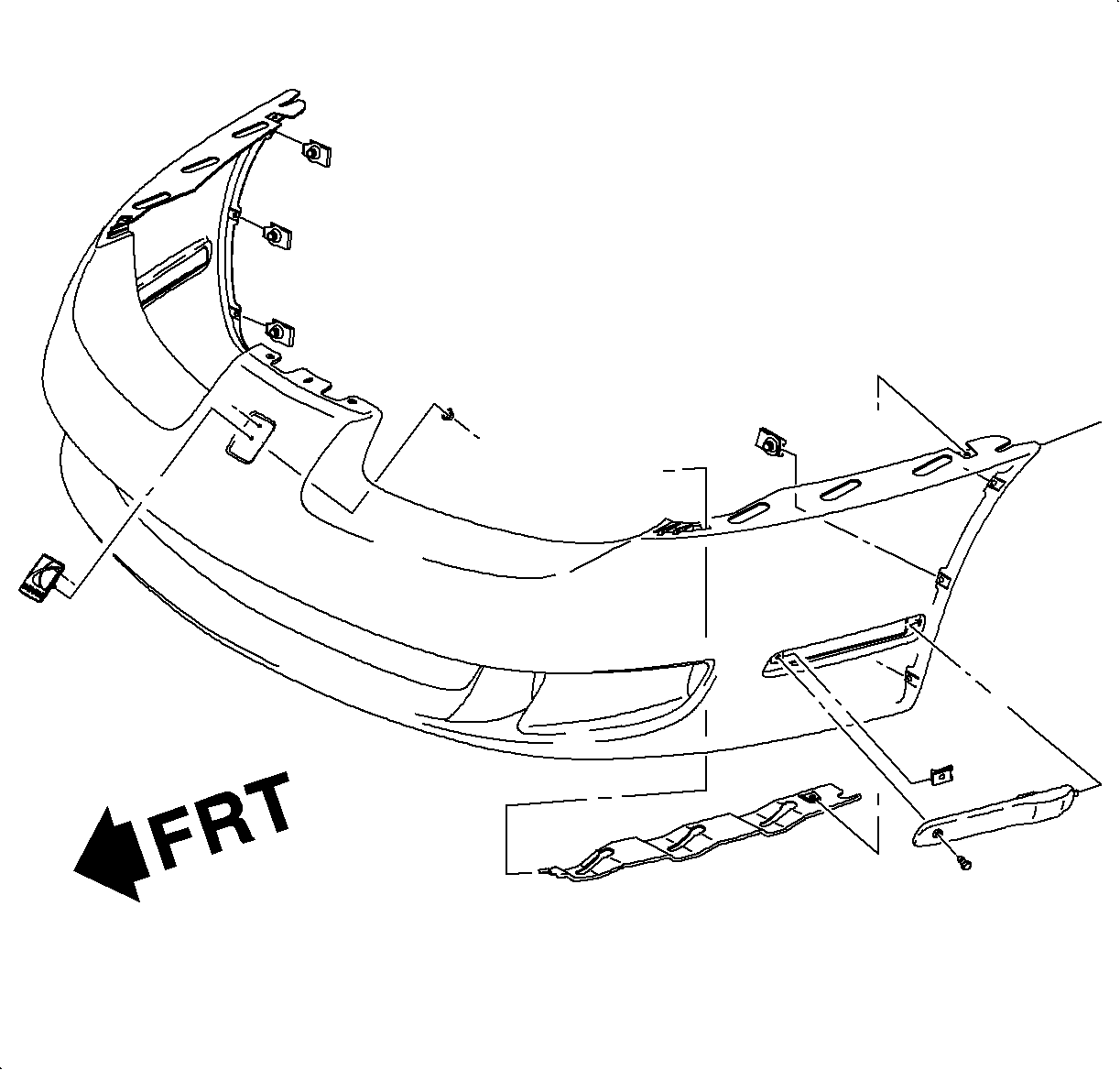

1. If installing a new fascia, transfer the side marker push nuts, fascia brackets, retainer nuts and the emblem.
2. Position the fascia on the front energy absorber.




3. Feed the side marker wiring harness through each opening.

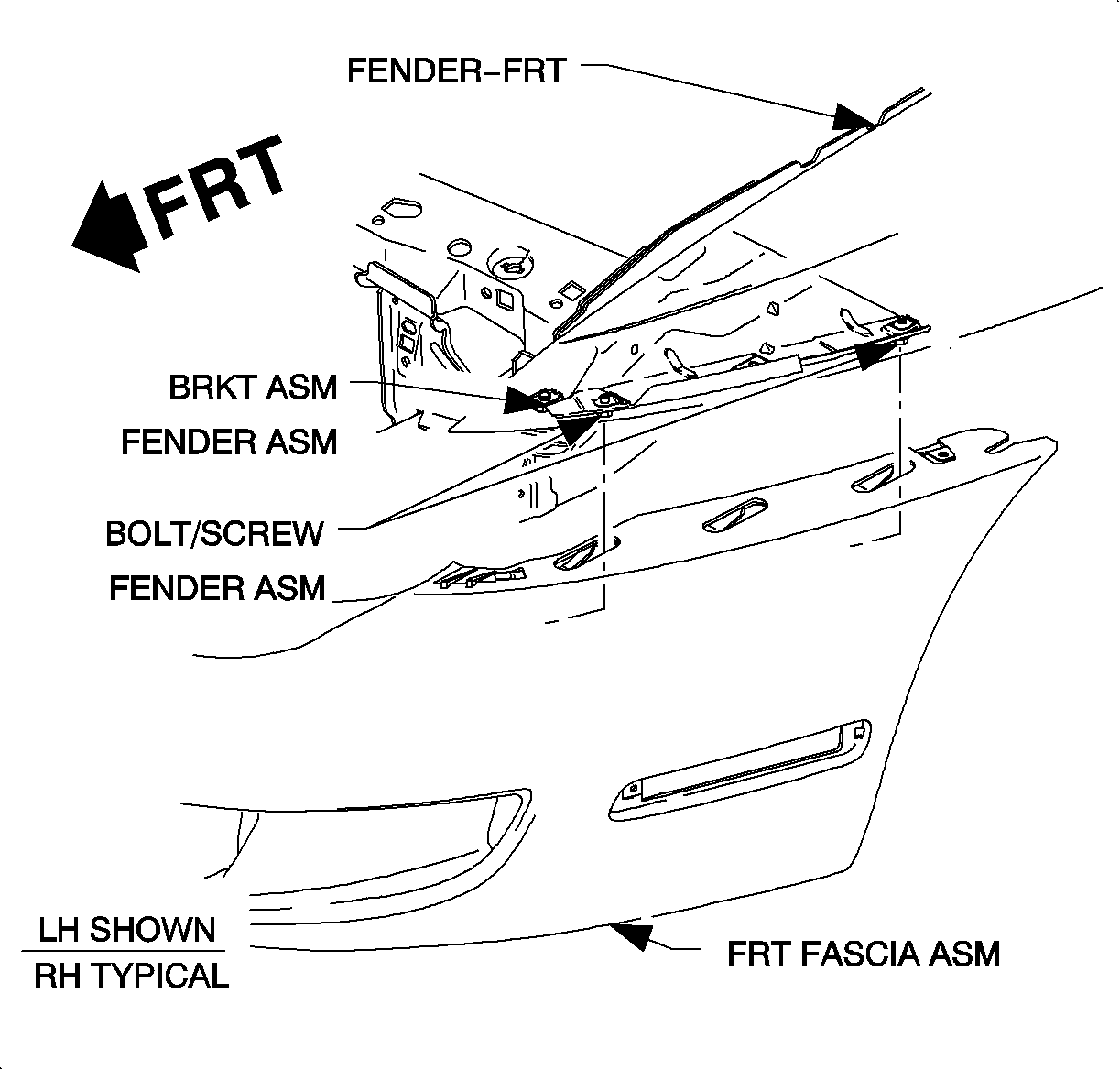

4. Install the fascia ends over the shoulder bolts extending down from fender upper support bracket assembly. The holes in fascia are slotted to allow for installation without retaining the bolts.




5. Connect the wiring harness to the front side marker lamps and install the front side marker lamps to the fascia.




6. Install the retainers from the wheelhouse to the fascia.
