Window Frame Sealing Strip - Rear Door Outer

Removal Procedure

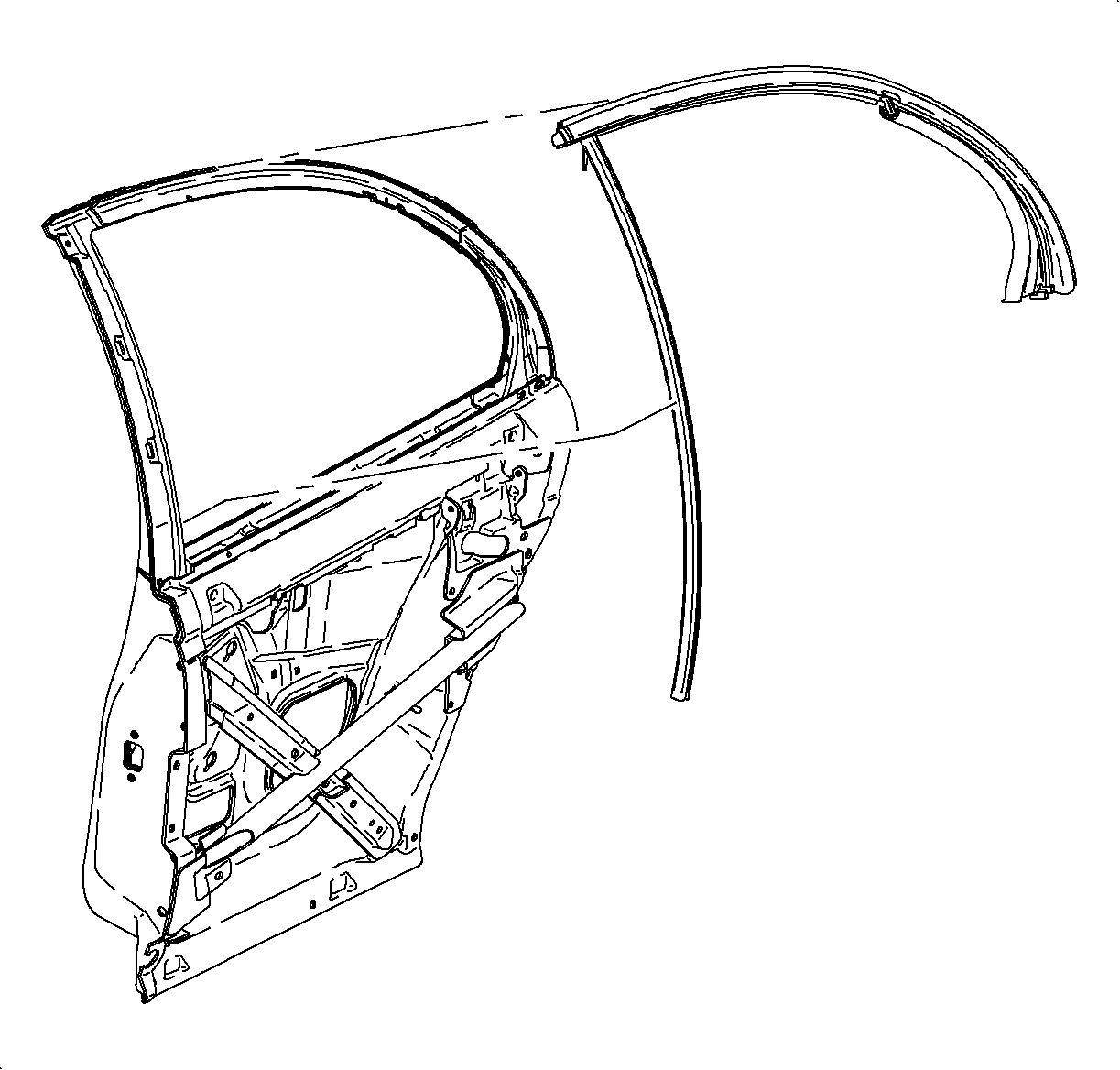

1. Remove rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door . Outer panel is removed in illustration to show location.
2. Remove rear side door stationary window. Refer to Window Replacement - Rear Door Stationary .
3. Remove rear door window. Refer to Window Replacement - Rear Door .
4. Remove door frame outer seal.

Installation Procedure

1. Install rear door outer seal and fully seat into channel and onto door header flange.
2. Install rear door stationary window glass. Refer to Window Replacement - Rear Door Stationary .
3. Install rear door window. Refer to Window Replacement - Rear Door .
4. Install rear door applique. Refer to Door Frame Applique Replacement - Rear .
5. Reinstall rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
