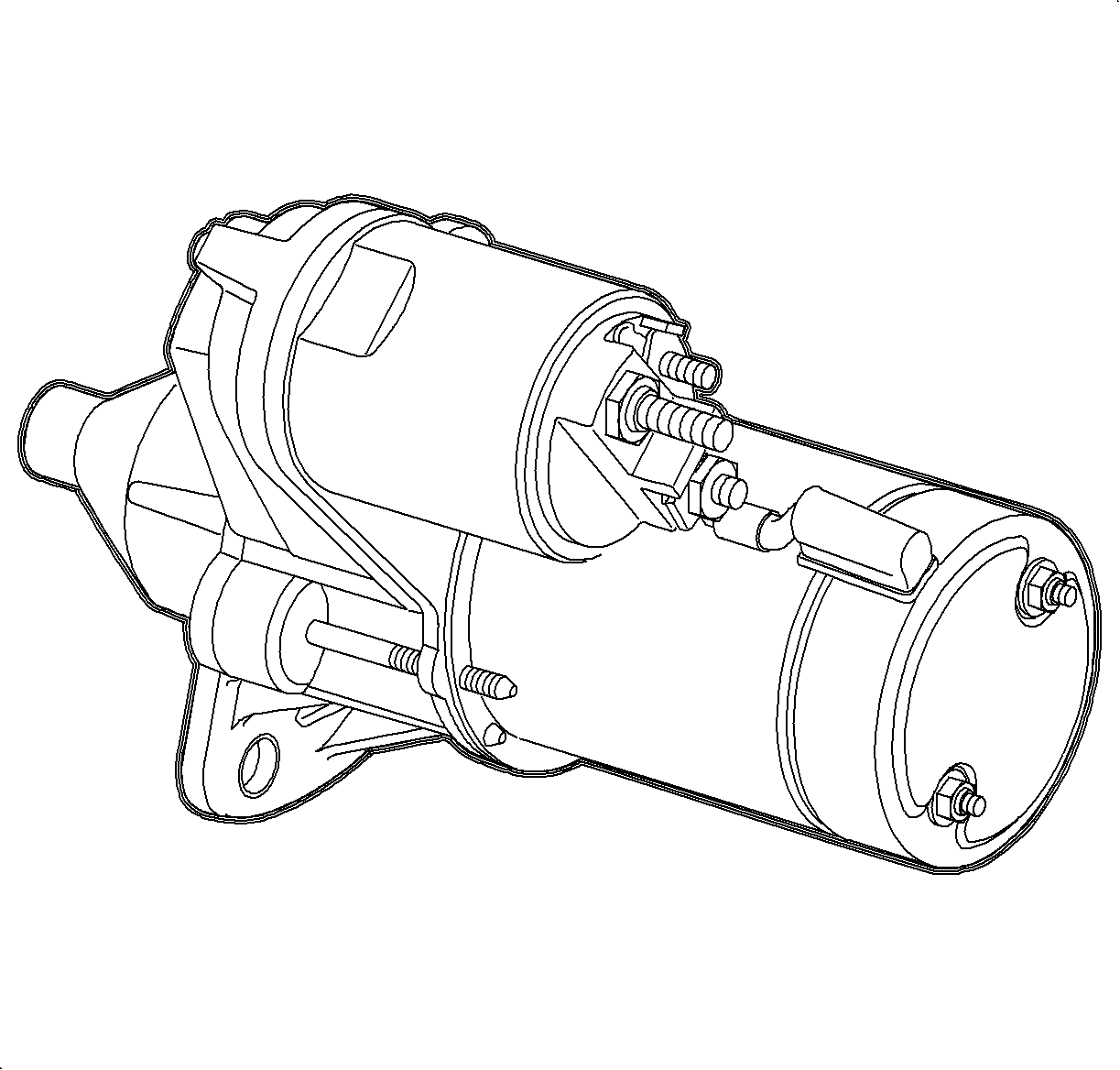

Starter Motor Replacement

For Reference

Convert starter bolts to studs by SATURNFAN Low Saturn

richpin06a Starter Replacement (updated)

richpin06a Car Will Not Start

ncinaz Saturn S Series Repairing the Starter

Removal Procedure

1. Disconnect the negative battery cable.

Caution

Ensure that the vehicle is properly supported and squarely positioned. To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle on the opposite end from which the components are being removed.

2. Jack or raise the vehicle on a hoist.





Notice

Always spray the starter solenoid electrical connections with penetrating oil prior to removing the nuts. Use extreme care to prevent cracking the solenoid end-cap, which will allow moisture to corrode the solenoid contacts.

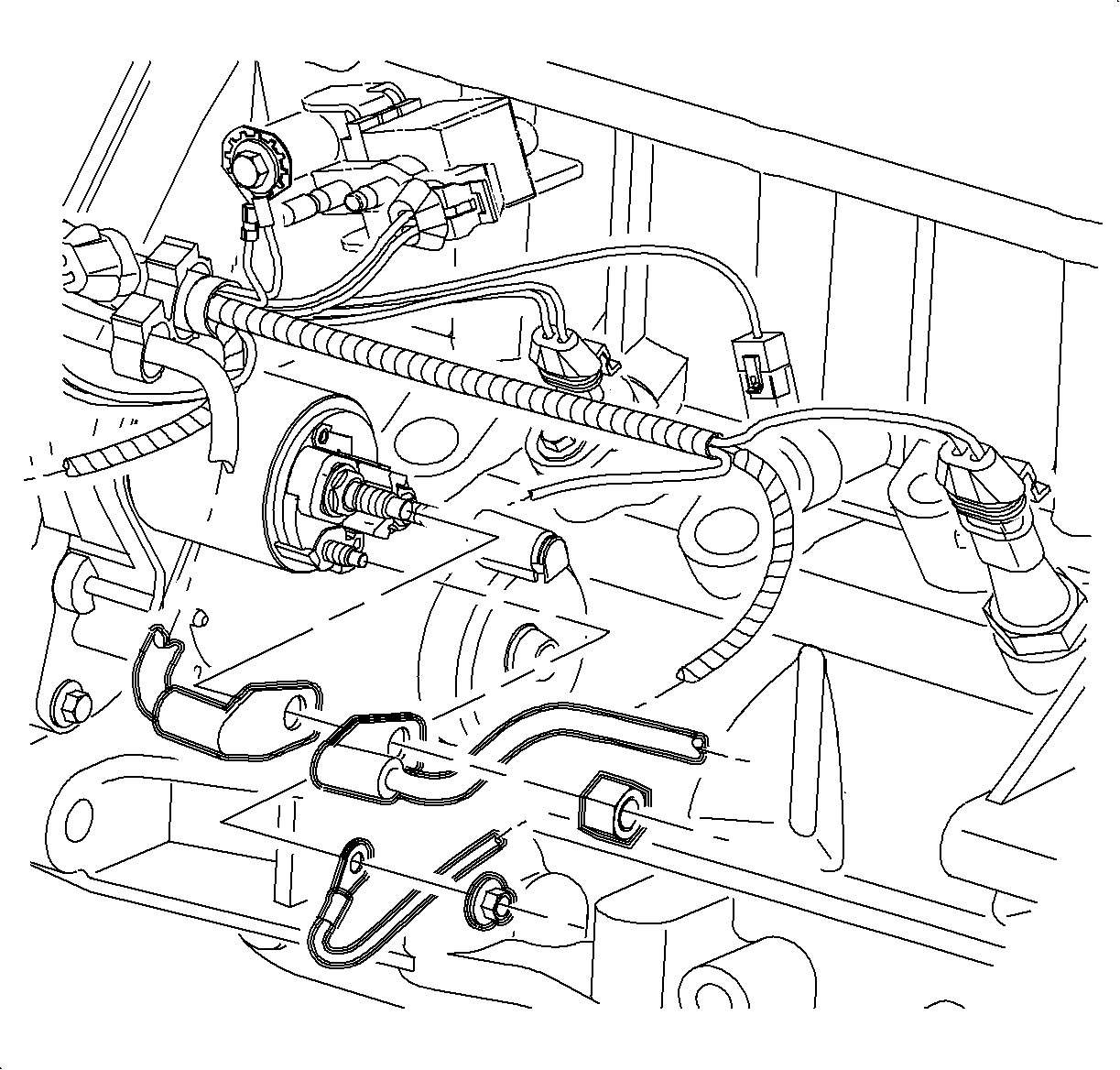

3. Disconnect the two starter electrical connections and lay the wires aside.

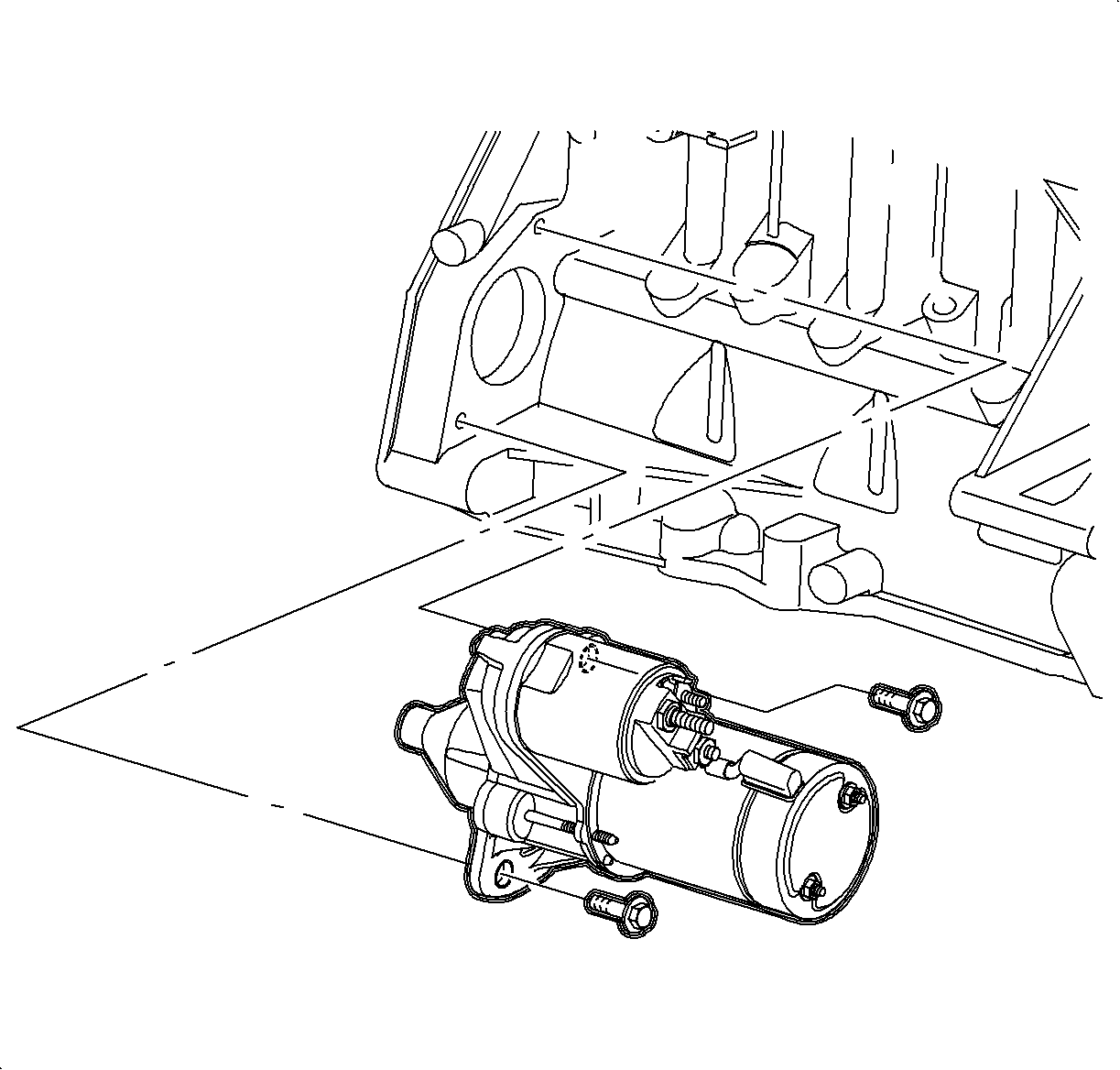

4. Remove the two starter assembly-to-engine block bolts.
5. Pull the starter rearward, toward the left-hand side of the vehicle for removal.

Installation Procedure

1. Guide the starter into the flywheel housing and rotate the assembly until the lower bolt hole in the starter nose aligns.
2. Loosely install the lower starter housing-to-engine block bolt.

Notice

Refer to Fastener Notice in Cautions and Notices.

3. Install the upper starter housing-to-engine block bolt.
Tighten

Tighten the starter motor-to-block to 37 N·m (27 lb ft).

Notice

Improper torque may crack the solenoid end-cap and allow moisture to corrode the electrical contacts.

4. Tighten both upper and lower attachment bolts and torque.
5. Install the solenoid ignition wire (small purple wire).
6. Attach the positive battery cable and fusible link to the starter and route the cable so it will not contact any rough surfaces.




7. Torque the fasteners.
Tighten
• Tighten the starter positive terminal to 10 N·m (89 lb in).
• Tighten the starter solenoid terminal to 5 N·m (44 lb in).
8. Lower the vehicle.
9. Connect the battery negative cable.
Tighten

Tighten the battery terminal bolts to 17 N·m (13 lb ft).
