Document ID# 1197867
1998 Saturn SL2/SC2/SW2

Blower Motor Resistor Replacement RHD Domestic Only

Removal Procedure

    Object Number: 860836 Size: SH
    Click here for detailed picture of above image.
  1. Disconnect the blower motor resistor connector.

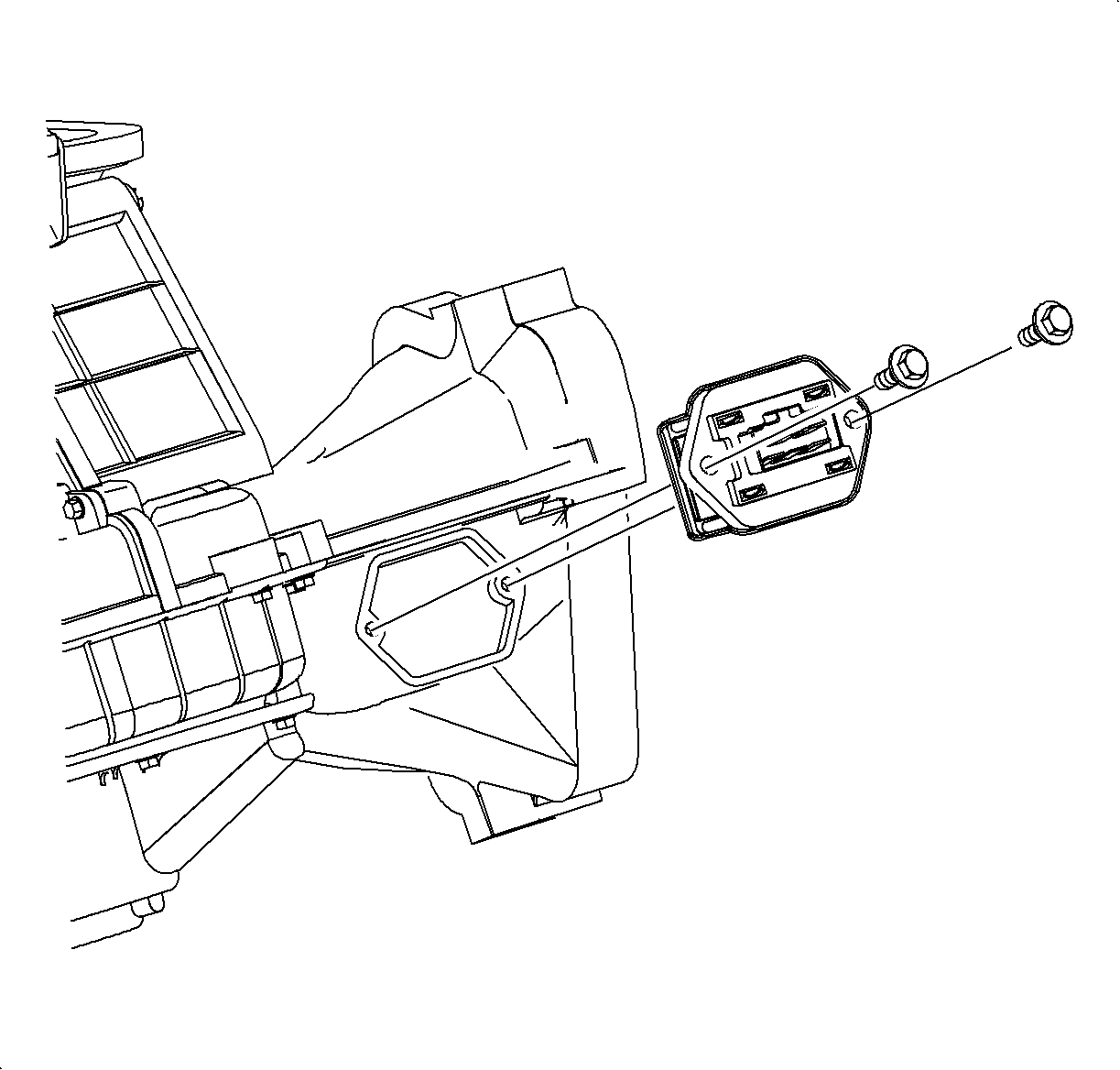

    2. Object Number: 860828 Size: SH
    Click here for detailed picture of above image.
  2. Remove the screws and the blower motor resistor.
Installation Procedure

    Object Number: 860828 Size: SH
    Click here for detailed picture of above image.
  1. Install the blower motor resistor and the screws.

    2. Object Number: 860836 Size: SH
    Click here for detailed picture of above image.
  2. Connect the blower motor resistor connector.
