Document ID# 872648
1998 Saturn SL2/SC2/SW2


Thrust Angles Description

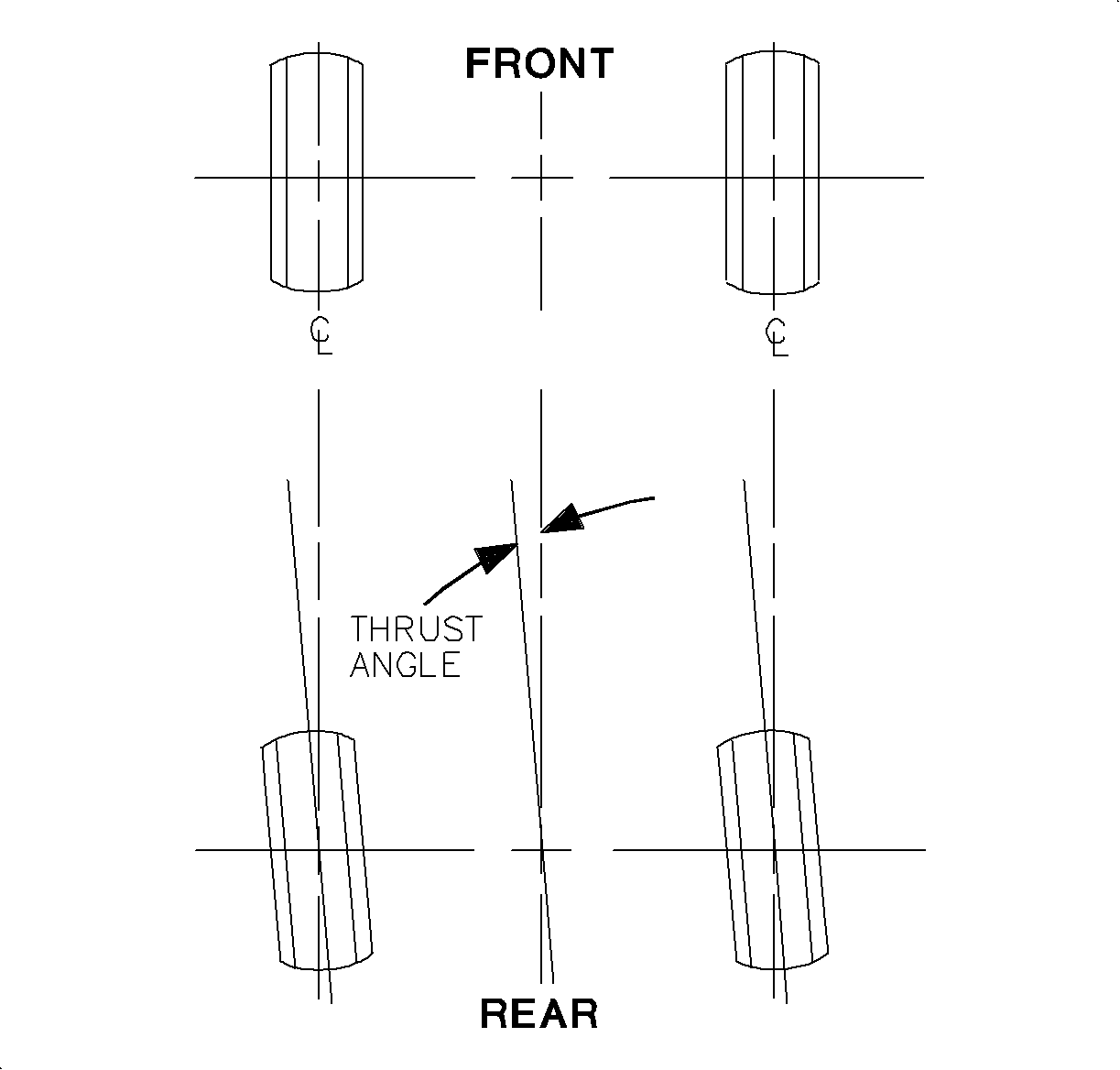

Object Number: 859319  Size: SH
Click here for detailed picture of above image.

Thrust angle is the angle between the geometric centerline of the vehicle and the direction that the rear wheels track. Ideally, the thrust angle is equal to zero.

(LR Toe° - RR Toe°) ÷ 2 = Thrust Angle°
