Speaker Replacement - Rear Coupe/Sedan

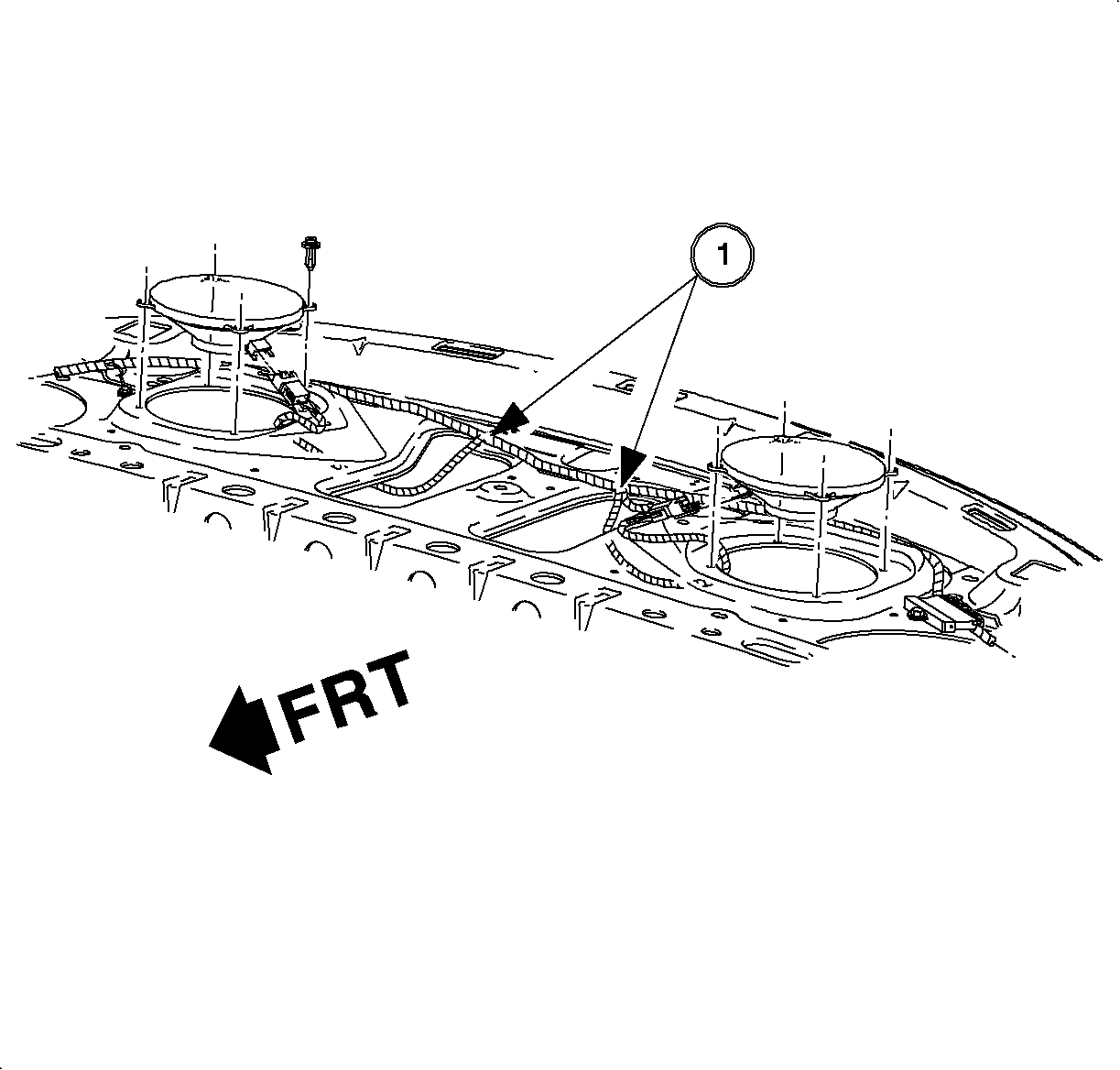

Removal Procedure

1. Remove the rear window trim finish panel. Refer to Finish Panel Replacement - Upper Rear Trim in Interior Trim.
2. Remove the speaker fasteners and pull the speaker away from the panel assembly.
3. Disconnect the speaker wire harness from the speaker.
4. Remove the speaker from the vehicle.

Installation Procedure

1. Connect the speaker wire harness to the speaker.

Notice

Refer to Fastener Notice in Cautions and Notices.

2. Position the speaker in panel assembly and install the fasteners.
Tighten

Tighten the rear speaker fasteners to 2.5 N·m (22 lb in).

3. Install the rear window trim finish panel. Refer to Finish Panel Replacement - Upper Rear Trim in Interior Trim.
