1998 Saturn SL2/SC2/SW2

Cruise Control Connector End Views

Table 1: Cruise Control Module
Table 2: Cruise Control/Horn Switch

Cruise Control Module


Object Number: 916884 Size: CH
Click here for detailed picture of above image.

Connector Part Information
  • 12064993
  • Black

Cavity

Wire Color

Circuit Number

Wire Size

Circuit Function

5

BRN

341C

.35

IGN

6

LT BLU

1888

.35

CLUTCH INPUT

7

BRN

86A

.35

BRAKE SWITCH INPUT

8

PNK

1886

.35

MOVE SIGNAL

9

BLK

350E

.35

GROUND

10

LT GRN

1887

.35

MOVE DIRECTION SIGNAL

Location: I/P-Lower Left

Cruise Control/Horn Switch

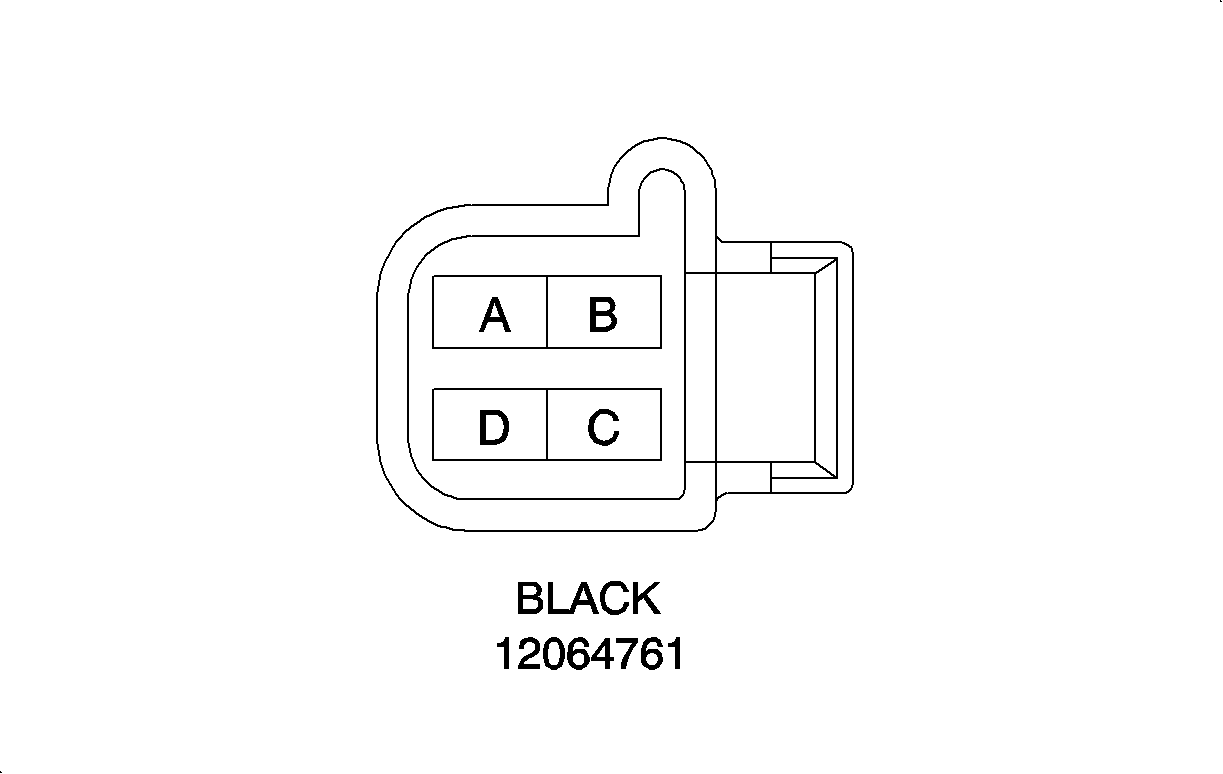

Object Number: 917040 Size: CH
Click here for detailed picture of above image.

Connector Part Information
  • 12064761
  • Black

Cavity

Wire Color

Circuit Number

Wire Size

Circuit Function

A

BLK

28

.35

TO HORN SWITCH

B

--

--

--

--

C

GRA

1884

.35

CRUISE CONTROL SWITCH OUTPUT

D

BRN

341B

.35

IGN FEED TO CRUISE CONTROL SWITCH

Location: Steering Wheel
