Stationary Windows Connector End Views

Table 1:	POD Switches-Fog Lamp/Traction/Rear Defog Switch
Table 2:	Rear Window Defog-Right
Table 3:	Rear Window Defog-Left

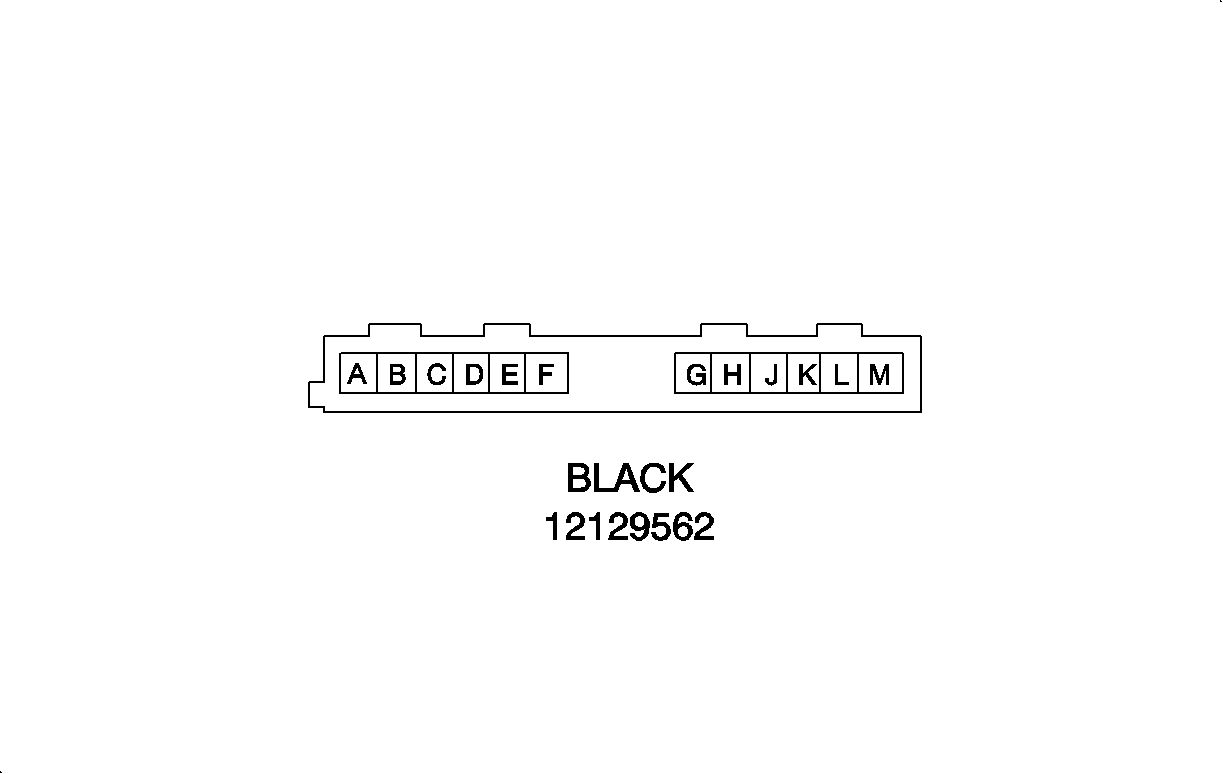

Connector Part Information		121295622 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	YEL	317	.35	FOG LAMP RELAY CONTROL
B	PNK	1200	.35	HI BEAM INPUT
C	PPL/WHT	1572	.35	TRACTION CONT ENABLE
D	LT BLU	292	.35	REAR DEFOG SW ON/OFF
E-G	--	--	--	--
H	BLK	350J	.35	POD SWITCHES GROUND
J	WHT	193	.35	REAR DEFOG RELAY/ON LED CONTROL
K	BRN	641E	.35	TRACTION CONT/REAR DEFOG ING3 FEED
L	DK GRN	44L	.35	POD SWITCHES ILLUMINATION
M	BRN	9AN	.35	POD SWITCHES ILLUMINATION
Location: I/P Center


Connector Part Information		12092582 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK BLK	550HH-sc 550JJ-sl 293A	2.0 2.0 2.0	REAR DEFOG-LOW-SL/SC REAR DEFOG-LOW-SL REAR DEFOG-HIGH-SW
Location: Right Back Window


Connector Part Information		12092582 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	293 550EC	2.0 2.0	REAR DEFOG-HIGH-SL/SC REAR DEFOG-LOW-SW
Location: Left Back Window
