Document ID# 883207
1998 Saturn SL2/SC2/SW2

Secondary Air Injection (AIR) Check Valve Replacement

Removal Procedure

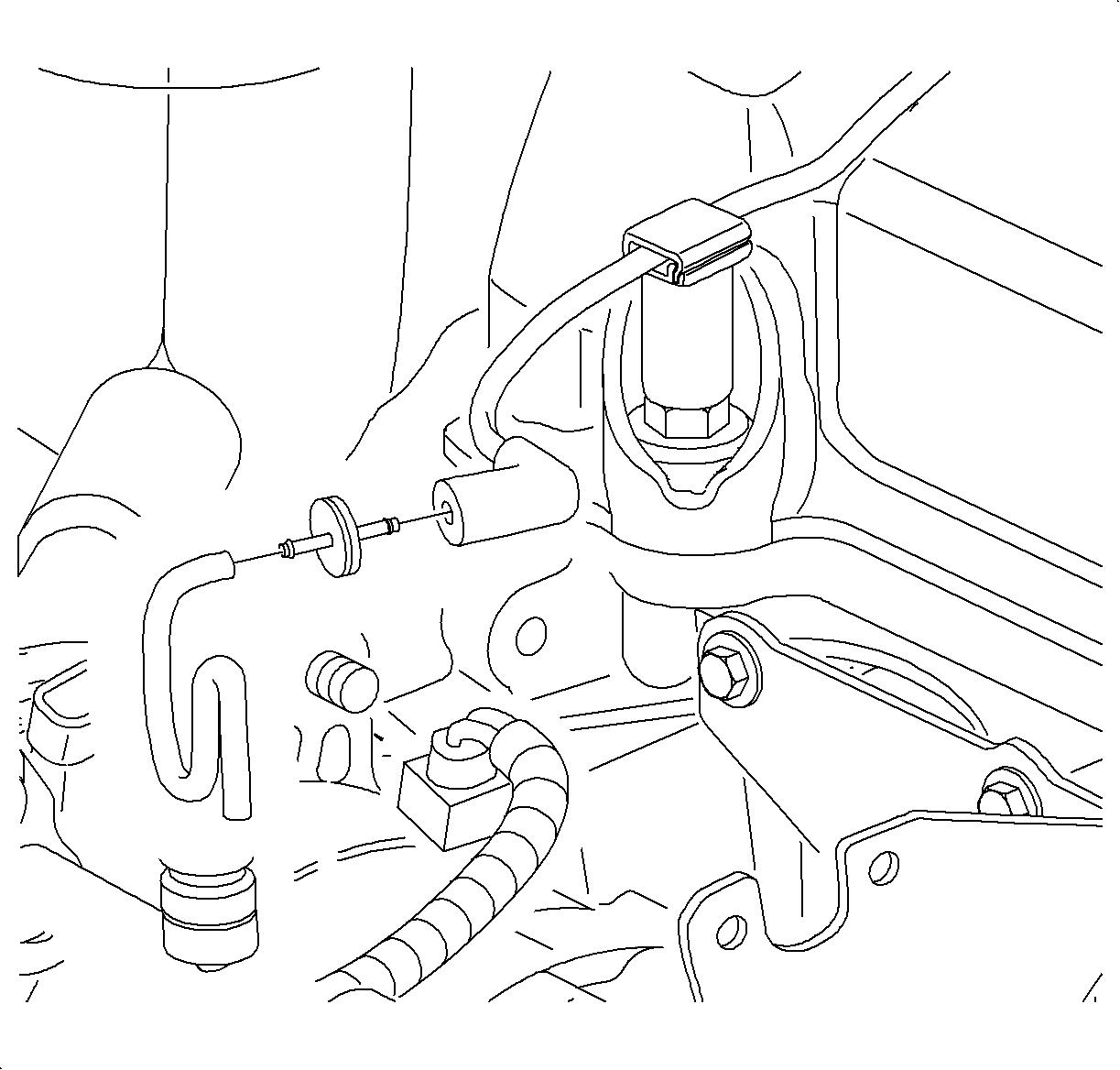

Object Number: 873554 Size: SH
Click here for detailed picture of above image.

Remove the vacuum hoses from both ends of the check valve.

Installation Procedure

    Object Number: 873554 Size: SH
    Click here for detailed picture of above image.
  1. Install the check valve with the side labeled VAC, black, facing toward the vacuum source.
  2. Install the vacuum hoses.
