Document ID# 874070
1998 Saturn SL2/SC2/SW2

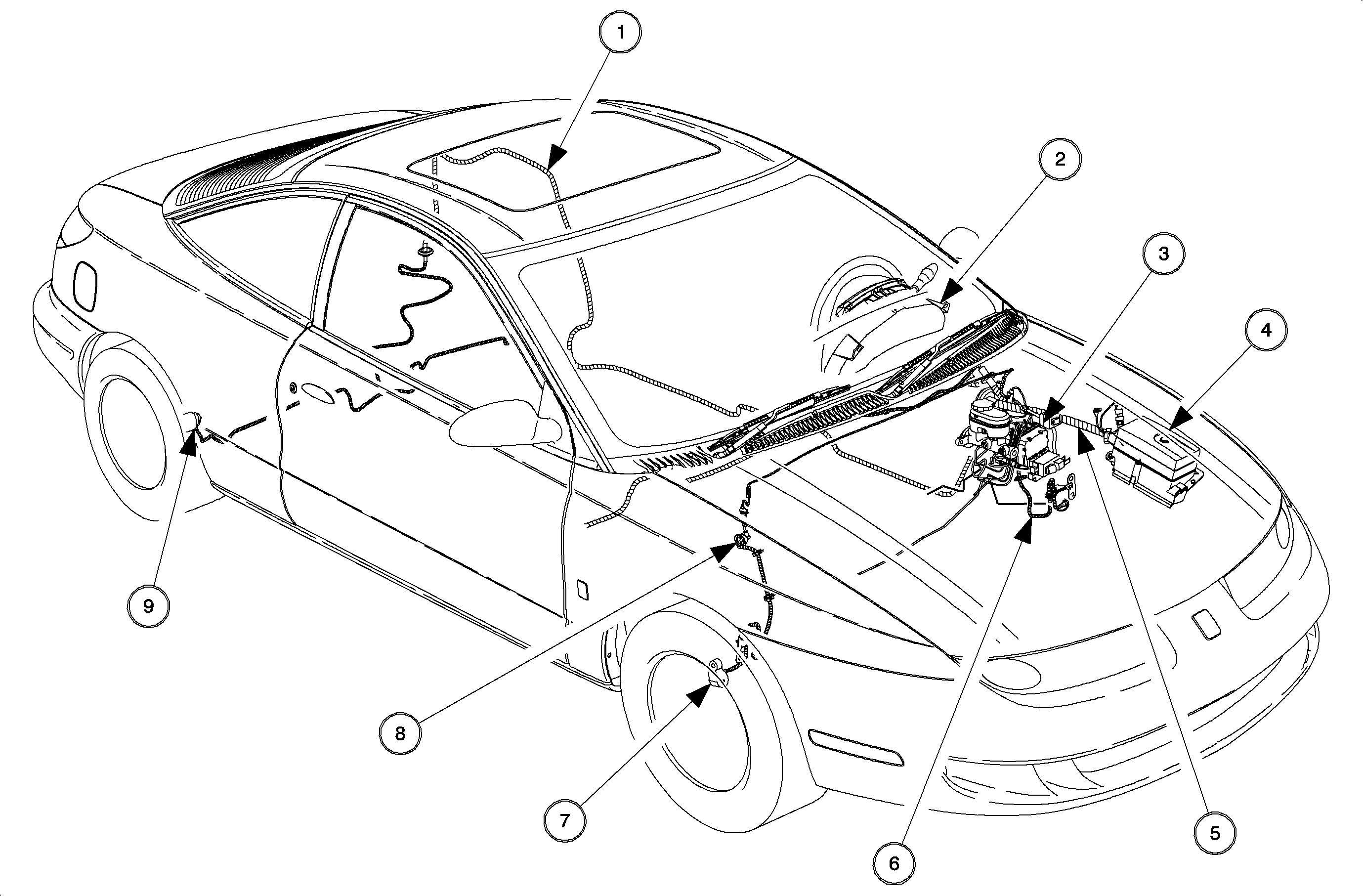

ABS Component Views


Object Number: 866349 Size: MF
Click here for detailed picture of above image.
(1)Main Body Wire Harness
(2)Trac Switch
(3)ABS Control Module (EBTCM) - (with Brake Pressure Modulator Valve)
(4)Underhood Fuse Block
(5)I/P Wire Harness
(6)ABS Harness Left Side
(7)Front Wheel Speed Sensor
(8)ABS Harness Right Side
(9)Rear Wheel Speed Sensor
