Power Door Systems Connector End Views

Table 1:	Door Lock Motor-Sedan/Wagon
Table 2:	Door Lock Motor-Coupe
Table 3:	Door Jamb Switch
Table 4:	Door Lock Switch
Table 5:	Mirror Motor
Table 6:	Mirror Switch
Table 7:	Power Window Master Switch-Coupe
Table 8:	Power Window Master Switch-Coupe
Table 9:	Power Window Master Switch-Sedan, Wagon
Table 10:	Power Window Master Switch-Sedan, Wagon
Table 11:	Rear Door Window Switches-Sedan, Wagon
Table 12:	Recirc Door Motor
Table 13:	Speakers-Front/Rear
Table 14:	Speakers-Front/Rear-Right Front
Table 15:	Speakers-Front/Rear-Left Front
Table 16:	Speakers-Front/Rear-Right Rear
Table 17:	Speakers-Front/Rear-Left Rear

Door Lock Motor-Sedan/Wagon

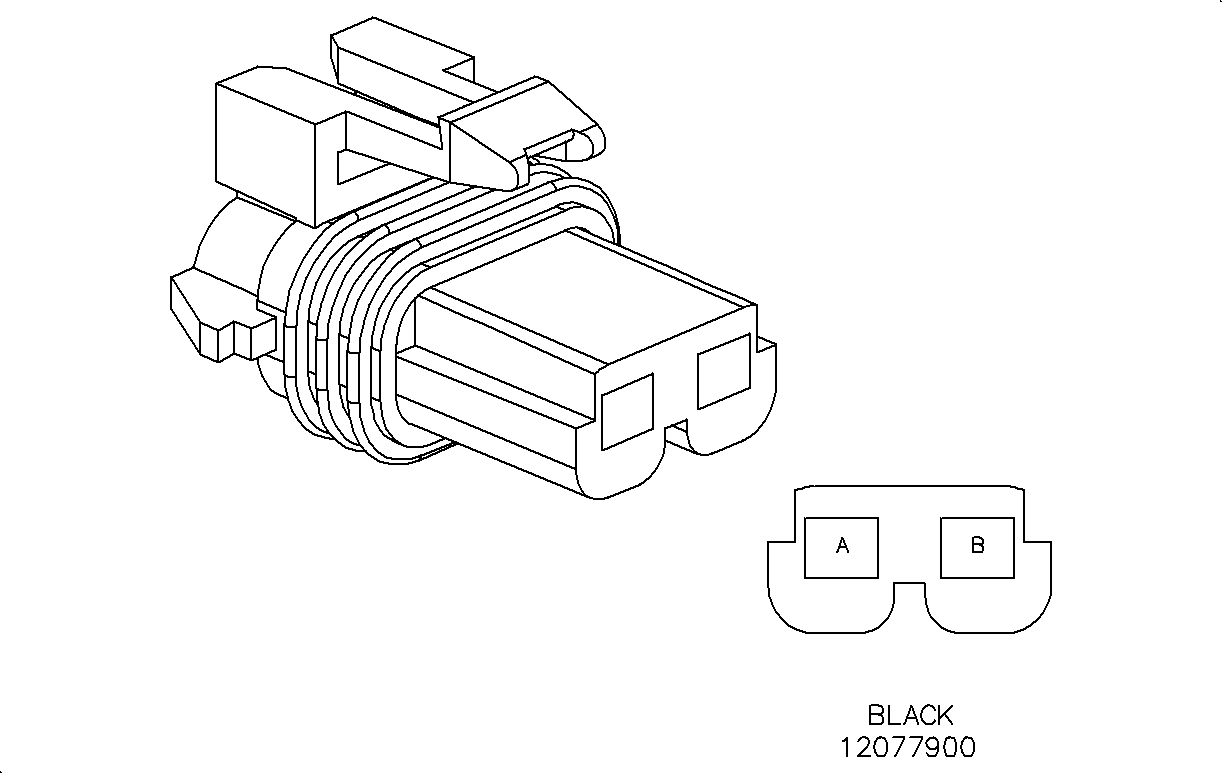

Connector Part Information		12077900 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	GRA	295B-RH 295K-LH	.80	LOCK
B	TAN	294B-RH 294K-LH	.80	UNLOCK
Location: Front Doors


Connector Part Information		12077900 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	TAN	294J-RH 294C-LH	.80	UNLOCK
B	GRA	295J-RH 295C-LH	.80	LOCK
Location: Rear Doors

Door Lock Motor-Coupe

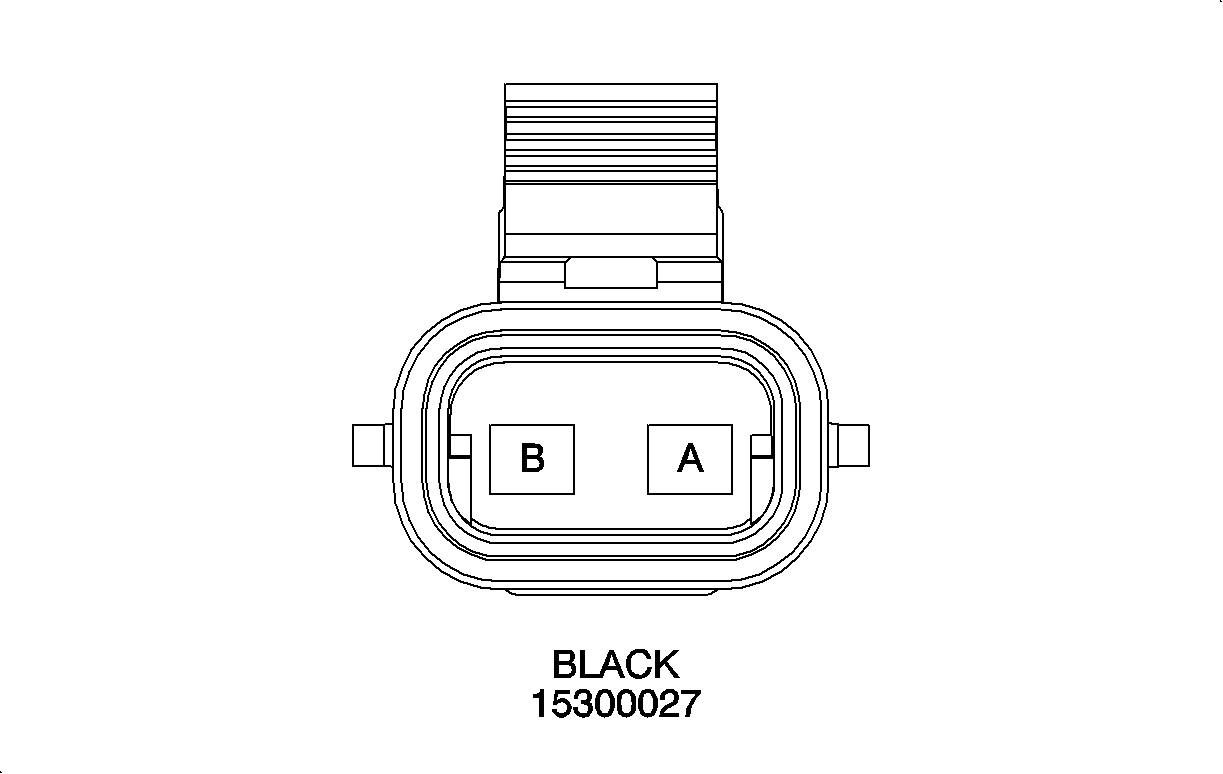

Connector Part Information		15300027 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	TAN TAN	294E 294F	.80	UNLOCK-LH UNLOCK-RH
B	GRA GRA	295F 295E	.80	LOCK-RH LOCK-LH
Location: Doors

Door Jamb Switch

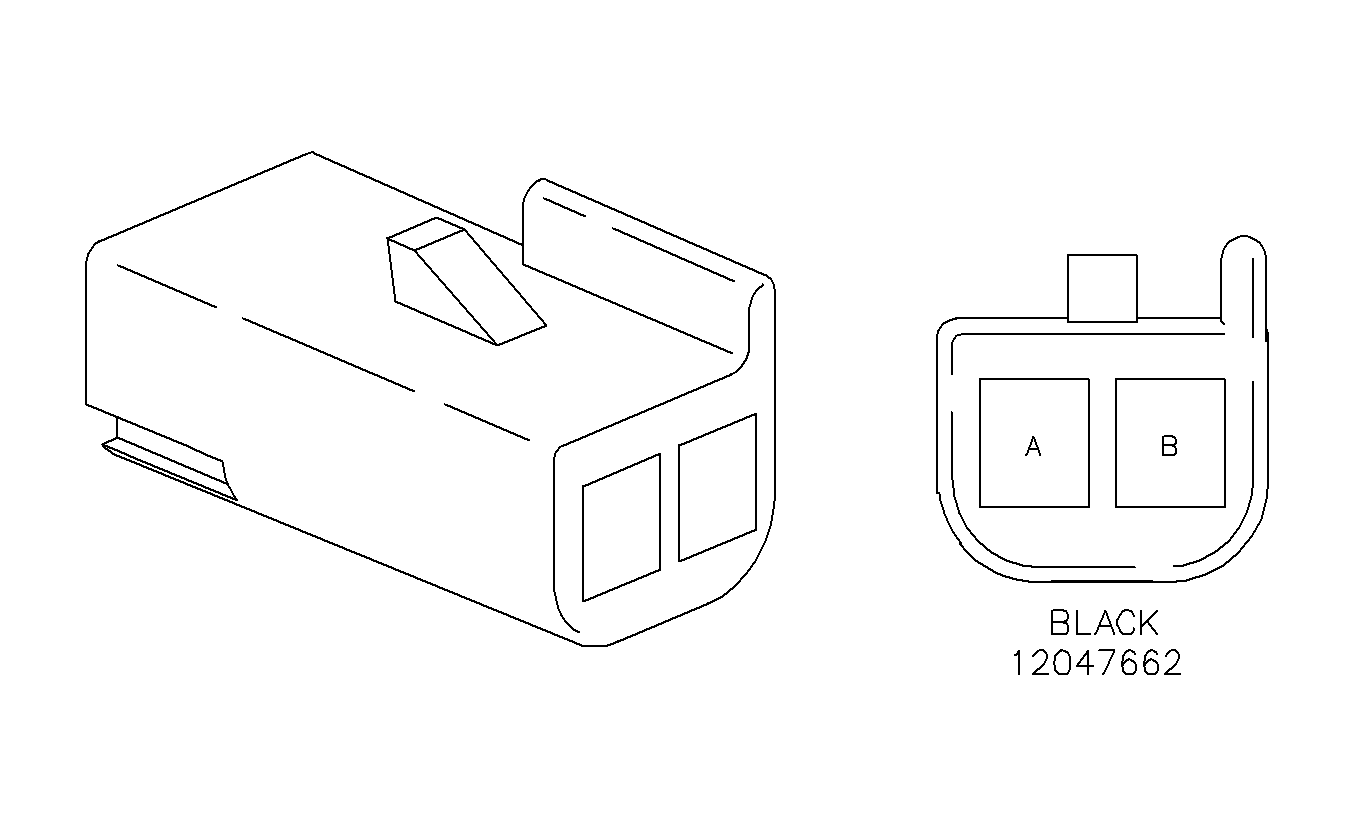

Connector Part Information		12047662 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK/WHT	746	.35	CHIME MODULE
B	BLK	550L	.35	GROUND
Location: Right Front Door Latch Pillar


Connector Part Information		12047662 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	GRA/BLK	745	.35	CHIME MODULE
B	BLK	550P	.35	GROUND
Location: Left Front Door Latch Pillar


Connector Part Information		12047662 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT GRN/BLK	748	.35	CHIME MODULE
B	BLK	550M	.35	GROUND
Location: Right Rear Door Latch Pillar


Connector Part Information		12047662 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU/BLK	747	.35	CHIME MODULE
B	BLK	550S	.35	GROUND
Location: Left Rear Door Latch Pillar

Door Lock Switch


Connector Part Information		12064758 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	195C	.35	LOCK
B	ORN	340P	.35	GROUND
C	WHT	194C	.35	UNLOCK
Location: Door -- Right Front


Connector Part Information		12064758 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	195A	.35	LOCK
B	ORN	340N	.35	GROUND
C	WHT	194A	.35	UNLOCK
Location: Door -- Left Front

Mirror Motor


Connector Part Information		12064759 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	WHT	81	.35	RIGHT/LEFT
B	LT BLU	82	.35	DUAL CIRCUIT UP/DOWN/RT/LT
C	LT GRN	89	.35	UP/DOWN
Location: Behind Passenger Outside Mirror Patch

Mirror Switch


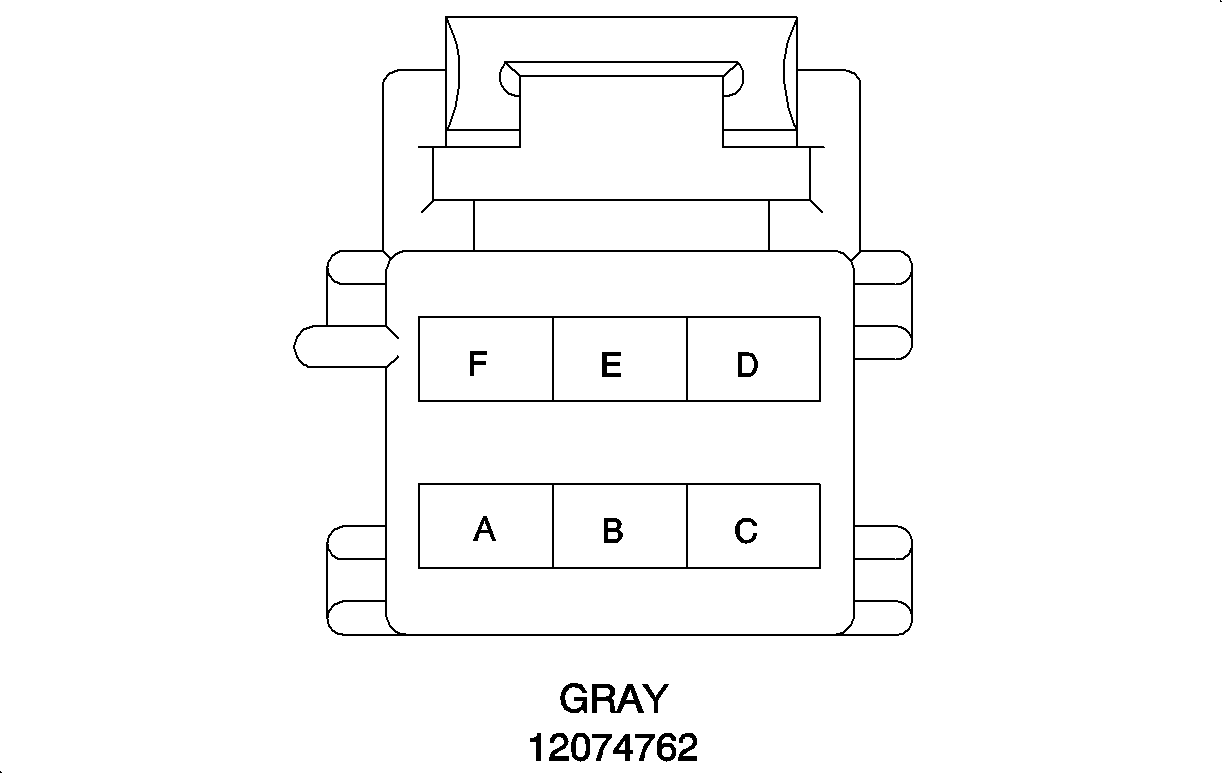

Connector Part Information		12064762 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	340C	.35	BATT+
B	LT BLU	82	.35	DUAL CIRCUIT UP/DOWN/RT/LT
C	BLK	550F	.50	GROUND
D	LT GRN	89	.35	UP/DOWN
E	--	--	--	--
F	WHT	81	.35	RIGHT/LEFT
Location: Console

Power Window Master Switch-Coupe

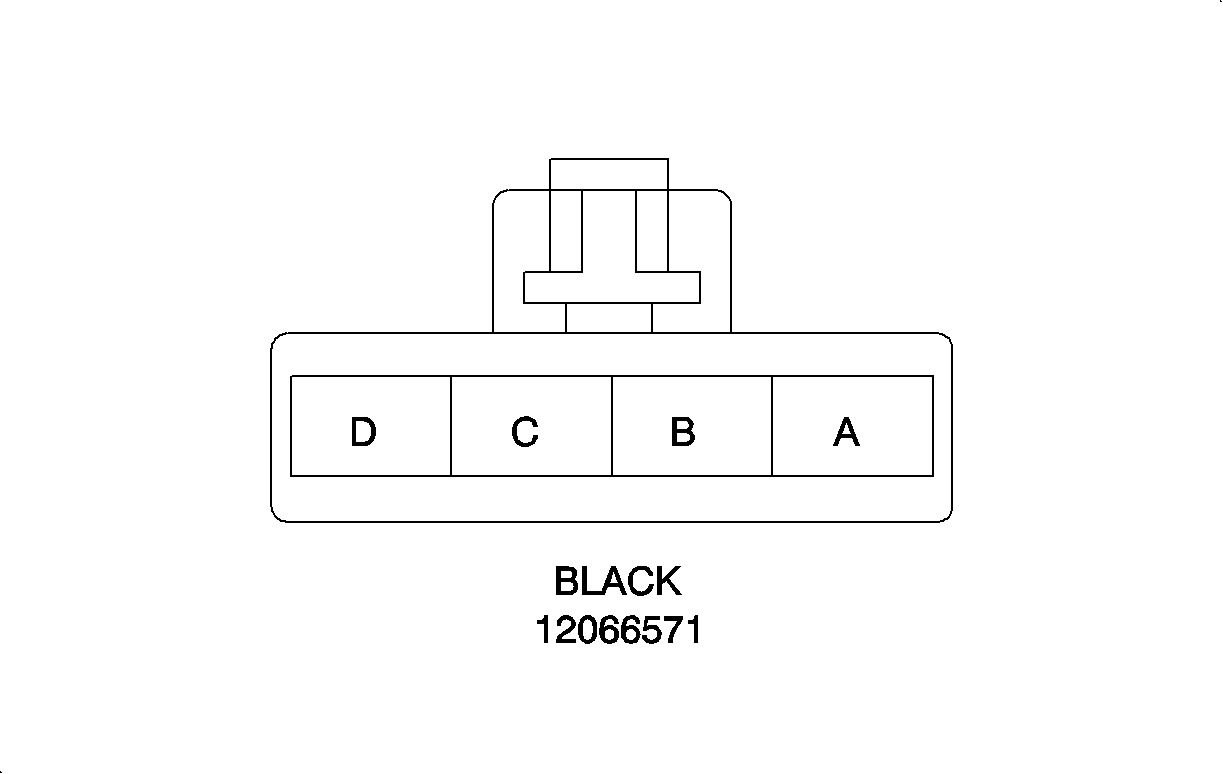

Connector Part Information		12066571 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	638C	2.0	POWER
B	BLK	550G	2.0	GROUND
C	DK BLU	164A	2.0	LEFT FRONT UP
D	BRN	165A	2.0	LEFT FRONT DOWN
Location: Console

Power Window Master Switch-Coupe

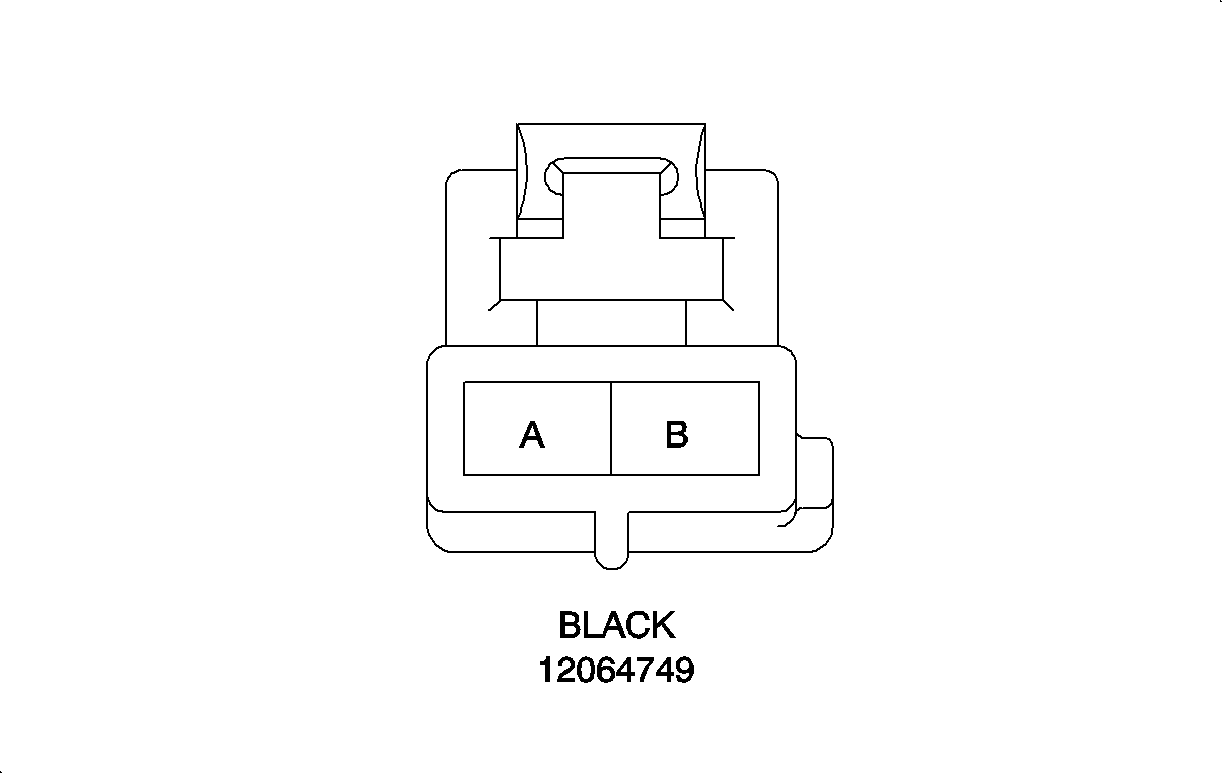

Connector Part Information		12064749 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	TAN	167A	2.0	RIGHT FT DOWN
B	LT BLU	166A	2.0	RIGHT FT UP
Location: Console

Power Window Master Switch-Sedan, Wagon

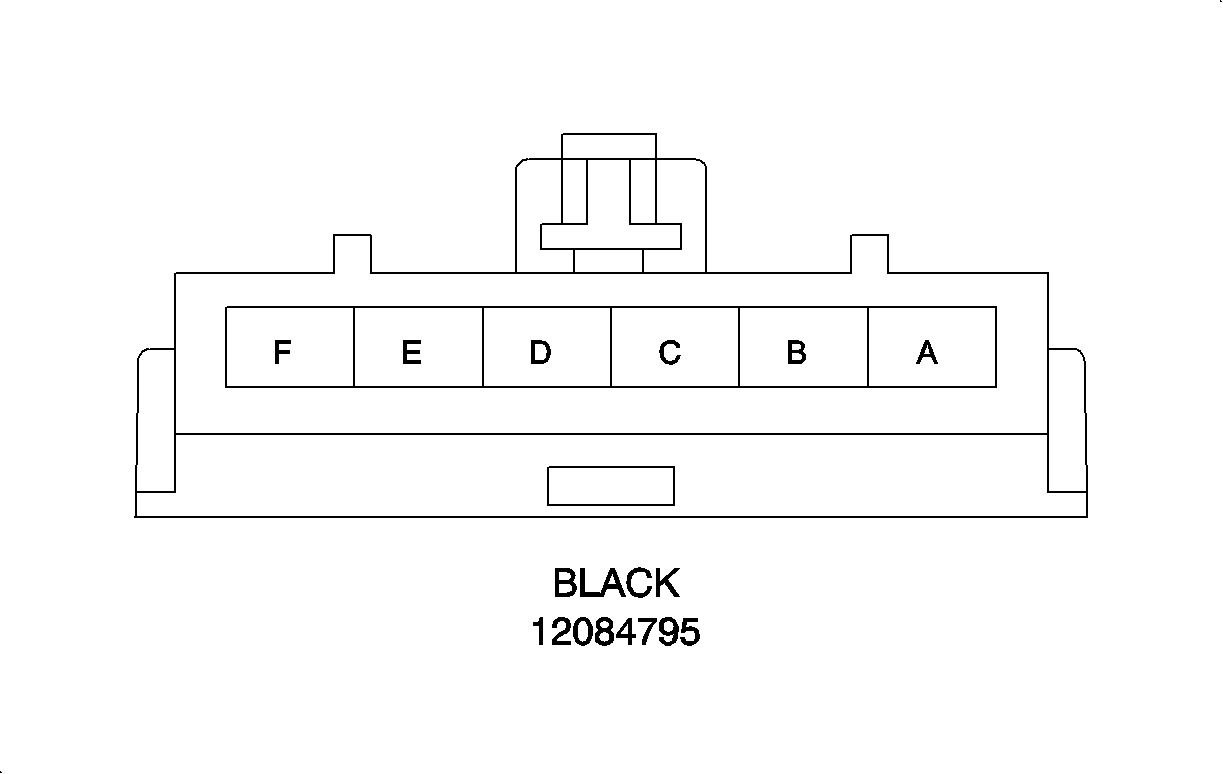

Connector Part Information		12084795 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK BLU	164	2.0	LEFT FRONT UP
B	BRN	165	2.0	LEFT FRONT DOWN
C	PPL	169	2.0	LEFT REAR DOWN
D	DK GRN	168	2.0	LEFT REAR UP
E	BLK	550G	2.0	GROUND
F	PPL	638	2.0	POWER
Location: Console

Power Window Master Switch-Sedan, Wagon


Connector Part Information		12084796 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK BLU	1307A	2.0	LOCKOUT SWITCH
B	DK BLU	1307B	2.0	LOCKOUT SWITCH
C	LT GRN	170	2.0	RIGHT REAR UP
D	PPL	171	2.0	RIGHT REAR DOWN
E	LT BLU	166	2.0	RIGHT FRONT UP
F	TAN	167	2.0	RIGHT FRONT DOWN
Location: Console

Rear Door Window Switches-Sedan, Wagon

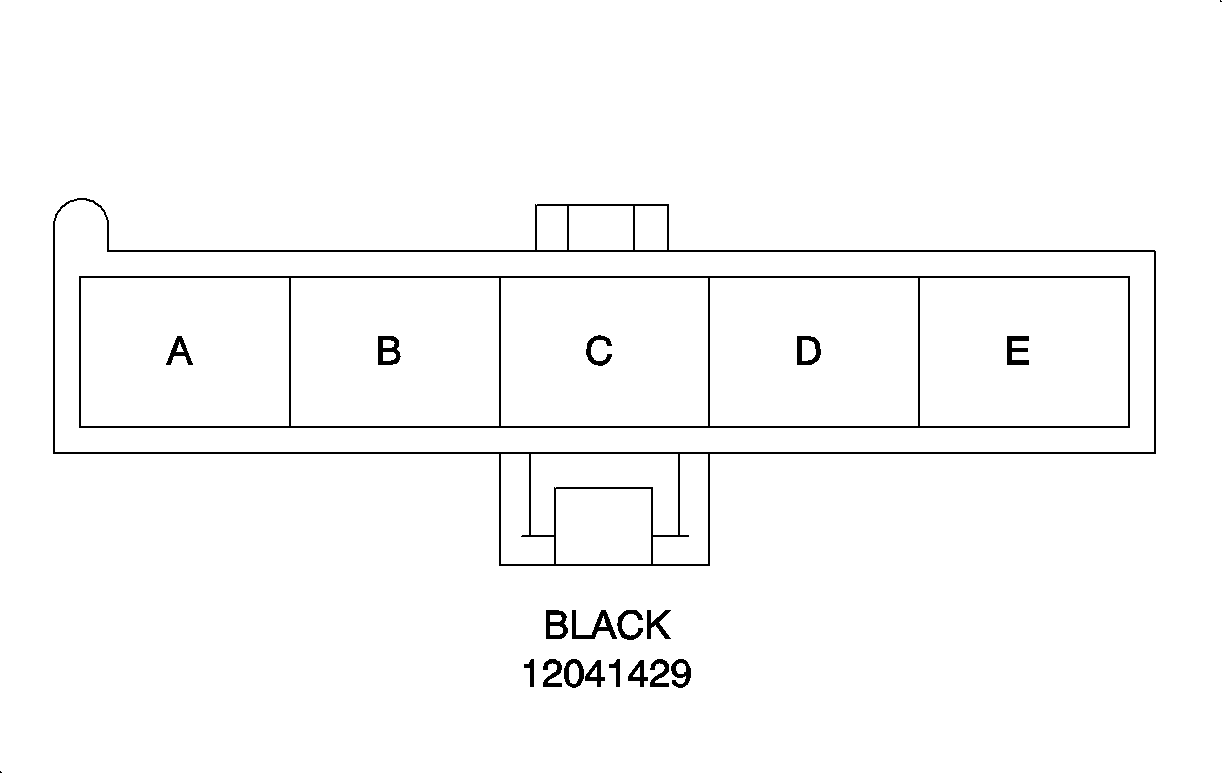

Connector Part Information		12041429 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT GRN-R DK GRN-L	170-R 168-L	2.0	UP
B	DK BLU	670-R 668-L	2.0	UP
C	DK BLU	1307B-R 1307A-L	2.0	LOCKOUT
D	PPL	171-R 169-L	2.0	DOWN
E	BRN	671-R 669-L	2.0	DOWN
Location: Rear Doors

Recirc Door Motor


Connector Part Information		12064993 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
5	PNK/WHT	1648	.35	MOTOR FEED_OPEN
6	LT GRN/BLK	1647	.35	MOTOR FEED_CLOSED
7-10	--	--	--	--
Location: I/P Right Upper

Speakers-Front/Rear


Connector Part Information		12077887 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A
B

Speakers-Front/Rear-Right Front


Connector Part Information		12077887 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK GRN	117,117B	.35	SPEAKER -
B	LT GRN	200,200B	.35	SPEAKER +
Location: Door-Front Right

Speakers-Front/Rear-Left Front


Connector Part Information		12077887 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	GRA	118, 118C	.35	SPEAKER _
B	TAN	201, 201C	.35	SPEAKER +
Location: Door Front Left

Speakers-Front/Rear-Right Rear


Connector Part Information		12077887 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	115	.35	SPEAKER -
B	DK BLU	46	.35	SPEAKER +
Location: Package Shelf- Right

Speakers-Front/Rear-Left Rear


Connector Part Information		12077887 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	YEL	116	.35	SPEAKER -
B	BRN	119	.35	SPEAKER +
Location: Package Shelf-Left
