Pump Disassemble

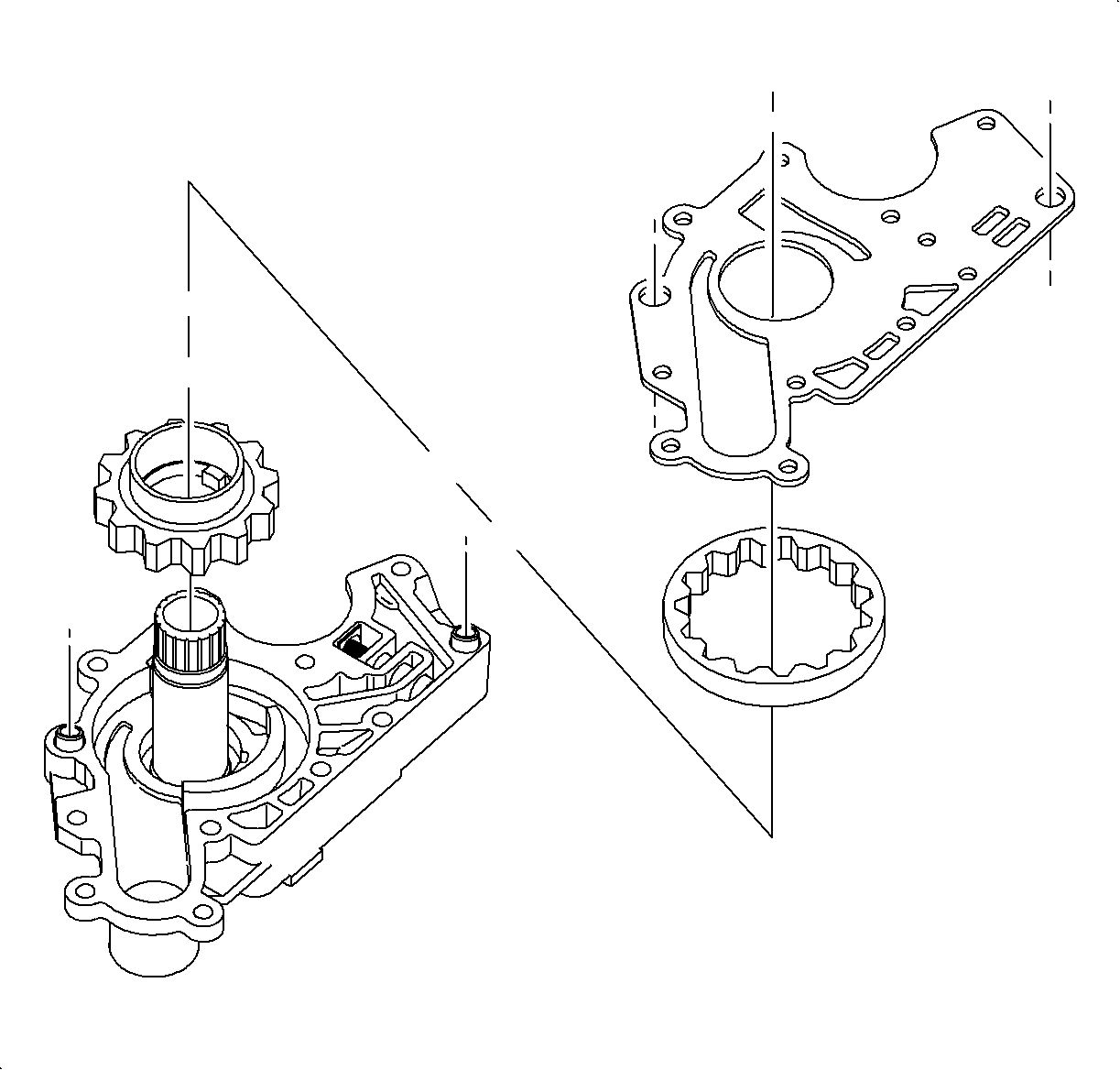

1. Remove the pump wear plate. If cracks or excessive scoring is evident, replace component.

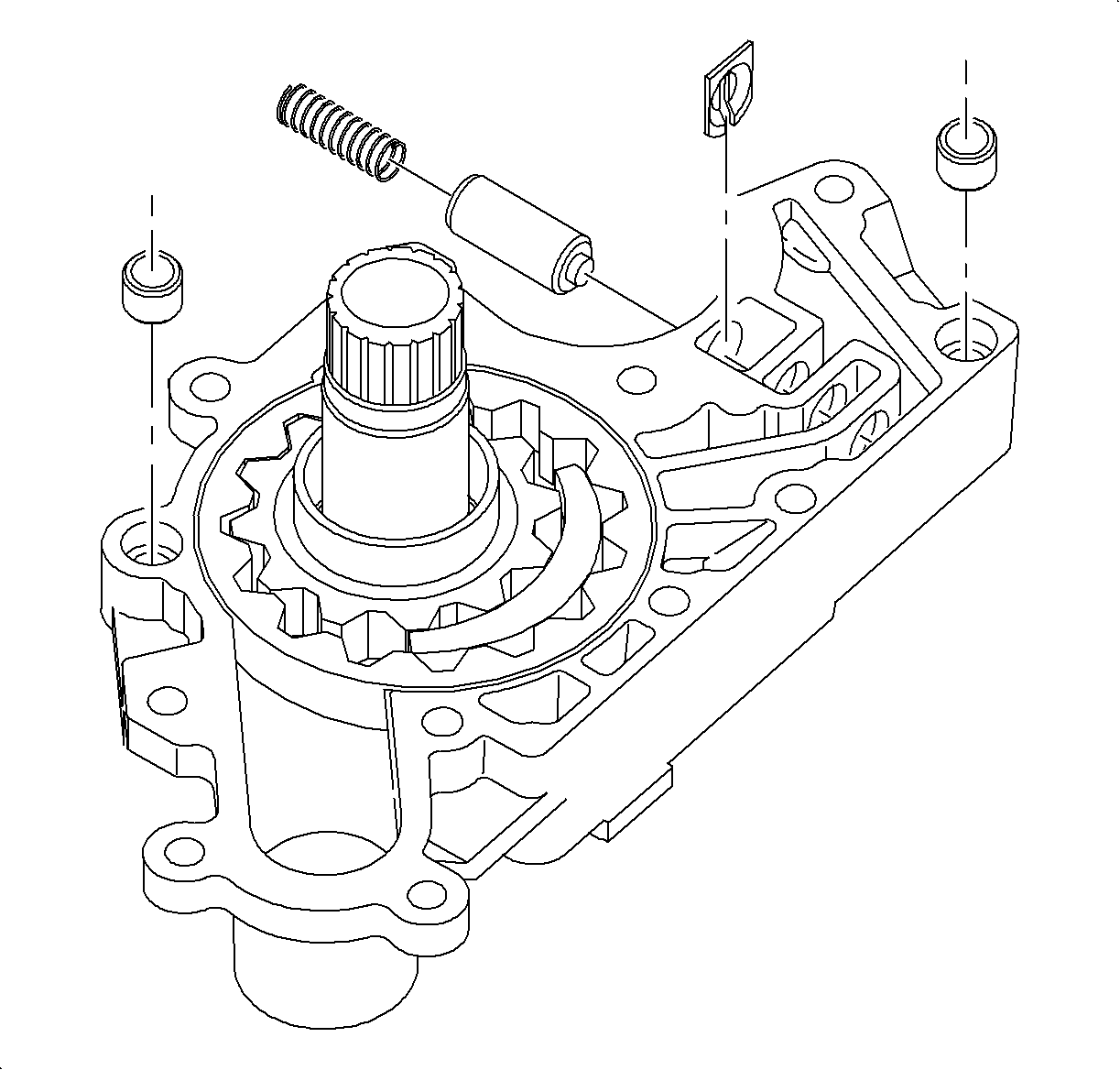

2. Remove the spring retainer, spring, and lube relief valve. If the spring is broken or lube relief valve is scored, replace components.




3. Remove the pump driven gear.
4. Remove the pump drive gear.
