Engine Mount Strut Bracket Replacement

Removal Procedure

Caution

Ensure that the vehicle is properly supported and squarely positioned. To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle on the opposite end from which the components are being removed.

1. Raise the vehicle on a hoist.
2. Remove the right front wheel.

Important

Remove the rear section of the splash shield first, then the front.

3. Remove the right side splash shield.
4. Remove the 2 push pins.





Important

If the molded-in fasteners are damaged or broken, drill out with a 5/16 in. bit and replace with a push pin.

5. Remove the lower shield to frame molded-in fastener at the frame by gently prying at three fastener locations.

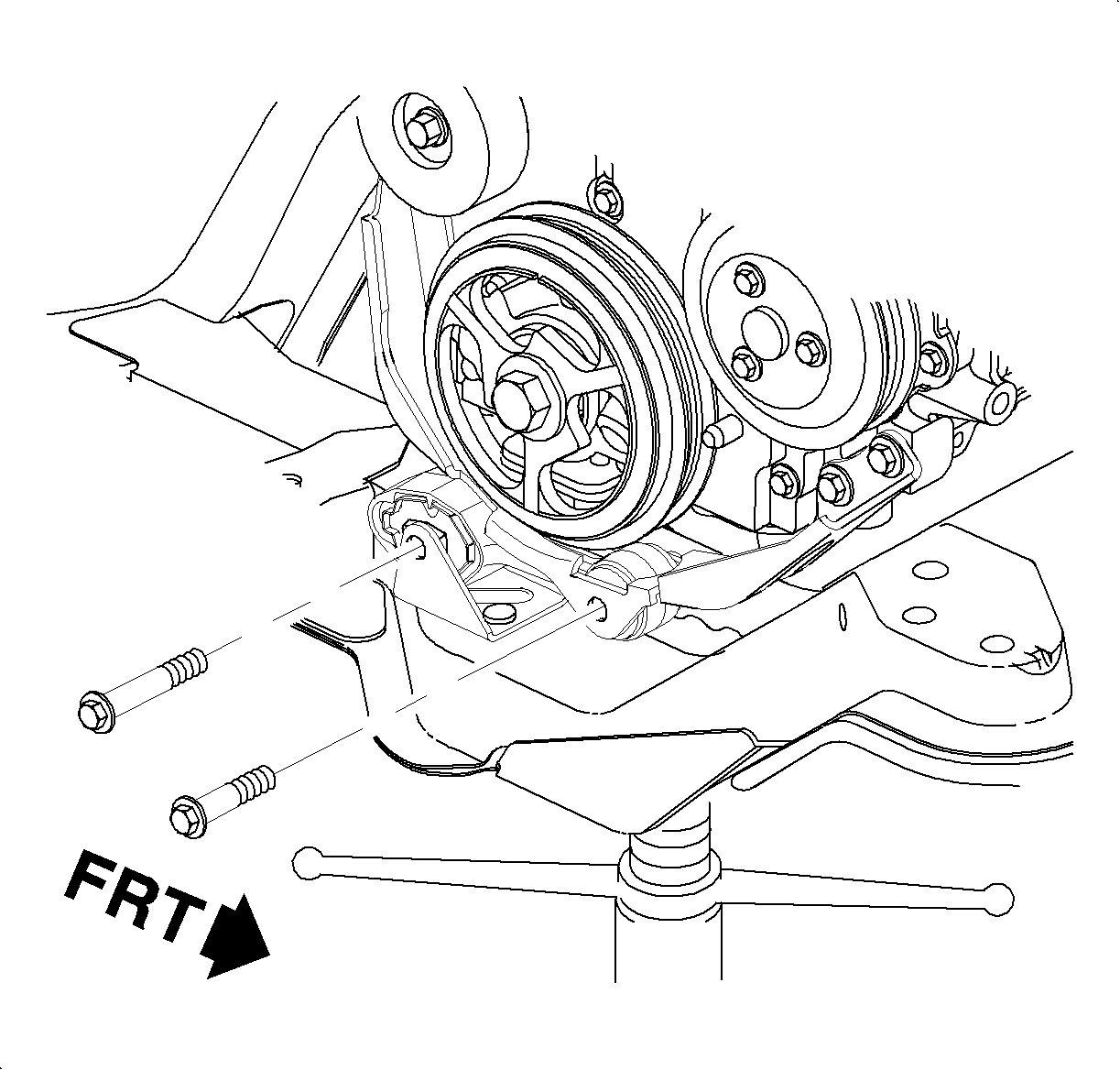

6. Remove the engine strut-to-engine bracket and engine strut-to-frame bracket fasteners.

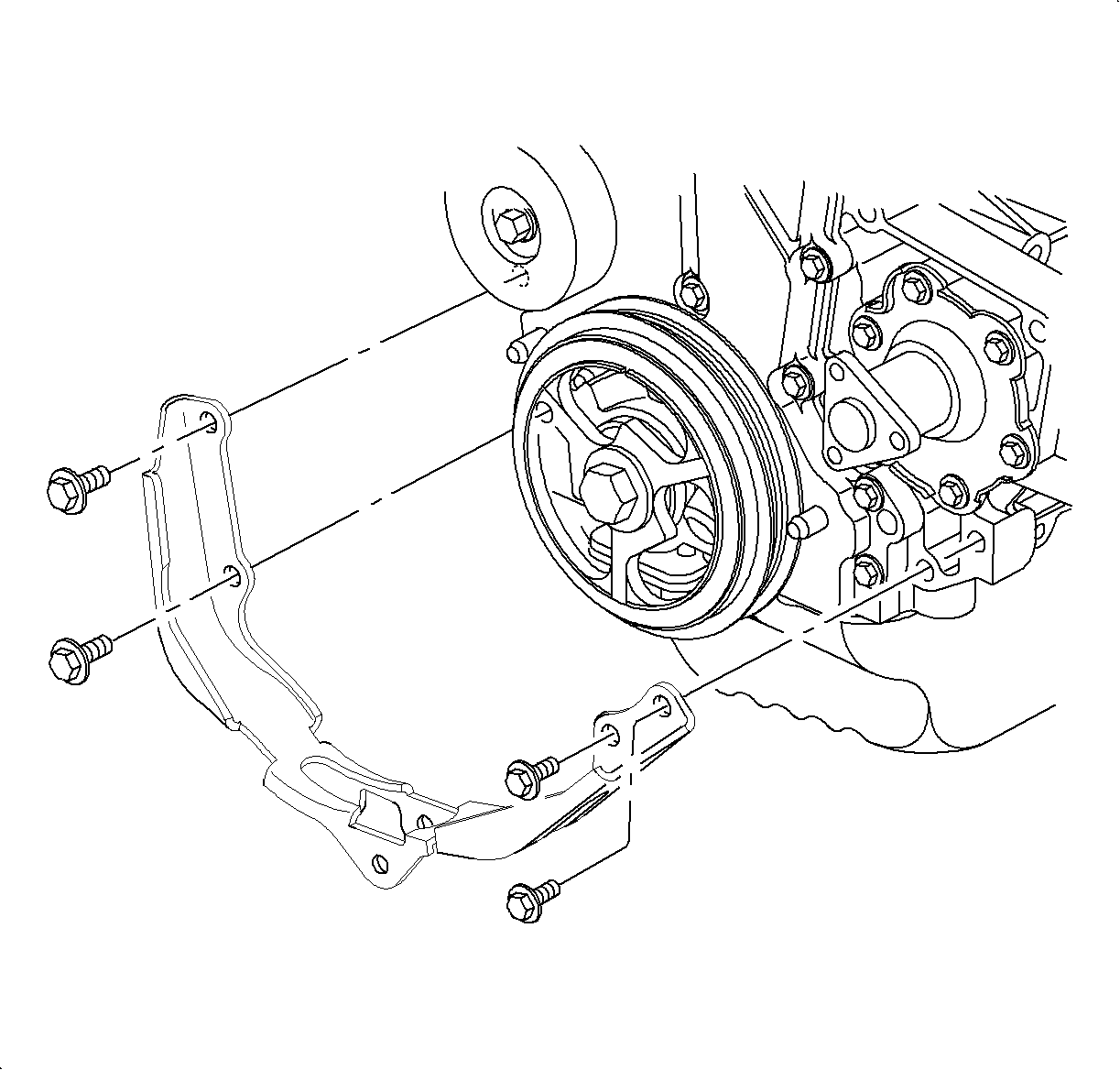

7. Remove the 4 engine bracket-to-engine fasteners and remove the engine bracket.

Installation Procedure

1. Position the engine bracket to engine and install the 4 engine bracket-to-engine fasteners.
Tighten

Tighten the engine strut bracket-to-engine fasteners to 70 N·m (52 lb ft).





2. Install the engine strut-to-frame bracket and strut-to-engine bracket bolts.
Tighten

Tighten the engine strut-to-frame bracket bolts to 70 N·m (52 lb ft).





3. Loosen the 2 engine strut bracket-to-frame bolts to remove any fore/aft preload from the engine strut.
4. Tighten the engine strut bracket-to-frame bolts.
Tighten

Tighten the engine strut bracket-to-frame nuts to 50 N·m (37 lb ft).






Important

Install the front section of the splash shield first, then the rear.

5. Install the right side splash shield.
6. Install the tabs in the body cut-out.

Important

Ensure the splash shield flaps are tucked in at body locations.

7. Align the molded-in shield fasteners with the holes in the cradle.
Push straight in to install.
8. Install the push pins.

Notice

Before installing wheels, remove rust or corrosion from wheel mounting surfaces and brake rotors/drums. Failure to do so can cause wheel nuts to loosen in service.

9. Position the right front wheel on to the hub.
10. Install the wheel nuts and tighten in a crisscross pattern.
Repeat the tightening pattern to ensure torque is correct. Tighten

Tighten the wheel nuts to 140 N·m (103 lb ft).

11. Lower the vehicle from the hoist.
