Wiper Arm Blade Replacement 1st Design

Removal Procedure

Important

The right and left wiper blades are different lengths. Ensure that the longer blade is installed into the left-hand side.

1. Lift the wiper arm away from the glass.

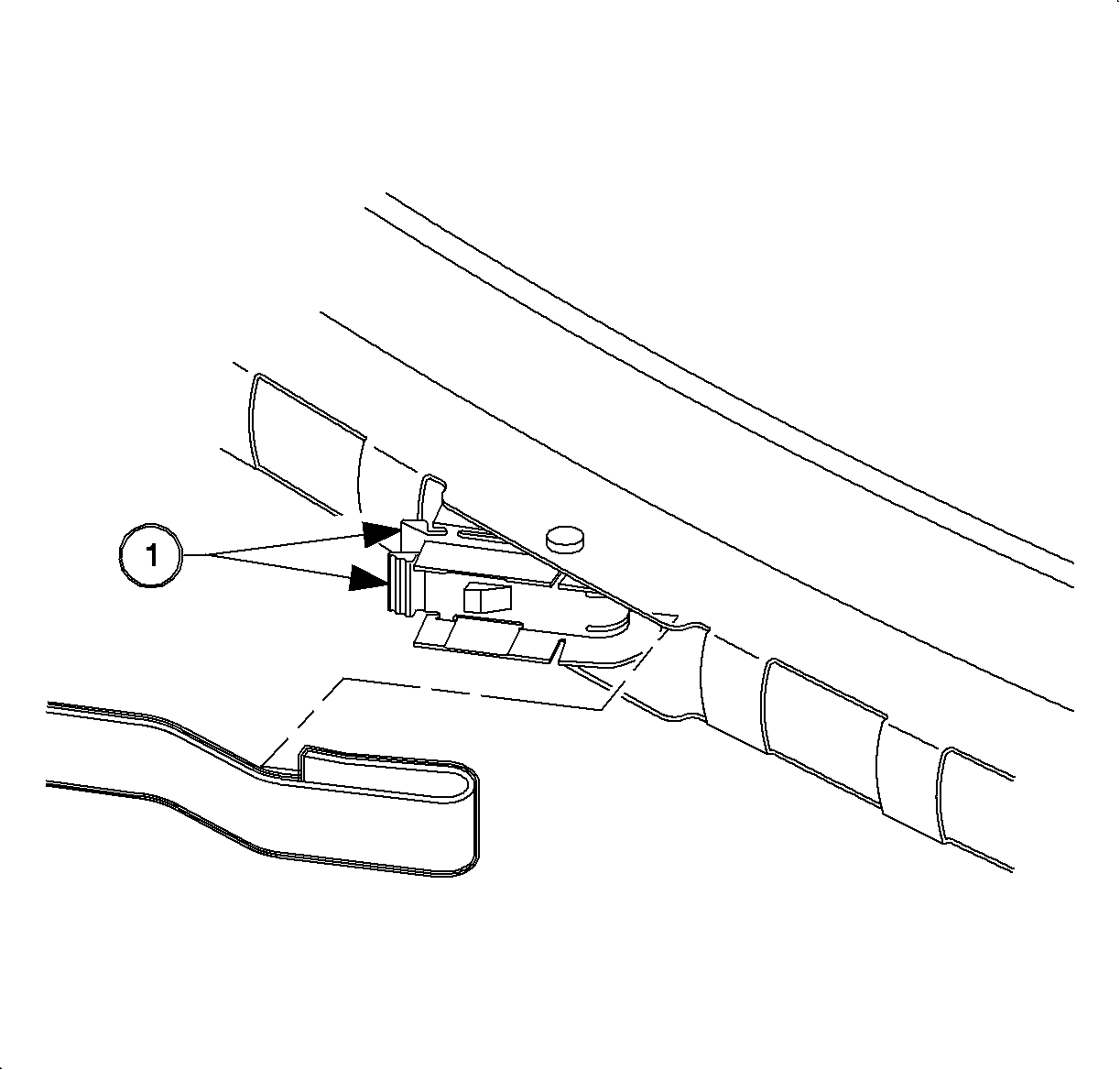

2. Pinch the wiper blade attachment clip (1) together and slide the blade out of the wiper arm hook.

Installation Procedure

1. Position the wiper arm blade into the wiper arm hook.
2. Slide the blade assembly into the hook until it clicks into position.
