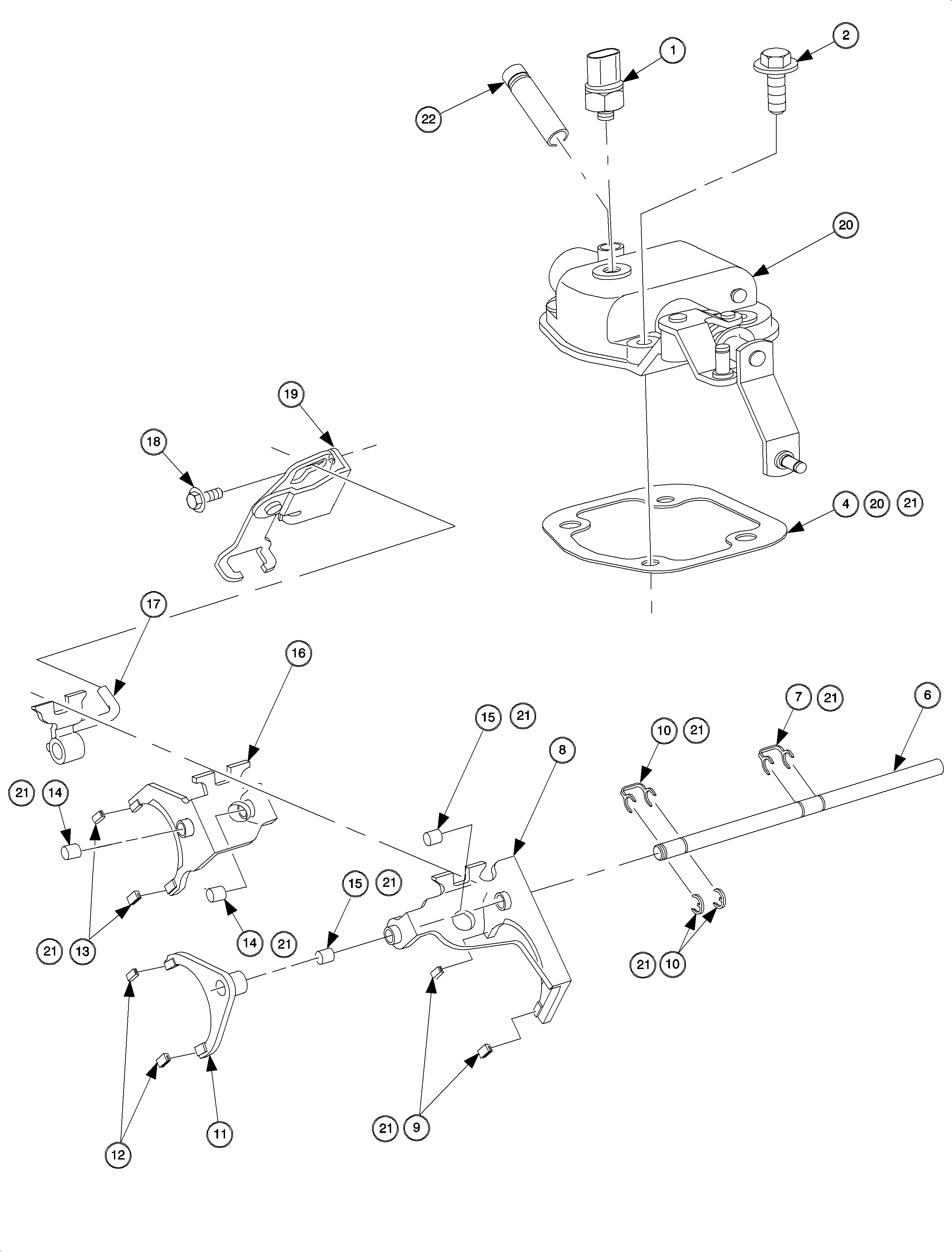

| (1) | Switch Assembly
- Back Up Lamp |
| (2) | Bolt/Screw
- Shift Housing (to case) |
| (4) | Gasket -
Shift Housing Assembly |
| (6) | Shaft -
Shaft Fork |
| (7) | Clip -
5th/Rev Actuator Return |
| (8) | Fork -
1st & 2nd Shift |
| (9) | Insert -
1st & 2nd Shift Fork |
| (10) | Ring 5th/Rev
Shift Fork Return |
| (11) | Fork -
5th & Rev Shift Fork |
| (12) | Insert -
5th & Rev Shift Fork |
| (13) | Insert -
3rd & 4th Shift Fork |
| (14) | Bushing
- 3rd & 4th Shift Shaft |
| (15) | Bushing
- 1st & 2nd Shift Shaft |
| (16) | Fork -
3rd & 4th Shift |
| (17) | Actuator
- 5th/Rev |
| (18) | Bolt/Screw
- Rev Lever Assembly |
| (19) | Lever Assembly
- Rev Shift |
| (20) | Housing
Assembly - Shift Controller |
| (21) | Gasket Kit
- Manual Transaxle |
| (22) | Hose Assembly
- Shift Tower Vent |
