License Lamp Replacement Coupe

Removal Procedure

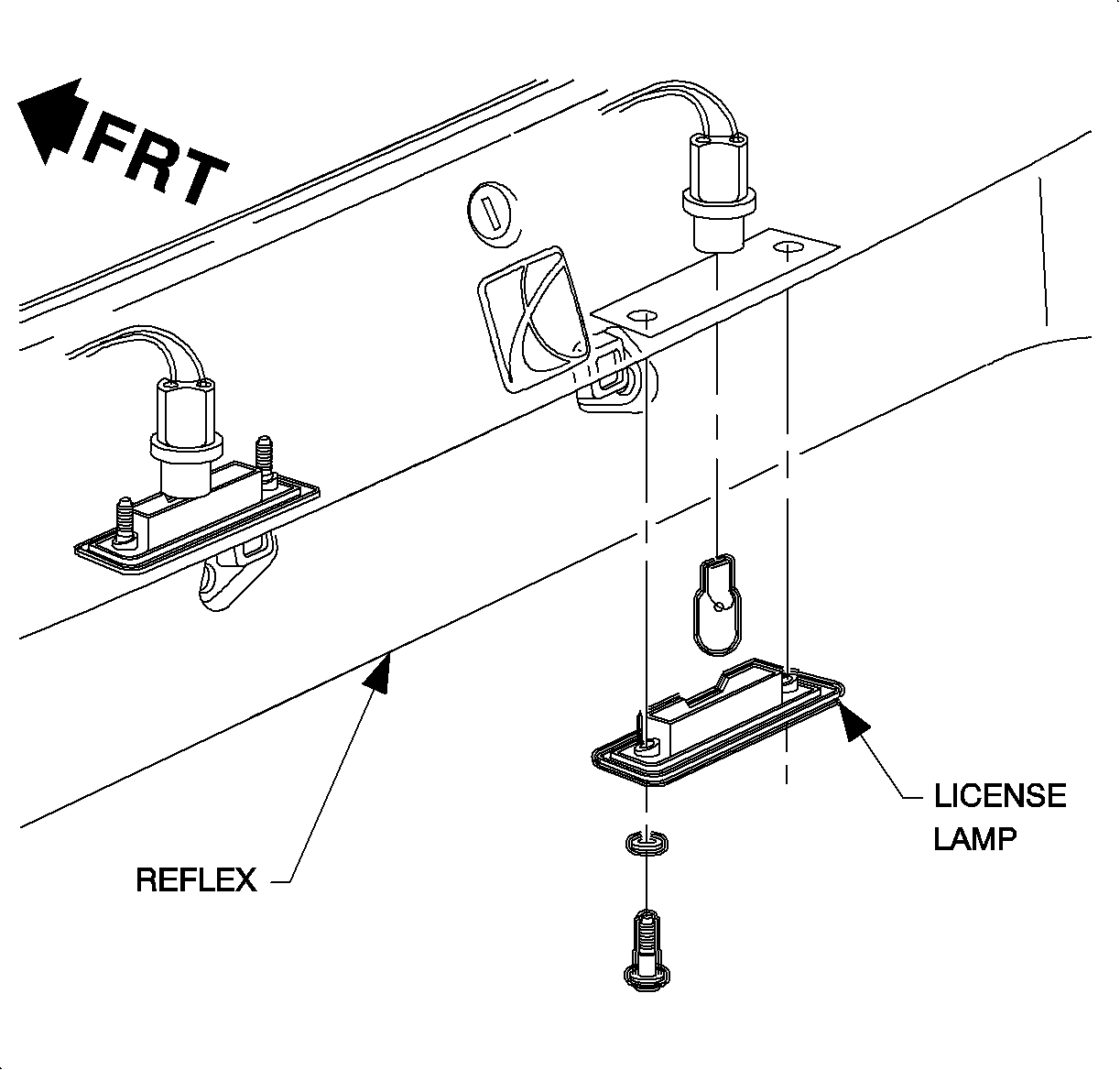

1. Remove the license plate bracket, if equipped.
2. Open the rear compartment lid.
3. Loosen the license plate lamp attaching screw from the rear compartment lid reflex.
4. Remove the lamp from the reflex.

Installation Procedure

1. Position the lamp in place in the rear compartment lid reflex. Make sure the gasket is in place between the lamp and the reflex.
2. Tighten the attaching screw.
3. Close the rear compartment lid.
4. Install the license plate bracket, if equipped.
