Powertrain Control Module (PCM) Connector End Views

Table 1:	Air Pump
Table 2:	Air Pump Solenoid-1999 Only
Table 3:	Crankshaft Position Sensor
Table 4:	Electronic Ignition Module
Table 5:	Engine Coolant Temperature Sensor
Table 6:	Evaporative Cannister Vent Valve
Table 7:	Evaporative Emission Cannister Purge Solenoid
Table 8:	EVO Solenoid
Table 9:	Fuel Injectors-1&2
Table 10:	Fuel Injector-3&4
Table 11:	Fuel Tank Pressure Sensor
Table 12:	Fuel Tank Unit
Table 13:	Generator-1998 1st Design Only
Table 14:	Generator
Table 15:	Heated Oxygen Sensor
Table 16:	Idle Air Control
Table 17:	Ignition Switch
Table 18:	Intake Air Temperature Sensor
Table 19:	Knock Sensor
Table 20:	Linear EGR Solenoid
Table 21:	Manifold Absolute Pressure (MAP) Sensor-Manual
Table 22:	Manifold Absolute Pressure (MAP) Sensor-Auto
Table 23:	Oil Pressure Switch
Table 24:	Oxygen Sensor
Table 25:	Park/Neutral Position Switch
Table 26:	Park/Neutral Position Switch
Table 27:	Park/Neutral Position Switch
Table 28:	Powertrain Control Module (PCM) --J1-LT BLU
Table 29:	Powertrain Control Module (PCM)-J2-LT BLU
Table 30:	Powertrain Control Module (PCM)-Automatic J3 --PNK

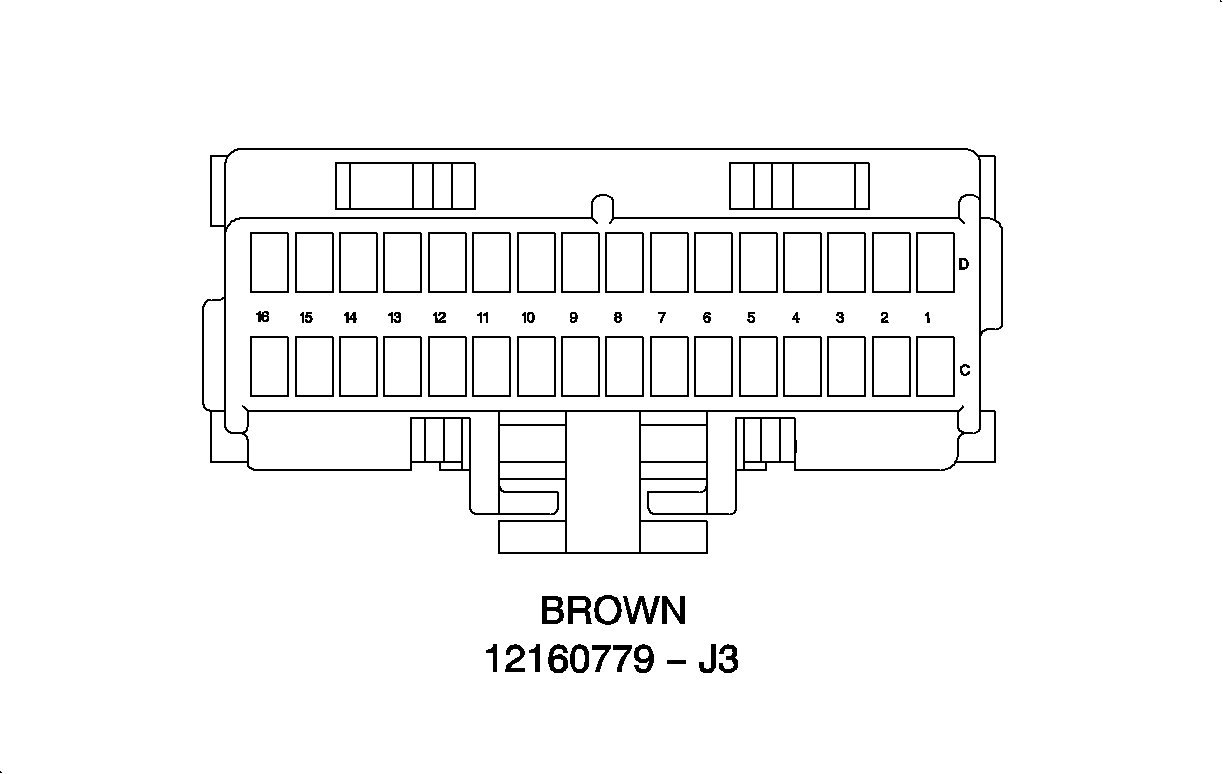

Table 31:	Powertrain Control Module (PCM)-Manual J3-BRN

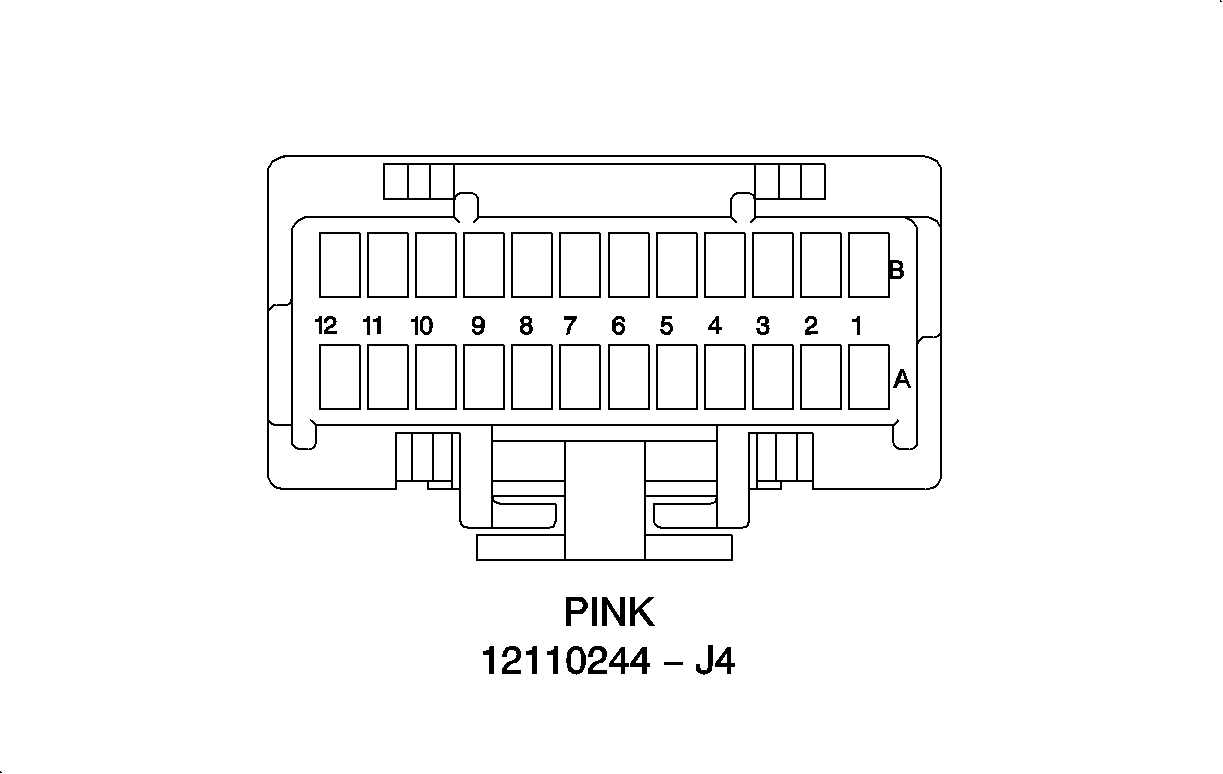

Table 32:	Powertrain Control Module (PCM)-Automatic J4
Table 33:	Starter Relay
Table 34:	Throttle Position Sensor (TPS)

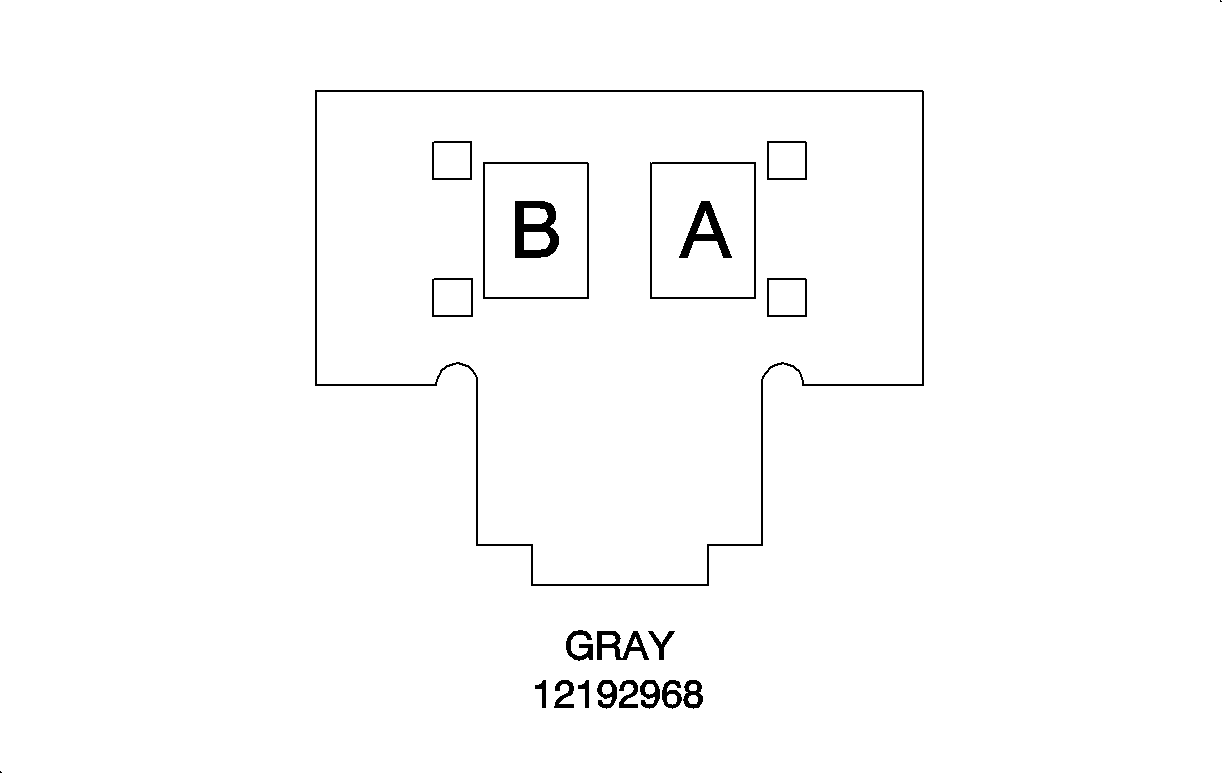

Air Pump


Connector Part Information		12192968 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED	78	2.0	AIR PUMP RELAY
B	BLK	651	2.0	GROUND
Location: Engine Compartment -- Front Center

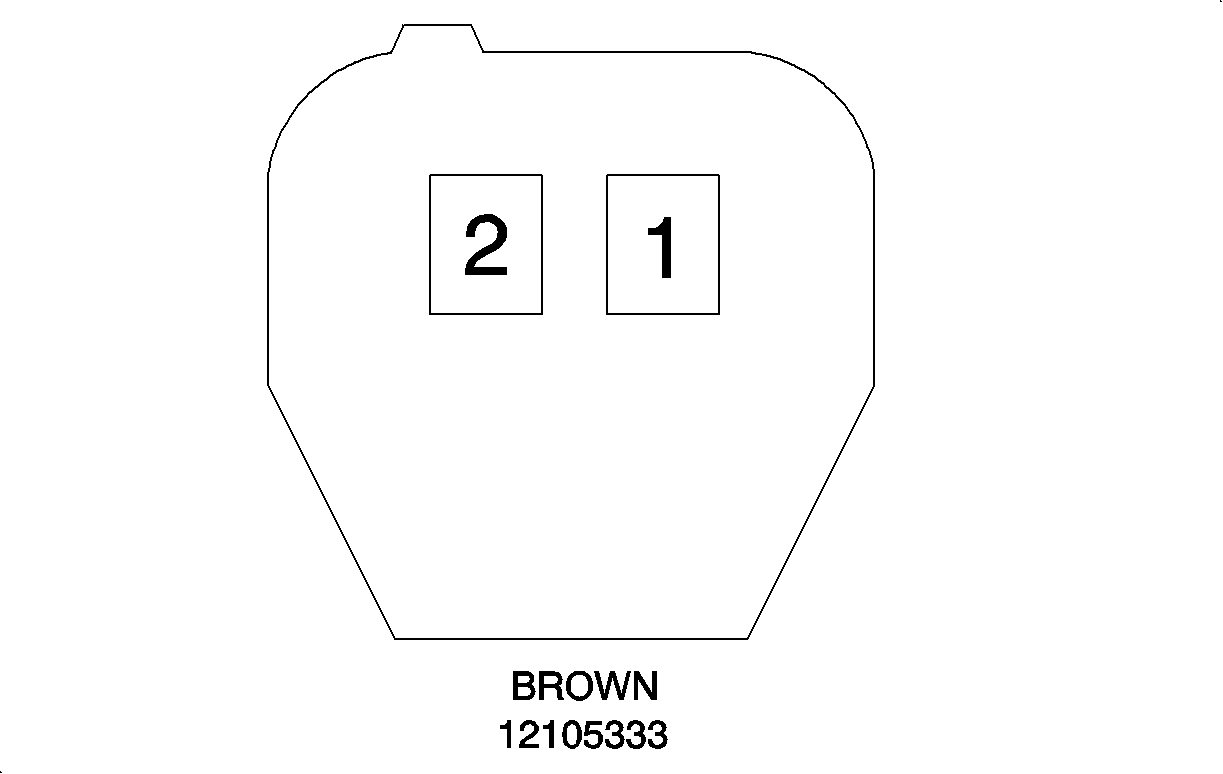

Air Pump Solenoid-1999 Only


Connector Part Information		12105333 Brown
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PNK/BLK	429A	.35	PCM
B	BLK	639X	.35	IGNITION
Location: Engine Compartment -- Front Center

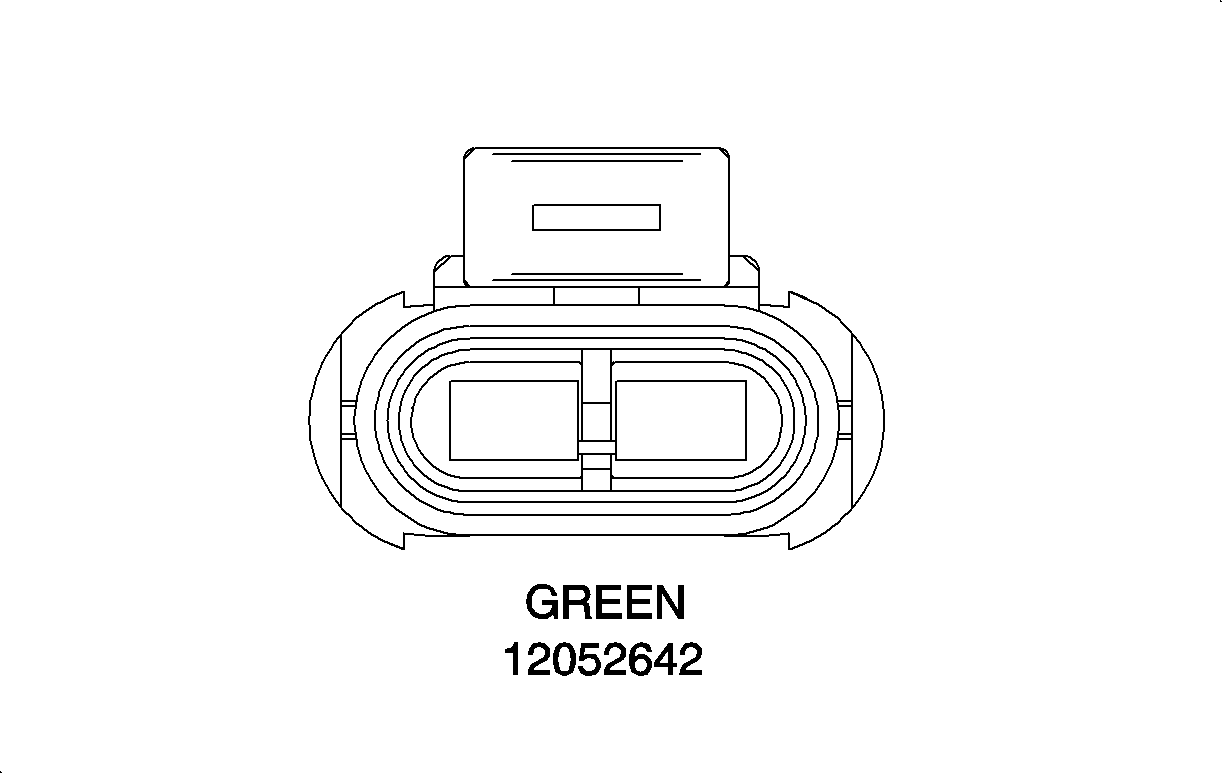

Crankshaft Position Sensor


Connector Part Information		12052642 Green
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	574-AUTO 574M-Man	.35	7X REF-LO
B	YEL	573-AUTO 573M-Man	.35	7X REF-HI
Location: Engine Compartment-On Lower Rear of Block

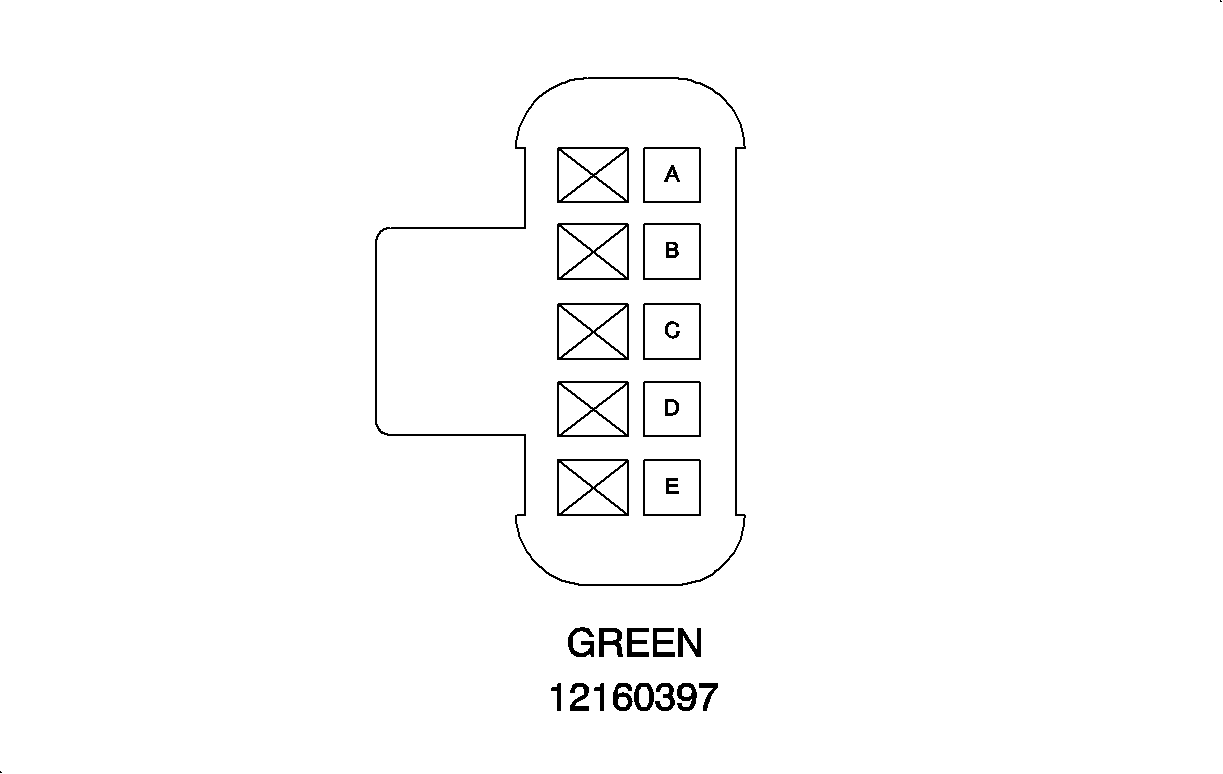

Electronic Ignition Module


Connector Part Information		12160397 Green
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PNK	1039	.35	IGN1
B	BLK/WHT	451C	.35	GROUND
C	ORN	406	.35	EST2-3 IN
D	BRN/WHT	633-AUTO 633M-Man	.35	CYLINDER 4 SIGNAL OUT
E	WHT	423	.35	EST 1-4 IN
Location: Engine Compartment-Center Front

Engine Coolant Temperature Sensor


Connector Part Information		12092512 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	YEL	410	.35	SENSOR INPUT SIGNAL
B	BLK	452MA-Man 452M-Auto	.35	RETURN
Location:Engine Compartment-Upper Left

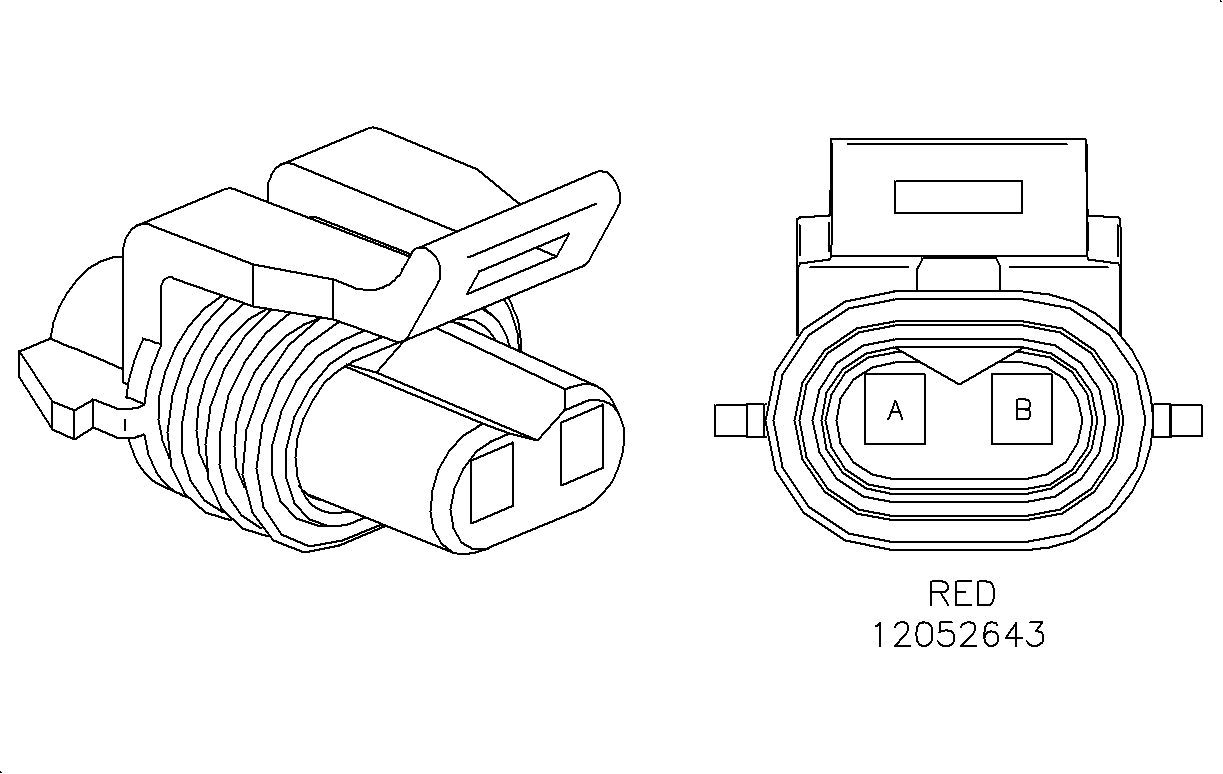

Evaporative Cannister Vent Valve


Connector Part Information		12052643 Red
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PNK	39T	.35	IGN
B	WHT	1310B	.35	TO PCM
Location: On Fuel Filter Neck

Evaporative Emission Cannister Purge Solenoid


Connector Part Information		12052643 Red
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PNK	639B	.50	IGN1
B	DK GRN/WHT	428	.50	SOLENOID CONTROL
Location: Engine Compartment-Lower Rear on Block

EVO Solenoid


Connector Part Information		12052643 Red
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	1295B	.35	EVO LOW
B	WHT	1294B	.35	EVO HI
Location: Engine Compartment-On Bottom of Power Steering Pump

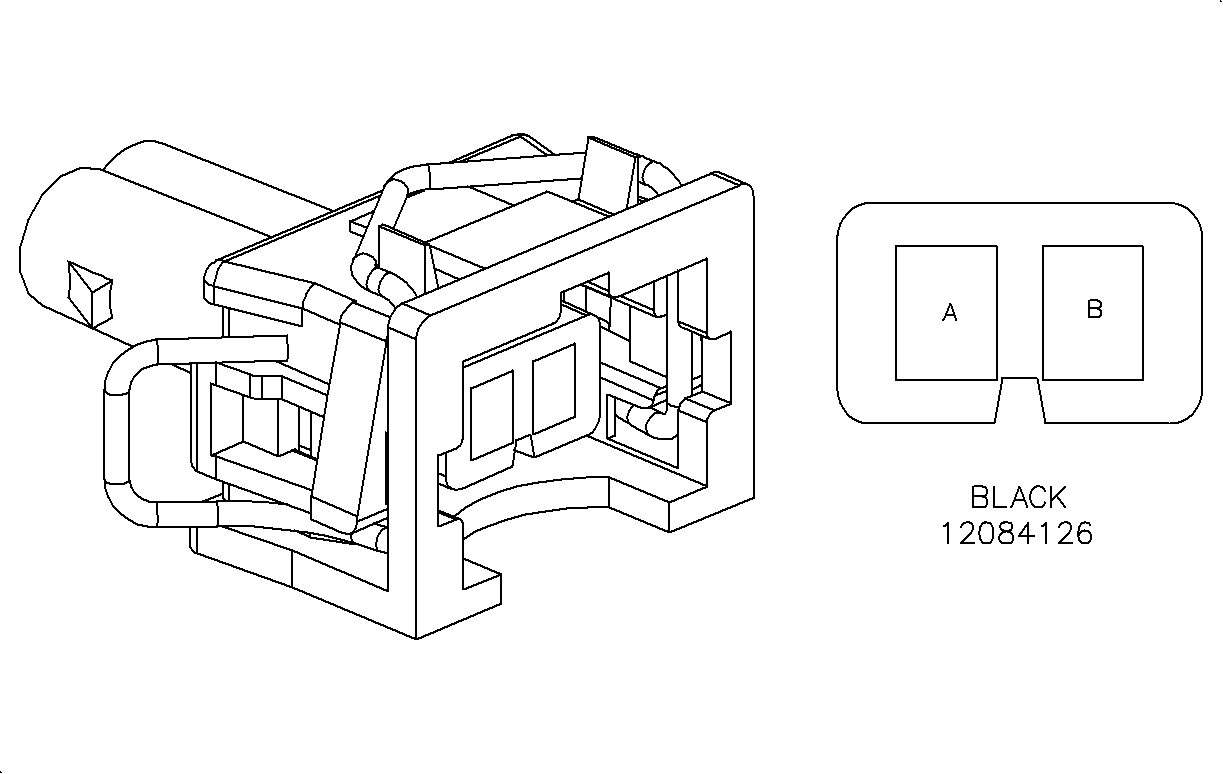

Fuel Injectors-1&2


Connector Part Information		12084126 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	PNK	139A139B	.80 .80	B+ INJ 1 B+ INJ2
2	BLK LT GRN/BLK	1744 1745	.80 .80	PCM CONT. INJ1 PCM CONT> INJ2

Fuel Injector-3&4


Connector Part Information		12084126 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	PNK	139C 139E	.80 .80	B+ INJ3 B+ IJN4
2	PNK/BLK LT BLU/BLK	1746 844	.80 .80	PCM CONT. INJ3 PCM CONT. INJ4
Location: Engine Compartment-Rear

Fuel Tank Pressure Sensor


Connector Part Information		12059595 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN/BLK	469B	.35	RETURN
B	DK GRN	890B	.35	TO PCM
C	GRA	416J	.35	5 V REF
Location: Rear Compartment-Left

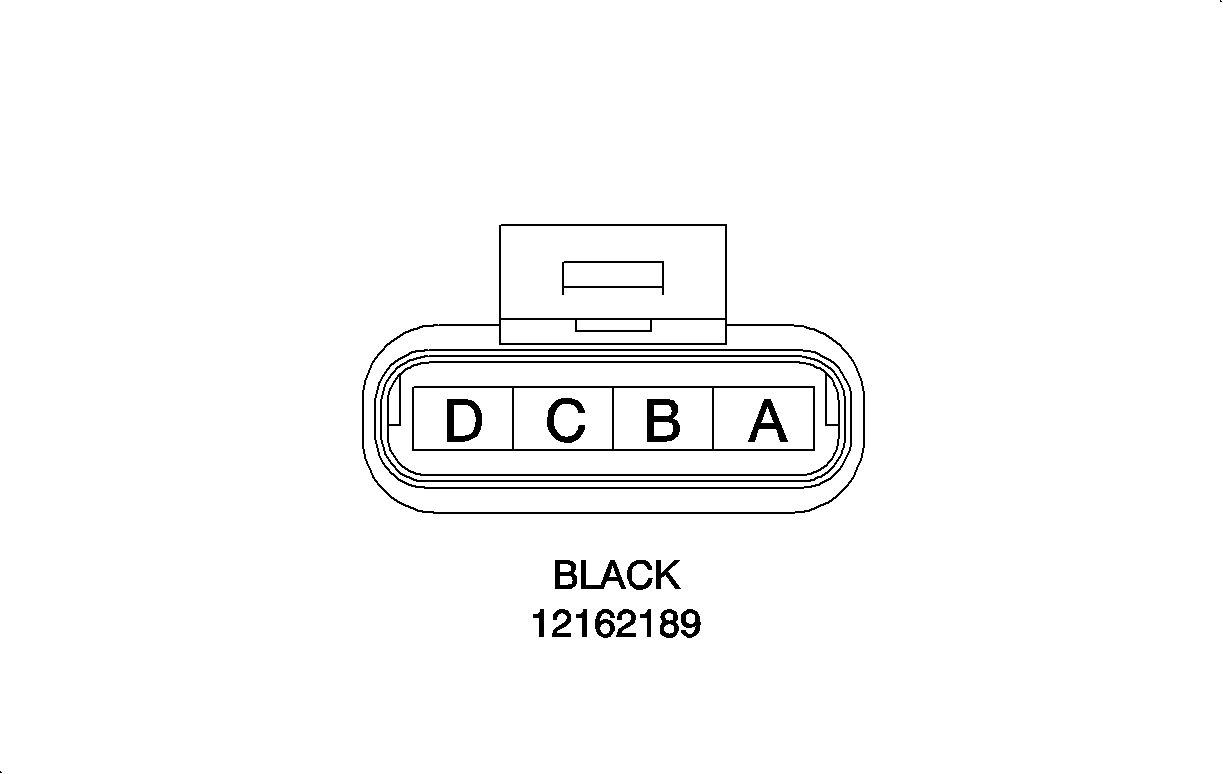

Fuel Tank Unit


Connector Part Information		12162189 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	GRA	120A 120B	.80	FUEL PUMP FEED
B	BLK/WHT	251B 251C	.80	FUEL LEVEL SENSOR
C	PPL	30B	.80	FUEL LEVEL SENSOR
D	BLK	550Z 550EE	.80	W/ ABS GROUND W/O ABS GROUND
Location: Top of Fuel Tank

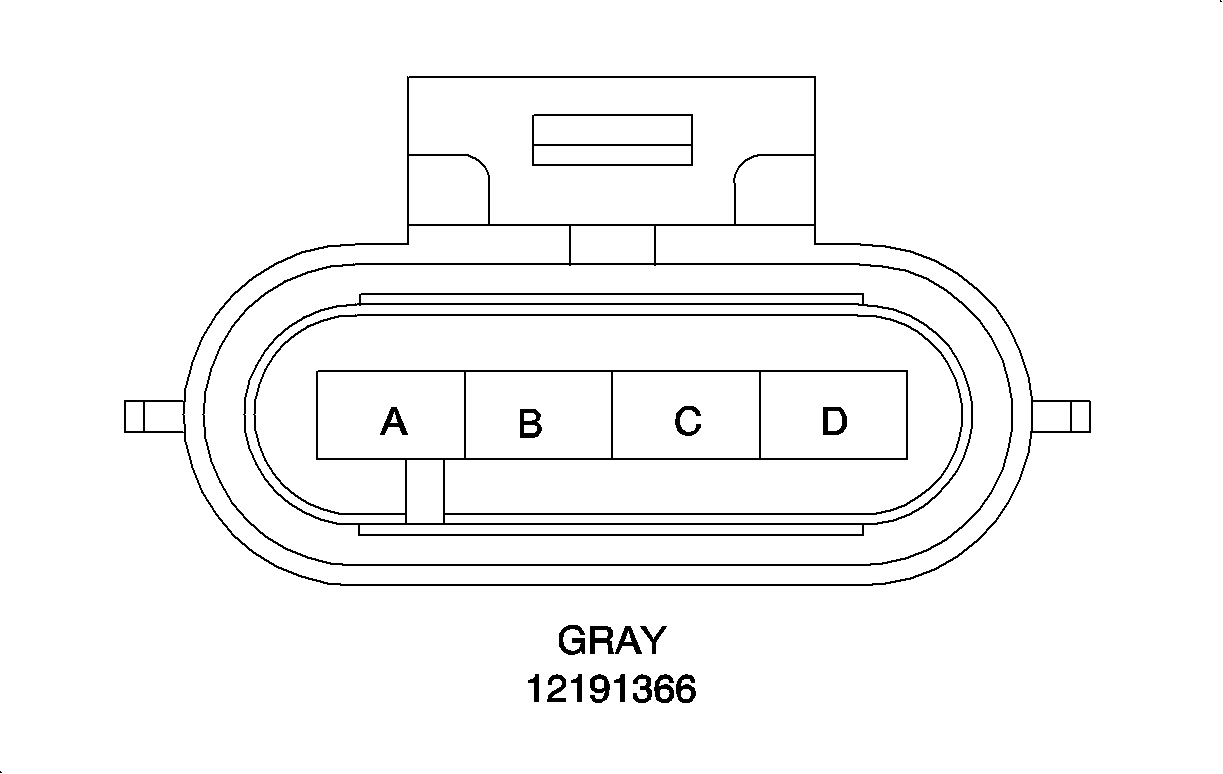

Generator-1998 1st Design Only


Connector Part Information		12191366 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	--	--	--	--
B	BRN/WHT	25A	.35	BATT CHARGE TT
C	BRN	641	.35	IGN
D	--	--	--	--
Location: Engine Compartment-Lower Rear

Generator


Connector Part Information		15305338 Brown
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	--	--	--	--
B	BRN/WHT	25A	.35	BATT CHARGE TT
C	BRN	641	.35	IGN
D	--	--	--	--
Location: Engine Compartment-Lower Rear

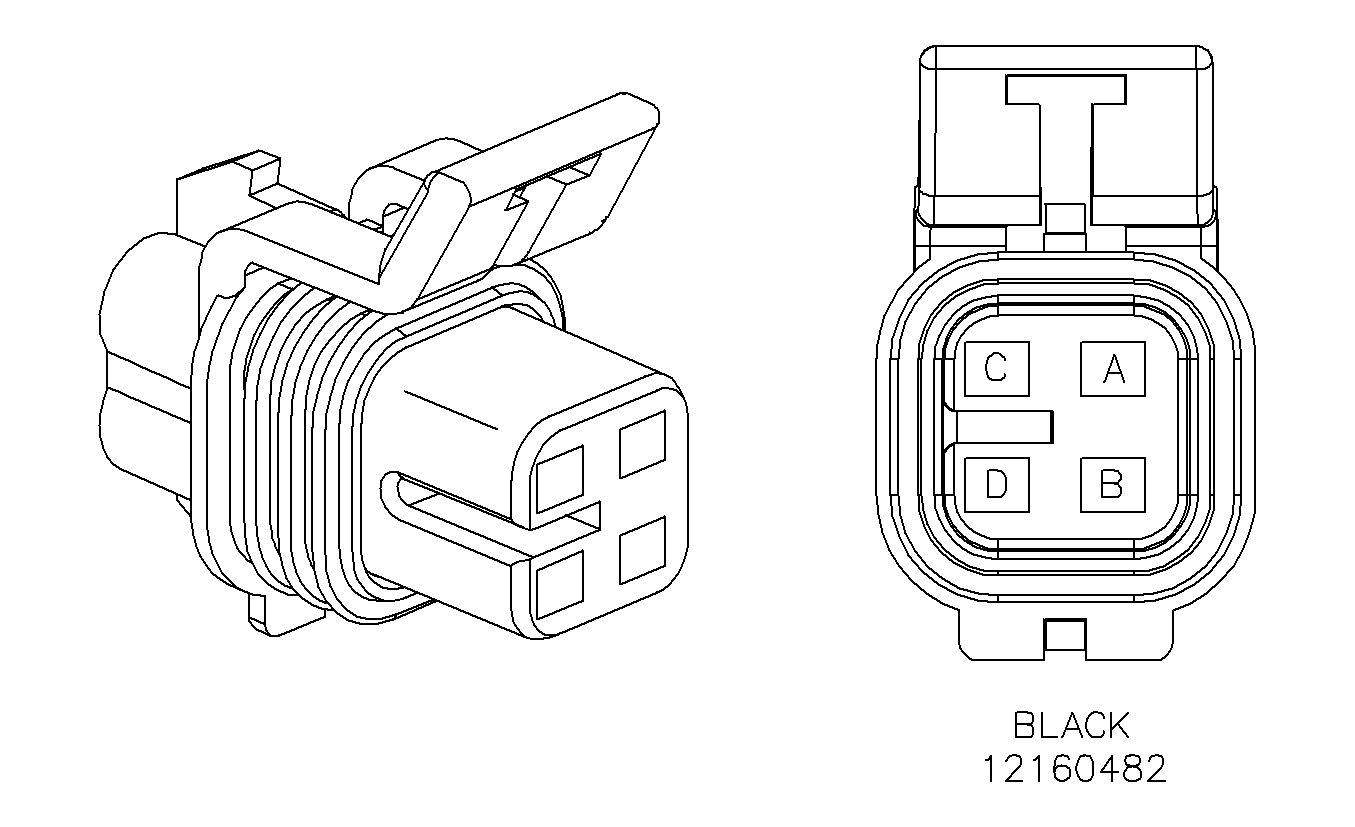

Heated Oxygen Sensor


Connector Part Information		12160482 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK/WHT	451L	.50	O2 SIGNAL GROUND
B	PPL/WHT	1668-AUTO 1668M-MAN	.35	O2 RETURN
C	DK GRN	1423	.35	O2 HEATER GROUND
D	PNK	639E	.80	O2 HEATER FEED
Location: Top of Rear Cradle Cross Member

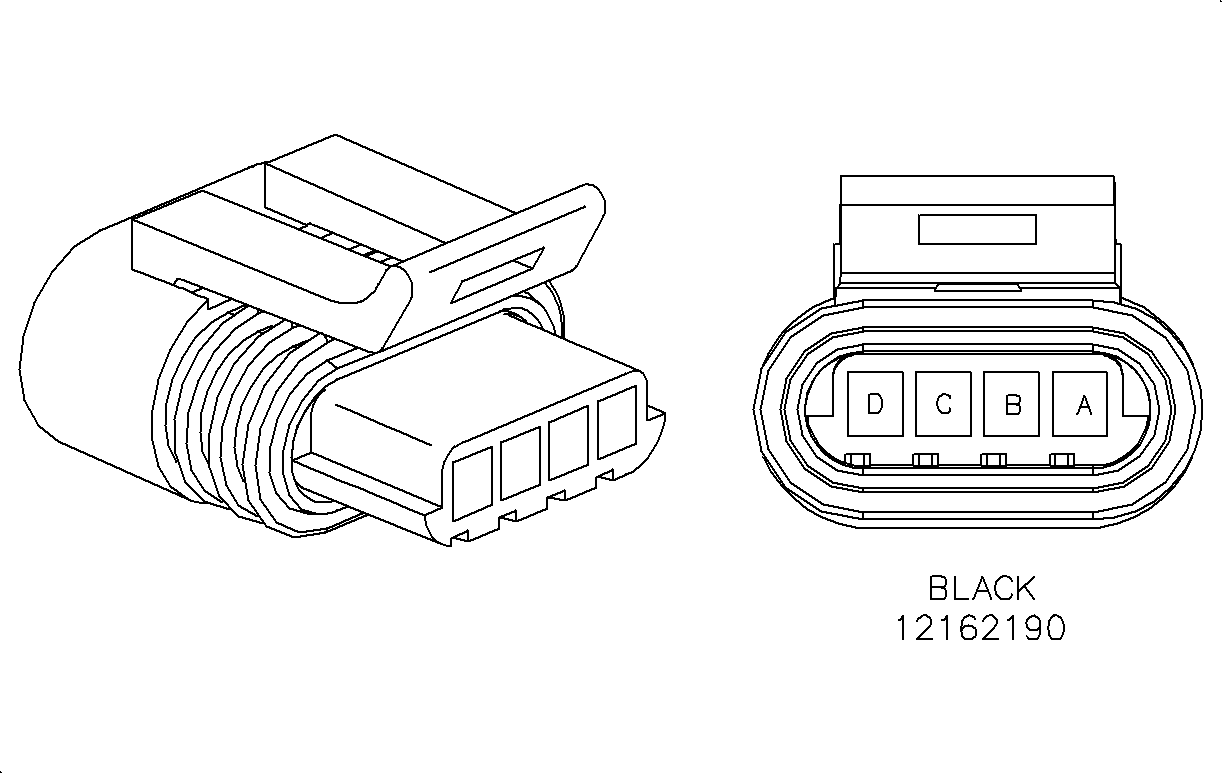

Idle Air Control


Connector Part Information		12162190 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT GRN/BLK	444A	.35	IAC B LO
B	LT GRN/WHT	1749	.35	IAC B HI
C	LT BLU/BLK	1748	.35	IAC A LO
D	LT BLU/WHT	1747	.35	IAC A HI
Location: Engine Compartment-Center Rear Upper

Ignition Switch


Connector Part Information		12064998 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED	102A	3.0	B+
B	ORN	300	3.0	IGNITION SW OUTPUT- IGN 3
C	YEL	5	2.0	CRANK OUTPUT
D	LT GRN	80	.35	KEY MINDER SW SIGNAL
E	BLK	350V	.35	GROUND
F	PNK	3C	2.0	IGNITION SW OUTPUT-IGN 1
G	BRN	4	2.0	ACC OFF/RUN
H	RED	202	3.0	B+
Location: Steering Column

Intake Air Temperature Sensor


Connector Part Information		12092512 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	TAN	472A	.35	IAT SENSOR SIGNAL
B	BLK	452N-AUTO 452M-MAN	.35	IAT SENSOR RETURN
Location: Engine Compartment-Front Left

Knock Sensor


Connector Part Information		12176800 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK BLU	496-AUTO 496M-MAN	.35	KNOCK SENSOR SIGNAL
Location: Rear Engine Block above Starter

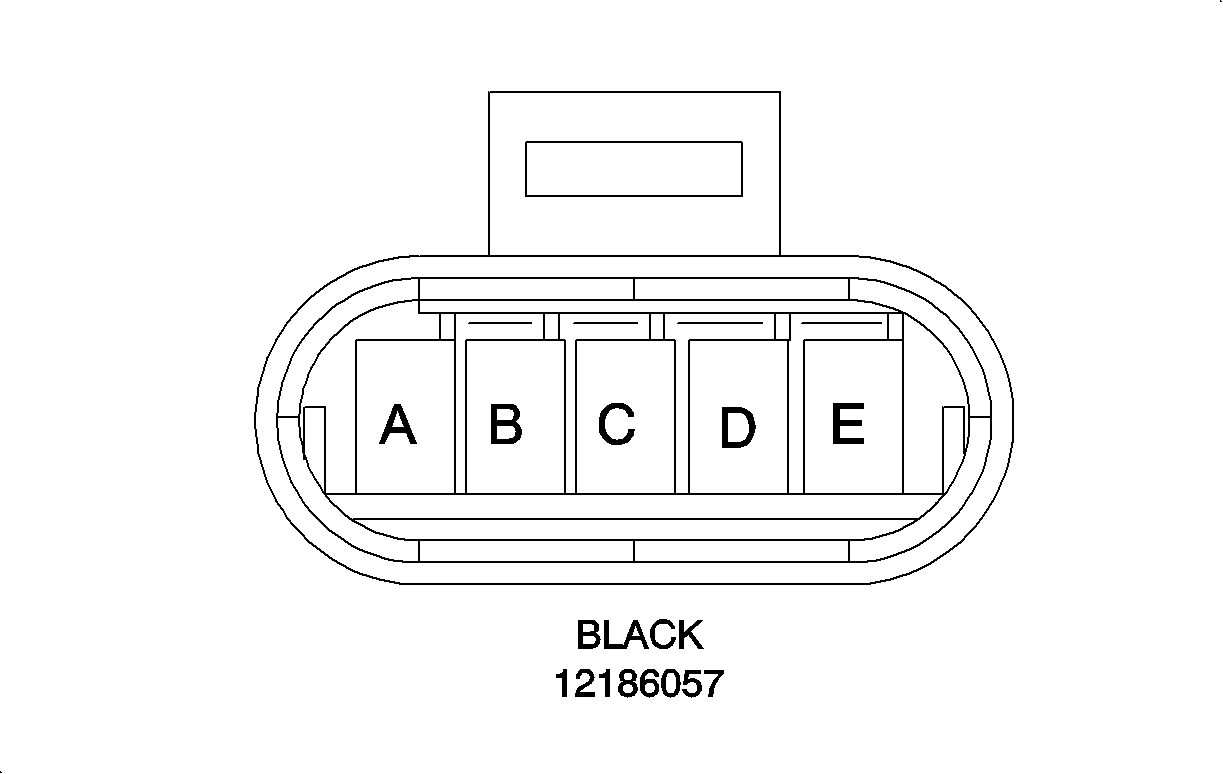

Linear EGR Solenoid


Connector Part Information		12186057 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	697B-SOHC 697-DOHC	.50	LINEAR EGR SOLENOID CONTROL
B	BLK	452GG-SOHC 452G-DOHC	.50	RETURN TO PCM
C	BRN	1456A-SOHC 1456-DOHC	.50	LINEAR EGR FEEDBACK SIGNAL
D	GRA	416EE-SOHC 416E-DOHC	.50	5 V REF
E	PNK	639CC-SOHC 639C-DOHC	.50	IGN FEED
Location: Engine Compartment-Camcover-DOHC Intake-SOHC

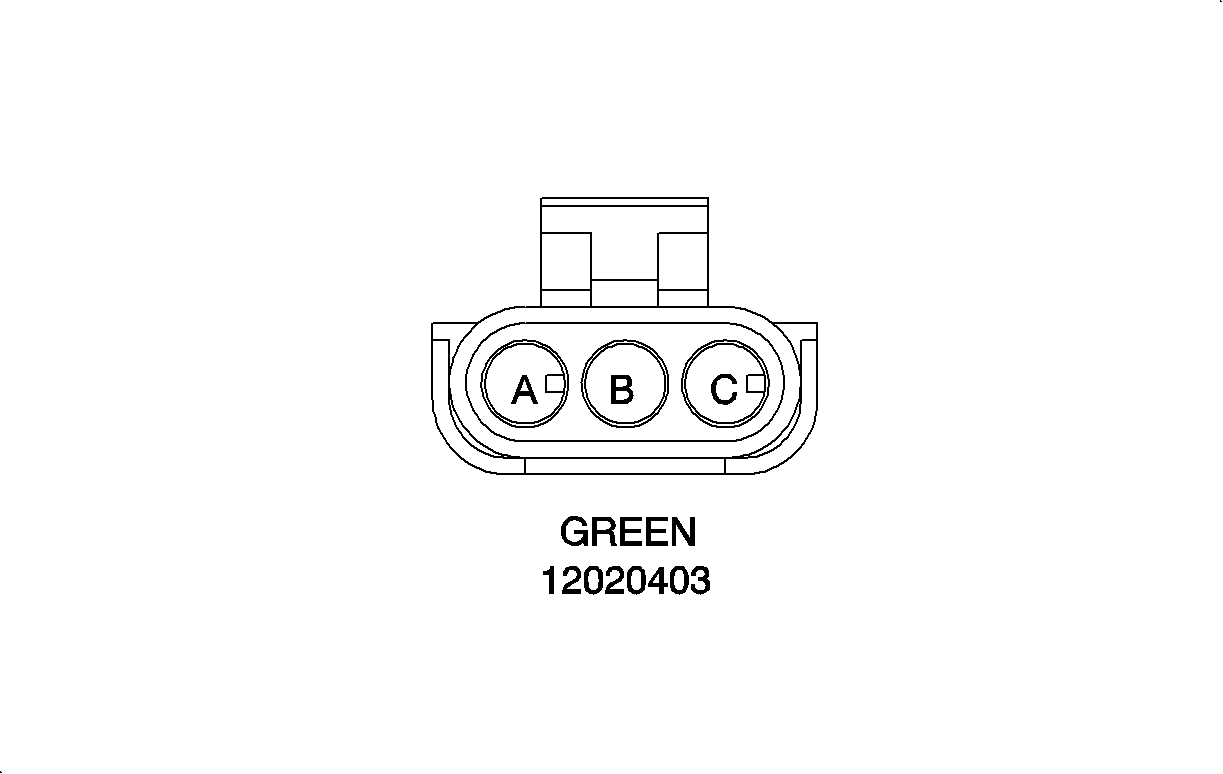

Manifold Absolute Pressure (MAP) Sensor-Manual


Connector Part Information		12020403 Green
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	452HM	.50	MAP RETURN
B	LT GRN	432A	.50	MAP SIGNAL
C	GRA	416F	.50	MAP BATT
Location: Engine Compartment-Right Rear

Manifold Absolute Pressure (MAP) Sensor-Auto


Connector Part Information		12020403 Green
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	452HM	.50	MAP RETURN
B	LT GRN	432A	.50	MAP SIGNAL
C	GRA	416F	.50	MAP BATT
Location: Engine Compartment-Right Rear

Oil Pressure Switch


Connector Part Information		12052644 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	TAN	31A	.35	OIL PRESSURE SW
B	--	--	--	--
Location: Rear Engine Compartment Oil Filter

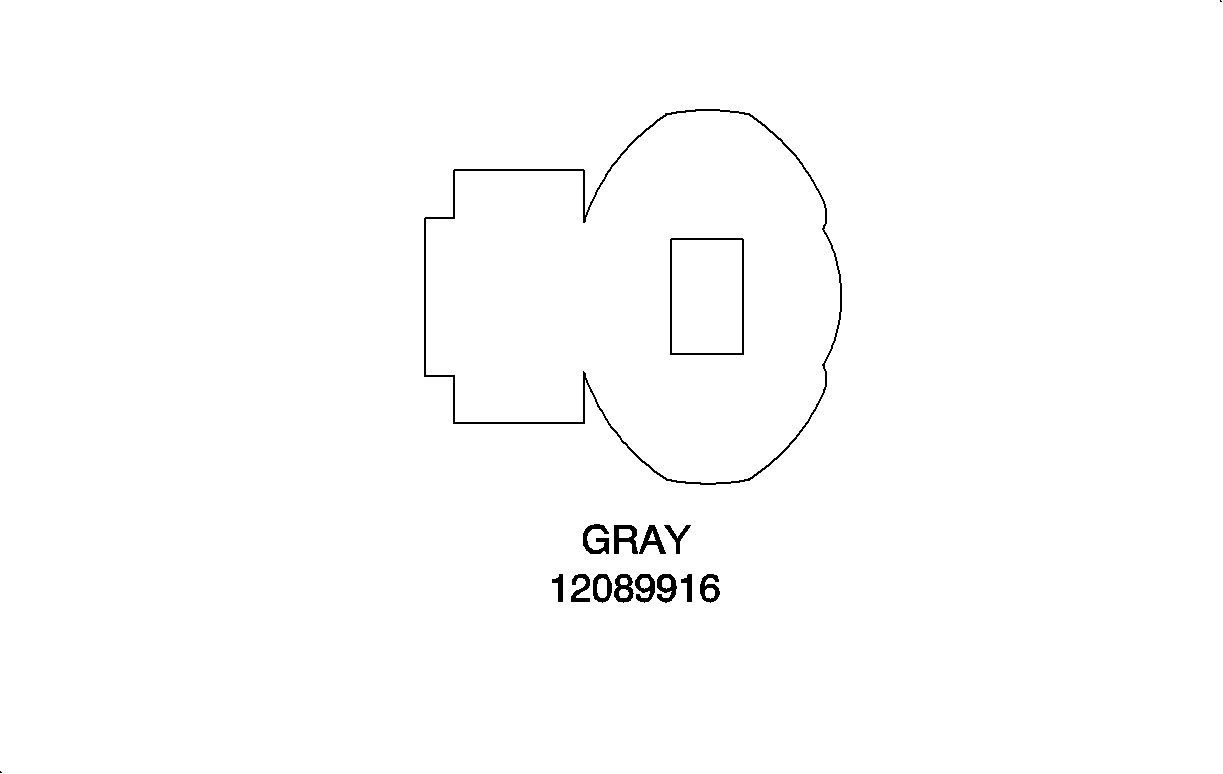

Oxygen Sensor


Connector Part Information		12089916 GrayON HERE
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	412	.80	SIGNAL
Location: Engine Compartment-Center Front

Park/Neutral Position Switch


Connector Part Information		12059642 LT Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	6A	3.0	B+
B	PPL	6X	3.0	FEED TO STARTER SOLENOID
Location: Engine Compartment-Lower Left

Park/Neutral Position Switch


Connector Part Information		12162260 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK/WHT	771	.50	SHIFT SEL 1
B	YEL	772	.50	SHIFT SEL 2
C	GRA	773	.50	SHIFT SEL 3
D	WHT	776	.50	SHIFT SEL D
E	LT GRN	24C	.50	REVERSE SWITCH
F	PNK	239A	.50	REVERSE SWITCH
Location: Engine Compartment-On Automatic Transaxle

Park/Neutral Position Switch


Connector Part Information		12089640 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK/WHT	451K	2.0	GROUND
Location:Engine Compartment-On Automatic Transaxle

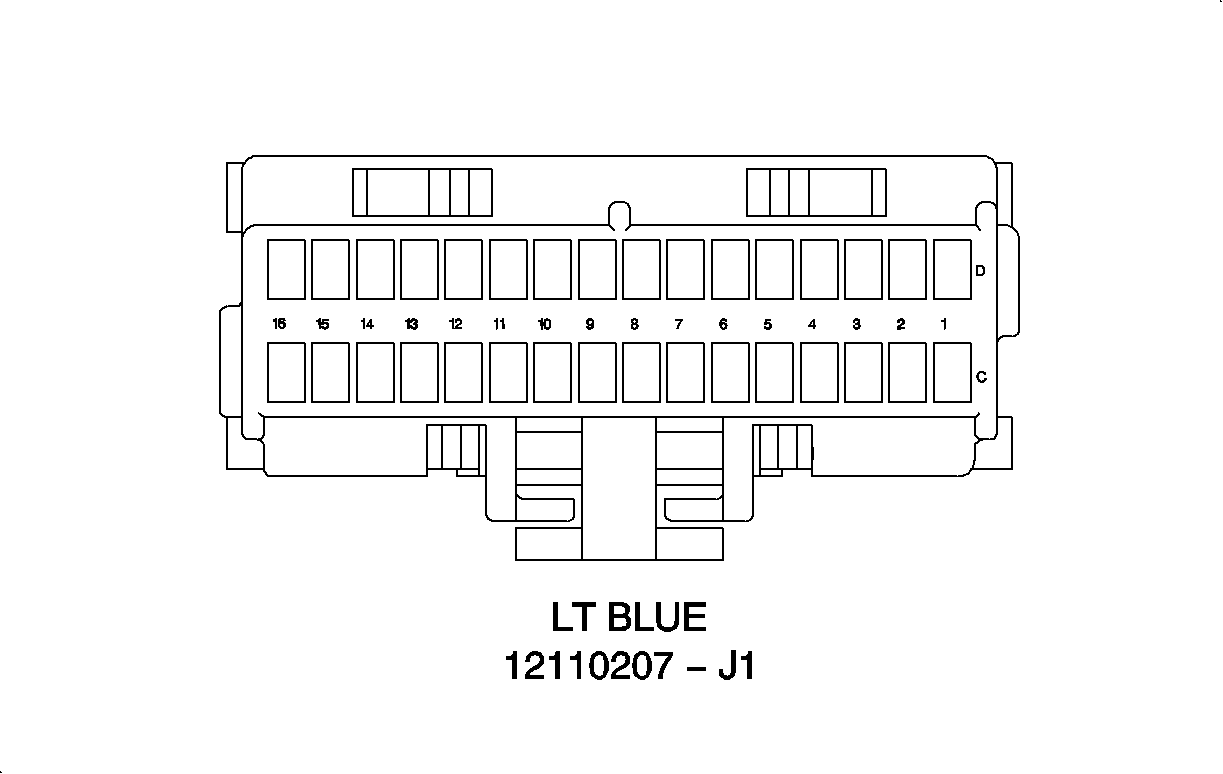

Powertrain Control Module (PCM) --J1-LT BLU


Connector Part Information		12110207-J1 Lt BLU
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
C1	DK GRN	335	.35	COOLING FAN RELAY CONTROL
C2	TAN/BLK	456	.35	UPSHIFT TT-MANUAL
C3	BRN/WHT	419	.35	MILTT OUT
C4	YEL	172	.35	LOW FUEL TT CONTROL
C5	LT BLU	1888	.35	CRUISE CLUTCH OUT
C6	PPL	1885	.35	SERVICE TT OUT
C7	DK GRN	35	.35	COOLANT HOT TT OUT
C8	PPL	1807A	.35	CLASS 2-DLC
C9	--	--	--	--
C10	DK GRN/WHT	465	.35	FUEL PUMP RELAY OUT
C11	DK GRN	603	.50	A/C REQUEST INPUT
C12	PNK	439	.35	IGN 1
C13	--	--	--	--
C14	BRN	86B	.35	BRAKE SWITCH INPUT
C15	GRA	1884	.35	CRUISE RASC IN
C16	PPL/WHT	455	.35	FUEL GAGE SIGNAL
D1	GRA	729	.35	A/C CLUTCH RELAY CONTROL
D2	WHT	121	.35	TACH OUT
D3	DK GRN	135	.35	COOL TEMP GAGE OUT
D4	WHT	1294A	.35	EVO HI
D5	BRN	1295A	.35	EVO LO
D6	DK GRN	389	.35	SPEED SIGNAL OUT
D7	PNK	1886	.35	CRUISE MOVE OUT
D8	PPL	1807B	.35	CLASS 2 --ABS
D9	DK BLU	1446	.35	FLASH POWER
D10	--	--	--	--
D11	LT GRN	1887	.35	CRUISE WOT/IDLE OUT
D12	--	--	--	--
D13	ORN	1140	.80	12 V BATT
D14	LT BLU	1344A	.35	RKE TRUNK RELAY ENABLE
D15	GRA	416H	.35	5 V REF
D16	BLK	452K	.35	FLASH RTN
Location: Behind Left Side of I/P

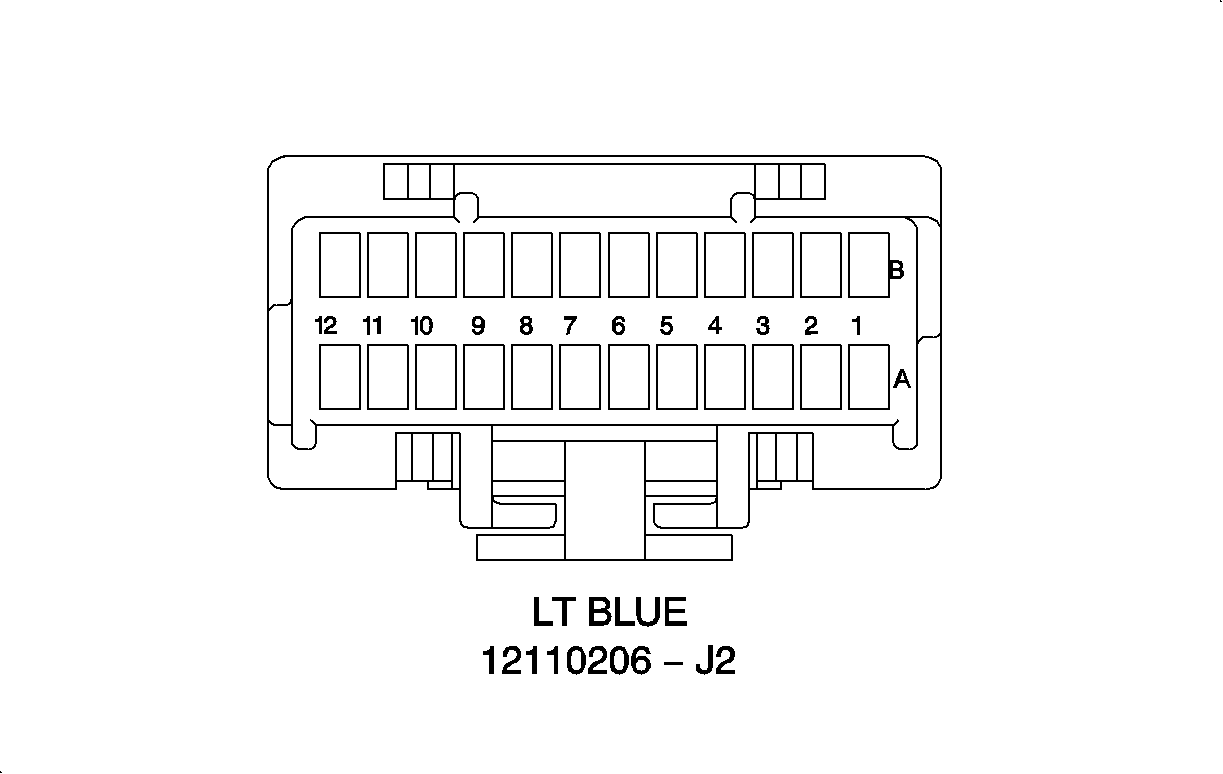

Powertrain Control Module (PCM)-J2-LT BLU


Connector Part Information		12110206-J2 LT BLU
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	PNK/BLK	1746	.80	CYL 3 INJ
A2	LT BLU/BLK	844	.80	CYL 4 INJ
A3	LT GRN/BLK	1745	.80	CYL 2 INJ
A4	WHT	1310A	.35	EVAP VENT VALVE
A5	BRN	1456A 1456	.50	LIN EGR FEEDBACK IN-SOHC LIN EGR FEEDBACK IN-DOHC
A6	DK BLU	417A	.35	TPS IN
A7	LT GRN 432A		.50	MAP IN
A8	AN	472A	.35	INTAKE AIR TEMP SENSOR IN
A9	LT GRN/WHT	1749	.35	IAC B HI OUT
A10	LT GRN/BLK	444A	.35	IAC B LO OUT
A11	LT BLU/BLK	1748	.35	IAC A LO OUT
A12	LT BLU/WHT	1747	.35	IAC A HI OUT
B1	DK GRN/WHT	428	.50	CCP OUT
B2	BLK	1744	.80	CYL 1 INJ
B3	YEL	410	.35	COOLANT TEMP IN
B4	GRA	416B	.35	+5 V MAP/LEGR
B5	GRA	474	.35	+5 V TPS
B6	BLK/WHT	451E	.35	GROUND
B7	WHT	423	.35	EST 1-4
B8	ORN	406	.35	EST 2-3
B9	TAN/WHT	551C 551A	.80	GROUND-AUTO GROUND-MANUAL
B10	LT BLU	697B 697	.50	LIN EGR SOL OUT-SOHC LIN EGR SL OUT-DOHC
B11	PNK	639A	.50	LIN EGR RECIRC
B12	ORN	1140A	.80	12 V BAT
Location: Behind Left Side of I/P

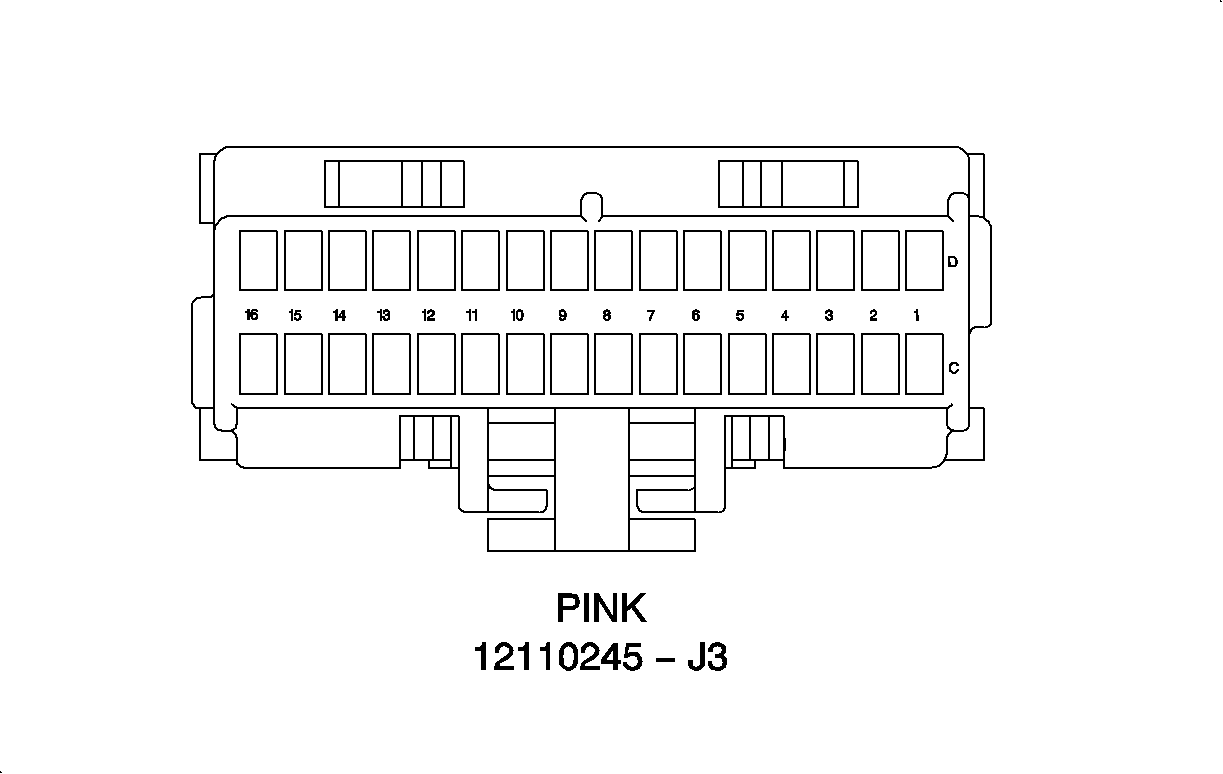

Powertrain Control Module (PCM)-Automatic J3 --PNK


Connector Part Information		12110245-J3 PNK
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
C1	BLK/WHT	1423A	.35	HEATED O2
C2	PNK/BLK	429A	.35	AIR PUMP SOLENOID-1999 ONLY
C3	--	--	--	--
C4	YEL/BLK	68A	.35	COOLANT LEVEL IN
C5	PPL	30E	.35	FUEL LEVEL IN
C6	--	--	--	--
C7	BRN	436	.35	AIR PUMP-1999 ONLY
C8-C9	--	--	--	--
C10	DK BLU	496	.35	KNOCK SENSOR IN
C11	TAN	413B	.80	HO2S LO IN
C12	PPL/WHT	1668	.35	HO2S HI IN
C13	TAN	413A	.80	O2 F LO IN
C14	PPL	412	.80	O2 F HI IN
C15	PPL	401	.35	VSS LO IN
C16	BLK	452G 452GG	.50	LEGR RTN-DOHC LEGR RTN-SOHC
D1	BLK	452H	.50	MAP RETURN
D2	BLK/WHT	251E	.35	FUEL LEVEL RETURN
D3	BRN/WHT	633	.35	CYL #4 SIGNAL
D4-D6	--	--	--	--
D7	DK GRN	890A	.35	FUEL TANK PRESSURE
D8	BLK	452MD	.35	ECT SENSOR RETURN
D9	ORN/BLK	469B	.35	FUEL TANK PRESSURE SENSOR RETURN-1999 ONLY
D10	BLK	452N	.35	IAT SENSOR RETURN
D11	BLK	452J	.35	TPS RETURN
D12	--	--	--	--
D13	YEL	573	.35	7X HI IN
D14	PPL	574	.35	7X LO IN
D15	YEL	400	.35	VSS HI IN
D16	--	--	--	--
Location: Behind Left Side of I/P

Powertrain Control Module (PCM)-Manual J3-BRN


Connector Part Information		12160779-J3 BRN
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
C1	BLK/PWHT	1423	.35	HEATED 02
C2	PNK/BLK	429A	.35	AIR PUMP SOLENOID-1999 ONLY
C3	--	--	--	--
C4	YEL/BLK	68AM	.35	COOLANT LEVEL IN
C5	PPL	30EM	.35	FUEL LEVEL IN
C6	--	--	--	--
C7	BRN	436	.35	AIR PUMP-1999 ONLY
C8-C9	--	--	--	--
C10	DK BLU	496M	.35	KNOCK SENSOR IN
C11	TAN	413BM	.80	HO2S LO IN
C12	PPL/WHT	1668M	.35	HO2S HI IN
C13	TAN	413AM	.80	O2S F LO IN
C14	PPL	412M	.35	O2S F HI IN
C15	PPL	401M	.35	VSS LO IN
C16	BLK	452G 452GG	.50	LEGR RTN-DOHC LEGR RTN-SOHC
D1	BLK	452HM	.50	MAP RETURN
D2	BLK/WHT	251EM	.35	FUEL LEVEL RETURN
D3	BRN/WHT	633M	.35	CYL #4 SIGNAL
D4-D6	--	--	--	--
D7	DK GRN	890A	.35	FUEL TANK PRESSURE
D8	BLK	452MB	.35	ECT SENSOR RETURN
D9	ORN/BLK	469B	.35	FUEL TANK PRESSURE SENSOR RETURN-1999 ONLY
D10	BLK	452NM	.35	IAT SENSOR RETURN
D11	BLK	452JM	.35	TPS RETURN
D12	--	--	--	--
D13	YEL	573M	.35	7X HI IN
D14	PPL	574M	.35	7X LO IN
D15	YEL	400M	.35	VSS HI IN
D16	--	--	--	--
Location: Behind Left Side of I/P

Powertrain Control Module (PCM)-Automatic J4


Connector Part Information		12110244-J4 PNK
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	--	--	--	--
A2	TAN/BLK	422	.50	TCC OUT
A3	DK BLU	1530	.50	MPL OUT
A4	--	--	--	--
A5	PPL	898	.50	4TH OUT
A6	YEL/BLK	1223	.50	3RD OUT
A7	LT GRN	1222	.50	2ND OUT
A8-A9	--	--	--	--
A10	BLK/WHT	451F	.35	GROUND
A11	BLK	452T	.35	TRANS FLUID TEMP SENSOR RTN
A12	--	--	--	--
B1	--	--	--	--
B2	GRA	773	.50	SEL SW B2
B3	YEL	772	.50	SEL SW B1
B4	BLK/WHT	771	.50	SEL SW B0
B5	WHT	776	.50	SEL SW B3
B6-B7	--	--	--	--
B8	ORN/BLK	586	.35	TRANS FLUID TEMP SENSOR IN
B9	TAN/WHT	551B	.80	GROUND
B10	RED/BLK	1230	.35	TURBINE SHAFT SPEED SENSOR HI IN
B11	DK BLU/WHT	1231	.35	TURBINE SHAFT SPEED SENSOR LO IN
B12	--	--	--	--
Location: Behind Left Side of I/P

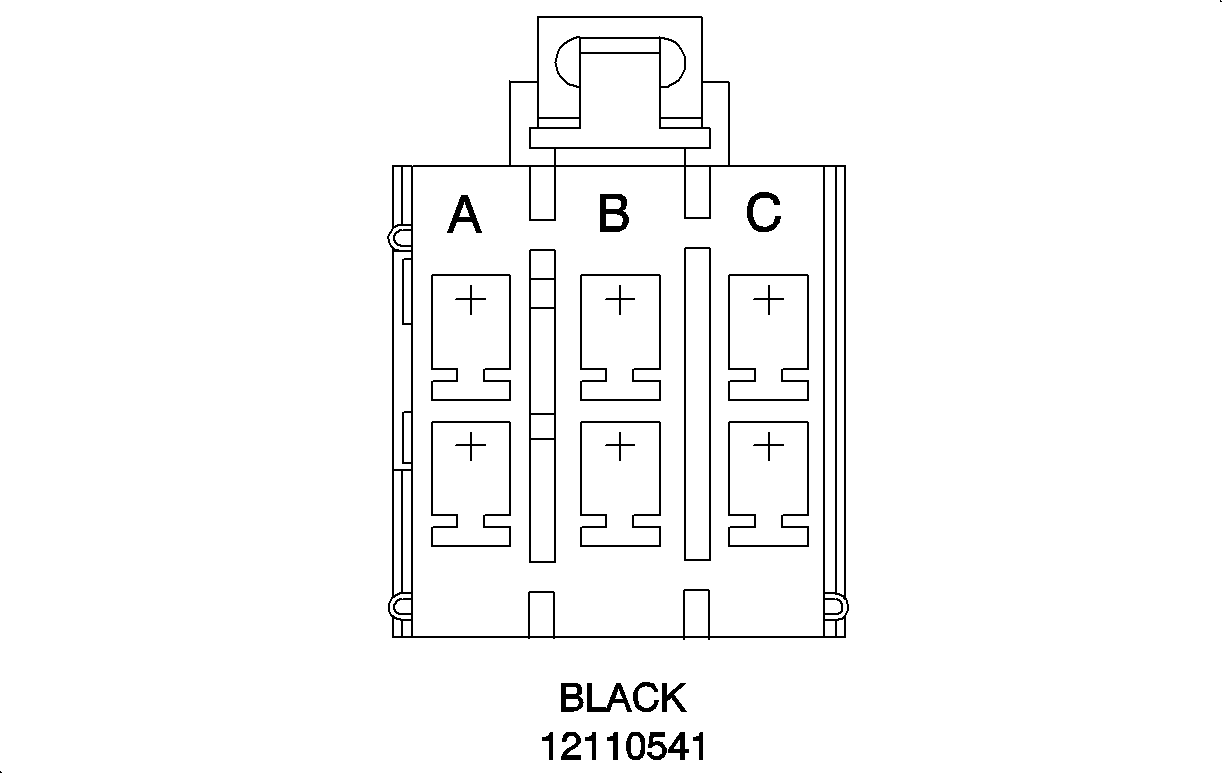

Starter Relay


Connector Part Information		12110541 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	YEL/BLK	625	.35	STARTER RELAY CONTROL
A2	YEL	575-AUTO 575A-MAN	5.0	SWITCHED CRANK FEED TO STARTER SOLENOID
B1-B2	--	--	--	--
C1	YEL	55A	2.0	CRANK FEED FROM IGNITION SWITCH
C2	YEL	5A	2.0	CRANK FEED FROM IGNITION SWITCH
Location: Taped to I/P Harness Forward of I/P Cluster

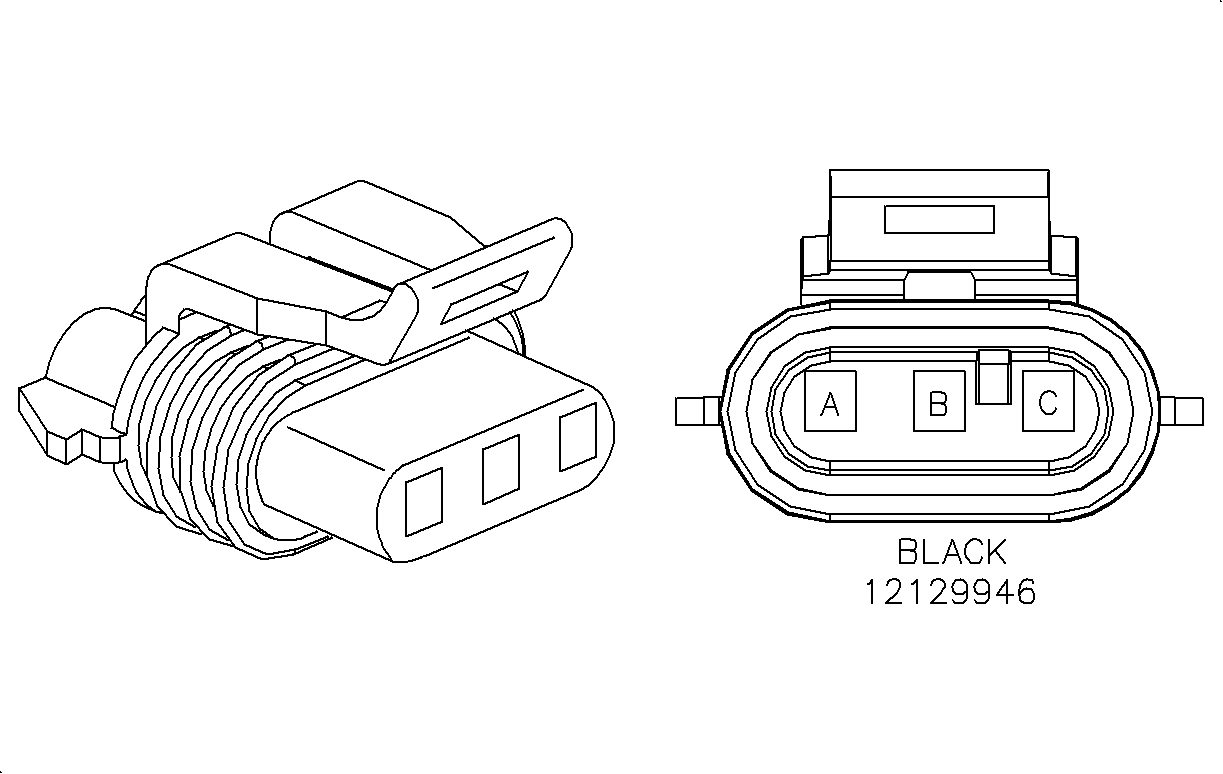

Throttle Position Sensor (TPS)


Connector Part Information		12129946 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	452J-AUTO 452M-MAN	.35	TPS RTN AT PCM
B	DK BLU	417A	.35	TPS IN AT PCM
C	GRA	474	.35	5 V BATT
Location Engine Compartment-Center Rear
