Document ID# 1212649
1998 Saturn SL2/SC2/SW2

Control Assembly Replacement Wiring Harness

Removal Installation

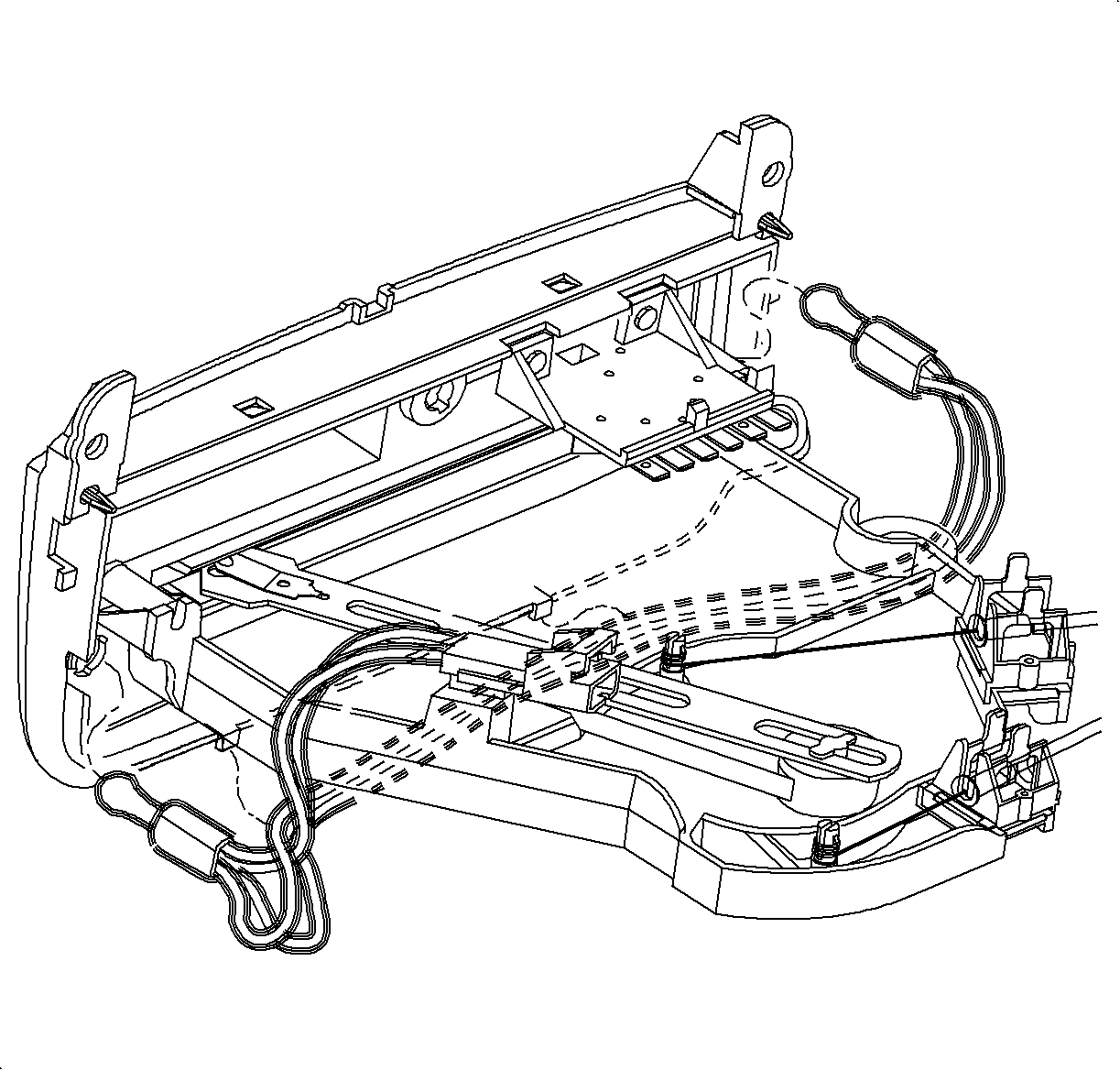

    Object Number: 903913 Size: SH
    Click here for detailed picture of above image.
  1. Remove the HVAC controller. (Refer to "HVAC Controller" in this manual.)
  2. Remove the bulb sockets, electrical connector and wiring harness from HVAC control.
Installation Procedure

    Object Number: 903913 Size: SH
    Click here for detailed picture of above image.
  1. Install the wiring harness, electrical connector and the bulb sockets to control.
  2. Install the HVAC controller. (Refer to "HVAC Controller" in this service manual.)
