Connector End Views

Table 1:	Data Link Connector-DLC
Table 2:	Park/Neutral Position Switch
Table 3:	Park/Neutral Position Switch
Table 4:	Park/Neutral Position Switch
Table 5:	Transaxle Actuators
Table 6:	Transaxle Fluid Temperature Sensor
Table 7:	Turbine Shaft Speed Sensor

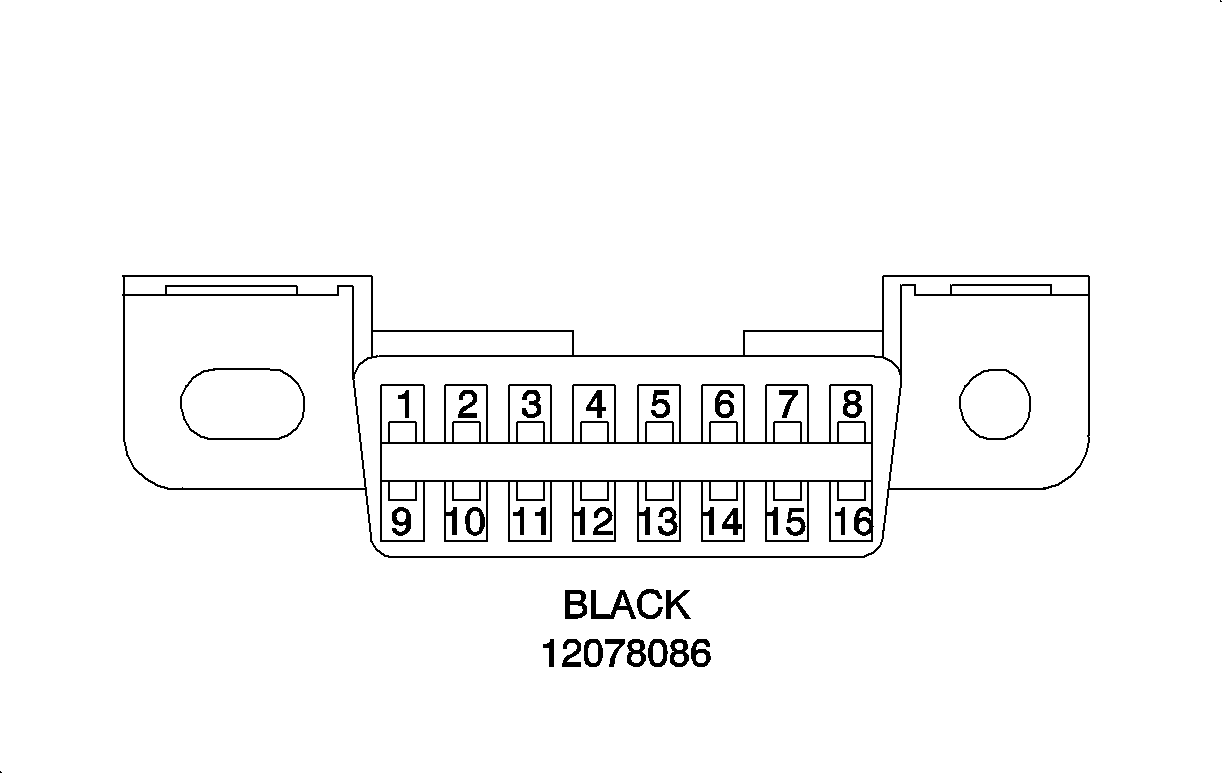

Data Link Connector-DLC


Connector Part Information		12110250 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	PPL	1807C	.35	CLASS 2 TO SDM-1999 ONLY
2	PPL	1807A	.35	CLASS2 TO PCM
3	--	--	--	--
4	BLK	350AG-AUTO 350BG-MAN	.35	GROUND
5	BLK	452K	.35	FLASH RTN FROM PCM
6	DK BLU	1446	.35	FLASH POWER AT PCM
7	--	--	--	--
8	BLK/WHT	1455B	.35	PROGRAMMING MODE TO RKE MODULE
9	TAN	800	.35	SERIAL DATA TO SDM--1998 ONLY
10	--	--	--	--
11	--	--	--	--
12	--	--	--	--
13	--	--	--	--
14	--	--	--	--
15	--	--	--	--
16	ORN	340L	.35	B+
Location: I/P Lower Left

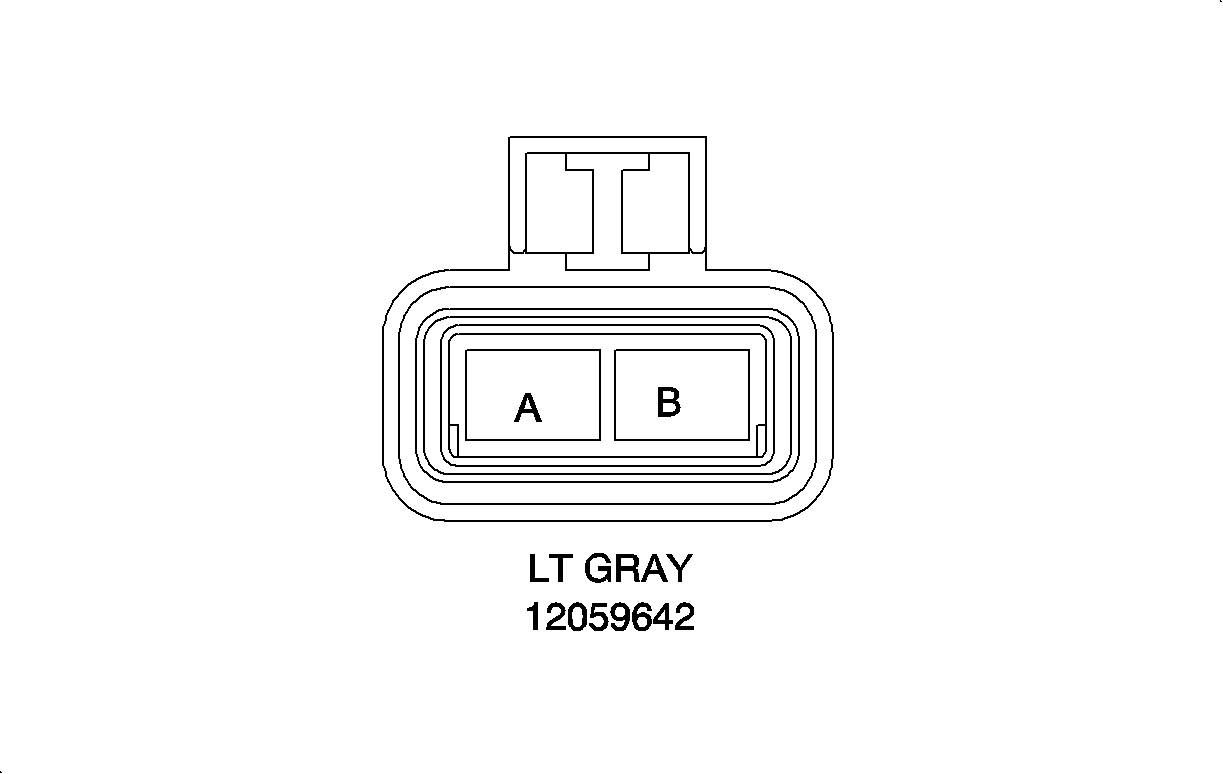

Park/Neutral Position Switch


Connector Part Information		12059642 LT Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	6A	3.0	B+
B	PPL	6X	3.0	FEED TO STARTER SOLENOID
Location: Engine Compartment-Lower Left

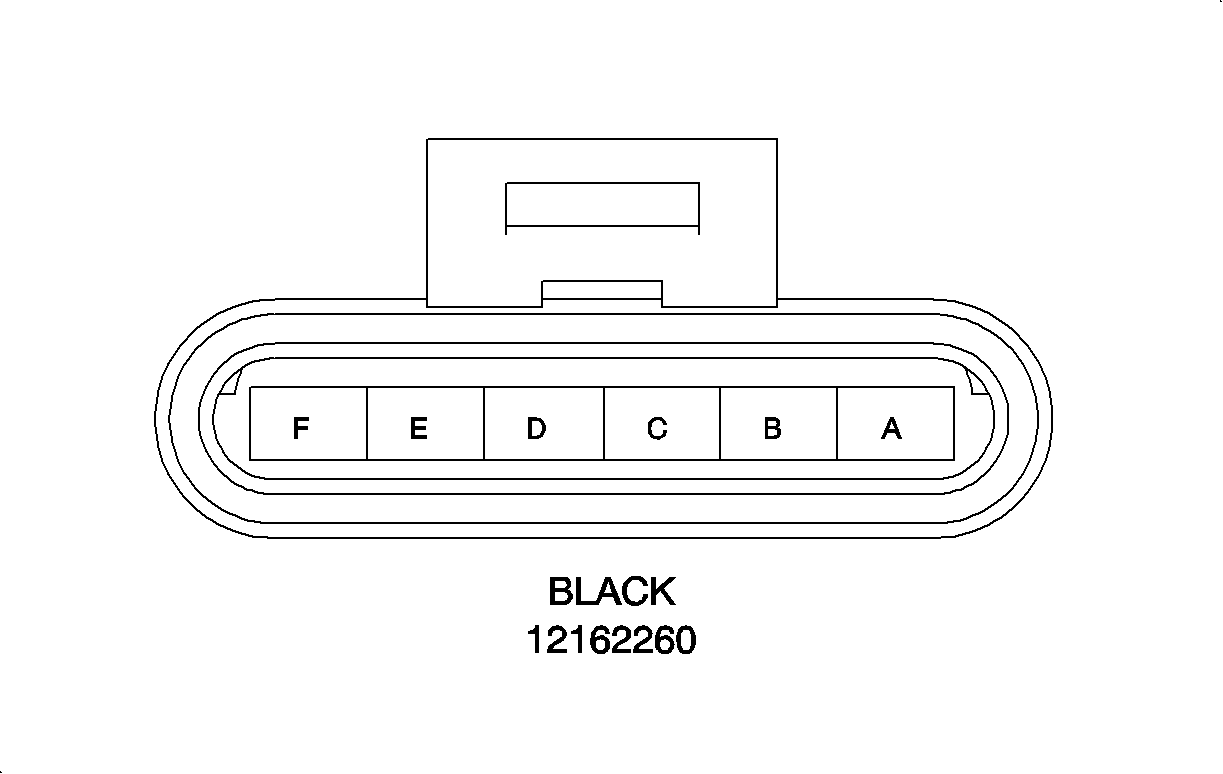

Park/Neutral Position Switch


Connector Part Information		12162260 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK/WHT	771	.50	SHIFT SEL 1
B	YEL	772	.50	SHIFT SEL 2
C	GRA	773	.50	SHIFT SEL 3
D	WHT	776	.50	SHIFT SEL D
E	LT GRN	24C	.50	REVERSE SWITCH
F	PNK	239A	.50	REVERSE SWITCH
Location: Engine Compartment-On Automatic Transaxle

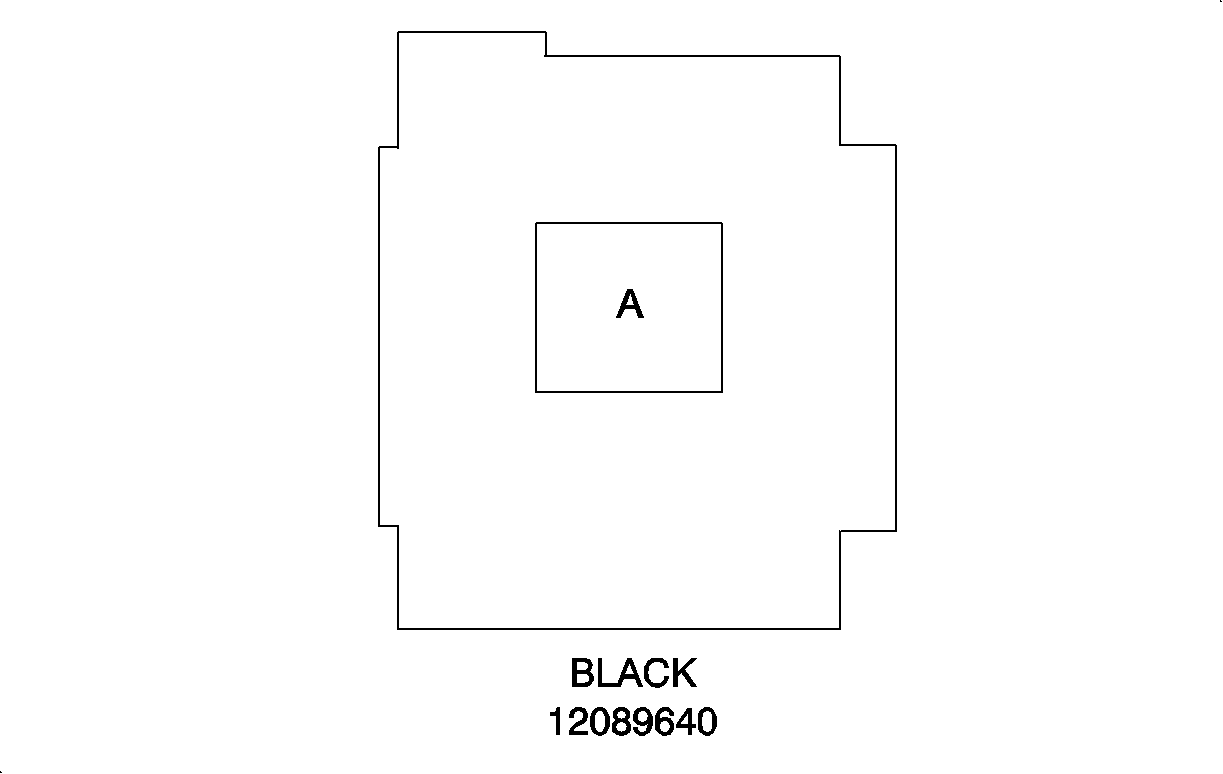

Park/Neutral Position Switch


Connector Part Information		12089640 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK/WHT	451K	2.0	GROUND
Location:Engine Compartment-On Automatic Transaxle

Transaxle Actuators


Connector Part Information		12092172 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT GRN	1527	.50	G3 POWER
B	YEL/BLK	1223	.50	G3 ACTUATOR
C	LT GRN/BLK	1527A	.50	G4 POPWER
D	PPL	898	.50	G4 ACTUATOR
E	WHT/BLK	1526A	.50	TCC ACTUATOR
F	DK BLU	1530	.50	MLP ACTUATOR
G	RED	1525	.50	MLP ACTUATOR
H	LT GRN	1222	.50	G2 ACTUATOR
J	WHT	1526	.50	G2/TCC POWER
K	TAN/BLK	422	.50	TR PRESS SW
Location: Engine Compartment-Top of Automatic Transaxle

Transaxle Fluid Temperature Sensor


Connector Part Information		12092512 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	452T	.35	FLUID TEMP RTN
B	ORN/BLK	586	.30	FLUID TEMP SIGNAL
Location:Engine Compartment-Front Left

Turbine Shaft Speed Sensor


Connector Part Information		12052644 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED/BLK	1230	.35	TURBINE SHAFT SPEED SIGNAL
B	DK BLU/WHT	1231	.35	TURBINE SHAFT SPEED RTN
Location: Engine Compartment-On Transaxle Near Diff.
