Wiper/Washer System Connector End Views

Table 1:	Rear Washer Pump - Wagon
Table 2:	Rear Wiper Motor - Wagon
Table 3:	Washer Pump
Table 4:	Wiper Motor
Table 5:	Wiper Switch

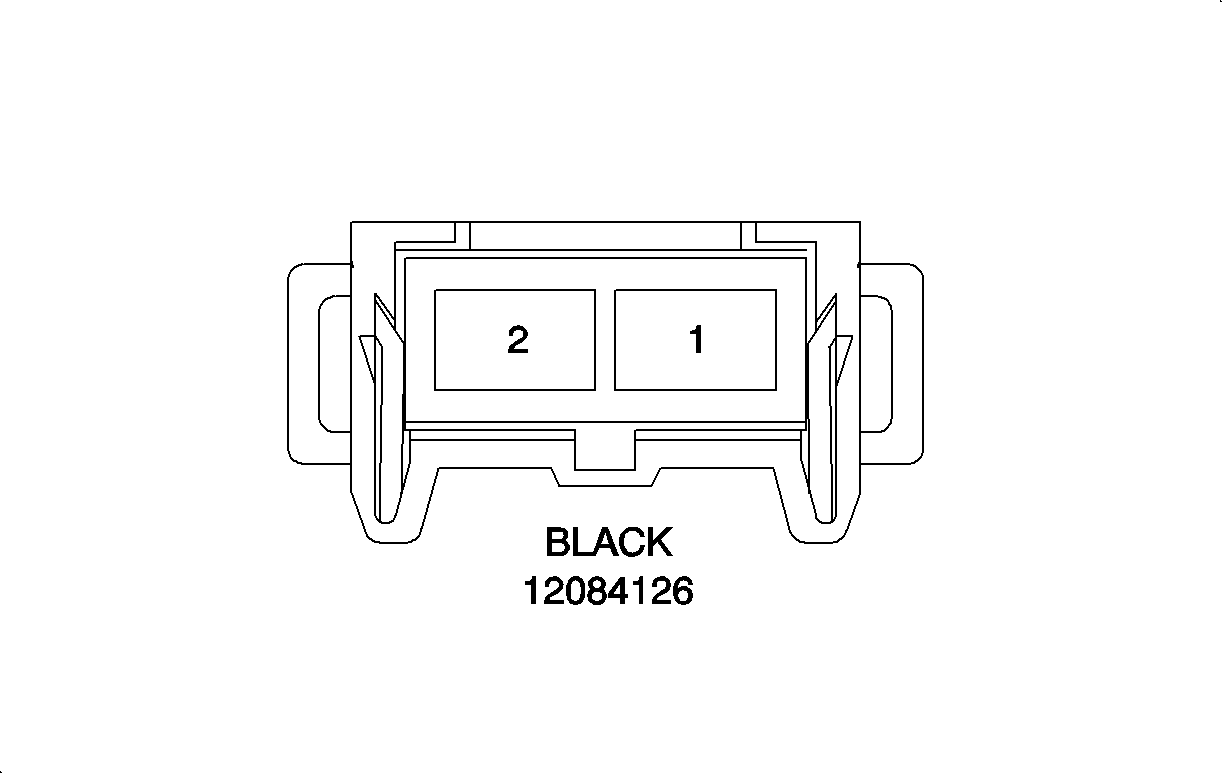

Rear Washer Pump - Wagon


Connector Part Information		12084126 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	DK GRN	392B	0.5	FEED FROM WIER SWITCH
2	BLK	550AH	0.5	GROUND
Location: Right Rear Cargo Compartment on Reae Washer Bottle

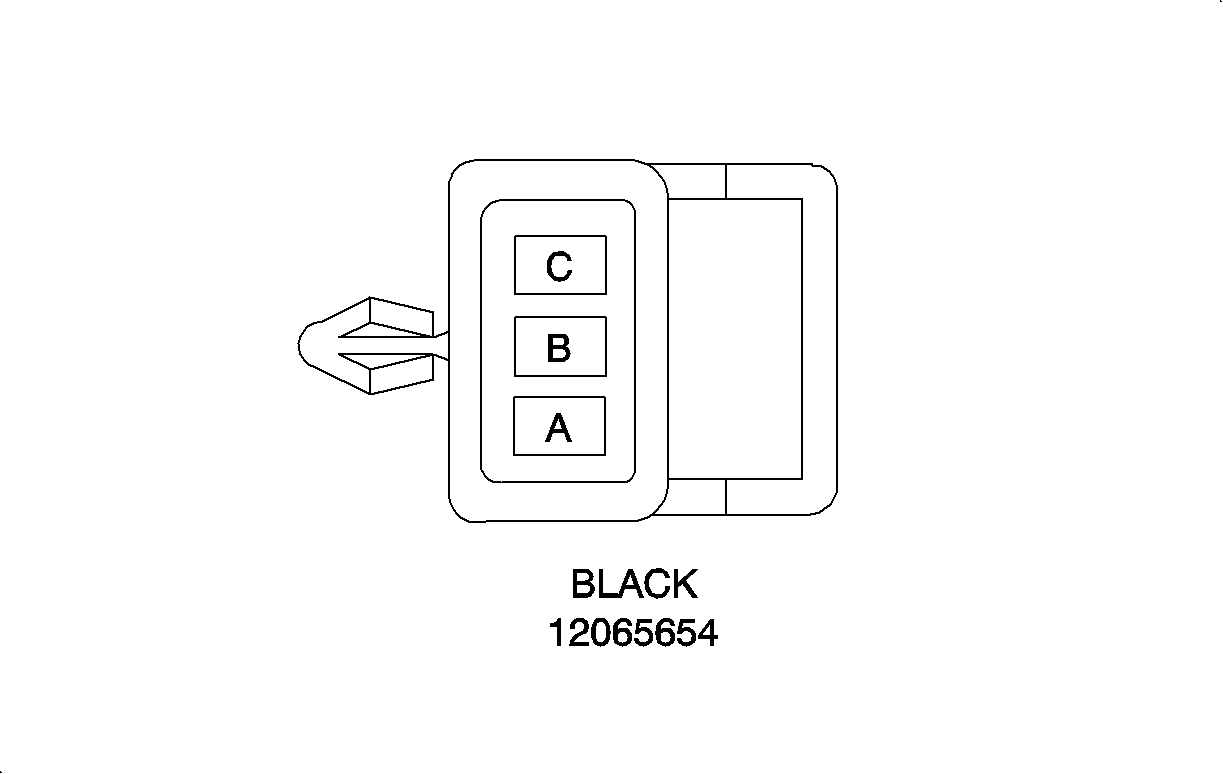

Rear Wiper Motor - Wagon


Connector Part Information		12065654 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	580F	0.5	WIPER
B	WHT	393C	0.5	WIPER
C	BLK	550EB	0.5	GROUND
Location: Liftgate

Washer Pump


Connector Part Information		12084126 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
1	PNK	94	1	SWITCH
2	BLK	150J	0.5	GROUND
Location: Washer Pump at Base of Washer Bottle

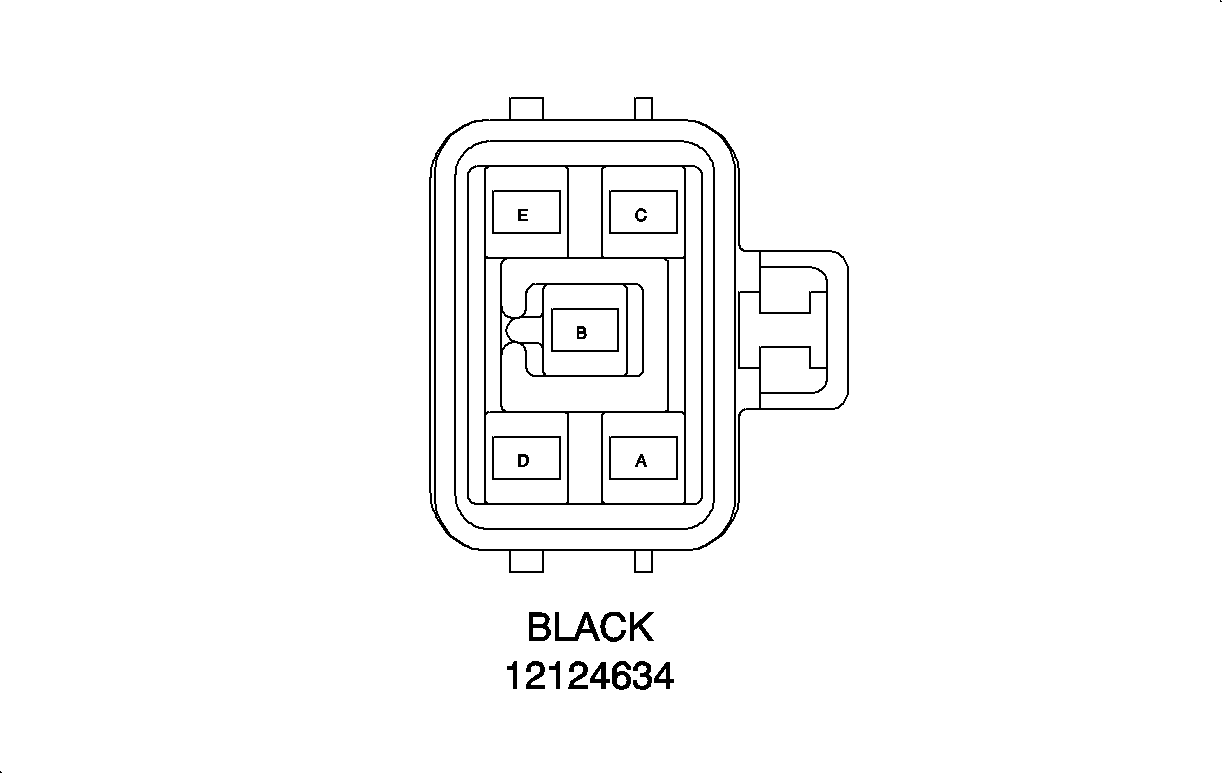

Wiper Motor


Connector Part Information		12124634 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PNK	94A	1	WASHER PUMP
B	BLK	350R	1	GROUND
C	PPL	92	0.35	HIGH SPEED
D	BRN	96	0.35	SWITCH
E	YEL	143	1	POWER
Location: Center Cowl

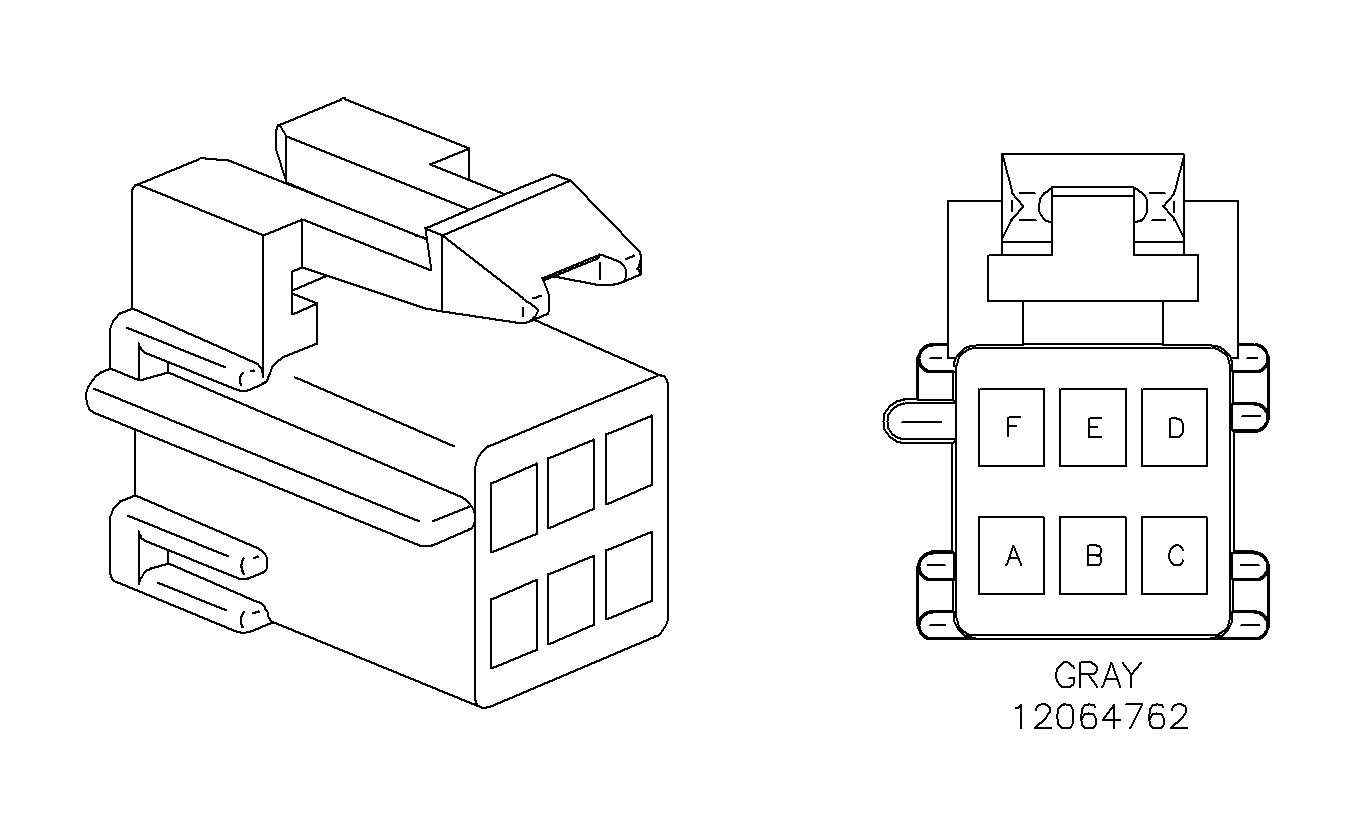

Wiper Switch


Connector Part Information		12064762 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	350F	0.35	GROUND
B	DK GRN	392A	0.5	REAR WASHER PUM-WAGON
C	WHT	393A	0.5	REAR WIPER MOTOR-WAGON
D	ORN	580D	0.5	POWER FROM IPJB-WAGON
E	BRN	96	0.35	WIPER-PULSE DELAY-FRONT
F	PPL	92	0.35	WIPER MOTOR-FRONT
Location: Steering Column
