Evaporative Emission (EVAP) Canister Purge Solenoid Valve Replacement DOHC

richpin06a EVAP Purge Solenoid Removal

Removal Procedure

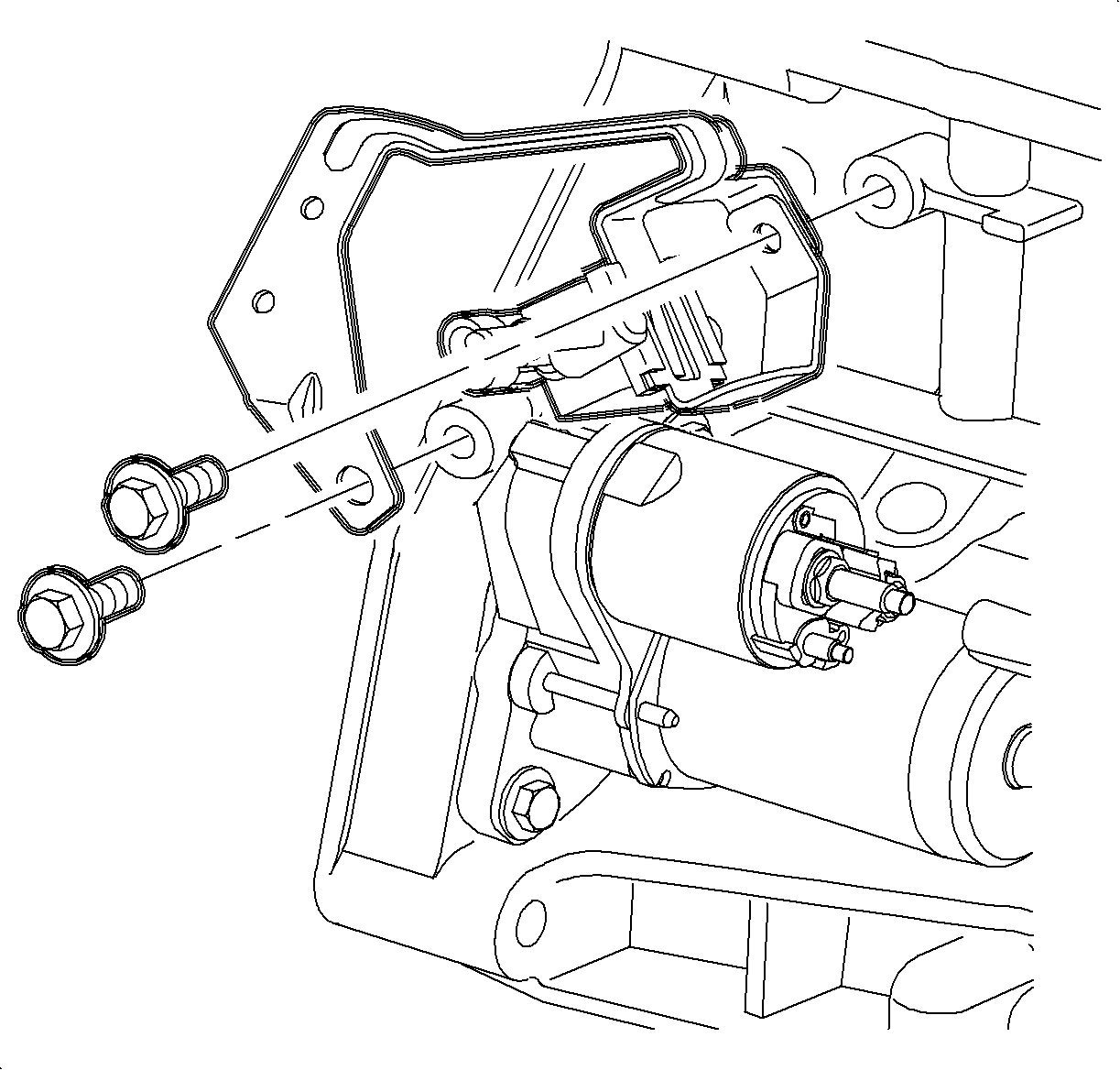

The EVAP purge solenoid is located to the rear of the engine block, below the intake manifold above the starter solenoid.

1. Turn the ignition OFF.
2. Remove the air induction tubing from the throttle body to the air cleaner.
3. Disconnect the crankshaft position (CKP) and knock sensor harness connectors.
4. Remove the CKP and knock sensor connectors from the bracket by inserting a flat-bladed screwdriver between the connector and the clip. Gently pull the connector toward the battery to remove the connector from the clip. Do not pull on the wires.
5. Disconnect the EVAP purge solenoid harness connector.
6. Disconnect the purge line quick connect from the EVAP purge solenoid and the vacuum line.
7. Remove both 10 mm EVAP purge solenoid bracket bolts and remove the solenoid/bracket assembly.

Installation Procedure

Notice

Refer to Fastener Notice in Cautions and Notices.





1. Install the EVAP purge solenoid/bracket assembly and install the attachment bolts.
Tighten

Tighten the canister purge solenoid-to-block bolts to 22 N·m (16 lb ft).

2. Connect the purge line quick connect and the vacuum hose to the EVAP purge solenoid.

Important

Make sure the purge quick connect is seated and a "click" is heard. Pull back to confirm a positive engagement.

3. Connect the EVAP purge solenoid harness connector. Push until a click is heard and pull back to confirm a positive engagement.
4. Install the CKP and knock sensor connectors to the bracket by sliding the connector into the clip.
5. Connect the CKP and knock sensor harness connectors. Push in the connectors until a click is heard and pull back to confirm a positive engagement.
6. Install the air induction tubing from the throttle body to the air cleaner.
