The two solenoids in the system control the normally open front hydraulic bypass valves. During an ABS stop, ground is supplied to close the valves and isolate brake pedal input. The low side of each solenoid is connected to B+. A failure in the solenoid circuitry will turn On the antilock telltale lamp.

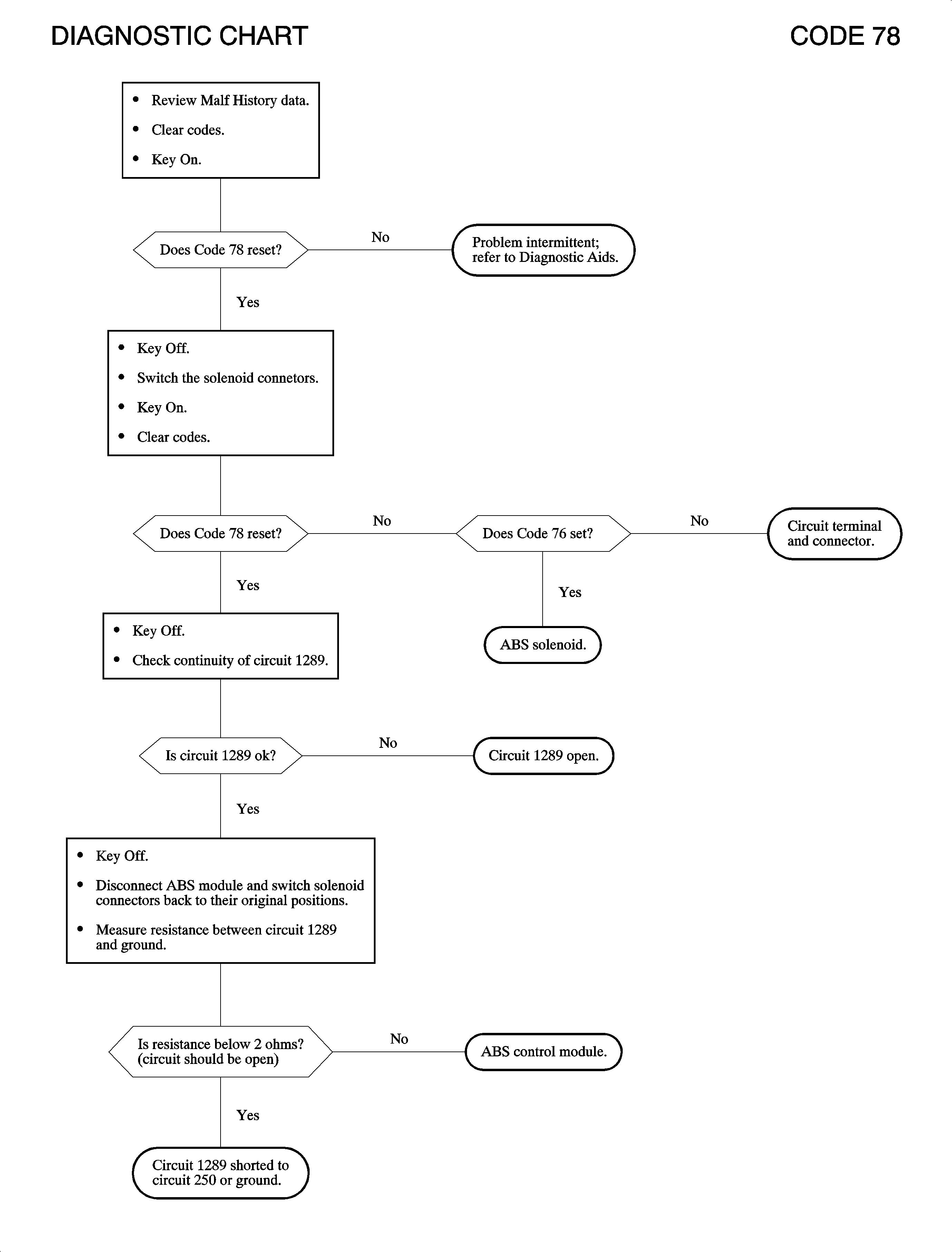

Code 78 sets if:
Solenoid circuit 1289 is open or grounded.
This code will fail at all times except when a previous failure has disabled ABS operation.
If the conditions for failure occur during initialization it may also fail code 15.
If code 78 is set, switch the solenoid connectors and clear the code. If code 78 sets again, the problem is in the wiring or the ABS control module. If code 76 sets, the problem is in the solenoid.
Check circuit 1289 and the solenoid for an open. The resistance through the solenoid should be about 3.5 ohms.
When attempting to diagnose an intermittent problem, use the Scan tool to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.
Select Malf History from Scan tool ABS menu.
Intermittents or opens suspected to be at the connectors cab be detected by using a diagnostic service probe. voltage can be read on wires without disconnecting any connectors.
Check the tightness of the female terminal grip with a spare male terminal.
