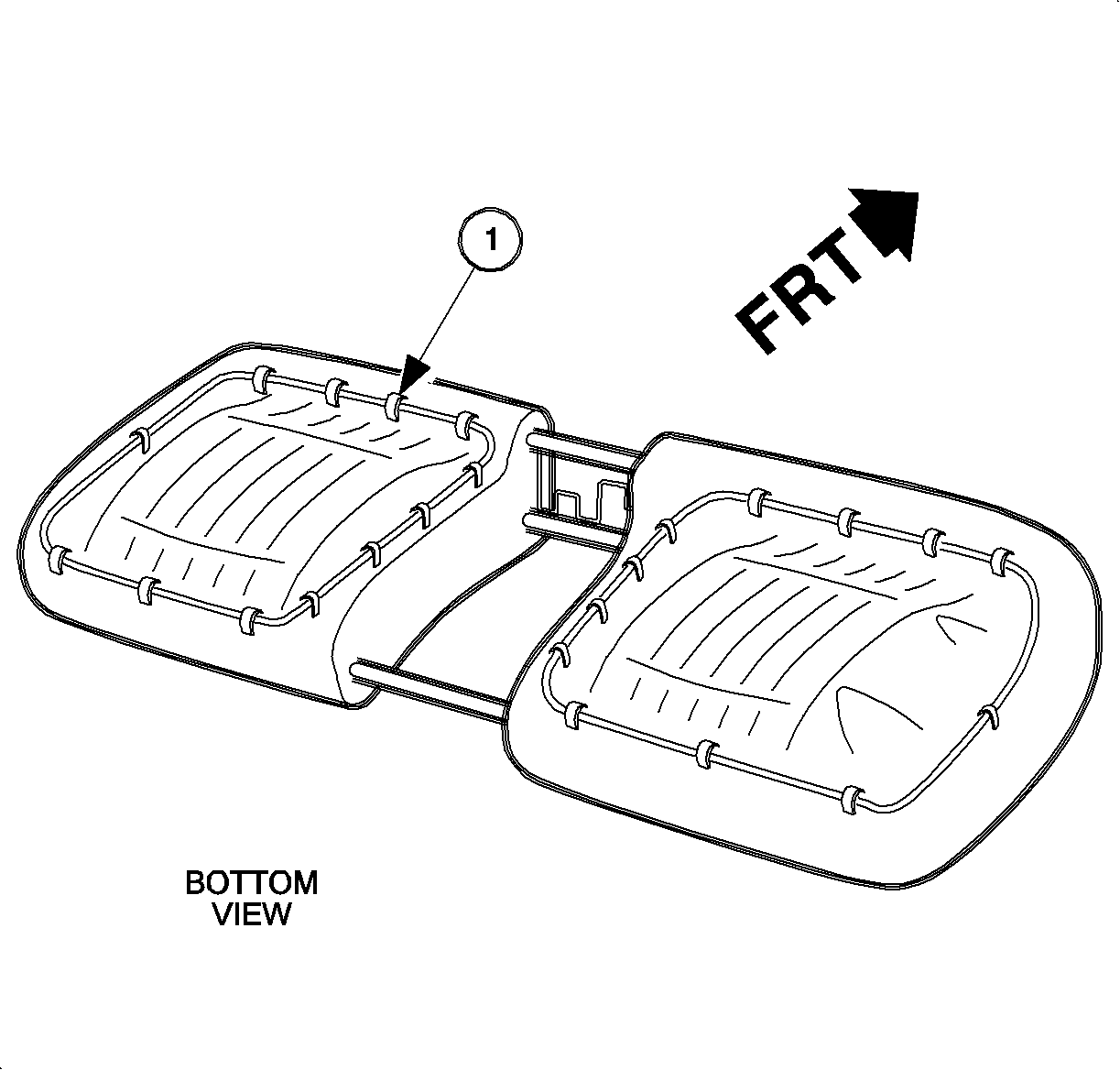

Position the cushion assembly upside down and remove hog rings attaching
the covers to the wire frame.
Flip the cushion assembly over and partially remove the covers from the
cushion. Remove hog rings (1) from the top center of the cushion
covers and remove the covers.

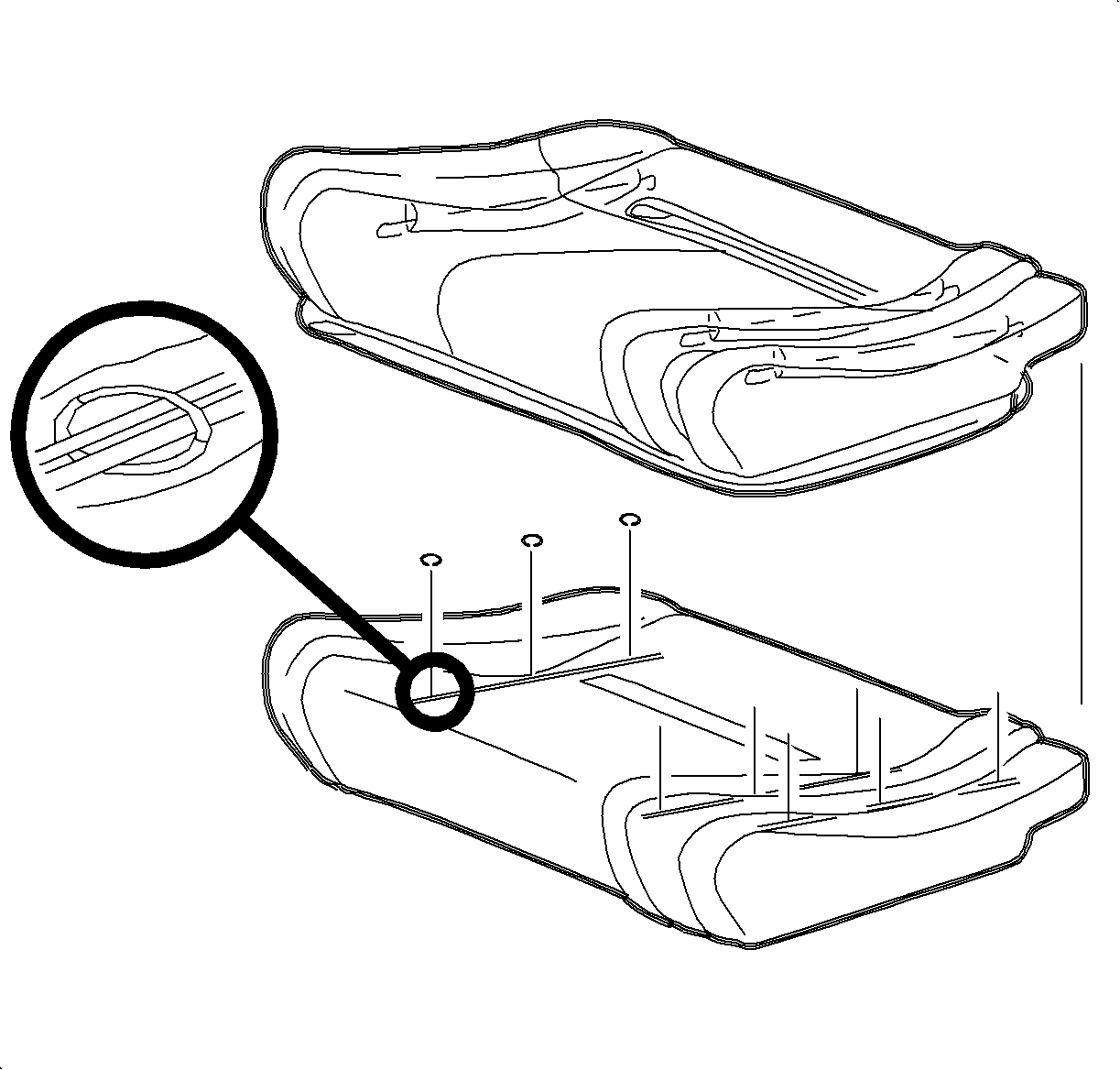

Turn the replacement seat cover inside out. Transfer all listing wires to the
same locations in the new cover.
Center the seat cover over the pad.
Align all listing wires in the seat cover with the grooves in the cushion
pad.
Begin at the inner listing wires of the cover and install hog rings to
secure the cushion cover to the cushion pad wires. Check the fit of the cover after
each listing wire is secured.
Press down at the hook-and-loop fastener attachment locations in the seat
cushion cover to secure it to the seat cushion.
Check the fit of the seat cushion cover. Pull on the cover where necessary
to remove any wrinkles.
If both pads are being replaced, repeat procedure for the remaining seat
cushion cover.
Install the seat cushion to the seat frame.
Hook the listing wire, extending through the bottom listing wire pocket
on the seat cushion cover to the frame wire.
Important
Be certain the hog rings hook the seat cover and cushion to the frame at the
rear of the seat cushion assembly. The hog rings at the front of the seat cushion
assembly do not hook into the pad.
Secure the seat cushion cover and the seat cushion to the frame with new hog
rings.
