Instrument Panel, Gages, and Console Connector End Views

Table 1:	I/P Cluster
Table 2:	I/P Cluster
Table 3:	I/P Dimmer
Table 4:	I/P Junction Block-Body
Table 5:	I/P Junction Block-I/P
Table 6:	I/P Junction Block-I/P
Table 7:	Brake Switch
Table 8:	Cargo Lamp Switch-Wagon
Table 9:	Cargo Lamp-Sedan, Coupe
Table 10:	Cargo Lamp Switch-Sedan, Coupe
Table 11:	Cargo Lamp Switch-Sedan, Coupe
Table 12:	Cargo Lamp-Wagon

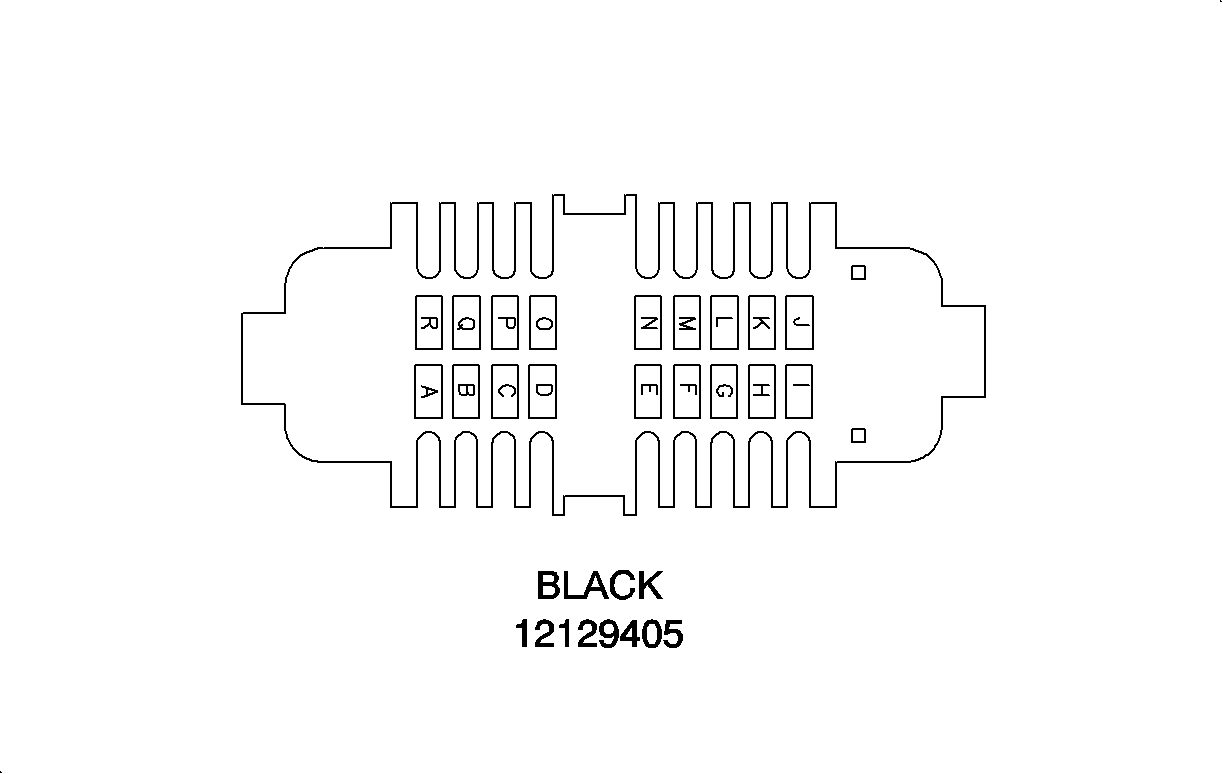

I/P Cluster


Connector Part Information		12129405 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	--	--	--	--
B	PPL/WHT	455	.35	FUEL GAGE SIGNAL
C	PPL	1885	.35	SERVICE TT
D	BRN/WHT	419	.35	MALFUNCTION INDICATOR LAMP (MIL) SERVICE ENGINE SOON
E	YEL	172	.35	LOW FUEL TT
F	BRN	358	.50	AIR BAG
G	PPL/WHT	237A	.35	SEAT BELT TT
H	PNK	39E	.35	IGN 1
I	LT GRN/BLK BLK	875 350BB	.35 .50	ABS TT-W/ ABS GROUND W/O ABS
J	DK GRN	389	.35	SPEED SIGNAL
K	BLK	350K	.35	GROUND
L	LT GRN/BLK	592	.35	DRL RELAY CONTROL
M	ORN	1040A	.35	BATTERY
N	PNK	1200E	.35	HI BEAM TT
O	DK BLU	1201H	.35	HEADLAMP ON INPUT
P	LT BLU/WHT	1414	.35	LH TURN SIGNAL TT
Q	LT BLU	1134	.35	PARK BRAKE INPUT
R	--	--	--	--
Location: I/P Left Upper

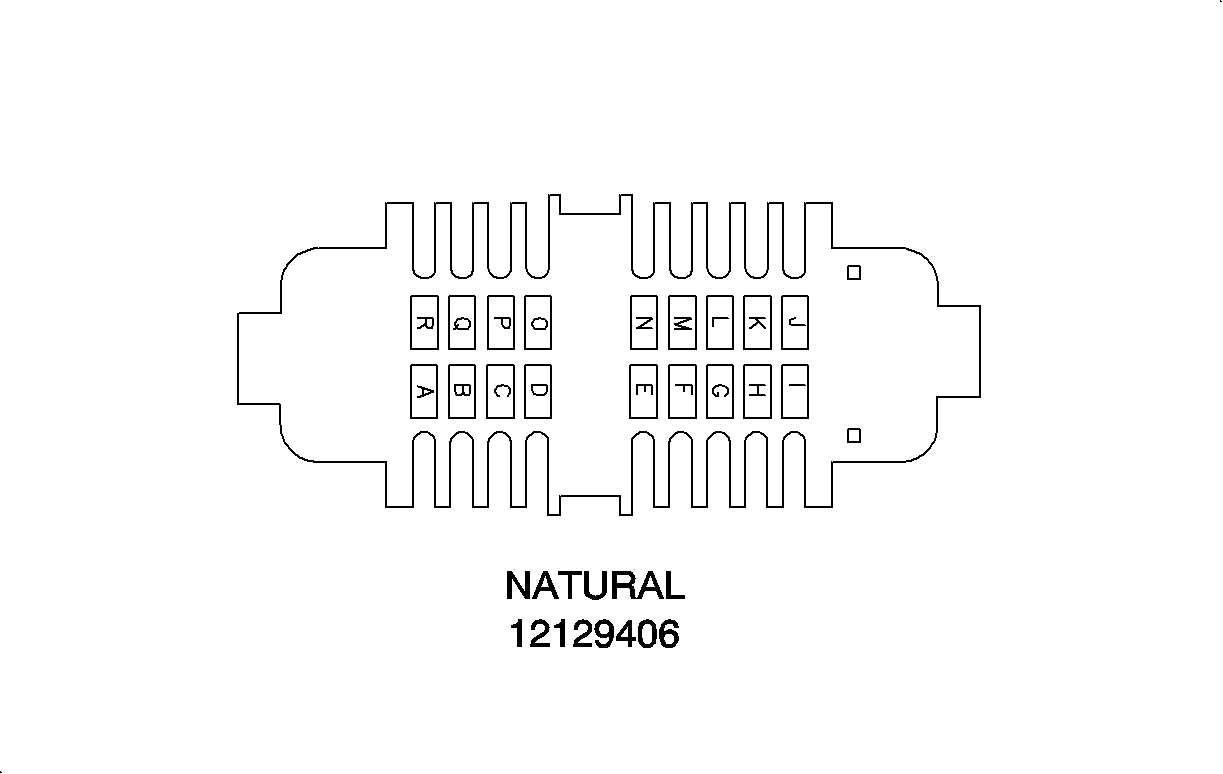

I/P Cluster


Connector Part Information		12129406 Natural
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	--	--	--	--
B	TAN/BLK	456	.35	UPSHIFT TT-MANUAL
C	DK GRN	35	.35	HOT/LO COOLANT / AUTO TRANS FLUID TEMP TT
D	DK GRN	135	.35	TEMP GAGE SIGNAL
E	BLK	350T	.50	GROUND
F	--	--	--	--
G	TAN/WHT	33B 33CC	.35 .50	BRAKE TT-WITH ABS BRAKE TT-NON-ABS
H	DK GRN	44J	.35	DIMMER RET
I	BRN	9AJ	.35	DIMMER CONTROL
J	DK BLU/WHT	1415	.35	RH TURN SIGNAL TT
K	WHT	121	.35	TACH SIGNAL INPUT
L	PNK	39C	.35	IGN 1
M	LT GRN	1656	.35	TRACTION ACTIVE TT-TRACTION ONLY
N	BRN	25	.35	BATTERY TT
O	TAN	31	.35	OIL PRESSURE TT
P	--	--	--	--
Q	DK GRN	146A	.35	LIFTGATE TT CONTROL-WAGON ONLY
R	ORN	440G	.35	LIFTGATE TT POWER-WAGON ONLY
Location: I/P Left Upper

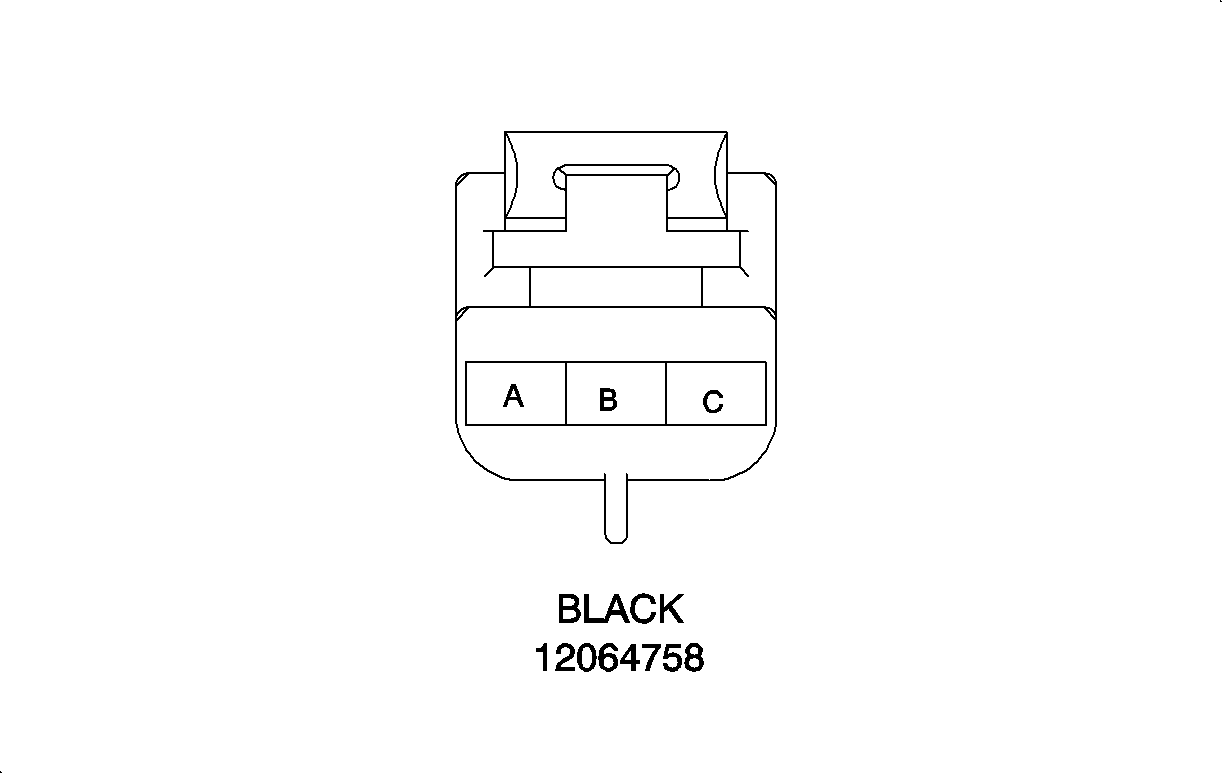

I/P Dimmer


Connector Part Information		12064758 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	350C	.35	BATT
B	DK GRN	44	.35	TO ILLUM BULBS
C	BRN	9AL	.35	TO ILLUM BULBS
Location: I/P Left Upper

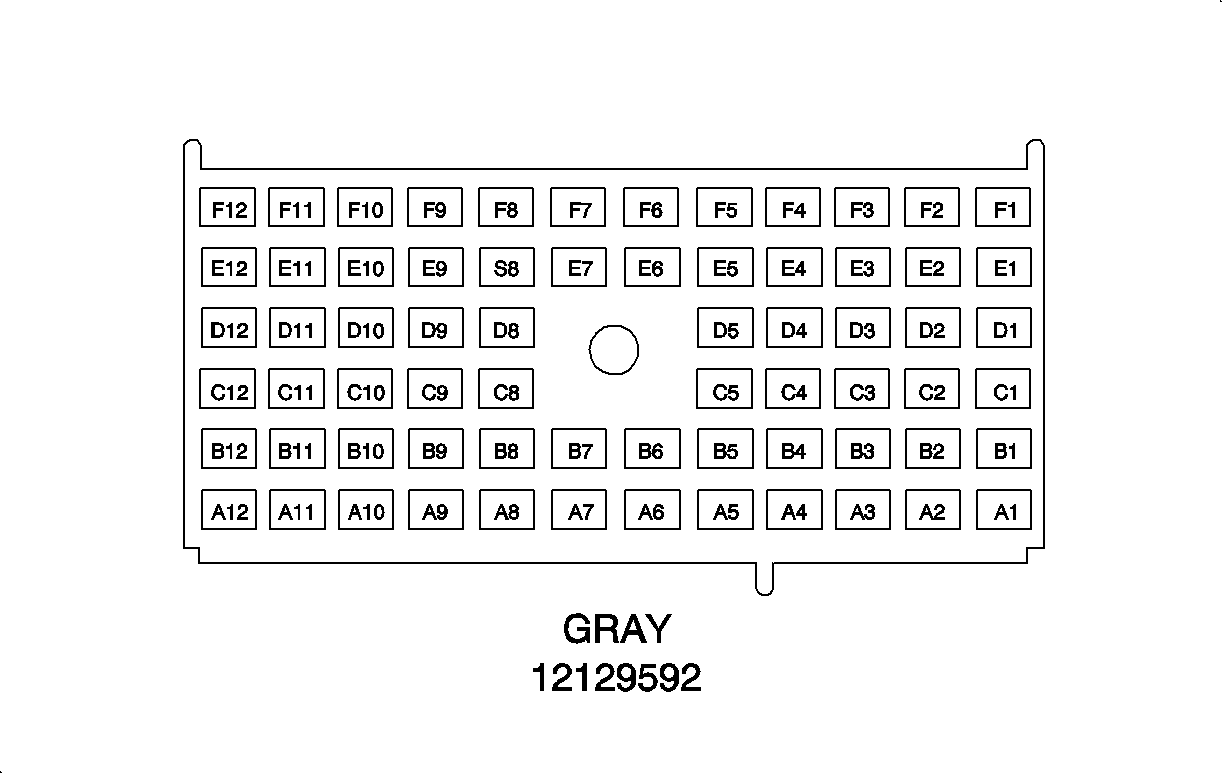

I/P Junction Block-Body


Connector Part Information		12129592 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	DK GRN	19	.80	RIGHT REART URN LAMP
A2	ORN	580-SL 580A-SW 580B-SC	.50	TO SUNROOF MODULE
A3	BLK/WHT	746	.35	DOOR AJAR SW-RT FRT
A4	--	--	--	--
A5	PNK	440R	.35	RKE MODULE
A6	PNK	39T	.35	EVAP VENT VALVE
A7	--	--	--	--
A8	ORN	340C	.35	MIRROR SWITCH
A9	LT BLU	195C	.35	RT FT DOOR LOCK SW
A10	GRA	295H-SW 295J-SL	.80	RT REAR DOOR LOCK MOTOR
A11	--	--	--	--
A12	LT BLU	195A	.35	LT FRONT DOOR LOCK SWITCH
B1	YEL	18	1.0	LT REAR TURN LAMP
B2	--	--	--	--
B3	WHT	156A,C	.35	DOME LAMP
B4	--	--	--	--
B5	BLK	293	2.0	RR WINDOW DEFOG
B6	--	--	--	--
B7	GRA	120	1.0	FUEL PUMP MOTOR
B8	--	--	--	--
B9	ORN	340F	.35	MAP LIGHTS
B10	GRA	295C	.80	LR DOOR LOCK MOTOR
B11	--	--	--	--
B12	LT BLU	195R	.35	RKE LOCK RELAY CONTROL
C1-C2	--	--	--	--
C3	LT BLU/BLK	747	.35	LT REAR DOOR JAMB SWITCH
C4	GRA/BLK	745	.35	LT FRONT DOOR JAMB SWITCH
C5	ORN	340P	.35	RT FRONT DOOR LOCK SWITCH
C6-C7	--	--	--	--
C8	ORN	340BB-SL 340JJ-SC	.35	CARGO LAMP SW
C9	ORN	340A	.35	DOME LAMP
C10	GRA	295E 295K	.80	LF DOOR LOCK MOTOR-SC LF DOOR LOCK MOTOR-SL,SW
C11	--	--	--	--
C12	GRA	295F 295B	.80	RF DOOR LOCK MOTOR-SC RF DOOR LOCK MOTOR-SL,SW
D1-D2	--	--	--	--
D3	LT GRN/BLK	748	.35	LT FRONT DOOR JAMB SWITCH-SL,SW
D4	--	--	--	--
D5	ORN	340N	.35	LT FRONT DOOR LOCK SWITCH
D6-D11	--	--	--	--
D12	WHT	194A	.35	LT FRONT DOOR LOCK SWITCH
E1	BRN	9H-SL 9Y-SW 9P-SC	.35	LICENSE LAMPS
E2	BRN	9F-SL,SC	.35	TAIL/MARKER LAMP
E3-E8	--	--	--	--
E9	WHT	194R	.35	RKE UNLOCK RELAY CONTROL
E10	TAN	294F-SC 294B-SL,SW	.80	LF DOOR LOCK MOTOR LF DOOR LOCK MOTOR
E11	BLK	550A	.80	GROUND
E12	WHT	194C	.35	RT FRONT DOOR LOCK SWITCH
F1	BRN	9-SW 9R-SL	.35	LICENSE LAMPS
F2	BRN	9G-SL,SC 9Z-SW	.35	TAIL/MARKER LAMPS
F3-F8	--	--	--	--
F9	PPL	638-SL,SW 638C-SC	2.0	POWER WINDOW SWITCH
F10	TAN	294H-SW 294JSL	.80	RR DOOR LOCK MOTOR
F11	--	--	--	--
F12	TAN	294C-SL,SW	.80	LR DOOR LOCK MOTOR

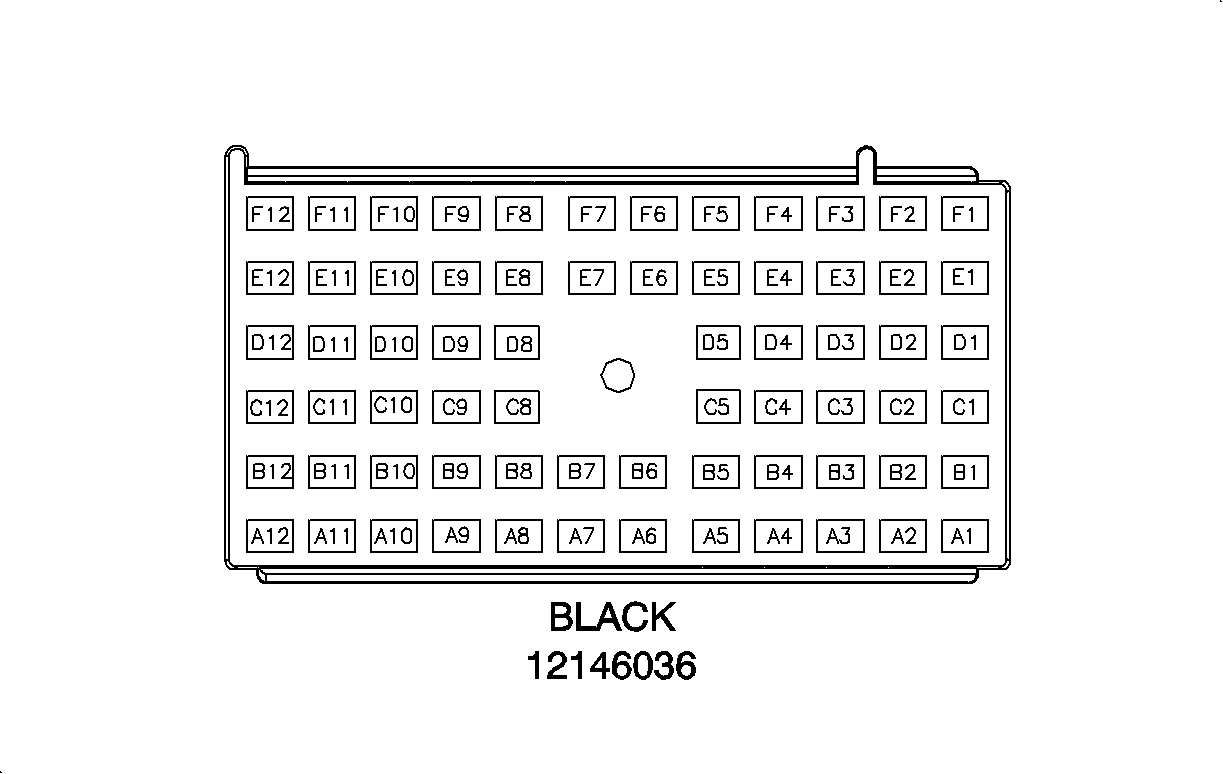

I/P Junction Block-I/P


Connector Part Information		12146036 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	BLK	350N	2.0	I/P SPLICE PACK #1-GROUND
A2	--	--	--	--
A3	BRN	9J	.35	PARK LAMPS
A4	ORN	340L	.35	BODY FUSE
A5	--	--	--	--
A6	PNK	39X	--	SDM TT--1999 ONLY
A7	BRN	9K	.35	PARK LAMPS
A8	BRN	9AJ	.35	MIRROR SWITCH
A9	ORN	1240	2.0	REAR DEFOG RELAY
A10	RED	302	2.0	WINDOW RELAY
A11-A12	--	--	--	--
B1	--	--	--	--
B2	RED	458	3.0	TRS LP, TRS 2/TCC, TRS 3/4 FUSES-AUTO
B3	BRN	9AC 9AN	.35	CHIME MODULE-ASH TRAY ILL. CHIME MODULE
B4-B6	--	--	--	--
B7	BRN	9AB 9AK	.35 .35	HVAC ILL. CIGAR LIGHTER
B8	BRN	9AF	.35	PRNDL
B9-B12	--	--	--	--
C1	--	--	--	--
C2	DK GRN/WHT	465	.35	FUEL PUMP RELAY
C3	BRN	9AP 9AL	.35	CHIME MODULE-HVAC ILL CHIME MODULE-DIMMER
C4	PPL/WHT	237A	.35	SEAT BELT TT
C5	ORN	740B	.80	CIGAR LIGHTER
C6-C7	--	--	--	--
C8	PNK	39C	.35	IGN 1 FUSE
C9	BRN	341B	.35	CRUISE ENABLE SWITCH
C10	BRN	41	.50	TO BRAKE SW
C11	PNK	139	1.0	TURN FUSE
C12	YEL	43	.35	RADIO FUSE
D1	RED	102B	3.0	HVAC BLOWER HI
D2	--	--	--	--
D3	BRN	9M	.35	CHIME MODULE
D4-D7	--	--	--	--
D8	PNK	39E	.35	IGN 1 FUSE
D9	BRN	341C	.35	CRUISE CONTROL MODULE IGNITION FEED
D10-D12	--	--	--	--
E1	DK BLU	101	.35	BLOWER RESISTOR
E2	BLK/WHT	238B	.35	CHIME MODULE
E3	BLK/WHT	238A	.35	DRIVER SEAT BELT
E4	--	--	--	--
E5	ORN	440F 440G-WAGON	.35	CHIME FUSE
E6	--	--	--	--
E7	BRN	641B	.35	IGN 3 FUSE
E8	BRN	641E	.35	IGN 3 FUSE
E9	--	--	--	--
E10	BRN	641A	.35	IGN 3 FUSE
E11	YEL	1139	.35	AIR BAG FUSE
E12	YEKL	143	1.0	WIPER FUSE
F1	ORN	52	.50	BLOWER H
F2	PPL	65	3.0	BLOWER MOTOR
F3-F4	--	--	--	--
F5	RED	402	3.0	CHIME/LOCKS/BODY FUSES
F6	PNK	139H	.35	BRAKE PEDAL SWITCH
F7	--	--	--	--
F8	BRN	341F	.35	CRUISE FUSE BRAKE PEDAL SWITCH
F9	ORN	300	3.0	IGN 3/ CRUISE/HVAC FUSES
F10	PNK	3B	2.0	AIR BAG/TURN/IGN 1 FUSES
F11	PNK	3C	2.0	AIR BAG/TURN/IGN 1 FUSES
F12	BRN	4	2.0	WIPER AND RADIO FUSE

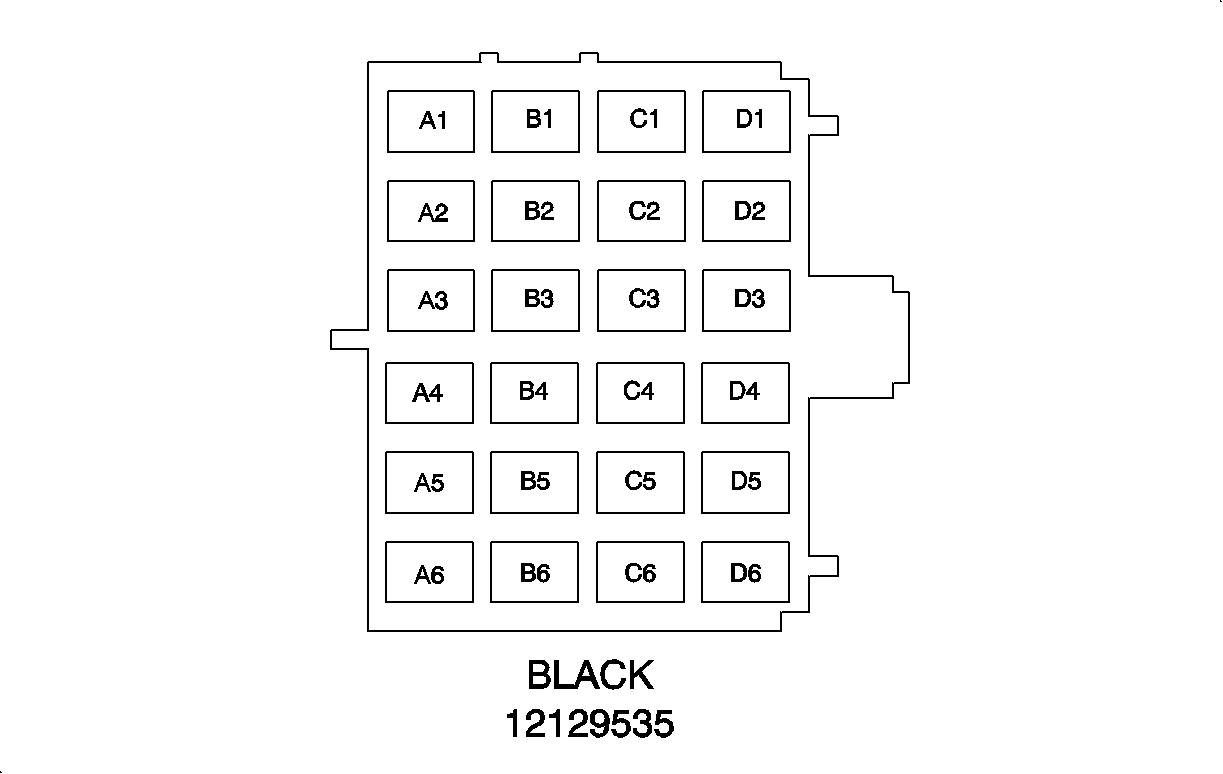

I/P Junction Block-I/P


Connector Part Information		12129535 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	TAN/WHT	33E	.35	ABS CONTROLLER
A2	--	--	--	--
A3	TAN/WHT	33C	.50	ABS LOW BRAKE FLUID SW
A4	TAN/WHT	33B	.35	ABS BRAKE TT
A5	DK GRN	19A	1.0	RR STOP/TURN LAMP
A6	DK BLU	15A	.50	RF TURN SIGNAL LAMP
B1	DK GRN	44 44A	.35	DIMMER ASH TRAY
B2	DK GRN	44F	.35	PRNDL LAMP
B3	DK GRN	44J 44P	.35	CLUSTER ILL. HVAC ILL.
B4	DK GRN	44L 44H	.35	POD SW ILL. RADIO ILL.
B5	DK GRN	44K 44B	.35	CIGAR LTR ILL. HVAC ILL.
B6	DK BLU/WHT	1415	.35	RF TURN SIGNAL SW
C1	ORN	580D	.35	WIPER-SW
C2	--	--	--	--
C3	LT BLU	292	.35	RR DEFOG ON/OFF SWITCH
C4	LT BLU/WHT	1414	.35	LF TURN SIGNAL SW
C5	LT BLU	14A	.50	LF TURN SIGNAL LAMP
C6	YEL	18A	1.0	LR STOP/TURN LAMP
D1	--	--	--	--
D2	LT BLU	1508B	.80	TURN/HAZARD MODULE
D3	--	--	--	--
D4	PPL	16	1.0	TURN SIGNAL FLASHER
D5	LT GRN	80	.35	KEY MINDER SWITCH SIGNAL
D6	WHT	193	.35	REAR DEFOG RELAY

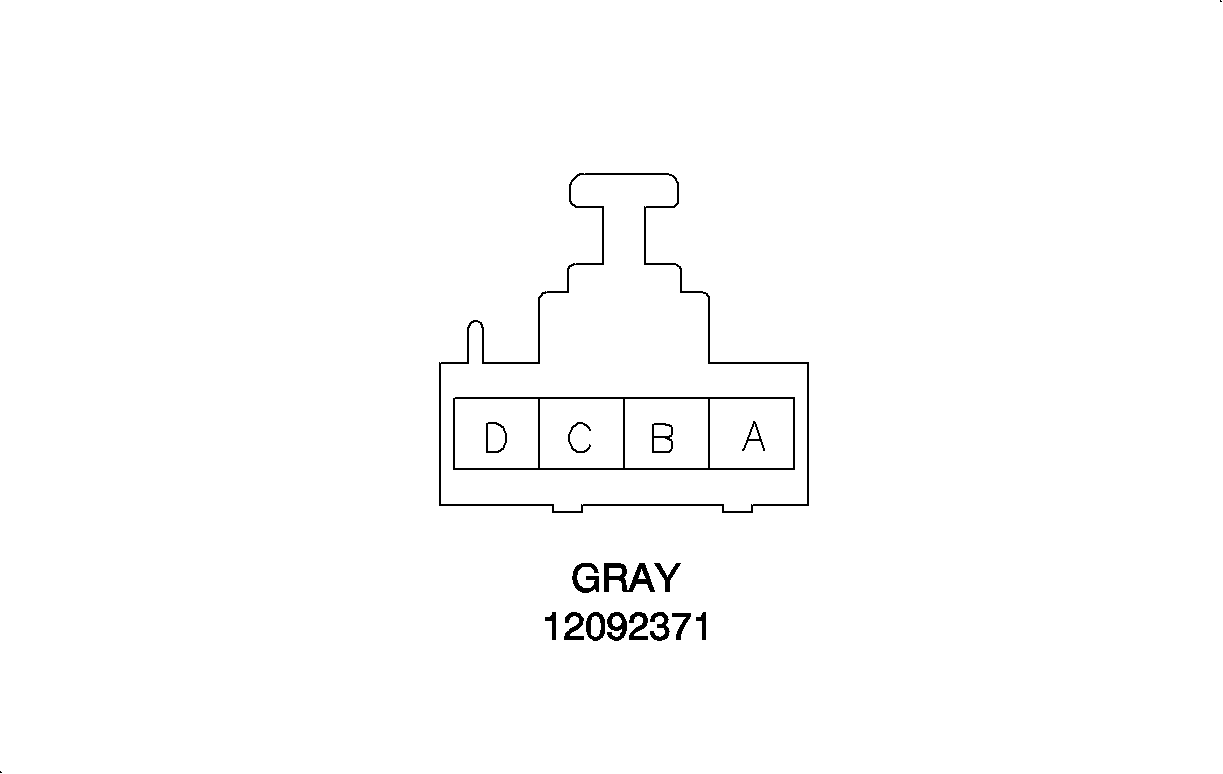

Brake Switch


Connector Part Information		12092371 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	540	.50	B+ FROM BRAKE FUSE
B	LT BLU	20G	.50	ABS-CONTROLLER
C	BRN BRN	86A 86B	.35 .35	CRUISE CONT MOD PCM
D	DK GRN/WHT	1135	.35	BTSI SOLENOID
Location: Brake Pedal

Cargo Lamp Switch-Wagon


Connector Part Information		12052832 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK GRN	146B	.35	AJAR TELLTALE/CARGO LAMP CONTROL
B	BLK	550AX	.35	GROUND
Location: Liftgate Latch

Cargo Lamp-Sedan, Coupe


Connector Part Information		12052832 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED/BLK	744 744B	.35	GROUND-SL GROUND-SC
B	ORN	340B 340JJ	.35	POWER-SL POWER-SC
Location: Under Package Shelf

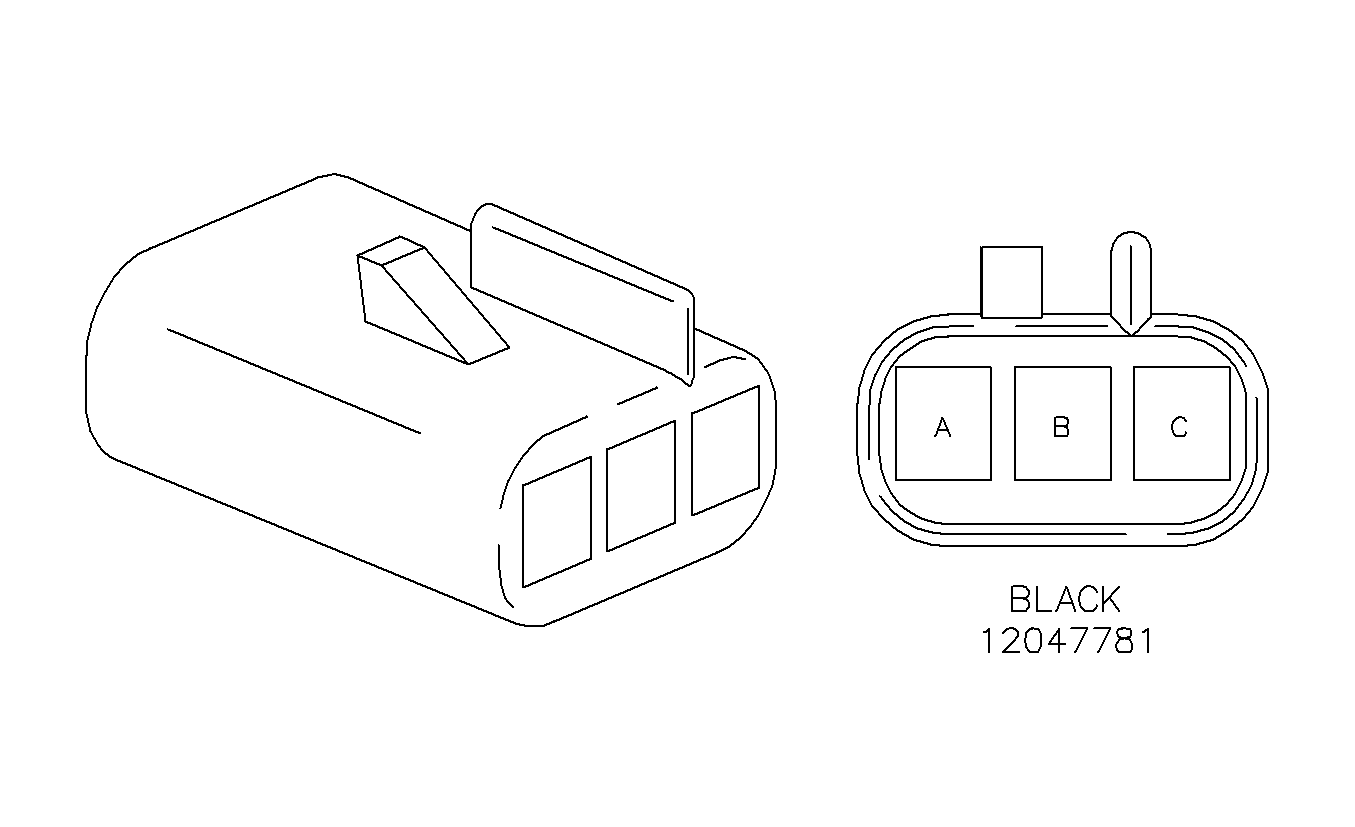

Cargo Lamp Switch-Sedan, Coupe


Connector Part Information		12047781 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	550RA 550RL	.35	DECKLID RELEASE MOTOR GROUND-SL W/RKE DECKLID RELEASE MOTOR GROUND-SC W/RKE
B	GRA	382B 382C	.35	DECKLID RELEASE MOTOR-SL W/RKE DECKLID RELEASE MOTOR-SC W/RKE
C	RED/BLK	744A 744C	.35	CARGO LAMP SW-SL CARGO LAMPSW-SC
Location: Decklid Latch

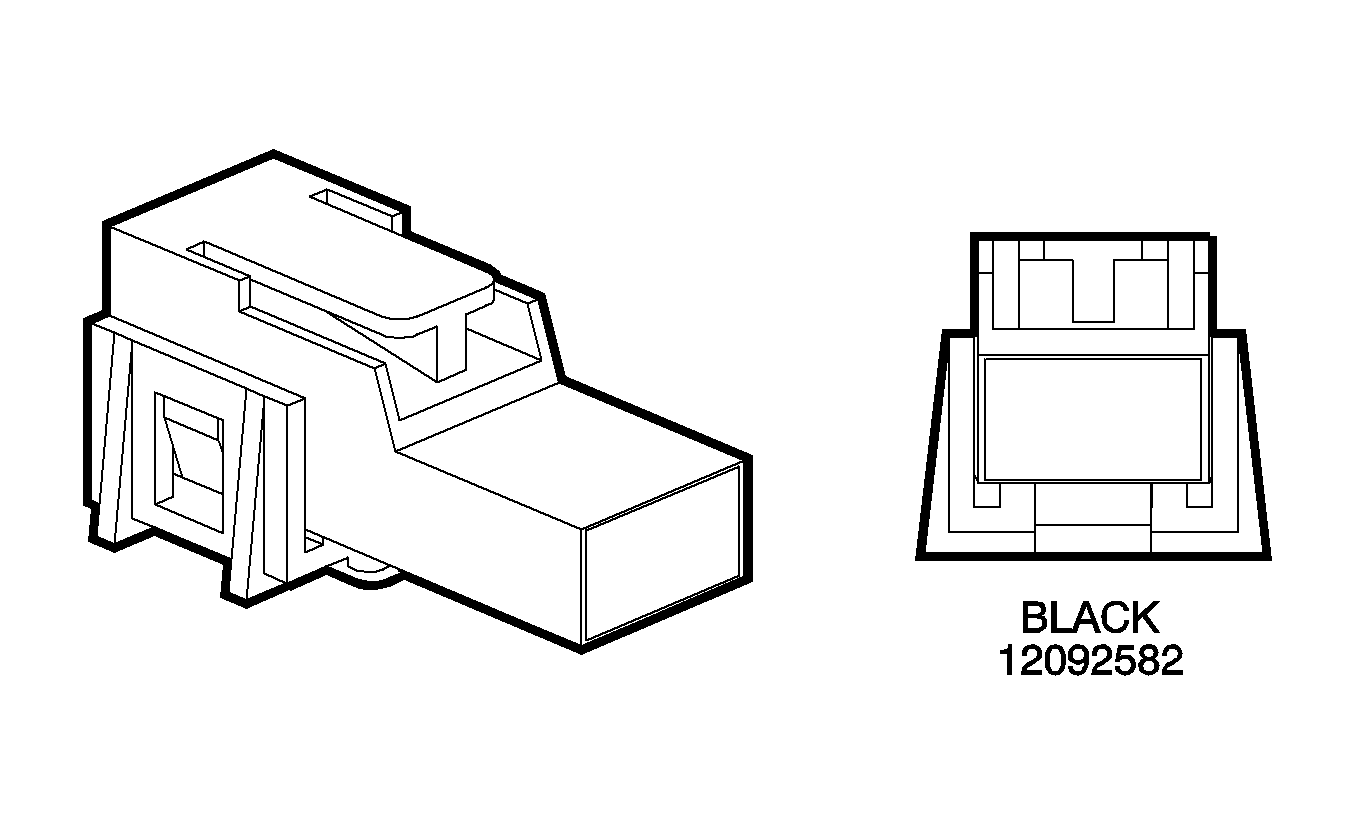

Cargo Lamp Switch-Sedan, Coupe


Connector Part Information		12092582 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	550DD-SL 550DY-SC	.35 .80	GROUND-SL GROUND-SC
Location: On Decklid Latch

Cargo Lamp-Wagon


Connector Part Information		12047781 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	WHT	156A	.35	CARGO LP SWITCH
B	BLK	550A	.35	CARGO LP GROUND
C	ORN	340A	.35	CARGO LP BULB
Location: Rear Roof
