Document ID# 1212643
1998 Saturn SL2/SC2/SW2

Automatic Recirculation Switch Replacement Switch

Removal Procedure

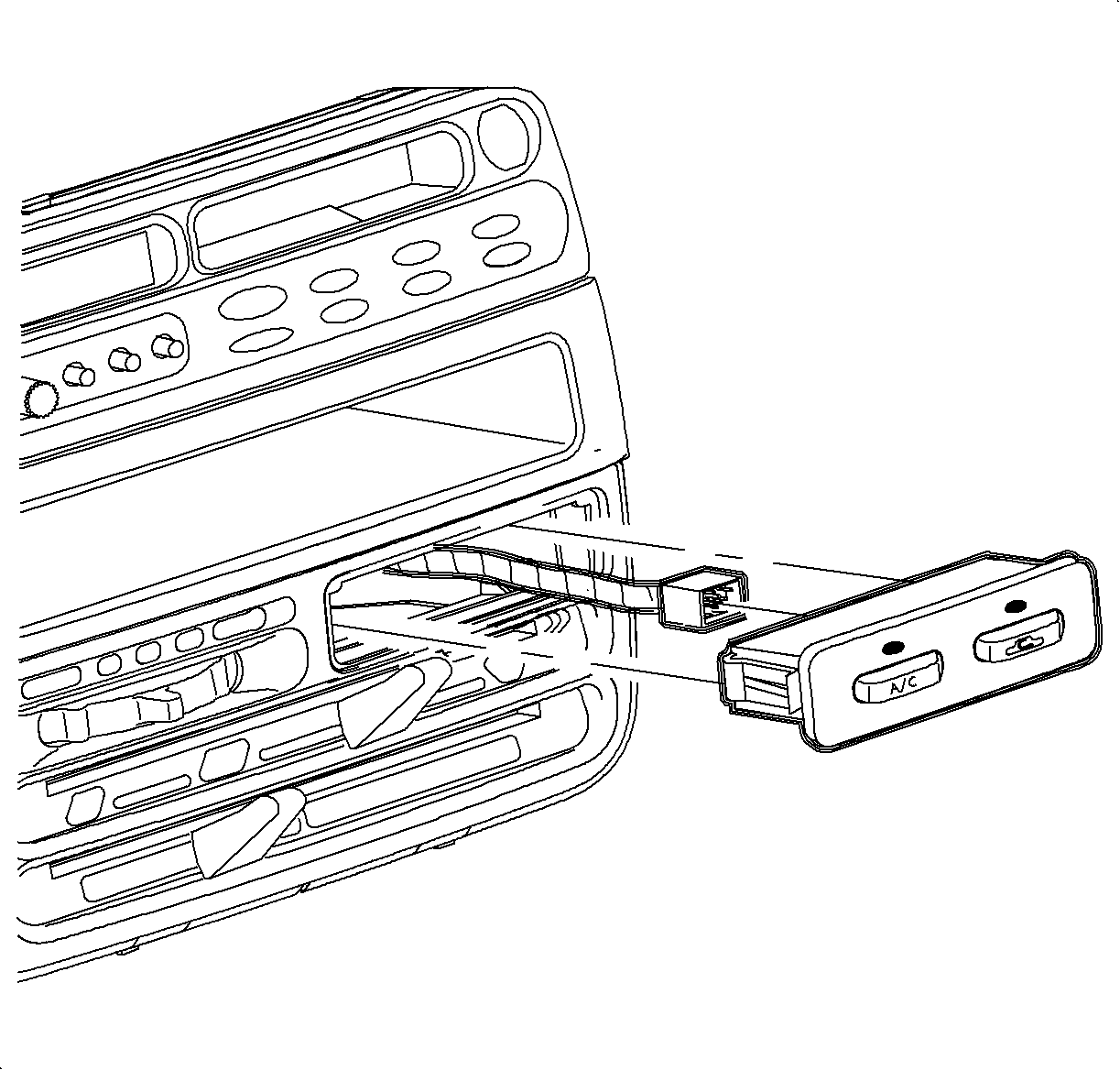

    Object Number: 906403 Size: SH
    Click here for detailed picture of above image.
  1. Carefully remove the A/C-Recirc switch package by lifting at the outer edge with a small screwdriver.
  2. Disconnect the electrical connector.
Installation Procedure

    Object Number: 906403 Size: SH
    Click here for detailed picture of above image.
  1. Connect the electrical connector.
  2. Install the A/C-Recirc switch package through the opening and push it straight in.
