Energy Absorber Pad Replacement - Inner Lower Rear

Removal Procedure

1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

Caution

If energy absorber is removed or damaged it must be replaced with a new part. If omitted, the vehicle will not meet federal motor vehicle safety standards (FMVSS), subjecting the retailer to possible civil penalties for making the vehicle inoperative to the FMVSS, and increasing the risk of injury to the vehicle occupants.

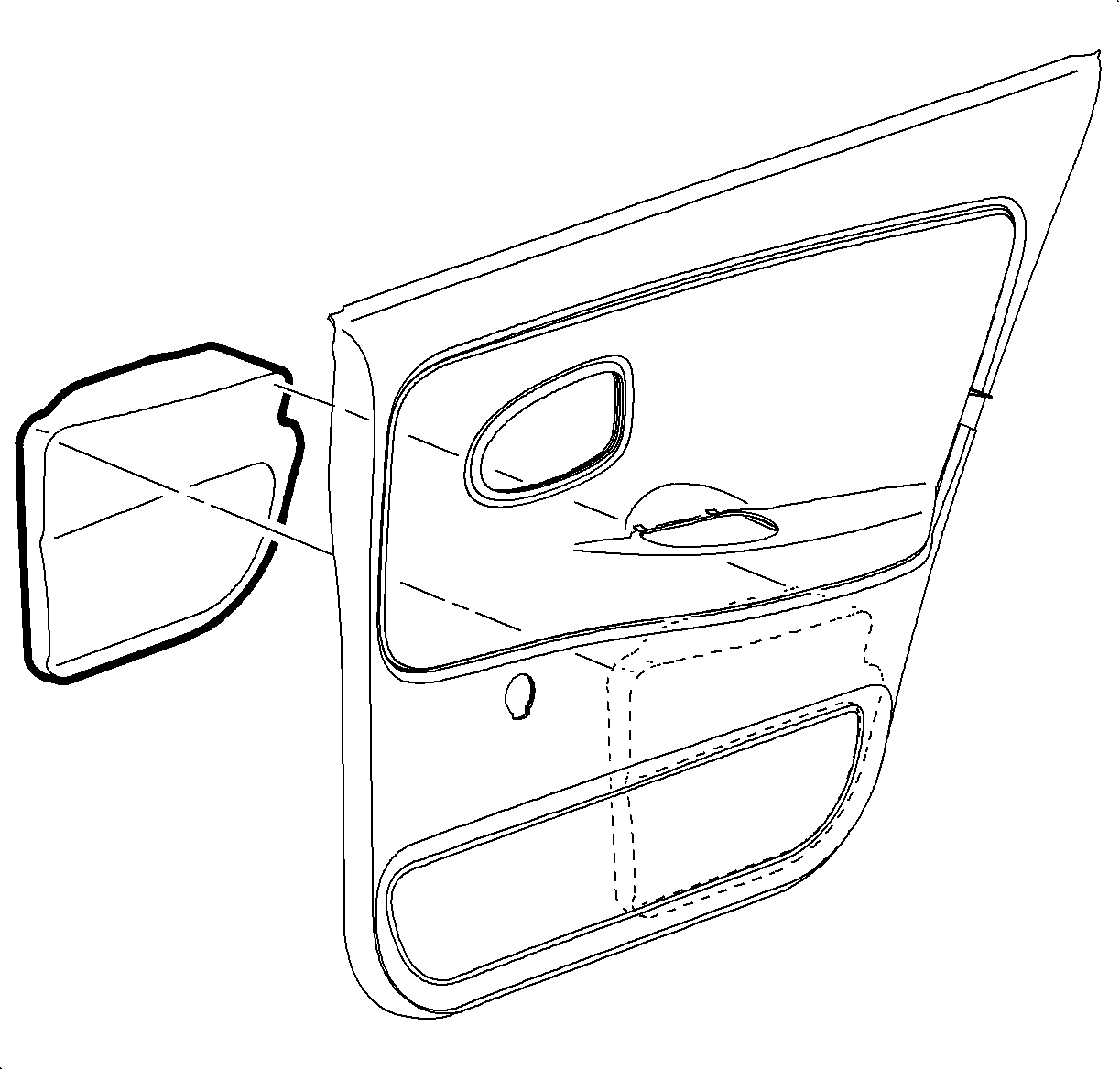

2. Remove the energy absorber from the door structure.

Installation Procedure

1. Remove the tape backing and install.
2. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
