Latch Replacement - Console Compartment Door

Removal Procedure

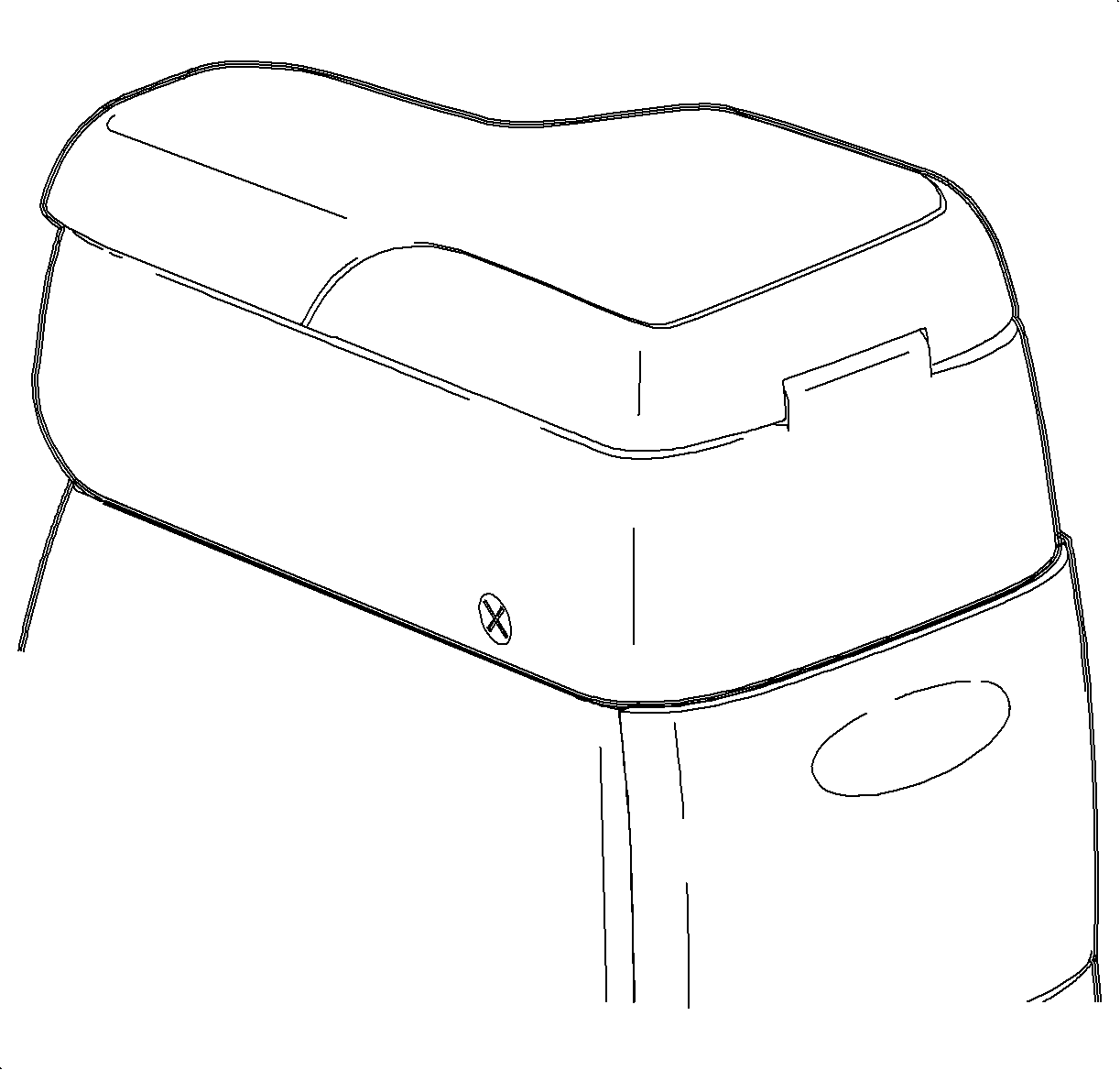

1. Remove the latch fastener.
2. Remove the latch.

Installation Procedure

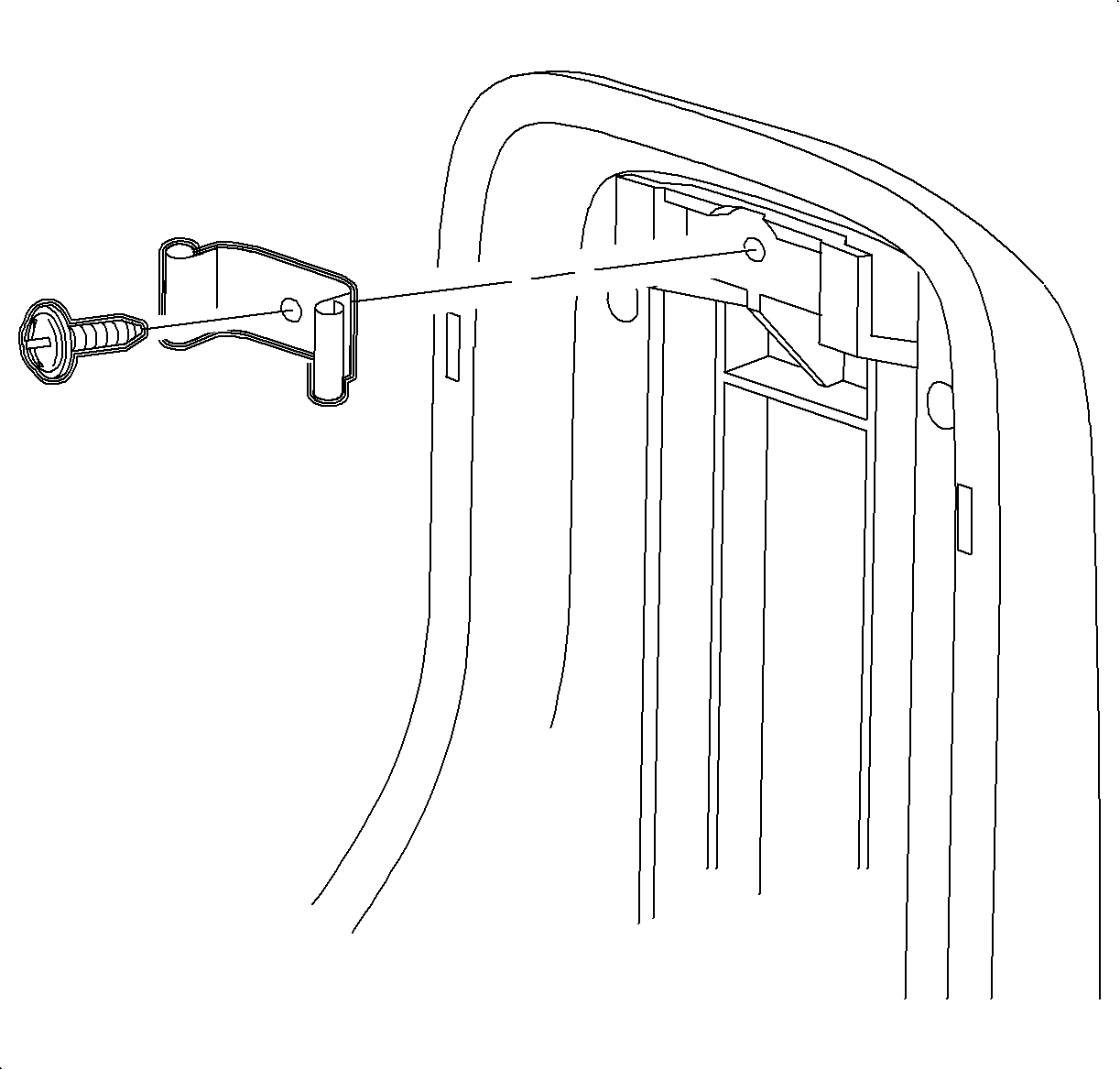

1. Position the latch on the inside cover of the armrest.

Notice

Refer to Fastener Notice in Cautions and Notices.

2. Install the latch fastener.
Tighten

Tighten the console latch fastener to 1.5 N·m (13 lb in).
