1998 Saturn SL2/SC2/SW2

Blower Switch Replacement

Removal Procedure

    Object Number: 903908 Size: SH
    Click here for detailed picture of above image.
  1. Remove the HVAC controller. (Refer to "HVAC Controller" in this service manual)

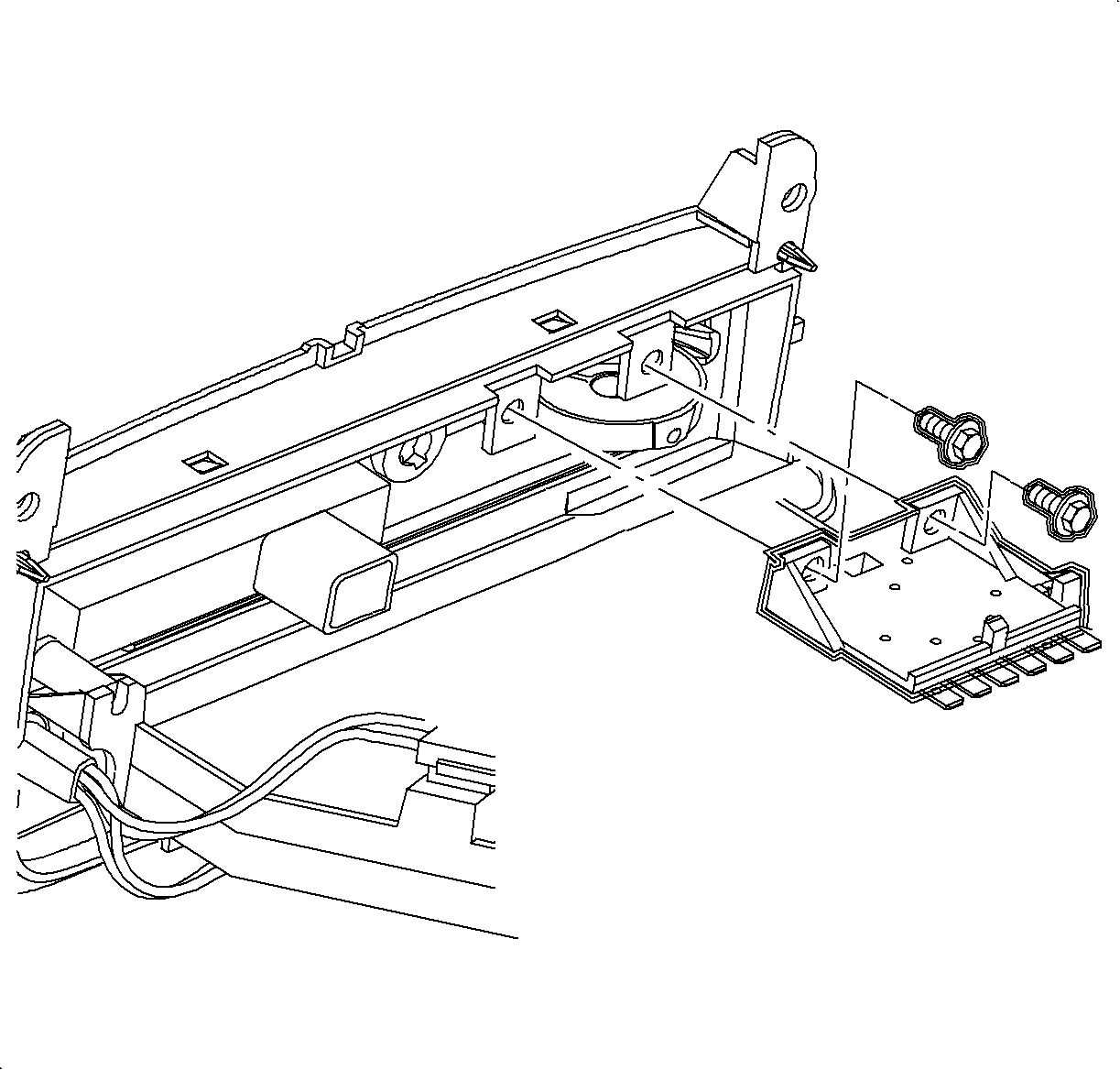

    2. Object Number: 903912 Size: SH
    Click here for detailed picture of above image.
  2. Remove the blower motor switch screws.
  3. Remove the blower motor switch.
Installation Procedure

    Object Number: 903912 Size: SH
    Click here for detailed picture of above image.
  1. Install the blower motor switch and screws.

    2. Object Number: 903908 Size: SH
    Click here for detailed picture of above image.
  2. Install the HVAC controller. (Refer to "HVAC Controller" in this service manual.)
    3. Tighten

    Tighten to 2.5 N·m (22 lbs in)
