1998 Saturn SL2/SC2/SW2

Hose Replacement

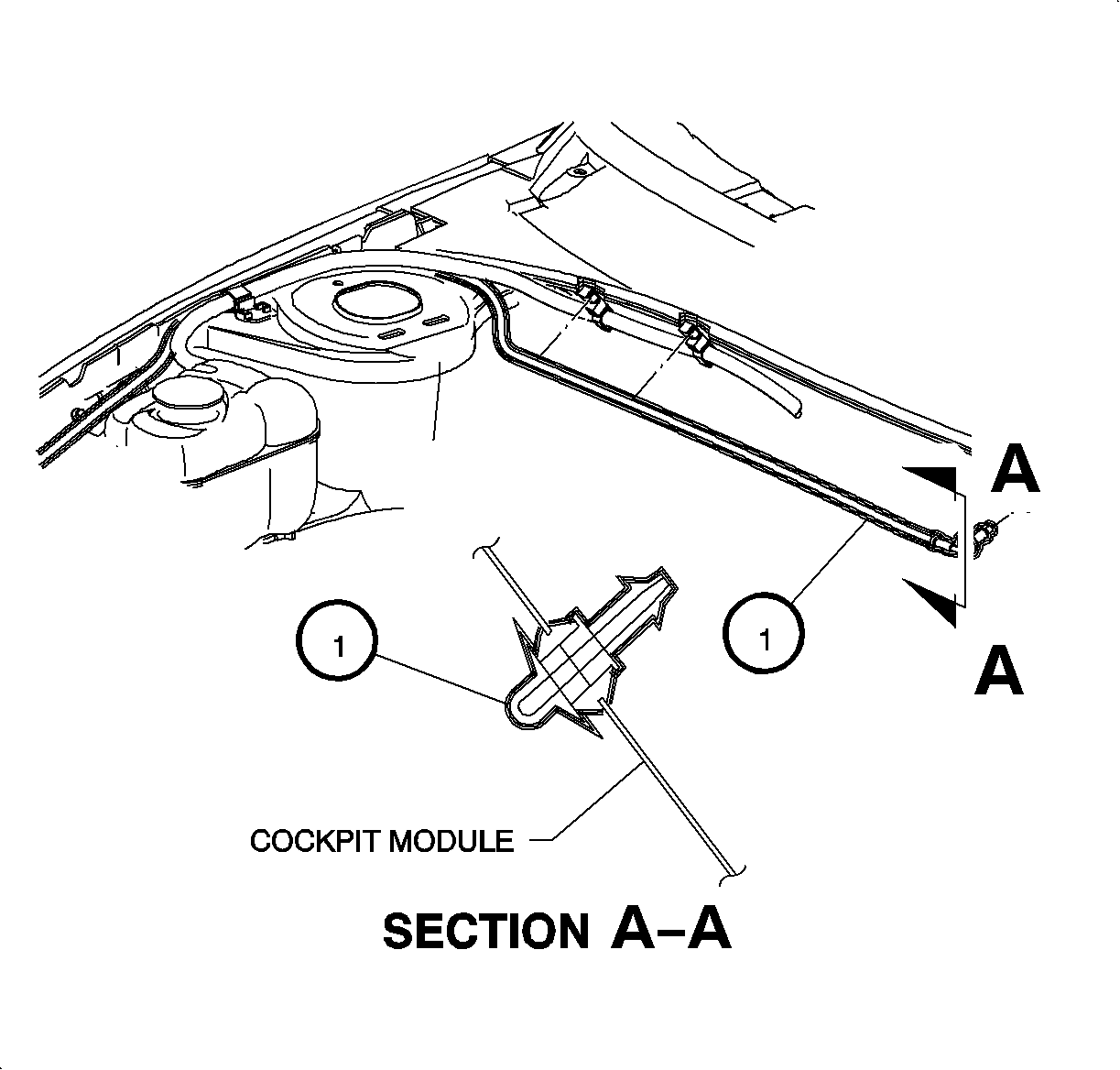

    Object Number: 859114 Size: SH
    Click here for detailed picture of above image.
  1. Attach the washer fluid hose to the washer pump.
  2. Route the washer hose using the retaining clips around the top of the strut tower and across the front of the cowl as shown in the illustration.
  3. Ensure the washer hose passes through a grommet in the cowl panel and is connected to the grille assembly.
