Seat Belt Shoulder Guide Replacement SC1

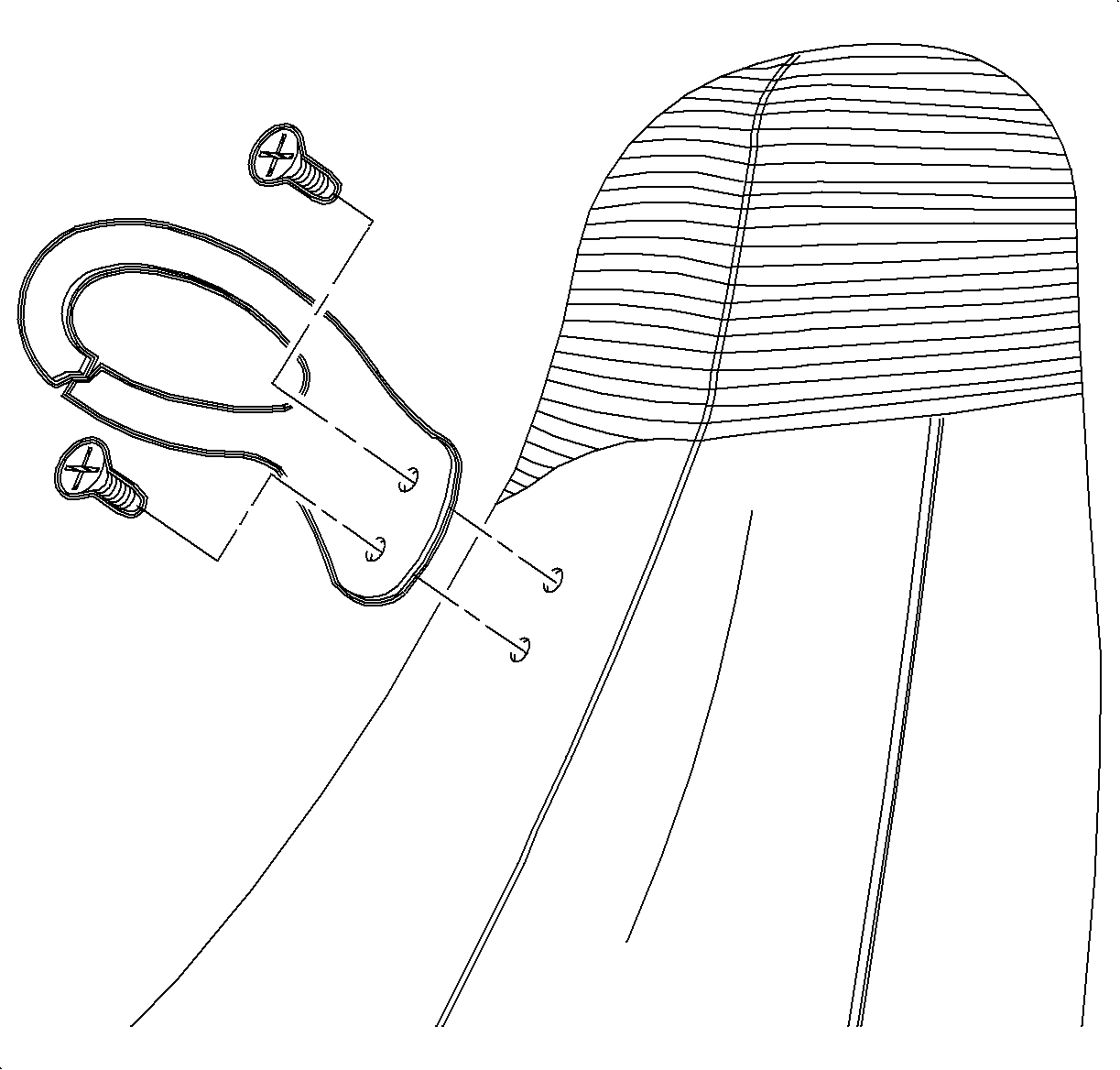

Removal Procedure

1. Slide the seat belt webbing through the slit in the seat belt guide.
2. Remove the fasteners and the seat belt shoulder guide.

Installation Procedure

Notice

Refer to Fastener Notice in Cautions and Notices.

1. Install the seat belt shoulder guide and fasteners.
Tighten

Tighten the seat shoulder belt guide fasteners to 5 N·m (44 lb in).

2. Slide the seat belt webbing through the slit in the seat belt shoulder guide.
