Document ID# 871273
1998 Saturn SL2/SC2/SW2

Sealing Strip Replacement - Front Door Window Belt Inner

Removal Procedure

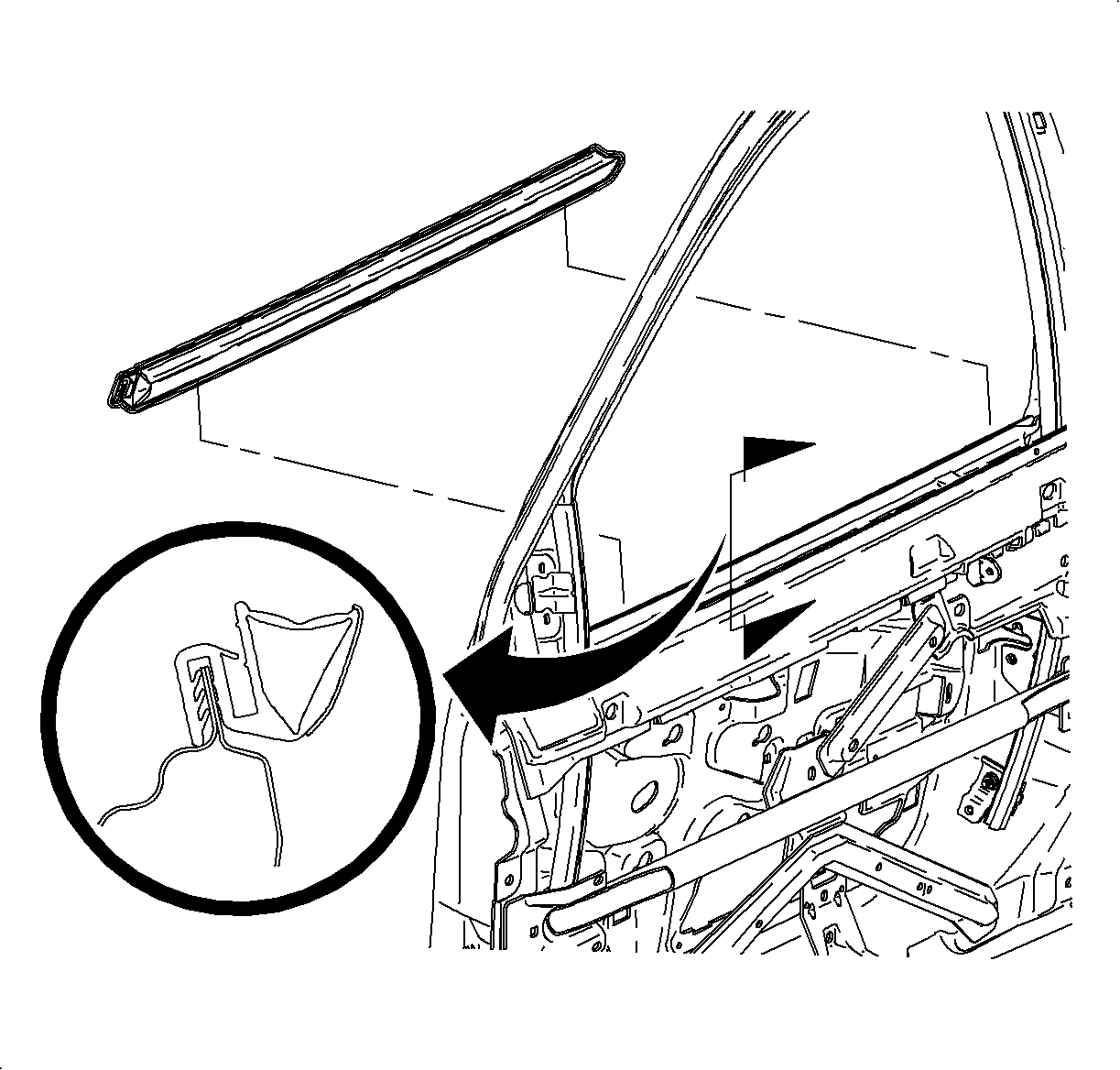

    Object Number: 861275 Size: SH
    Click here for detailed picture of above image.
  1. Cycle glass to full down position.
  2. Lift rear end of inner sealing strip and carefully pull from inner belt flange by lifting up from rear to front. Use of a putty knife with the blade covered with tape may be needed to gently pry seal from the flange.
Installation Procedure
  1. Position inner belt sealing strip to door starting at the rear edge.
  2. Press seal onto inner belt flange.
