Document ID# 883382
1998 Saturn SL2/SC2/SW2

Fender Upper Reinforcement Brace Replacement - Front Coupe

Removal Procedure

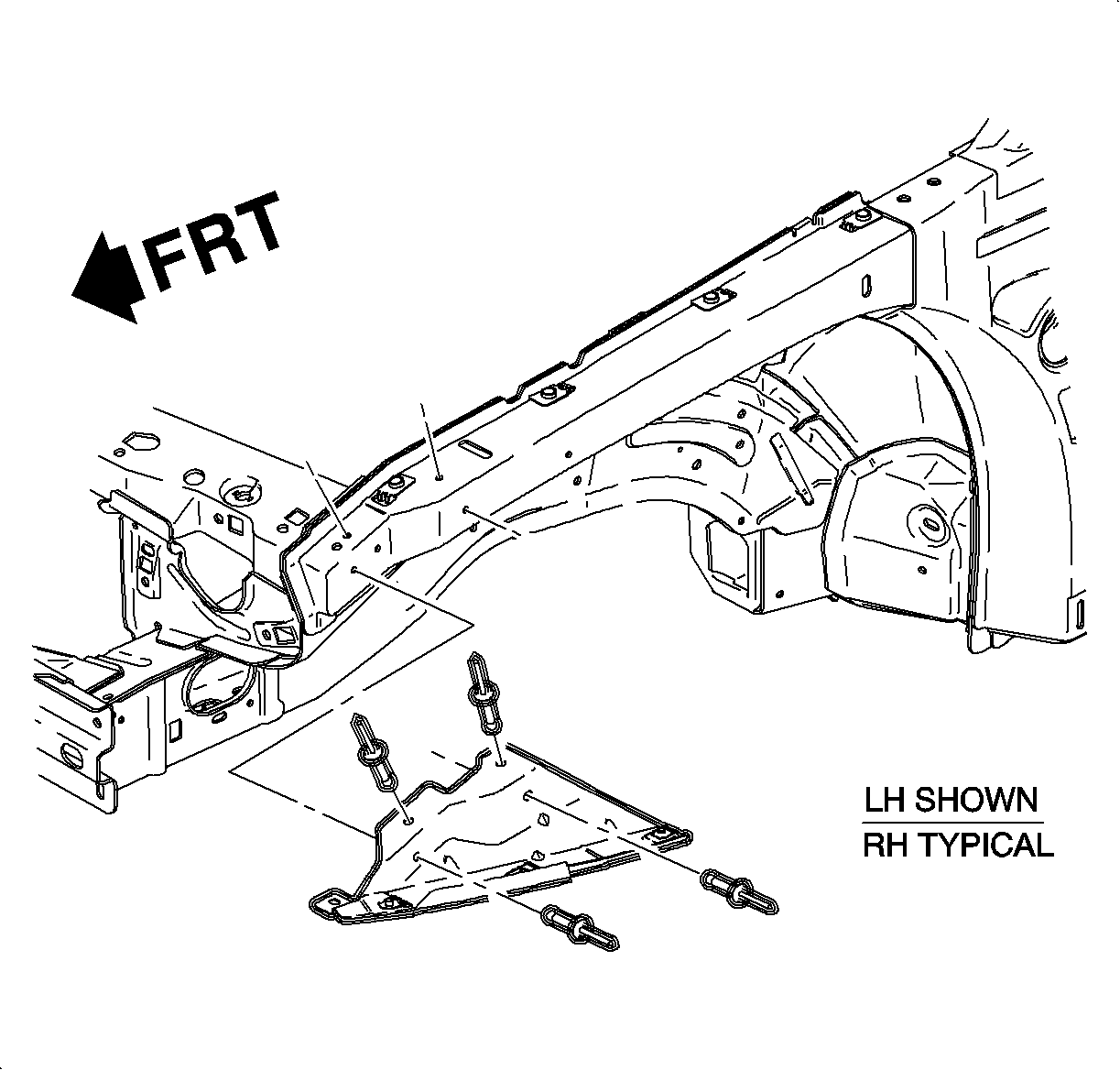

    Object Number: 866691 Size: SH
    Click here for detailed picture of above image.
  1. Remove the front fender. Refer to Fender Replacement - Front .
  2. Remove the rivets that retain the brace to the spaceframe.
Installation Procedure
  1. Position the fender brace to the spaceframe and install the rivets.
  2. Install the front fender. Refer to Fender Replacement - Front .
