Output Shaft Clearance Measurement

1. Remove the output shaft bearing form the case. Refer to Case procedure in this service manual.

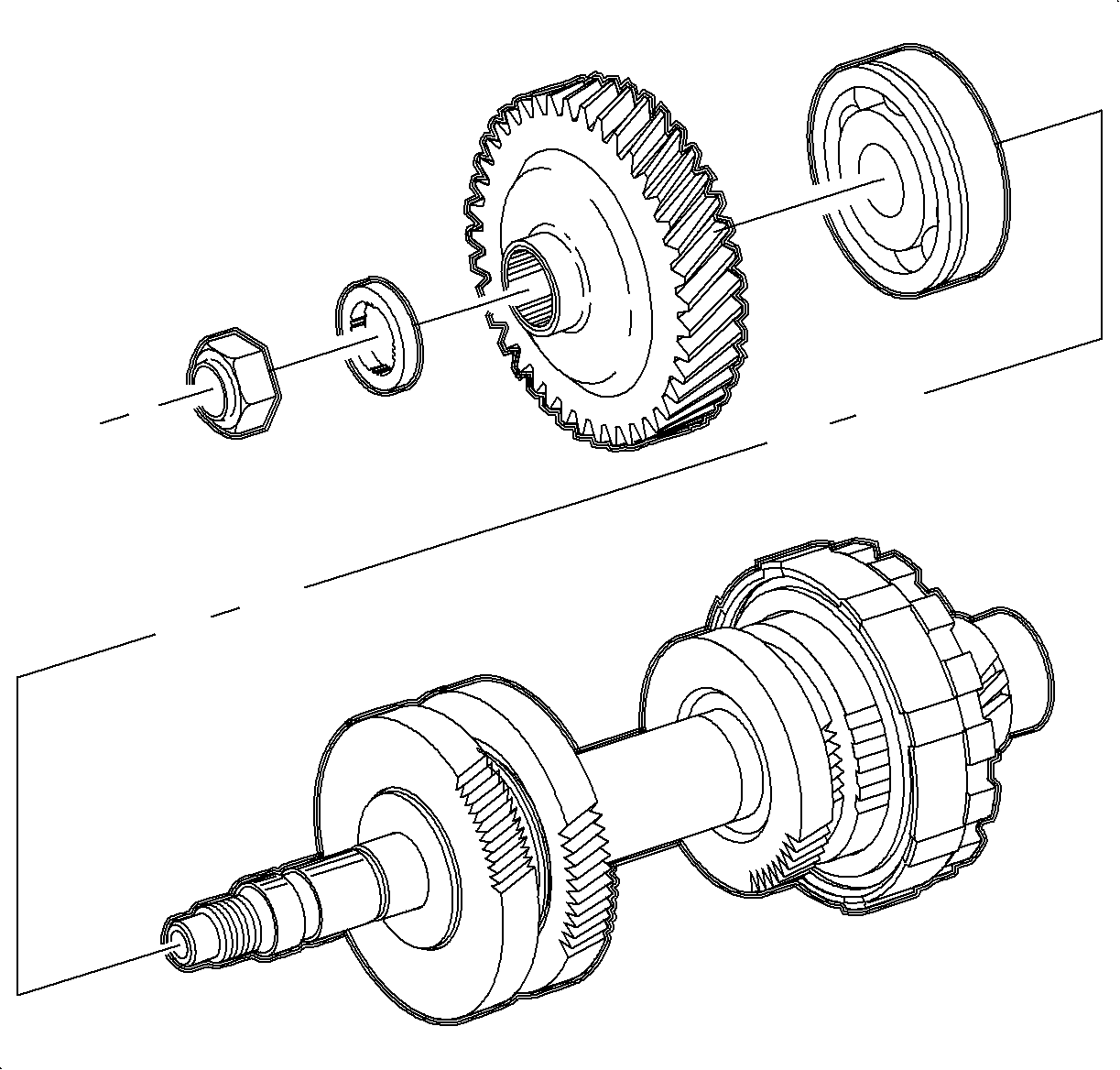

2. Install the output shaft bearing on the shaft.
3. Install the 1st driven gear and sprag clutch assembly.
4. Install the 1st driven gear thrust washer.

Important

To aid in holding output shaft, install the shaft into the converter housing and engage park pawl.

5. Assemble the output shaft. Use the old nut and tighten.
Tighten

Tighten the output shaft clamp nut to 150 N·m (111 lb ft).

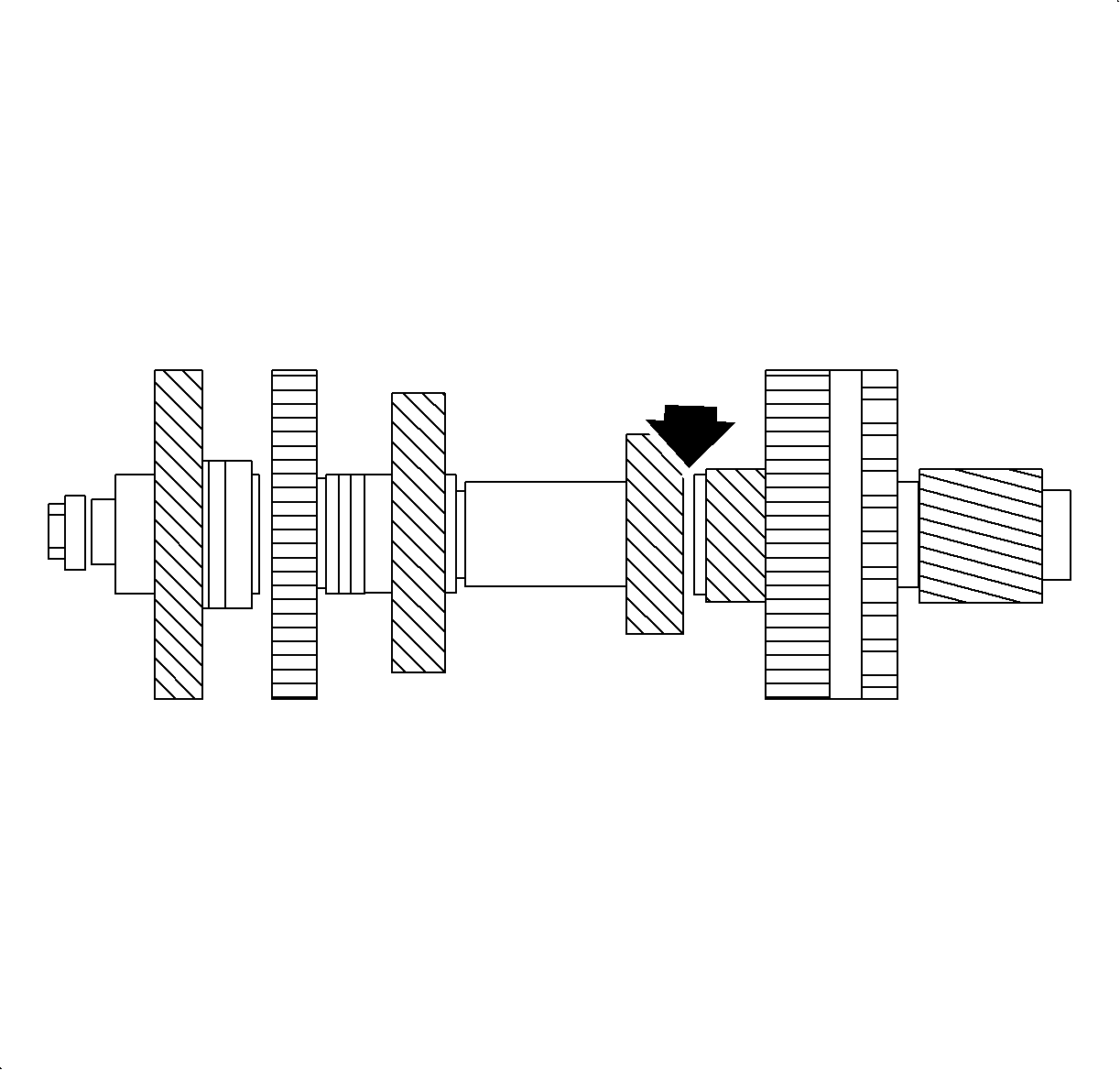

6. Measure the clearance between the 4th driven gear and the 3/4 thrust bearing. Make sure it spins and check the maximum clearance.
Clearance
• Clearance 0.464 mm (0.018 in) max.
• Minimum -- the gear must rotate freely on the shaft.





Important

Move the dog clutch sleeve as necessary to gain access for measurements.

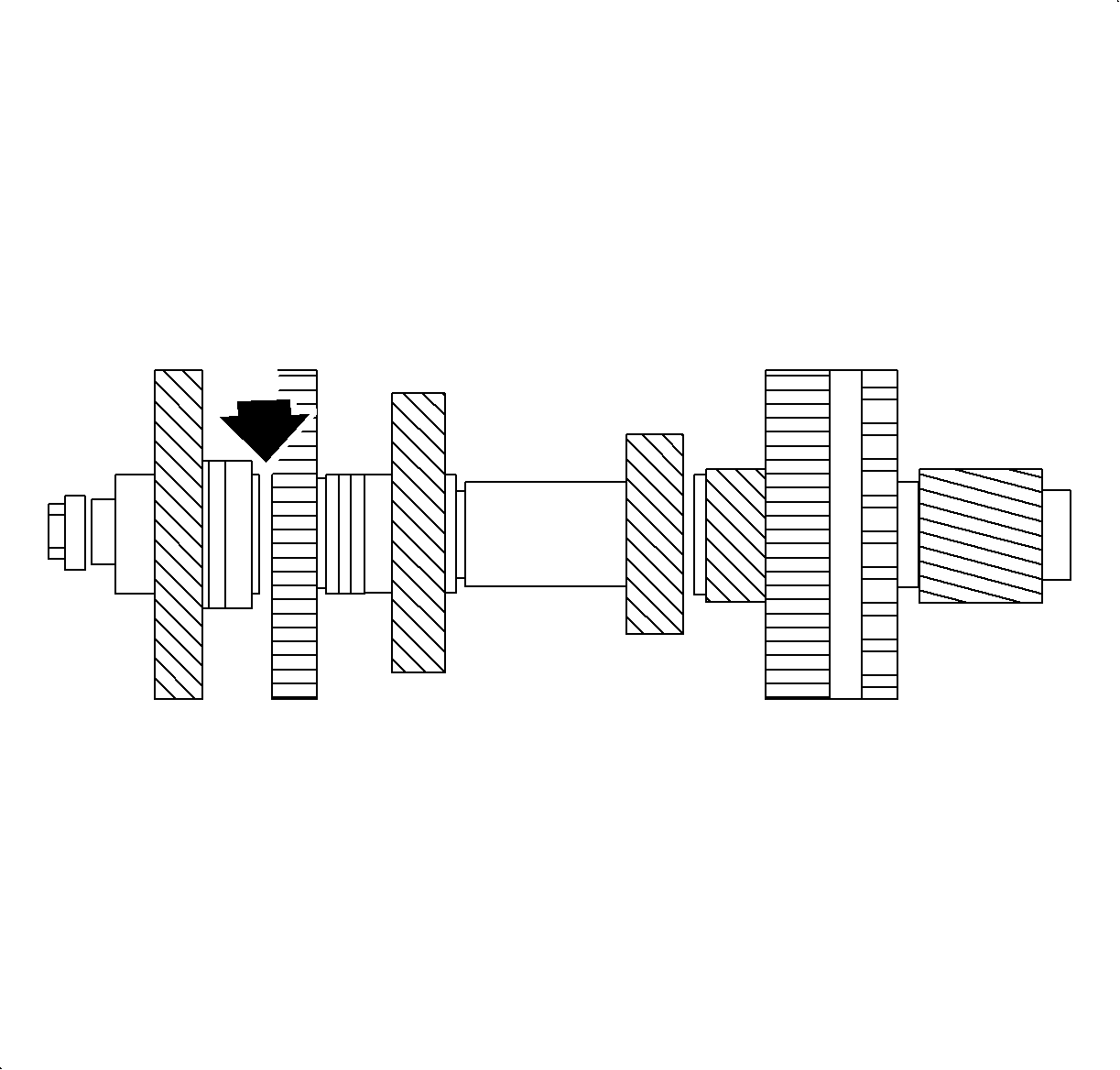

7. Measure the clearance between the 2nd driven gear and the dog clutch hub.
Clearance

Standard 0.050-0.150 mm (0.002-0.006 in)

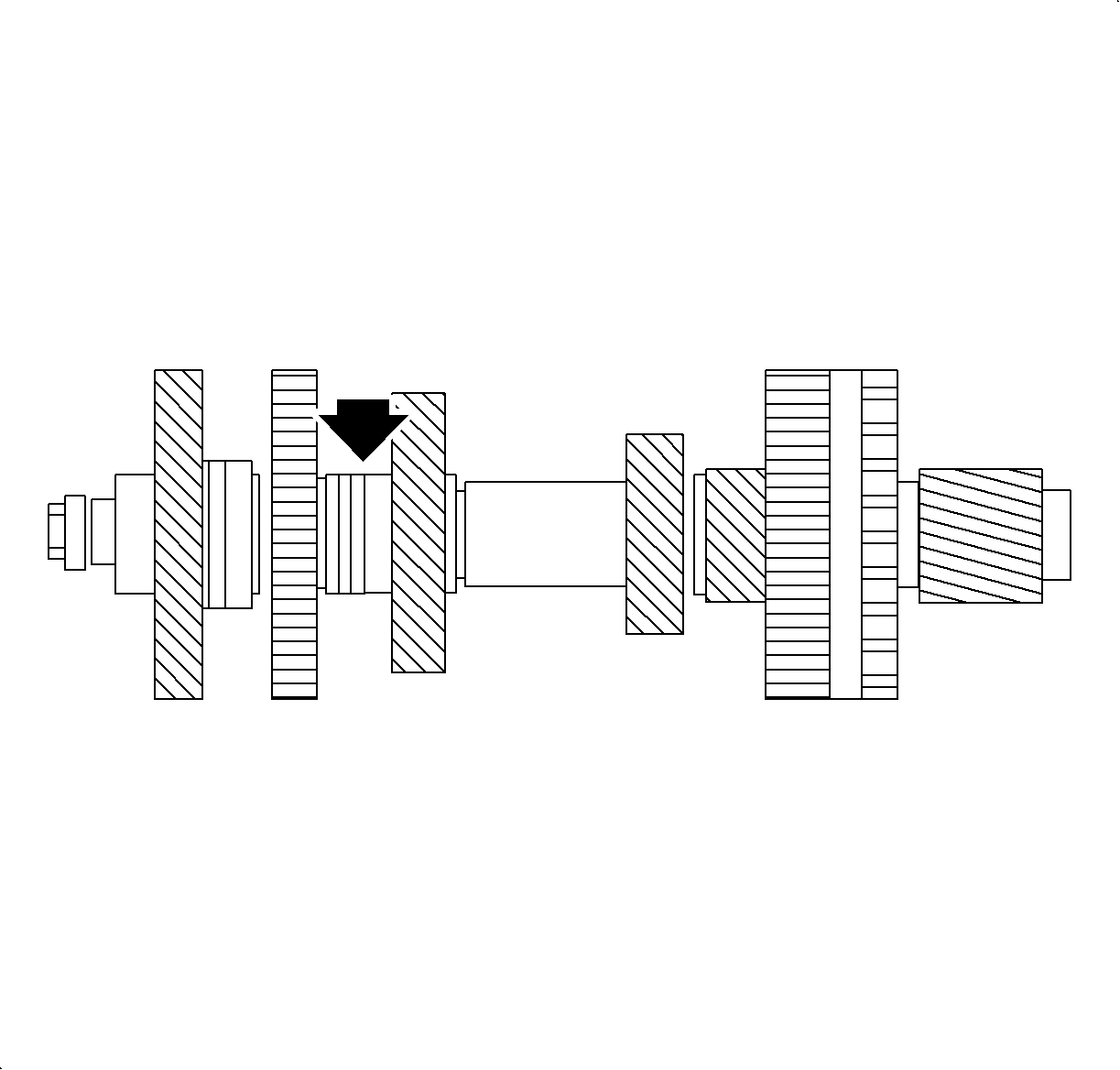

8. Measure the clearance between the reverse driven gear and the reverse driven gear thrust washer.
Clearance
• Standard 0.066-0.172 mm (0.003-0.007 in)
• Minimum -- the gear must rotate freely on the shaft.

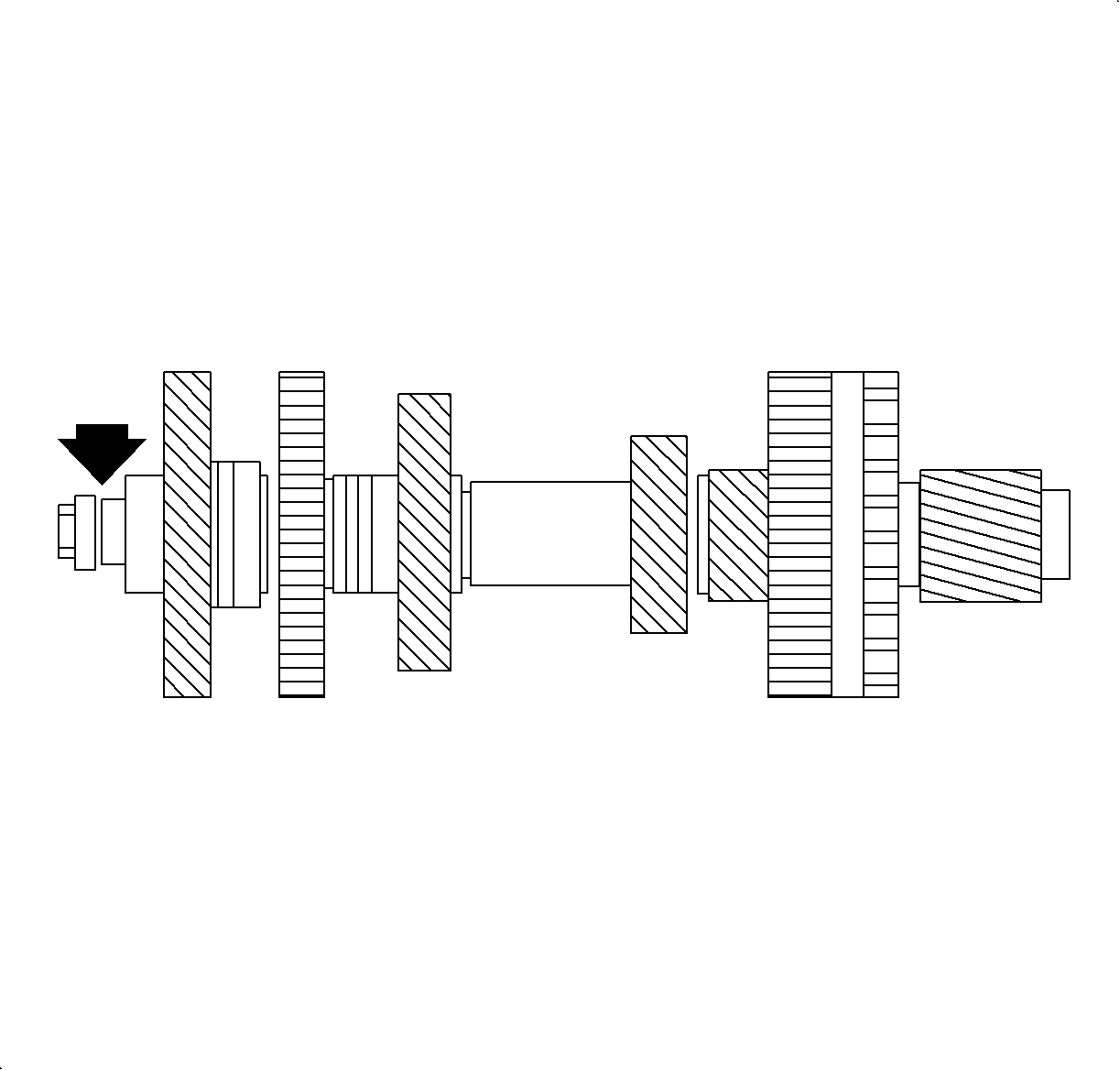

9. Measure the clearance between the 1st driven gear washer and the 1st riven gear.
Clearance

Standard 0.100-0.400 mm (0.004-0.016 in)





10. Remove the output shaft clamp nut, 1st driven gear thrust washer, 1st driven gear and sprag assembly and output shaft bearing.





Notice

Input shaft, output shaft, and differential must be installed at same time or damage will result to output shaft roller bearing inner race. Bearing failure will result.

Important

If the stator shaft needle bearing assembly and input shaft to convertor O-ring were not installed during the input shaft assembly, make sure to lubricate and install the stator shaft needle bearing assembly on the input shaft or in the stator shaft prior to installing the shafts into the convertor housing.

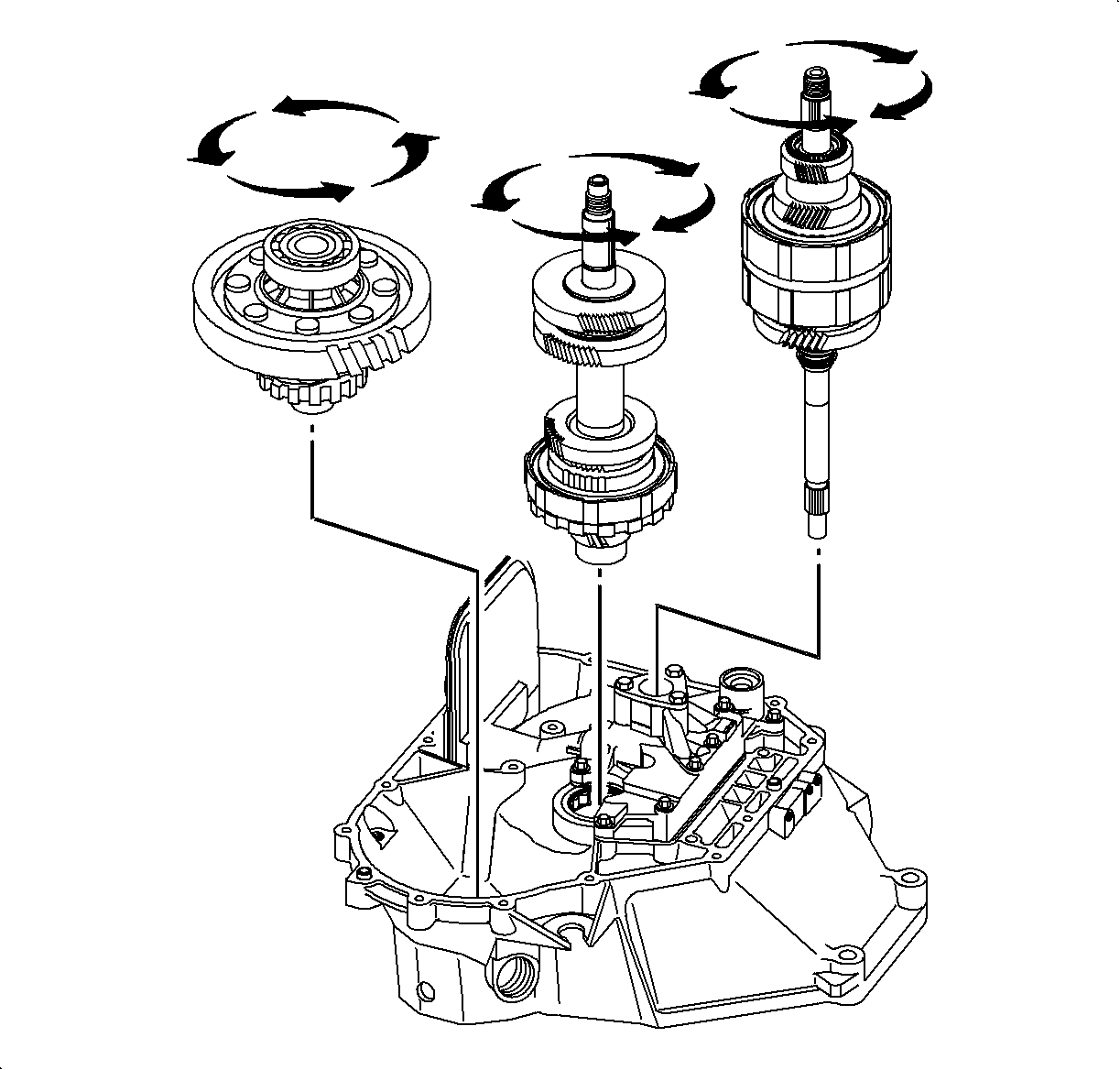

11. Install the input shaft, output shaft, and differential. Grasp the input and output shafts and mesh gears. Have and assistant mesh the differential ring to the output shaft. Lower three components at the same time. Apply petroleum jelly on the output shaft bearing to aid in installation.
