Lighting Systems Connector End Views

Table 1:	Ash Tray Lamp
Table 2:	Backup Lamp - Coupe - Right
Table 3:	Backup Lamp - Coupe - Left
Table 4:	Backup Switch
Table 5:	Cargo Lamp Switch - Wagon
Table 6:	Cargo Lamp - Sedan, Coupe
Table 7:	Cargo Lamp Switch - Sedan, Coupe
Table 8:	Cargo Lamp Switch - Sedan, Coupe
Table 9:	Cargo Lamp - Wagon
Table 10:	Center High-Mount Stop Lamp - CHMSL - Coupe
Table 11:	Center High-Mount Stop Lamp - CHMSL -Sedan, Wagon
Table 12:	Cigar Lighter
Table 13:	Cigar Lighter Ring Illum
Table 14:	Dome Lamp
Table 15:	Fog Lamp - Right
Table 16:	Fog Lamp - Left
Table 17:	Headlamp High Beam - Right
Table 18:	Headlamp High Beam - Left
Table 19:	Headlamp Low Beams - Right
Table 20:	Headlamp Lo Beams - Left
Table 21:	Headlamp Switch
Table 22:	I/P Dimmer
Table 23:	License Lamps - Coupe - Right
Table 24:	License Lamps - Coupe - Left
Table 25:	License Lamps - Sedan - Right
Table 26:	License Lamps - Sedan - Left
Table 27:	License Lamps - Wagon - Right
Table 28:	License Lamps - Wagon - Left
Table 29:	MAP Lights
Table 30:	Marker Lamp - Left
Table 31:	Marker Lamp - Right
Table 32:	Park/Turn Lamp - Coupe - Left
Table 33:	Park/Turn Lamp - Coupe - Right
Table 34:	Park/Turn Lamps - Sedan/Wagon - Right
Table 35:	Park/Turn Lamps - Sedan/Wagon - Left
Table 36:	POD Switches - Fog Lamp/Traction/Rear Defog Switch
Table 37:	PRNDL Lamp
Table 38:	Stop/Tail/Back-up/Turn/Marker Lamp Inline - Right
Table 39:	Stop/Tail/Back-up/Turn/Marker Lamp Inline - Left
Table 40:	Turn/Hazard Switch

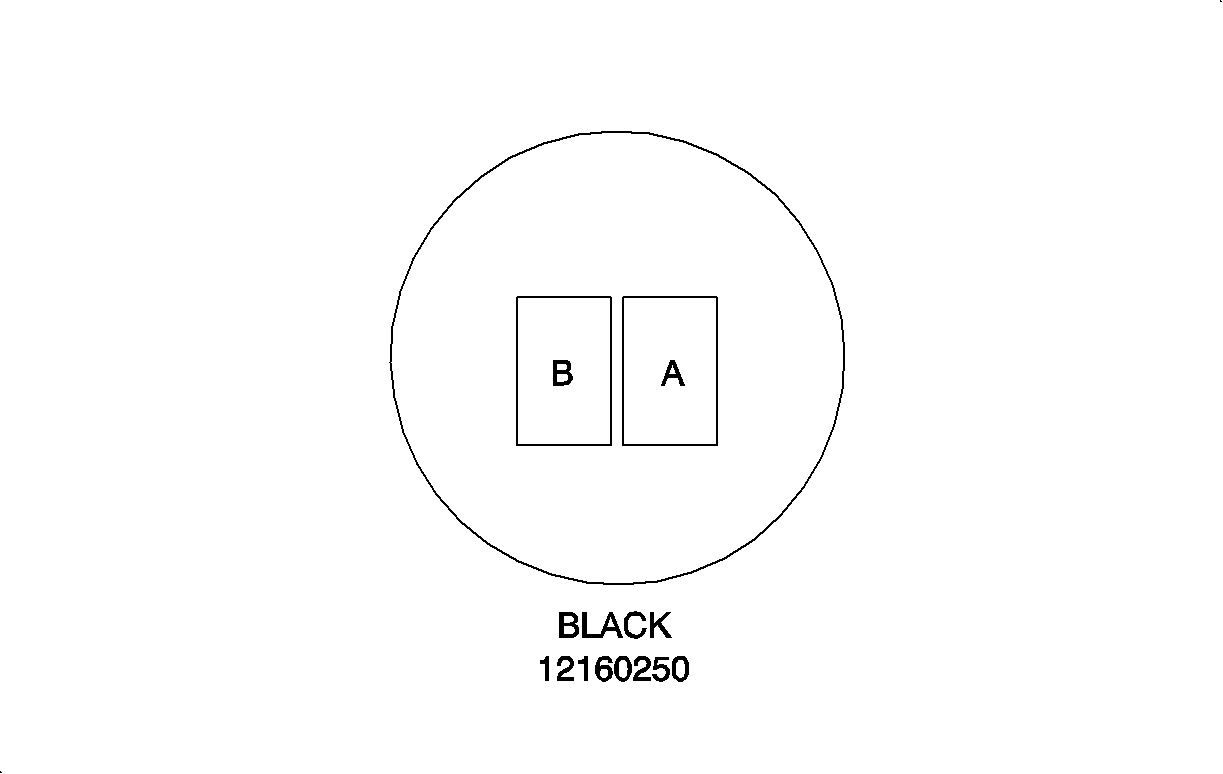

Ash Tray Lamp


Connector Part Information		12160250 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK GRN	44A	0.35	ILLUMINATION CONTROL
B	BRN	9AC	0.35	ILLUMINATION
Location Console

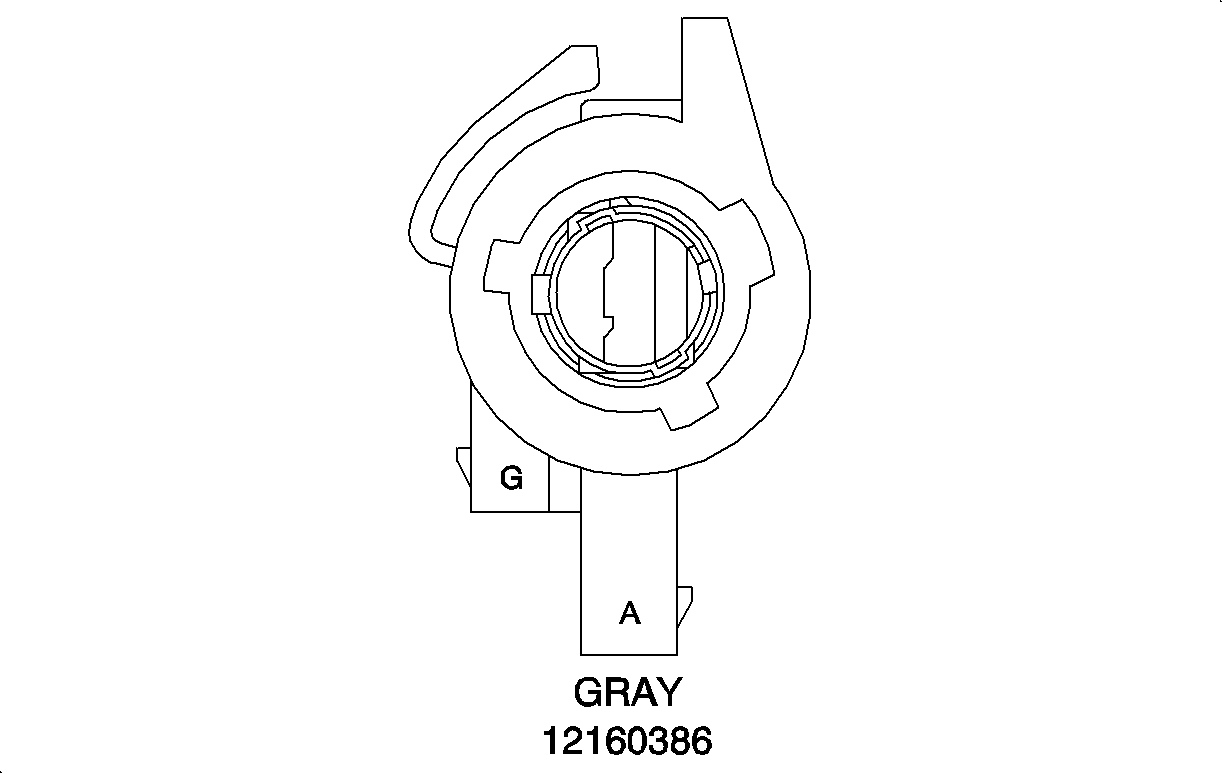

Backup Lamp - Coupe - Right


Connector Part Information		12160386 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT GRN	24J	0.80	POWER
B	BLK	550AE	0.80	GROUND
Location: Rear of Decklid

Backup Lamp - Coupe - Left


Connector Part Information		12160386 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT GRN	24K	0.80	POWER
B	BLK	550AW	0.80	GROUND
Location: Rear of Decklid

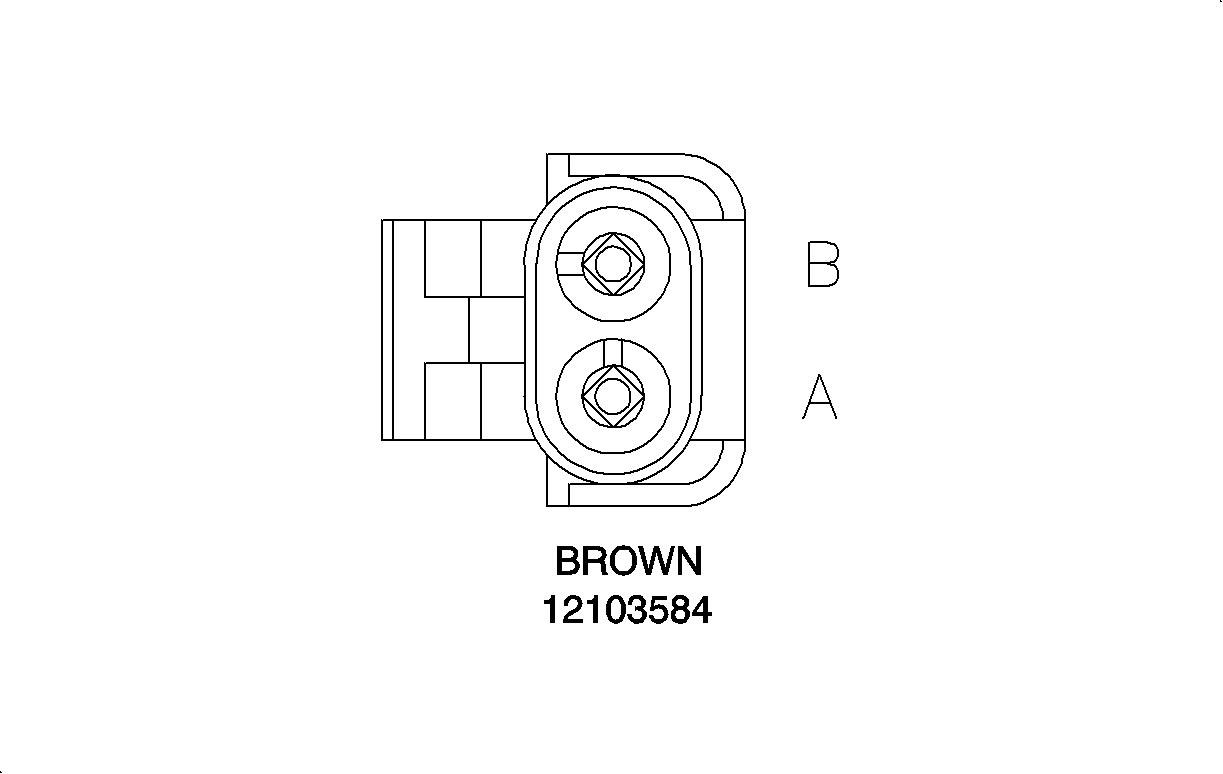

Backup Switch


Connector Part Information		12103584 Brown
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT GRN	24B	0.50	TO LAMPS
B	PNK	239	0.50	FROM FUSE-IGN
Location: Engine Compartment - Top of Manual Transaxle

Cargo Lamp Switch - Wagon


Connector Part Information		12052832 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK GRN	146B	0.35	AJAR TELLTALE/CARGO LAMP CONTROL
B	BLK	550AX	0.35	GROUND
Location: Liftgate Latch

Cargo Lamp - Sedan, Coupe


Connector Part Information		12052832 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED/BLK	744 744B	0.35	GROUND-SL GROUND-SC
B	ORN	340B 340JJ	0.35	POWER-SL POWER-SC
Location: Under Package Shelf

Cargo Lamp Switch - Sedan, Coupe


Connector Part Information		12047781 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	550RA 550RL	0.35	DECKLID RELEASE MOTOR GROUND-SL W/RKE DECKLID RELEASE MOTOR GROUND-SC W/RKE
B	GRY	382B 382C	0.35	DECKLID RELEASE MOTOR-SL W/RKE DECKLID RELEASE MOTOR-SC W/RKE
C	RED/BLK	744A 744C	0.35	CARGO LAMP SW-SL CARGO LAMPSW-SC
Location: Decklid Latch

Cargo Lamp Switch - Sedan, Coupe


Connector Part Information		12092582 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	550DD-SL 550DY-SC	0.35 0.8	GROUND-SL GROUND-SC
Location: On Decklid Latch

Cargo Lamp - Wagon


Connector Part Information		12047781 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	WHT	156A	0.35	CARGO LP SWITCH
B	BLK	550A	0.35	CARGO LP GROUND
C	ORN	340A	0.35	CARGO LP BULB
Location: Rear Roof

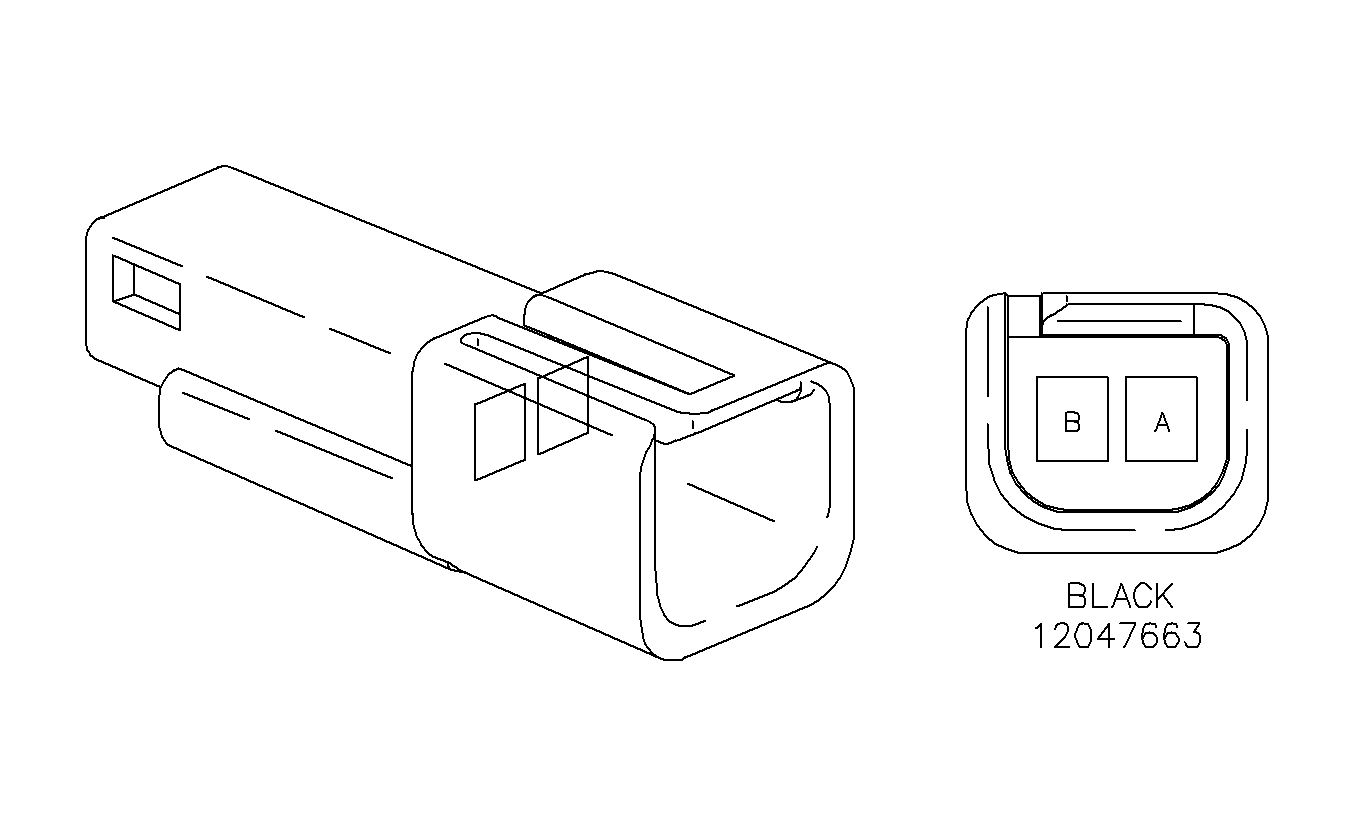

Center High-Mount Stop Lamp - CHMSL - Coupe


Connector Part Information		12047663 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	20	0.8	CHMSL-HIGH
B	BLK	550B	0.8	CHMSL-GROUND
Location: Roof Rear Center

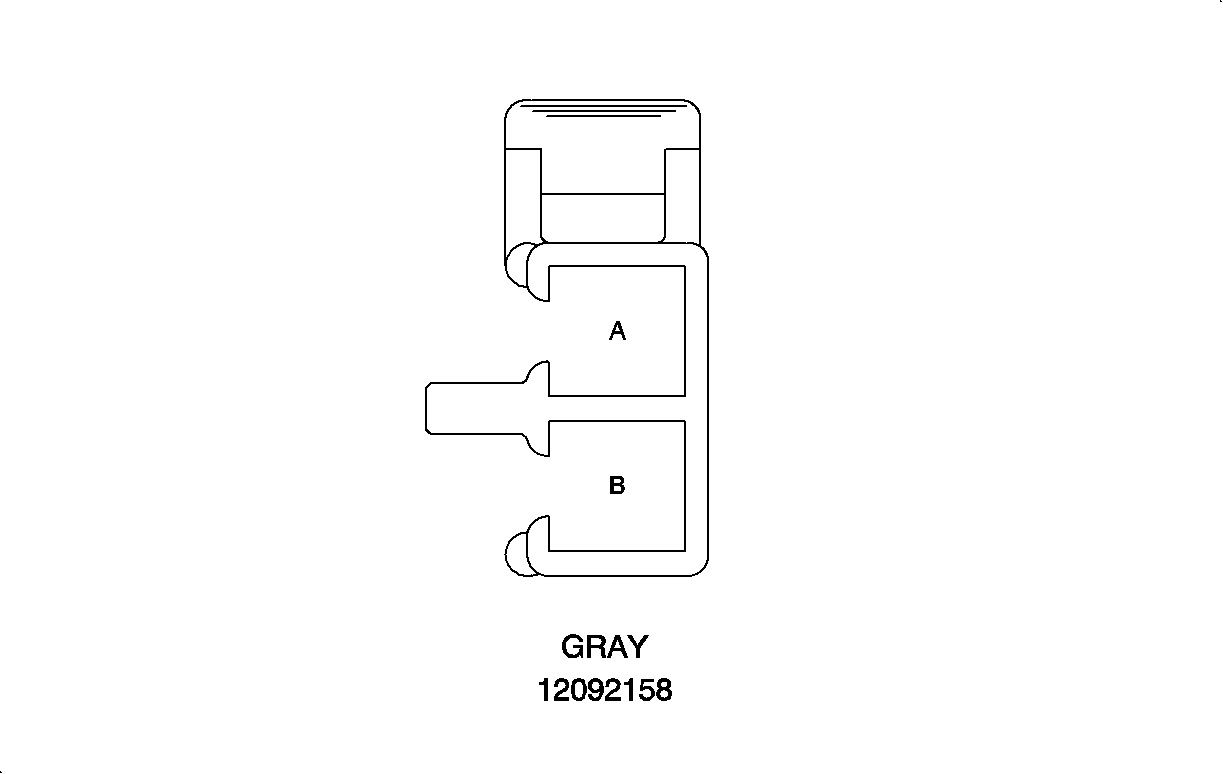

Center High-Mount Stop Lamp - CHMSL -Sedan, Wagon


Connector Part Information		12092158 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	20J 20K	0.5	CHMSL-HIGH-WAGON CHMSL-HIGH-SEDAN
B	BLK	550EA 550DD	0.5	CHMSL-GROUND-WAGON CHMSL-GROUND-SEDAN
Location: Liftgate-Wagon -- Headliner-Sedan

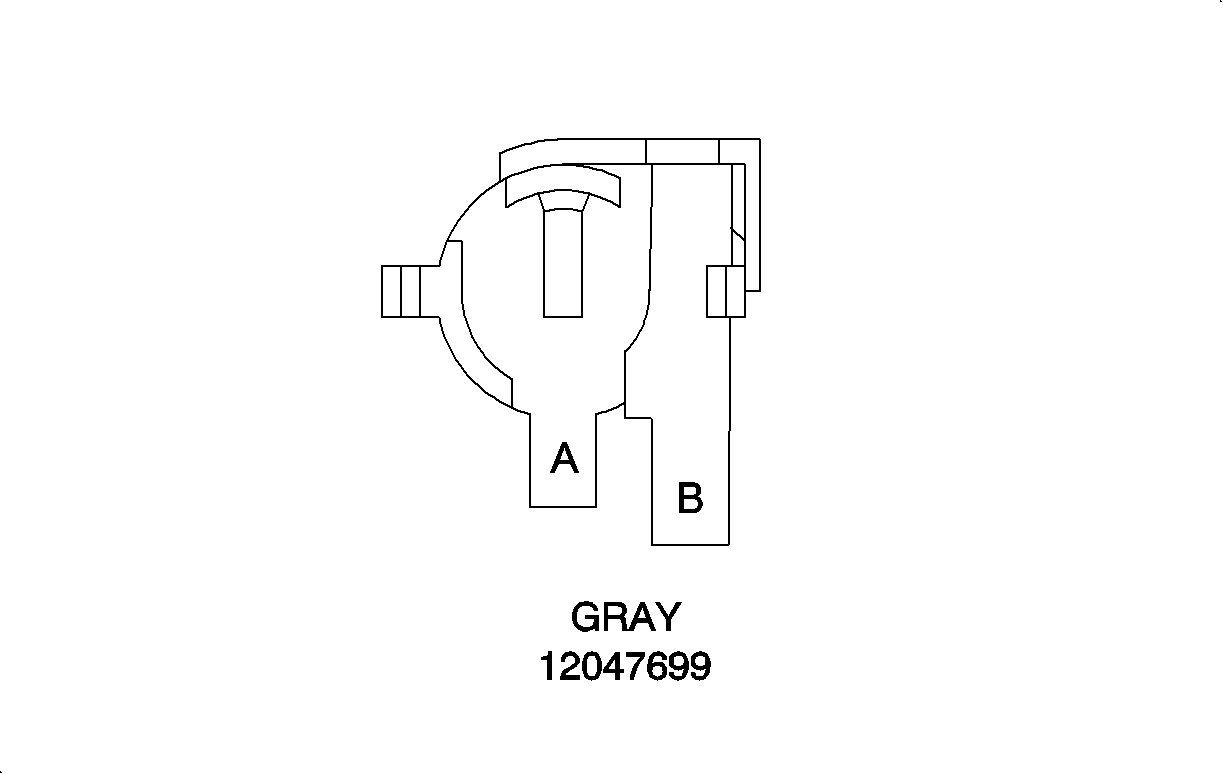

Cigar Lighter


Connector Part Information		12047699 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	740B	0.8	BATT +
B	BLK	350H	0.8	GROUND
Location: I/P Center

Cigar Lighter Ring Illum


Connector Part Information		12110566 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK GRN	44K	0.35	TO IPJB
B	BRN	9AK	0.35	ILLUM
Location: I/P Center

Dome Lamp


Connector Part Information		12047781 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	WHT	156	0.8-SC 0.35-SL/SW	DOME SWITCH
B	BLK	550-SL/SW 550A-SC	0.35-SL/SW 0.8-SC	DOME GROUND
C	ORN	340	0.35-SL/SW 0.8-SC	B+ TO DOME BULB
Location: Center Roof -- Headliner

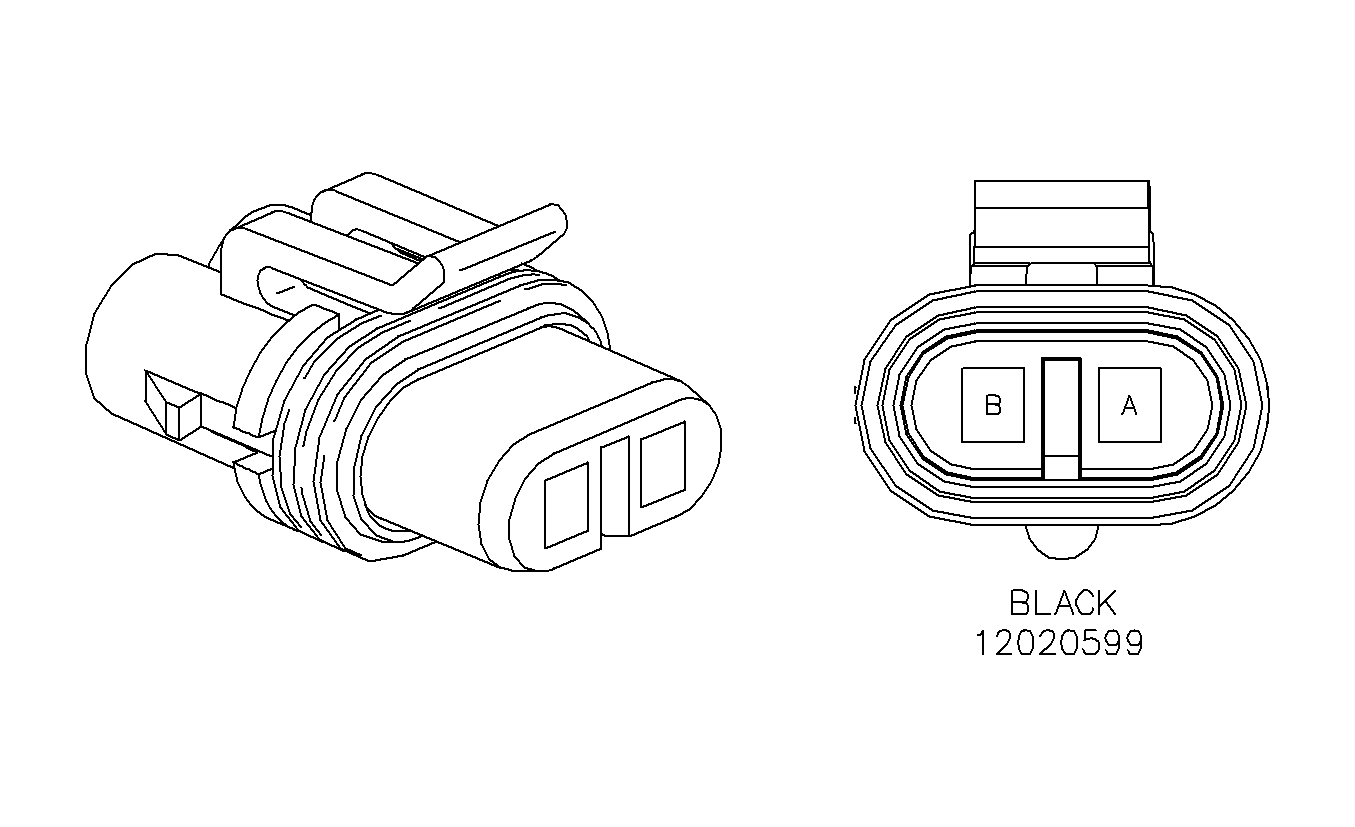

Fog Lamp - Right


Connector Part Information		12020599 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	34	0.5	SWITCHED B+
B	BLK	150S-SL/SW 150SS-SC	0.35	GROUND
Location: Front Fascia-Lower Right

Fog Lamp - Left


Connector Part Information		12020599 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	34A	0.50	SWITCHED B+
B	BLK	150R	0.35	GROUND
Location:Front Fascia-Lower Left

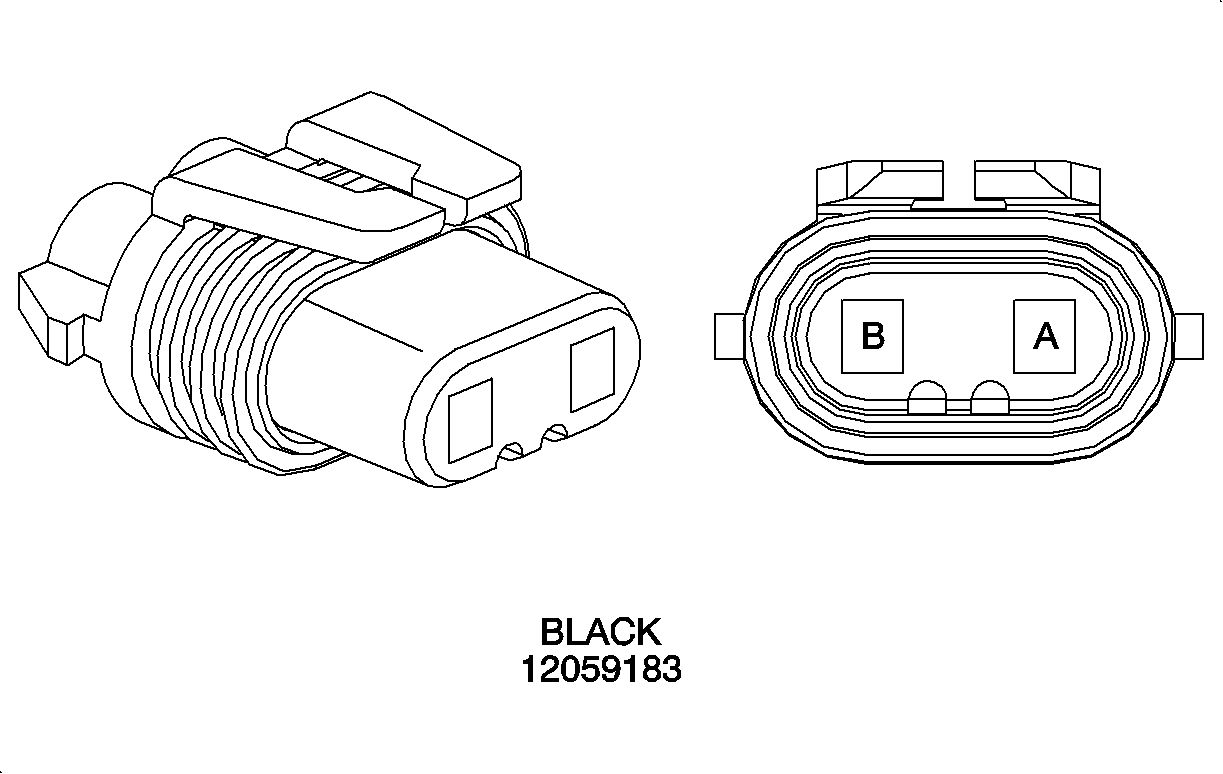

Headlamp High Beam - Right


Connector Part Information		12059183 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	140A	0.5	B+
B	PNK	1200A	0.5	HI BEAM CONTROL
Location: Headlamps-Right

Headlamp High Beam - Left


Connector Part Information		12059183 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	40A	0.35	B+
B	PNK	1200B	0.35	HI BEAM CONTROL
Location: Headlamps-Left

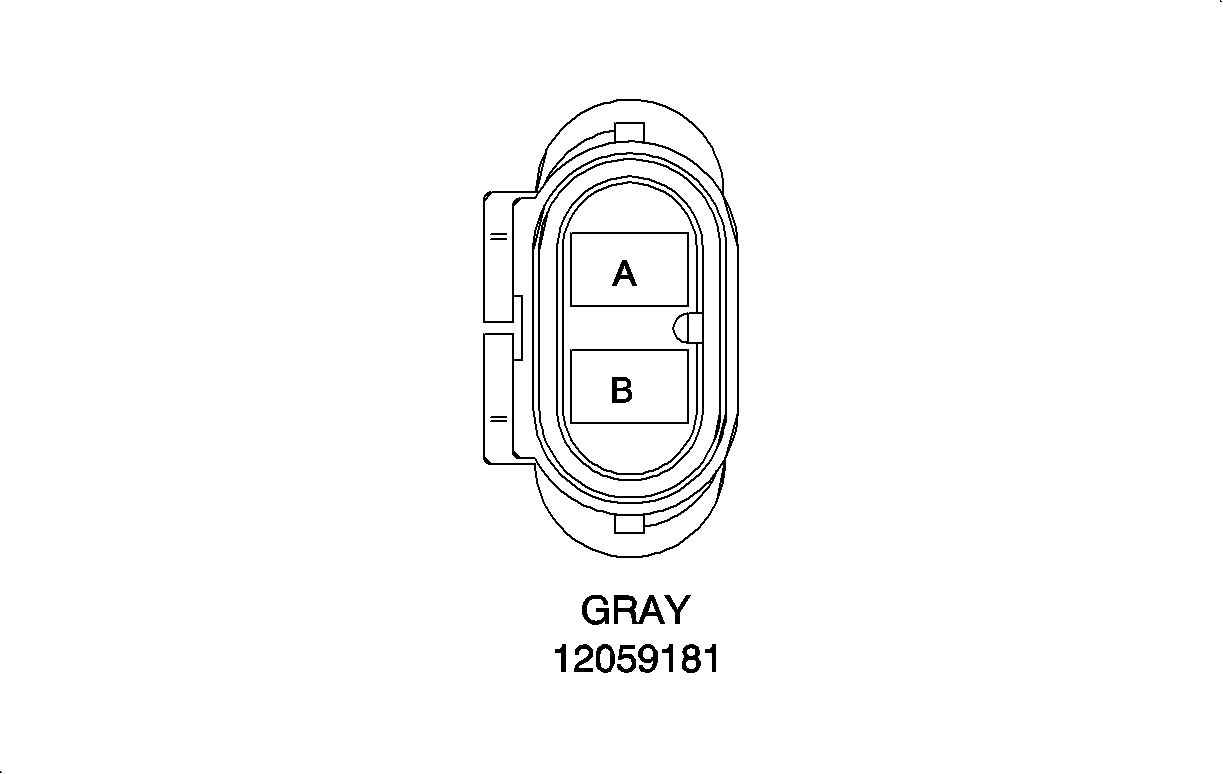

Headlamp Low Beams - Right


Connector Part Information		12059181 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	140B	0.5	B+
B	DK BLU	1201A	0.5	LO BEAM CONTROL
Location: Headlamps-Right

Headlamp Lo Beams - Left


Connector Part Information		12059181 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	40B	0.35	B+
B	DK BLU	1201B	0.35	LO BEAM CONTROL
Location: Headlamps-Left

Headlamp Switch


Connector Part Information		12064769 Natural
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK BLU	1201C	0.35	LO BEAM
B	--	--	--	Not Used
C	BLK	350G	1	SWITCH GROUND
D	--	--	--	Not Used
E	PNK	1200E	0.35	HI BEAM
F	ORN	240	0.35	PARK FUSE B+
G	PNK	1200C	0.5	HI BEAM
H-J	--	--	--	Not Used
K	BRN	9K	0.35	PARK LAMPS
Location: Steering Column

I/P Dimmer


Connector Part Information		12064758 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	350C	0.35	BATT
B	DK GRN	44	0.35	TO ILLUM BULBS
C	BRN	9AL	0.35	TO ILLUM BULBS
Location: I/P Left Upper

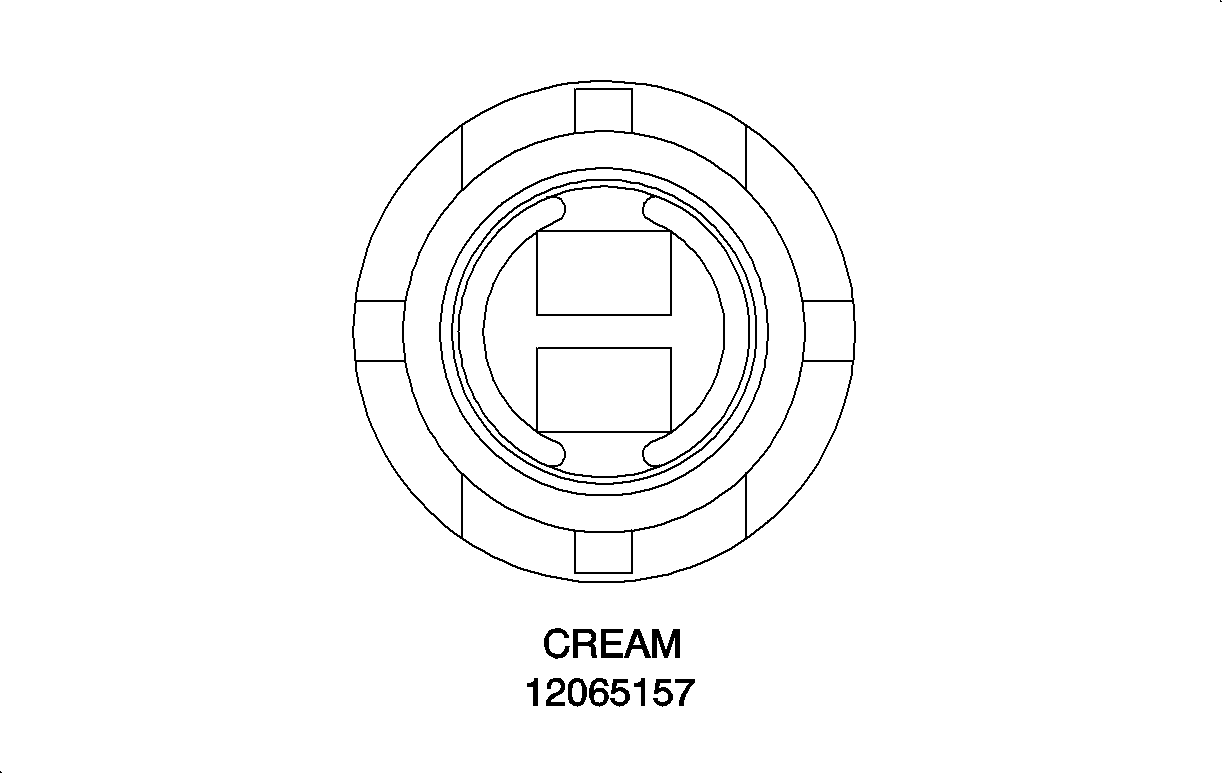

License Lamps - Coupe - Right


Connector Part Information		12065157 Cream
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9	0.35	POWER
B	BLK	550	0.35	GROUND
Location: Decklid-Right

License Lamps - Coupe - Left


Connector Part Information		12065157 Cream
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9	0.35	POWER
B	BLK	550	0.35	GROUND
Location: Decklid-Left

License Lamps - Sedan - Right


Connector Part Information		12110053 LT Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9X	0.5	POWER
B	BLK	550AC	0.5	GROUND
Location: Decklid-Right Rear

License Lamps - Sedan - Left


Connector Part Information		12110053 LT Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9W	0.5	POWER
B	BLK	550AB	0.5	GROUND
Location: Decklid-Left Rear

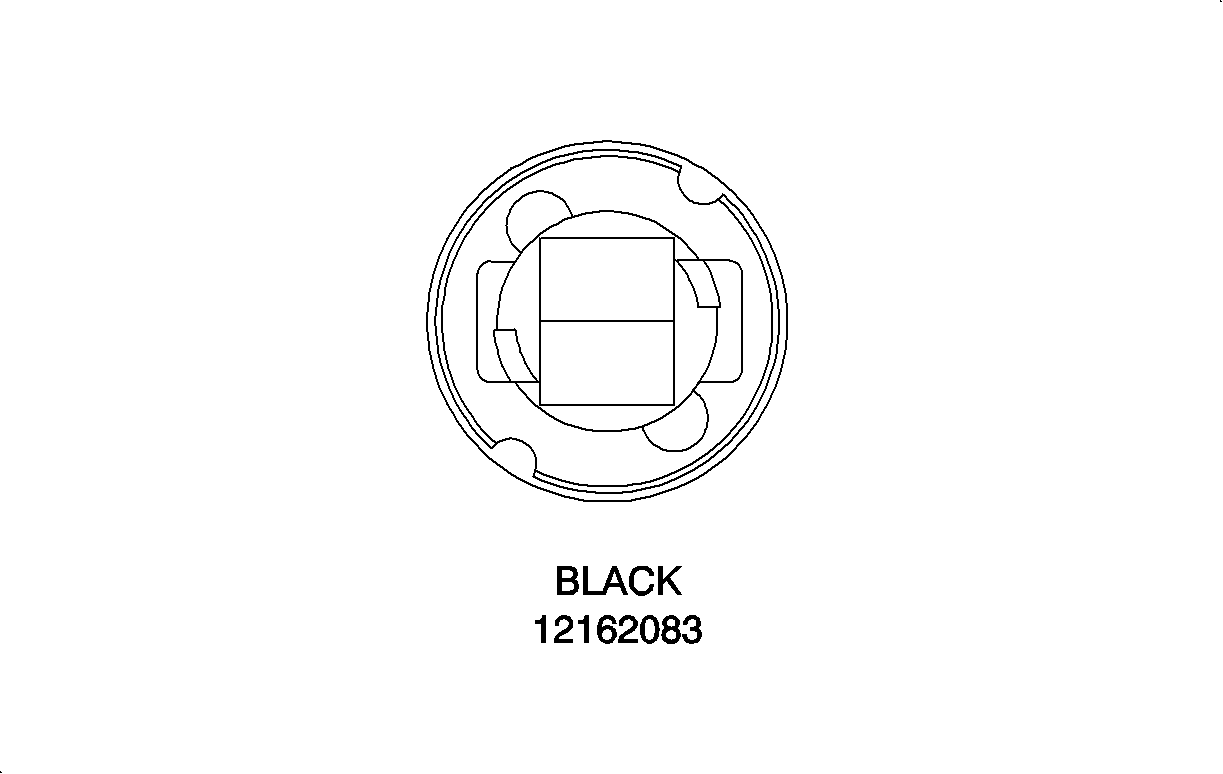

License Lamps - Wagon - Right


Connector Part Information		12162083 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9V	0.5	POWER
B	BLK	550EF	0.5	GROUND
Location: Liftgate

License Lamps - Wagon - Left


Connector Part Information		12162083 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9V	0.5	POWER
B	BLK	550EF	0.5	GROUND
Location: Liftgate

MAP Lights


Connector Part Information		12047781 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	340G	0.35	MAP LIGHT POWER
B	--	--	--	Not Used
C	BLK	550FF	0.35	GROUND
Location: Roof-Headliner

Marker Lamp - Left


Connector Part Information		12110053 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9A-SL, SW, SC2 9AA-SC1	0.5	PARK FEED
B	BLK	150G-SL, SW, SC2 150GG-SC1	0.5	GROUND
Location: Left Front

Marker Lamp - Right


Connector Part Information		12110053 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9B	0.5	PARK FEED
B	BLK	150B	0.5	GROUND
Location: Right Front

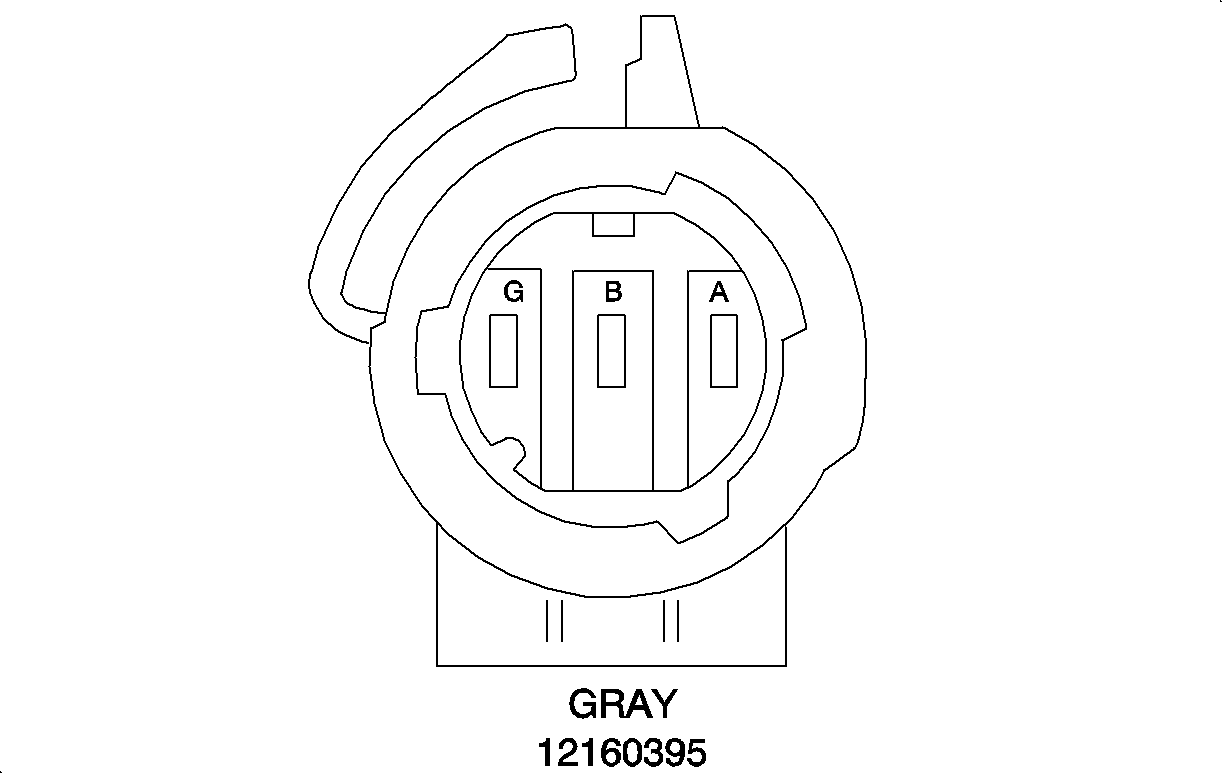

Park/Turn Lamp - Coupe - Left


Connector Part Information		12160395 Gray
Pin	Wire Color	Circuit Number	Function
A	LT BLU	14	LT TURN-HI
B	BRN	9C	LT PARK-HI
C	BLK	150FF	LT GROUND
Location: Left Front Fascia

Park/Turn Lamp - Coupe - Right


Connector Part Information		12160395 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK BLU	15	0.5	RT TURN-HI
B	BRN	9E	0.5	RT PARK-HI
C	BLK	150C	0.5	GROUND
Location: Right Front Fascia

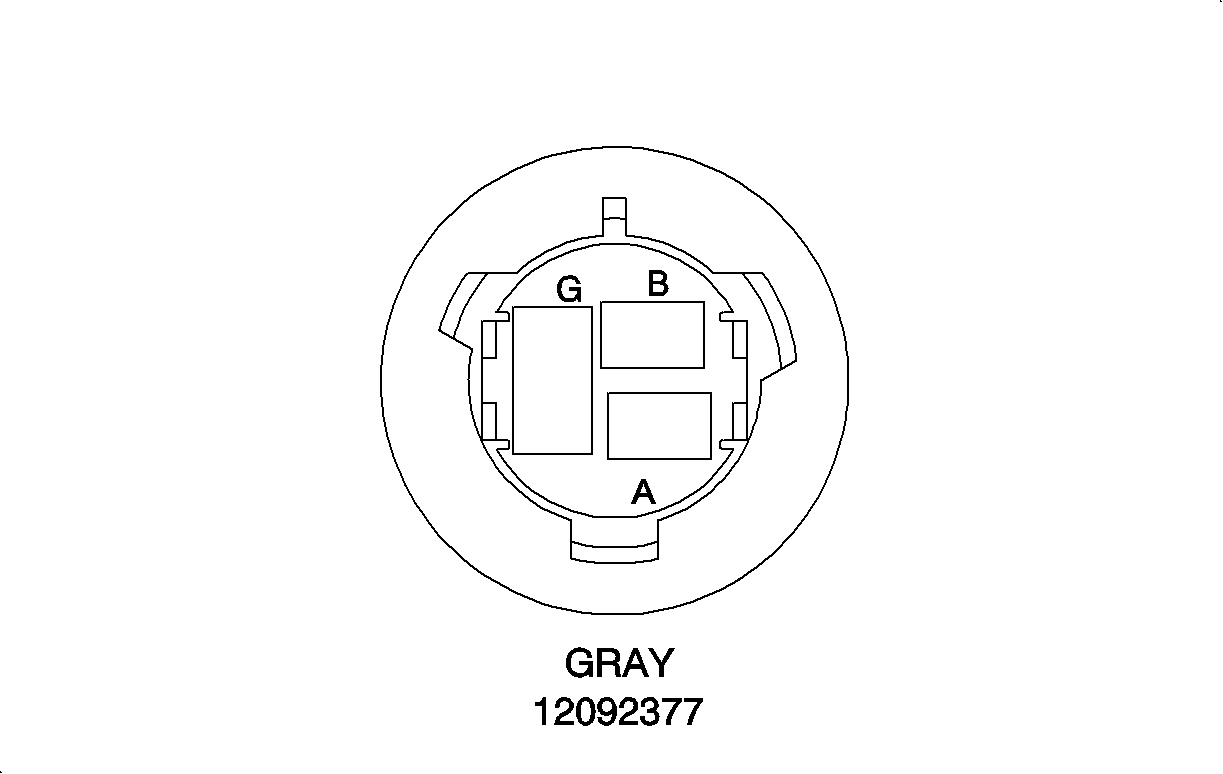

Park/Turn Lamps - Sedan/Wagon - Right


Connector Part Information		12092377 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK BLU	15	0.5	RIGHT TURN
B	BRN	9E	0.5	PARK
C	BLK	150C	0.5	GROUND
Location: Right Front Fascia

Park/Turn Lamps - Sedan/Wagon - Left


Connector Part Information		12092377 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	14	0.5	LEFT TURN
B	BRN	9C	0.5	PARK
C	BLK	150FF	0.5	GROUND
Location: Left Front Fascia

POD Switches - Fog Lamp/Traction/Rear Defog Switch


Connector Part Information		121295622 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	YEL	317	0.35	FOG LAMP RELAY CONTROL
B	PNK	1200	0.35	HI BEAM INPUT
C	PPL/WHT	1572	0.35	TRACTION CONT ENABLE
D	LT BLU	292	0.35	REAR DEFOG SW ON/OFF
E-G	--	--	--	Not Used
H	BLK	350J	0.35	POD SWITCHES GROUND
J	WHT	193	0.35	REAR DEFOG RELAY/ON LED CONTROL
K	BRN	641E	0.35	TRACTION CONT/REAR DEFOG ING3 FEED
L	DK GRN	44L	0.35	POD SWITCHES ILLUMINATION
M	BRN	9AN	0.35	POD SWITCHES ILLUMINATION
Location: I/P Center

PRNDL Lamp


Connector Part Information		12162083 Natural
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	9AF	0.35	Power
B	DK GRN	44F	0.35	ILLUMINATION CONTROL
Location: Console

Stop/Tail/Back-up/Turn/Marker Lamp Inline - Right


Connector Part Information		12052848 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	DK GRN	19	0.8	TURN LAMPS
B	BRN	9G-SL, SC 9Z-SW	0.35	TAIL LAMPS
C	BLK	550Y-SL 550AJ-SW 550PP-SC	1	GROUND
D	LT BLU	20E-SL, SC 20L-SW	0.5	STOP LAMPS
E	--	--	--	Not Used
F	LT GRN	*24E-SL 24H-SW	0.35	BACK-UP LAMP
Location: Rear Compartment-Right * 1st Design

Stop/Tail/Back-up/Turn/Marker Lamp Inline - Left


Connector Part Information		12052848 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	YEL	18	1	TURN LAMP
B	BRN	9F-SL, SC 9Y-SW	0.35	TAIL LAMPS
C	BLK	550X-SL 550AR-SW 550NN-SC	1	GROUND
D	LT BLU	20C-SL, SC 20N-SW	0.5	STOP LAMPS
E	--	--	--	Not Used
F	LT GRN	*24F-SL 24L-SW	0.35	BACK-UP LAMP
Location: Rear Compartment-Left * 1st Design

Turn/Hazard Switch


Connector Part Information		12064766 Blue
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	YEL	18A	1	LF TURN SIGNAL
B	--	--	--	Not Used
C	DK GRN	19A	1	RT TURN SIGNAL
D	PPL	16	1	TURN SIGNAL LAMP
E	LT BLU	1508B	0.8	HAZARD SW
F	PNK	139	1	IGN 1
G	ORN	1040B	1	IGN 3
H	--	--	--	Not Used
Location: Steering Column
