Document ID# 883395
1998 Saturn SL2/SC2/SW2

Fender Upper Reinforcement Brace Replacement - Front Sedan

Removal Procedure

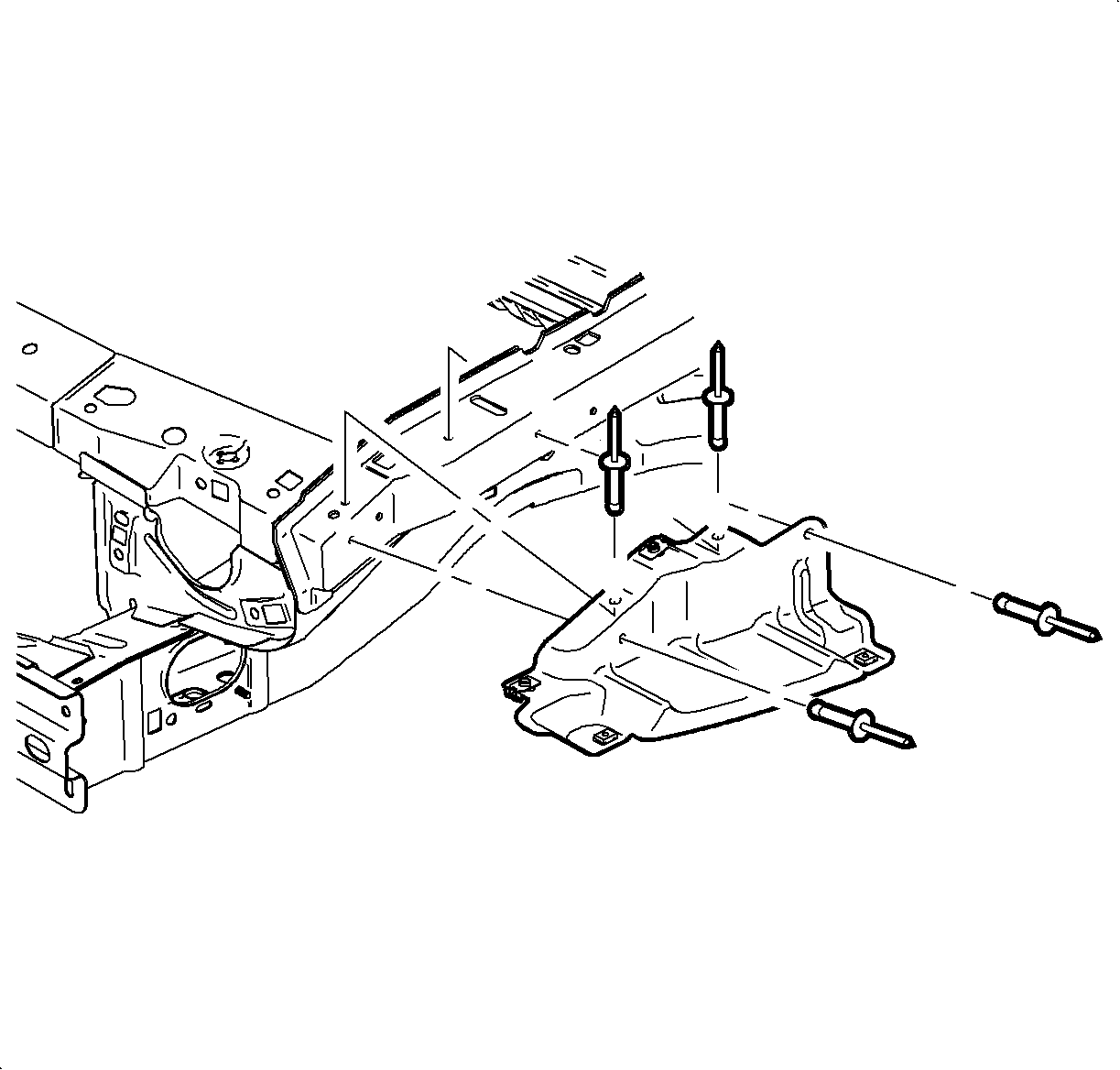

    Object Number: 865831 Size: SH
    Click here for detailed picture of above image.
  1. Remove the front fender. Refer to Fender Replacement - Front .
  2. Remove the rivets that retain the brace to the spaceframe.
Installation Procedure
  1. Position the fender brace to the spaceframe and install the rivets.
  2. Install the front fender. Refer to Fender Replacement - Front .
