1998 Saturn SL2/SC2/SW2

Shift Control Boot Replacement

richpin06a Shifter Boot Replacement

Removal Procedure

    Object Number: 890135 Size: SH
    Click here for detailed picture of above image.
  1. Disable the SIR system. Refer to Enabling the SIR System .
  2. Remove the console. Refer to Console Replacement .
  3. Unclip the boot assembly from the plastic retainer in the rear of the shifter control assembly by pulling rearward and upward on the boot.
  4. Unclip the boot assembly from the two plastic retainers in the front of the shifter control assembly and remove the boot.
Installation Procedure

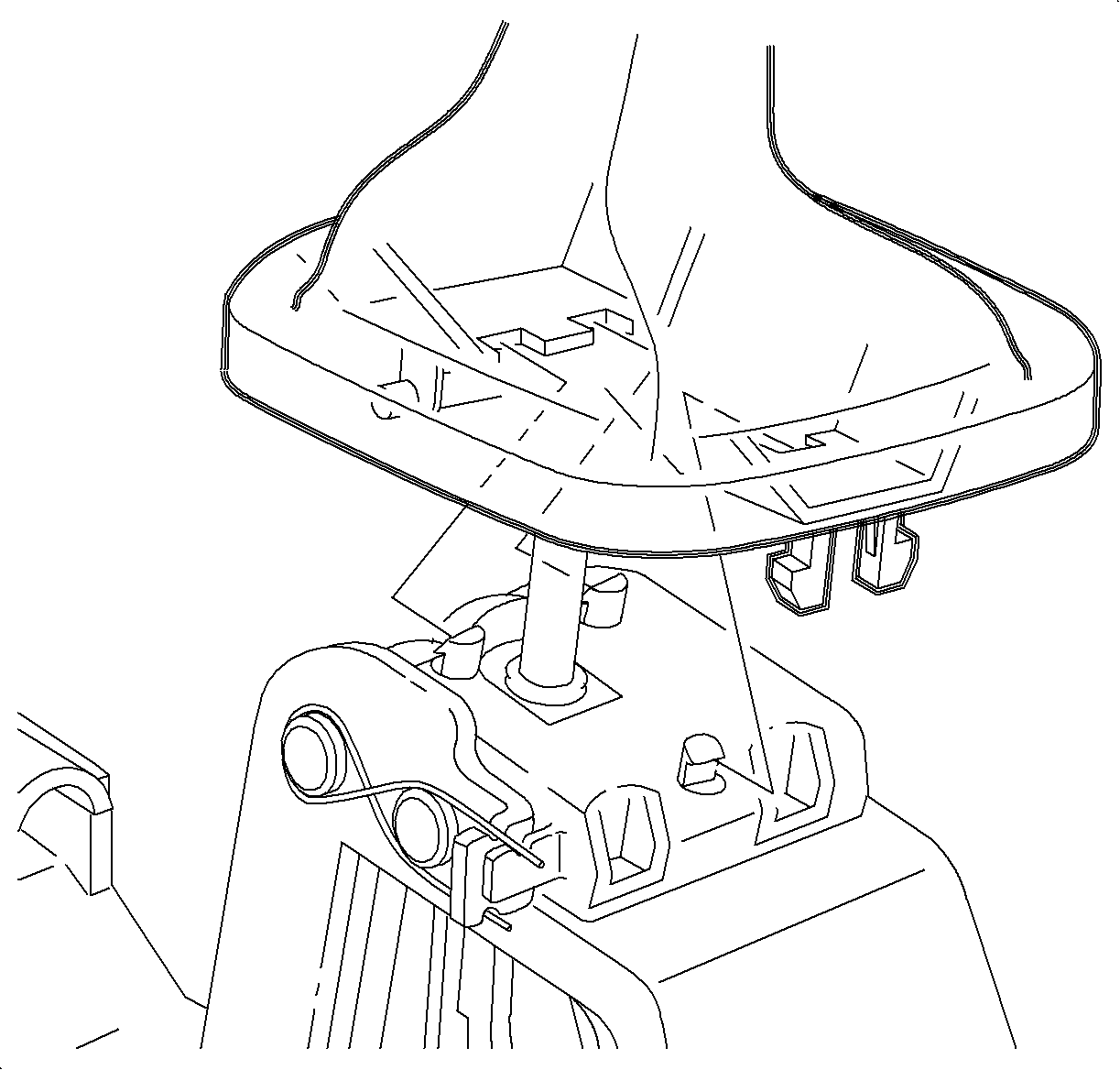

    Object Number: 890134 Size: SH
    Click here for detailed picture of above image.
  1. Place the boot on the shifter control assembly and clip the two plastic retainers in the front of the shifter control assembly.
  2. Clip the boot assembly onto the plastic retainer in the rear of the shifter control assembly.
  3. Install the console. Refer to Console Replacement .
  4. Enable the SIR system. Refer to Enabling the SIR System .
