1998 Saturn SL2/SC2/SW2

Electronic Brake Control Module (EBCM) Replacement RHDD

Removal Procedure

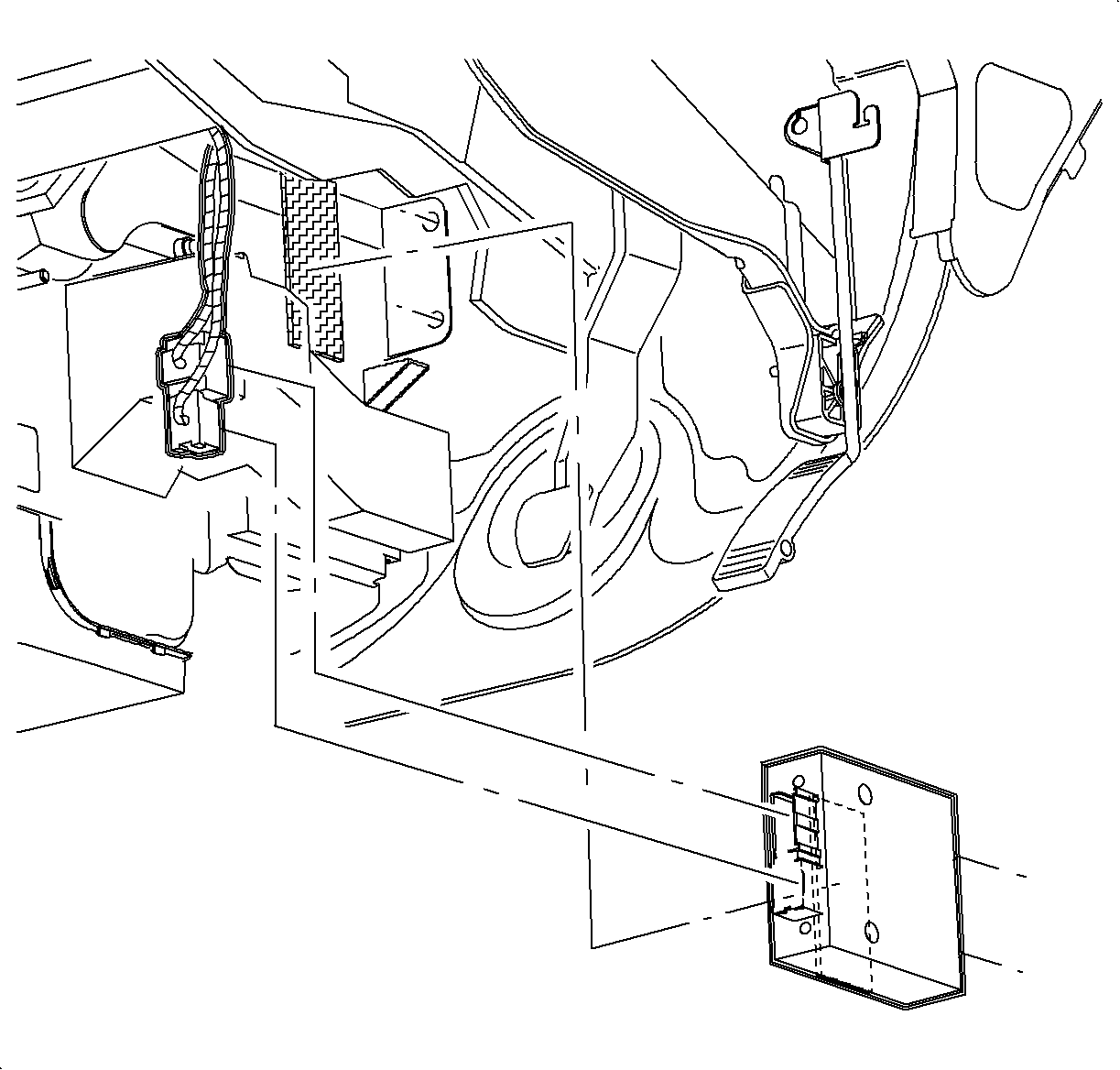

    Object Number: 904199 Size: SH
    Click here for detailed picture of above image.
  1. Disconnect ABS control module electrical connector.
  2. Grasp ABS control module, pull rearward to disengage front mounting tabs and dual-lock retainer.
Installation Procedure

    Object Number: 904199 Size: SH
    Click here for detailed picture of above image.

    Important

    The ABS brake control module contains all calibrations. Reprogramming the ABS controller is not necessary.

  1. Install ABS control module front mounting tabs into bracket on HVAC module.
  2. Press ABS control module front mounting tabs into bracket on HVAC module.
  3. Connect electrical connectors.
