Document ID# 870963
1998 Saturn SL2/SC2/SW2

Window Regulator Handle Replacement - Door

Removal Procedure

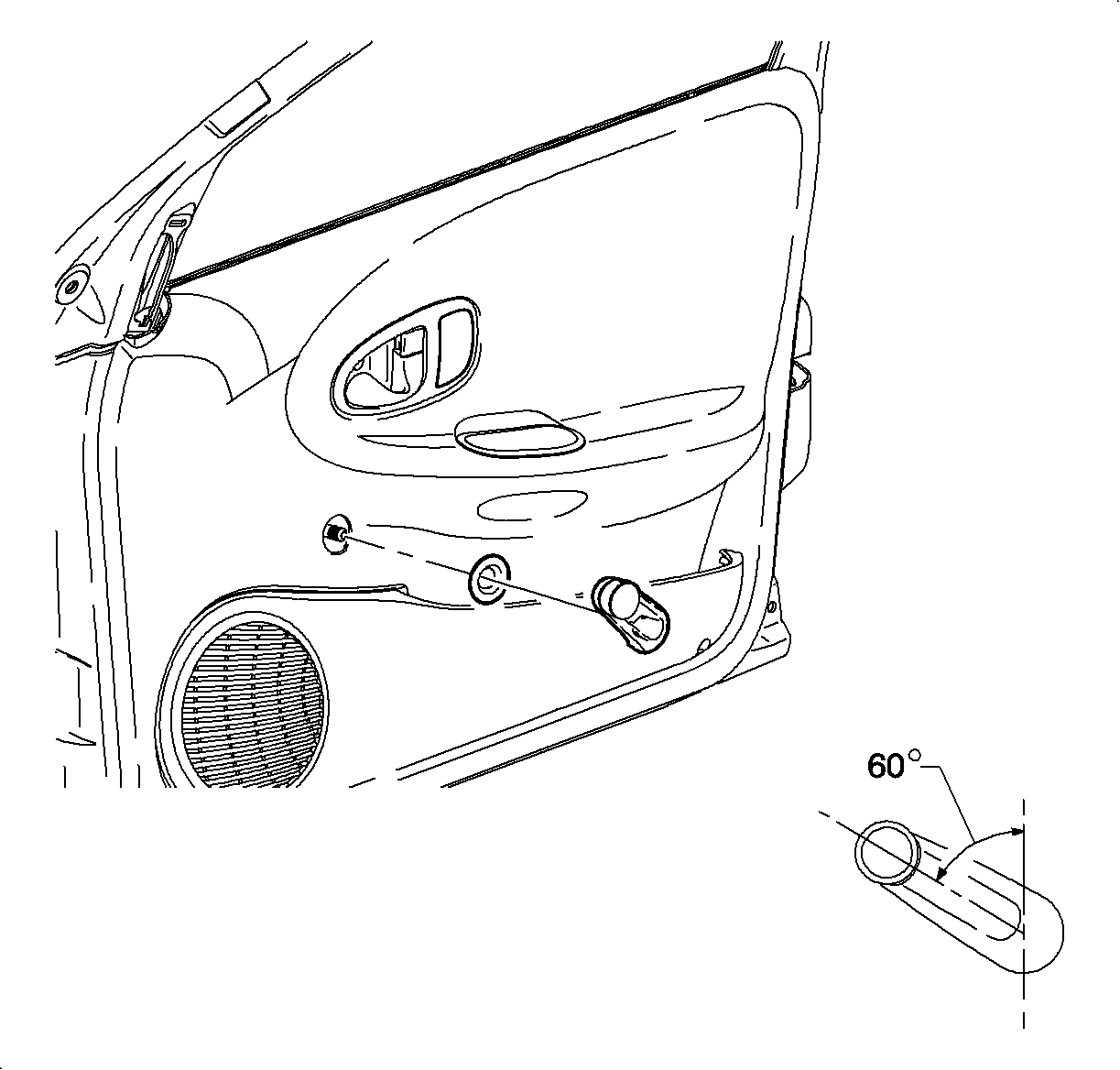

    Object Number: 861795 Size: SH
    Click here for detailed picture of above image.
  1. Disengage the manual window regulator handle retention spring with a standard handle tool, or by working a cloth back and forth between the handle and the bearing plate.
  2. Remove the handle and bearing plate.
Installation Procedure
  1. Install the window regulator handle retention spring on the handle.
  2. Install the bearing plate.
  3. Install the handle in a forward and slightly up position with the window in a closed position.
