Accelerator Pedal, Shaft, and Bracket Assembly Replacement LHD

Removal Procedure

Caution

Ensure that the vehicle is properly supported and squarely positioned. To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle on the opposite end from which the components are being removed.

1. Raise the vehicle.

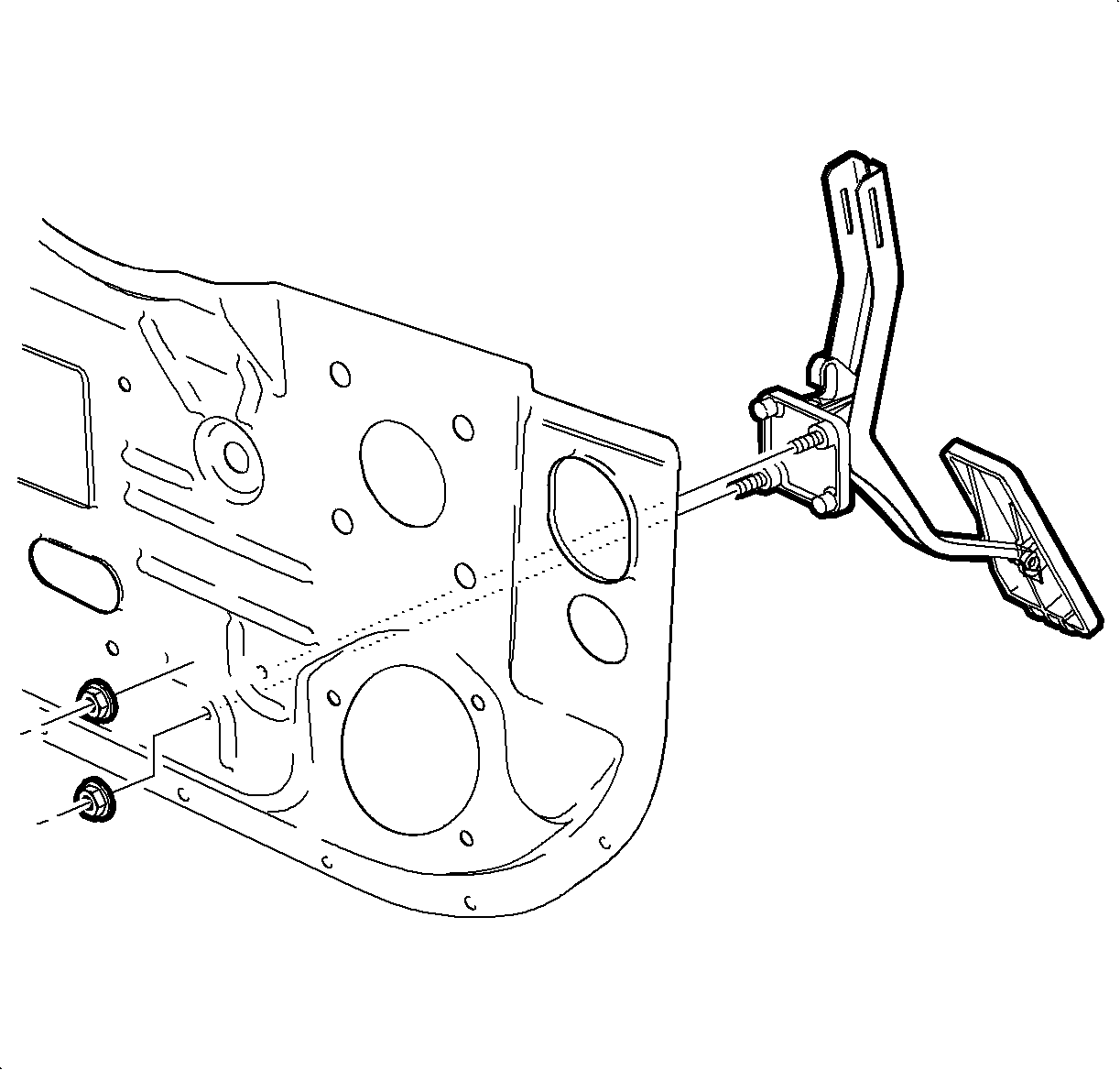

2. Remove the bracket assembly attaching nuts and discard.





Important

To prevent leaks, the bracket assembly attaching nuts must be replaced whenever they are removed.

3. Lower the vehicle.

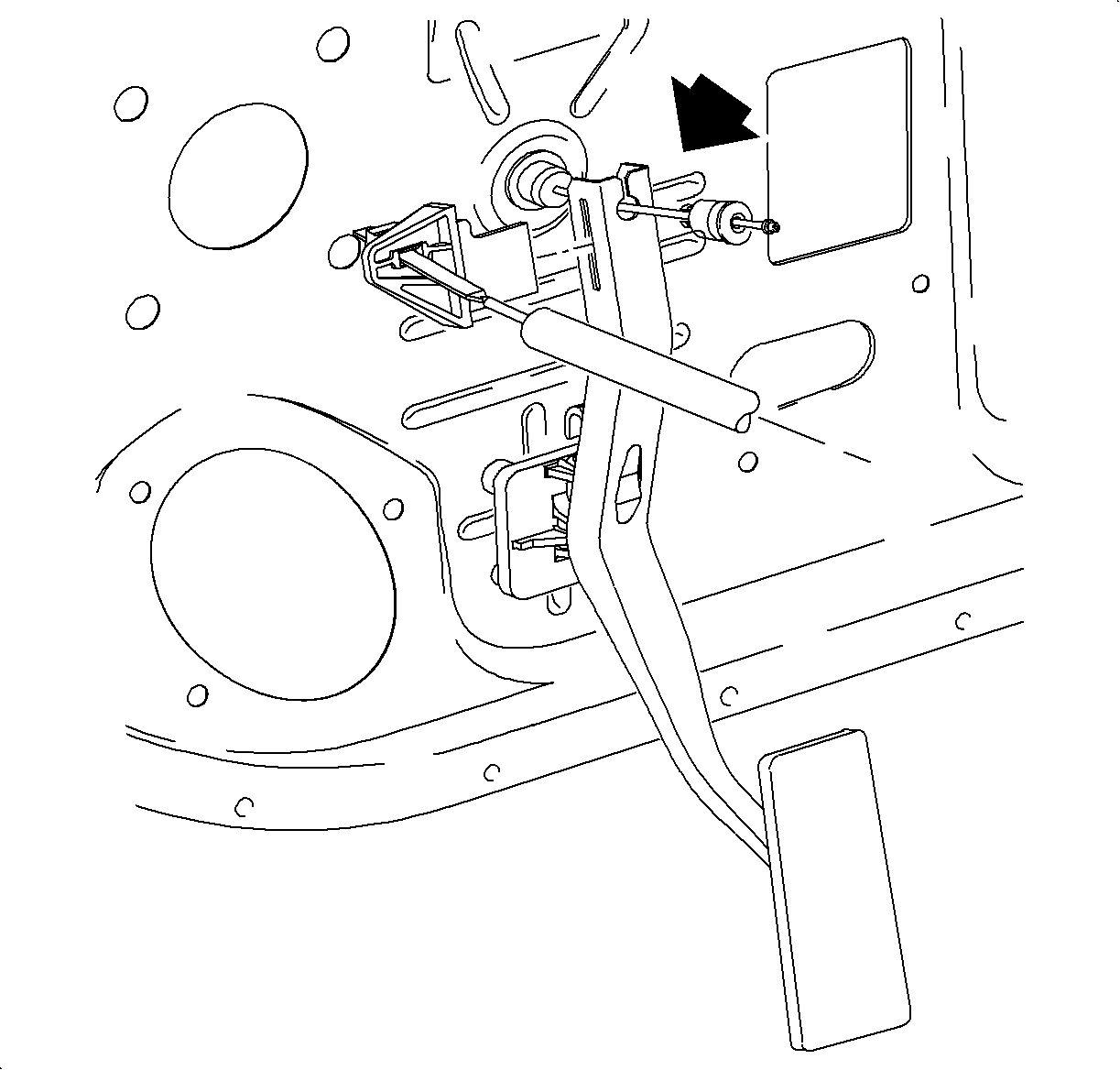

4. Disconnect the accelerator control cable from the accelerator pedal assembly.
5. Release the cruise control cable from the accelerator pedal assembly when applicable.

Important

The accelerator pedal and lever assembly are serviced as a unit.

6. Remove the accelerator pedal assembly.

Installation Procedure

1. Install the bracket assembly onto the dash panel.
2. Attach the accelerator control cable to the accelerator pedal.
3. Attach the cruise control cable to the accelerator pedal assembly when applicable.

Caution

Ensure that the vehicle is properly supported and squarely positioned. To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle on the opposite end from which the components are being removed.

4. Raise the vehicle.

Notice

Refer to Fastener Notice in Cautions and Notices.

5. Install the new bracket assembly attaching nuts.
Tighten

Tighten the accelerator bracket assembly-to-front of dash nuts to 12 N·m (106 lb in).

6. Lower the vehicle.
7. Check the accelerator control assembly for binding.
