Document ID# 875734
1998 Saturn SL2/SC2/SW2

Back Body Outer Rear Panel Replacement

Removal Procedure

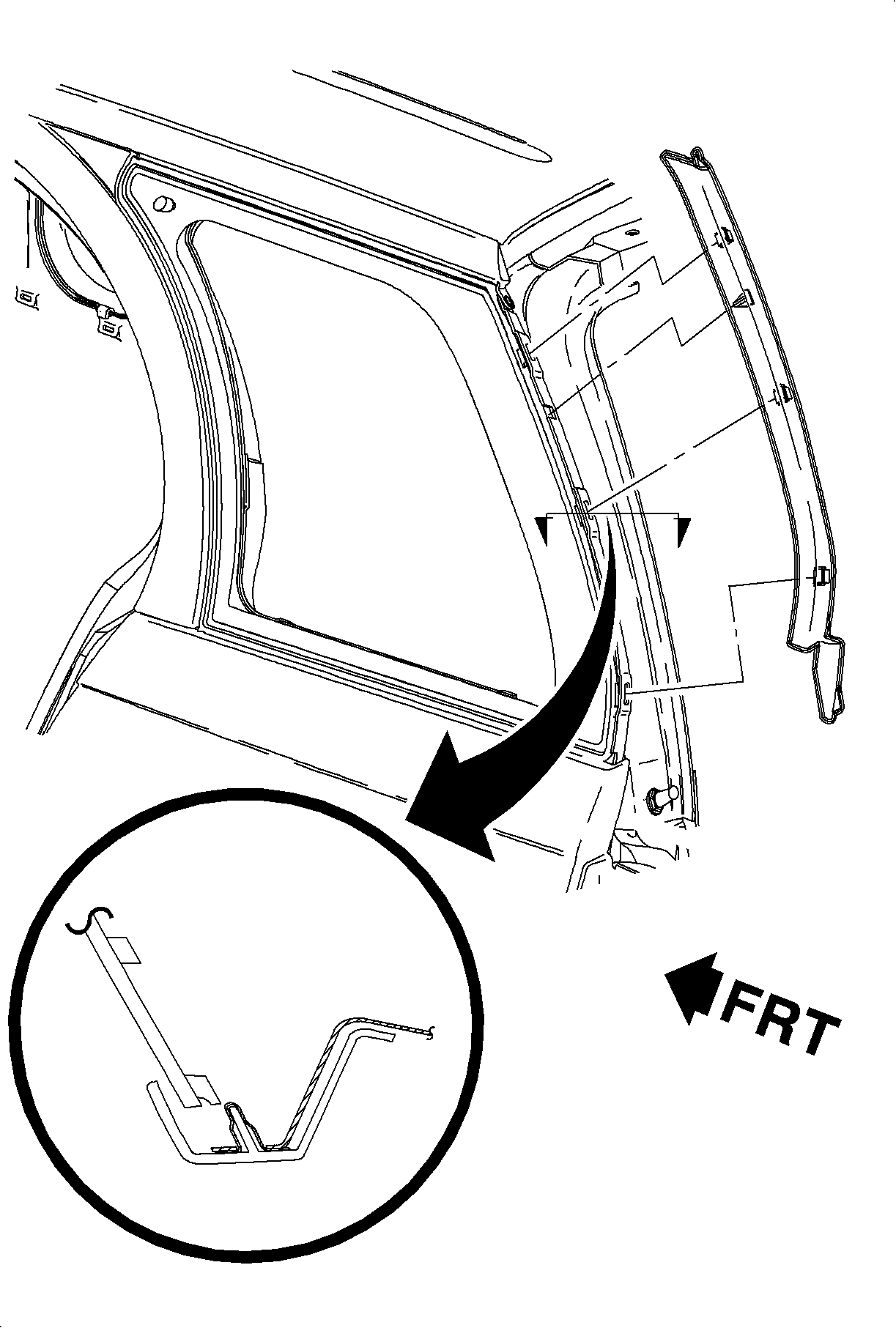

    Object Number: 865679 Size: MH
    Click here for detailed picture of above image.
  1. Open the liftgate.
  2. Remove the back body outer rear panel by gently pulling rearward on the lower end of the panel, disengaging the 3 clips upward.
Installation Procedure

    Object Number: 865679 Size: MH
    Click here for detailed picture of above image.
  1. Position the back body outer rear panel to the vehicle. Use the locating tab to align to the spaceframe.

    2. Notice

    To seat panel, apply pressure from top to bottom. Failure to apply pressure from top to bottom can result in damage to roof panel paint.

  2. Engage the clips by applying pressure, from top to the bottom of the panel.
  3. Close the liftgate.
