Power and Grounding Connector End Views

Table 1:	Powertrain Control Module (PCM) --J1-LT BLU
Table 2:	Powertrain Control Module (PCM)-J2-LT BLU
Table 3:	Powertrain Control Module (PCM)-Automatic J3 --PNK
Table 4:	Powertrain Control Module (PCM)-Manual J3-BRN
Table 5:	Powertrain Control Module (PCM)-Automatic J4
Table 6:	Underhood Junction Block-Forward Lmap-1999 Only
Table 7:	Underhood Junction Block-I/P
Table 8:	Underhood Junction Block-I/P
Table 9:	Underhood Junction Block-I/P
Table 10:	Underhood Junction Block-Engine
Table 11:	Uderhood Junction Block-Forward Lamp

Powertrain Control Module (PCM) --J1-LT BLU


Connector Part Information		12110207-J1 Lt BLU
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
C1	DK GRN	335	.35	COOLING FAN RELAY CONTROL
C2	TAN/BLK	456	.35	UPSHIFT TT-MANUAL
C3	BRN/WHT	419	.35	MILTT OUT
C4	YEL	172	.35	LOW FUEL TT CONTROL
C5	LT BLU	1888	.35	CRUISE CLUTCH OUT
C6	PPL	1885	.35	SERVICE TT OUT
C7	DK GRN	35	.35	COOLANT HOT TT OUT
C8	PPL	1807A	.35	CLASS 2-DLC
C9	--	--	--	--
C10	DK GRN/WHT	465	.35	FUEL PUMP RELAY OUT
C11	DK GRN	603	.50	A/C REQUEST INPUT
C12	PNK	439	.35	IGN 1
C13	--	--	--	--
C14	BRN	86B	.35	BRAKE SWITCH INPUT
C15	GRA	1884	.35	CRUISE RASC IN
C16	PPL/WHT	455	.35	FUEL GAGE SIGNAL
D1	GRA	729	.35	A/C CLUTCH RELAY CONTROL
D2	WHT	121	.35	TACH OUT
D3	DK GRN	135	.35	COOL TEMP GAGE OUT
D4	WHT	1294A	.35	EVO HI
D5	BRN	1295A	.35	EVO LO
D6	DK GRN	389	.35	SPEED SIGNAL OUT
D7	PNK	1886	.35	CRUISE MOVE OUT
D8	PPL	1807B	.35	CLASS 2 --ABS
D9	DK BLU	1446	.35	FLASH POWER
D10	--	--	--	--
D11	LT GRN	1887	.35	CRUISE WOT/IDLE OUT
D12	--	--	--	--
D13	ORN	1140	.80	12 V BATT
D14	LT BLU	1344A	.35	RKE TRUNK RELAY ENABLE
D15	GRA	416H	.35	5 V REF
D16	BLK	452K	.35	FLASH RTN
Location: Behind Left Side of I/P

Powertrain Control Module (PCM)-J2-LT BLU


Connector Part Information		12110206-J2 LT BLU
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	PNK/BLK	1746	.80	CYL 3 INJ
A2	LT BLU/BLK	844	.80	CYL 4 INJ
A3	LT GRN/BLK	1745	.80	CYL 2 INJ
A4	WHT	1310A	.35	EVAP VENT VALVE
A5	BRN	1456A 1456	.50	LIN EGR FEEDBACK IN-SOHC LIN EGR FEEDBACK IN-DOHC
A6	DK BLU	417A	.35	TPS IN
A7	LT GRN 432A		.50	MAP IN
A8	AN	472A	.35	INTAKE AIR TEMP SENSOR IN
A9	LT GRN/WHT	1749	.35	IAC B HI OUT
A10	LT GRN/BLK	444A	.35	IAC B LO OUT
A11	LT BLU/BLK	1748	.35	IAC A LO OUT
A12	LT BLU/WHT	1747	.35	IAC A HI OUT
B1	DK GRN/WHT	428	.50	CCP OUT
B2	BLK	1744	.80	CYL 1 INJ
B3	YEL	410	.35	COOLANT TEMP IN
B4	GRA	416B	.35	+5 V MAP/LEGR
B5	GRA	474	.35	+5 V TPS
B6	BLK/WHT	451E	.35	GROUND
B7	WHT	423	.35	EST 1-4
B8	ORN	406	.35	EST 2-3
B9	TAN/WHT	551C 551A	.80	GROUND-AUTO GROUND-MANUAL
B10	LT BLU	697B 697	.50	LIN EGR SOL OUT-SOHC LIN EGR SL OUT-DOHC
B11	PNK	639A	.50	LIN EGR RECIRC
B12	ORN	1140A	.80	12 V BAT
Location: Behind Left Side of I/P

Powertrain Control Module (PCM)-Automatic J3 --PNK


Connector Part Information		12110245-J3 PNK
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
C1	BLK/WHT	1423A	.35	HEATED O2
C2	PNK/BLK	429A	.35	AIR PUMP SOLENOID-1999 ONLY
C3	--	--	--	--
C4	YEL/BLK	68A	.35	COOLANT LEVEL IN
C5	PPL	30E	.35	FUEL LEVEL IN
C6	--	--	--	--
C7	BRN	436	.35	AIR PUMP-1999 ONLY
C8-C9	--	--	--	--
C10	DK BLU	496	.35	KNOCK SENSOR IN
C11	TAN	413B	.80	HO2S LO IN
C12	PPL/WHT	1668	.35	HO2S HI IN
C13	TAN	413A	.80	O2 F LO IN
C14	PPL	412	.80	O2 F HI IN
C15	PPL	401	.35	VSS LO IN
C16	BLK	452G 452GG	.50	LEGR RTN-DOHC LEGR RTN-SOHC
D1	BLK	452H	.50	MAP RETURN
D2	BLK/WHT	251E	.35	FUEL LEVEL RETURN
D3	BRN/WHT	633	.35	CYL #4 SIGNAL
D4-D6	--	--	--	--
D7	DK GRN	890A	.35	FUEL TANK PRESSURE
D8	BLK	452MD	.35	ECT SENSOR RETURN
D9	ORN/BLK	469B	.35	FUEL TANK PRESSURE SENSOR RETURN-1999 ONLY
D10	BLK	452N	.35	IAT SENSOR RETURN
D11	BLK	452J	.35	TPS RETURN
D12	--	--	--	--
D13	YEL	573	.35	7X HI IN
D14	PPL	574	.35	7X LO IN
D15	YEL	400	.35	VSS HI IN
D16	--	--	--	--
Location: Behind Left Side of I/P

Powertrain Control Module (PCM)-Manual J3-BRN


Connector Part Information		12160779-J3 BRN
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
C1	BLK/PWHT	1423	.35	HEATED 02
C2	PNK/BLK	429A	.35	AIR PUMP SOLENOID-1999 ONLY
C3	--	--	--	--
C4	YEL/BLK	68AM	.35	COOLANT LEVEL IN
C5	PPL	30EM	.35	FUEL LEVEL IN
C6	--	--	--	--
C7	BRN	436	.35	AIR PUMP-1999 ONLY
C8-C9	--	--	--	--
C10	DK BLU	496M	.35	KNOCK SENSOR IN
C11	TAN	413BM	.80	HO2S LO IN
C12	PPL/WHT	1668M	.35	HO2S HI IN
C13	TAN	413AM	.80	O2S F LO IN
C14	PPL	412M	.35	O2S F HI IN
C15	PPL	401M	.35	VSS LO IN
C16	BLK	452G 452GG	.50	LEGR RTN-DOHC LEGR RTN-SOHC
D1	BLK	452HM	.50	MAP RETURN
D2	BLK/WHT	251EM	.35	FUEL LEVEL RETURN
D3	BRN/WHT	633M	.35	CYL #4 SIGNAL
D4-D6	--	--	--	--
D7	DK GRN	890A	.35	FUEL TANK PRESSURE
D8	BLK	452MB	.35	ECT SENSOR RETURN
D9	ORN/BLK	469B	.35	FUEL TANK PRESSURE SENSOR RETURN-1999 ONLY
D10	BLK	452NM	.35	IAT SENSOR RETURN
D11	BLK	452JM	.35	TPS RETURN
D12	--	--	--	--
D13	YEL	573M	.35	7X HI IN
D14	PPL	574M	.35	7X LO IN
D15	YEL	400M	.35	VSS HI IN
D16	--	--	--	--
Location: Behind Left Side of I/P

Powertrain Control Module (PCM)-Automatic J4


Connector Part Information		12110244-J4 PNK
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	--	--	--	--
A2	TAN/BLK	422	.50	TCC OUT
A3	DK BLU	1530	.50	MPL OUT
A4	--	--	--	--
A5	PPL	898	.50	4TH OUT
A6	YEL/BLK	1223	.50	3RD OUT
A7	LT GRN	1222	.50	2ND OUT
A8-A9	--	--	--	--
A10	BLK/WHT	451F	.35	GROUND
A11	BLK	452T	.35	TRANS FLUID TEMP SENSOR RTN
A12	--	--	--	--
B1	--	--	--	--
B2	GRA	773	.50	SEL SW B2
B3	YEL	772	.50	SEL SW B1
B4	BLK/WHT	771	.50	SEL SW B0
B5	WHT	776	.50	SEL SW B3
B6-B7	--	--	--	--
B8	ORN/BLK	586	.35	TRANS FLUID TEMP SENSOR IN
B9	TAN/WHT	551B	.80	GROUND
B10	RED/BLK	1230	.35	TURBINE SHAFT SPEED SENSOR HI IN
B11	DK BLU/WHT	1231	.35	TURBINE SHAFT SPEED SENSOR LO IN
B12	--	--	--	--
Location: Behind Left Side of I/P

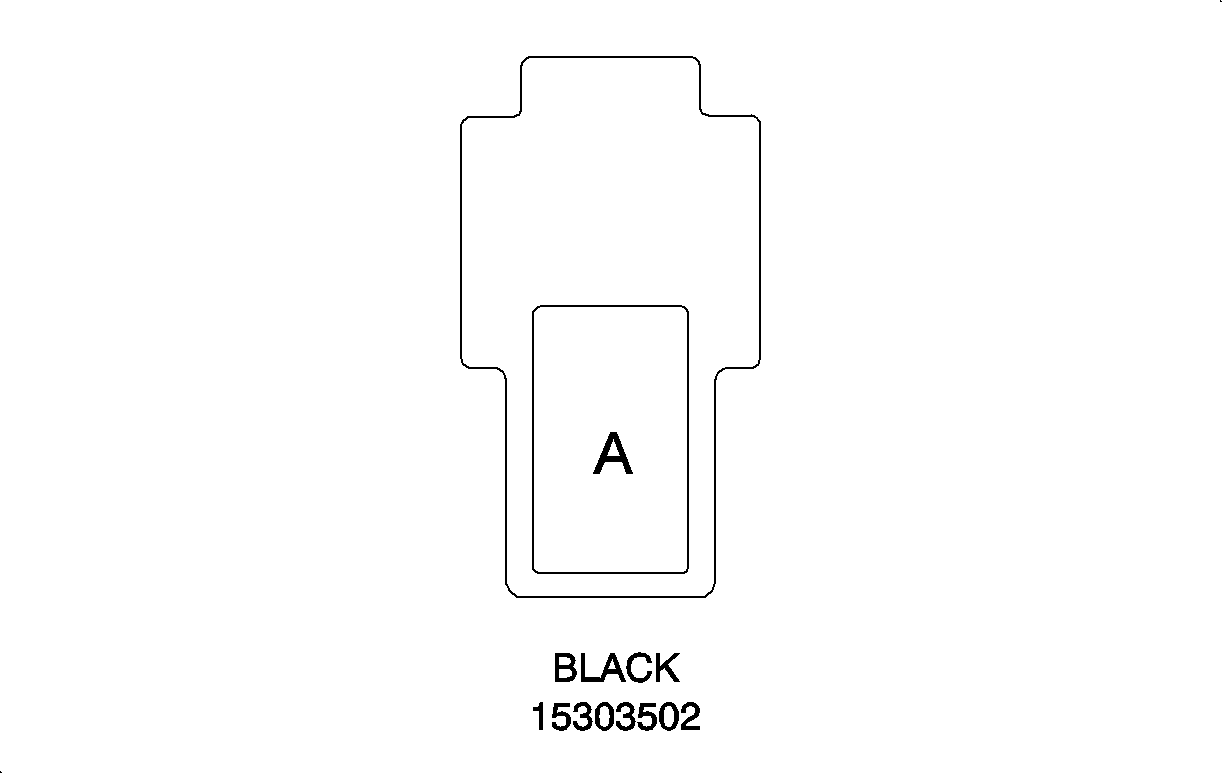

Underhood Junction Block-Forward Lmap-1999 Only


Connector Part Information		15303502 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED	702	2.0	AIR PUMP RELAY
Location: Underhood-Front Left Side

Underhood Junction Block-I/P


Connector Part Information		12146037 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED	202	3.0	IGN 4 FUSE
B	RED	402	3.0	I/P BATT FUSE
Location: Engine Compartment-Left Front

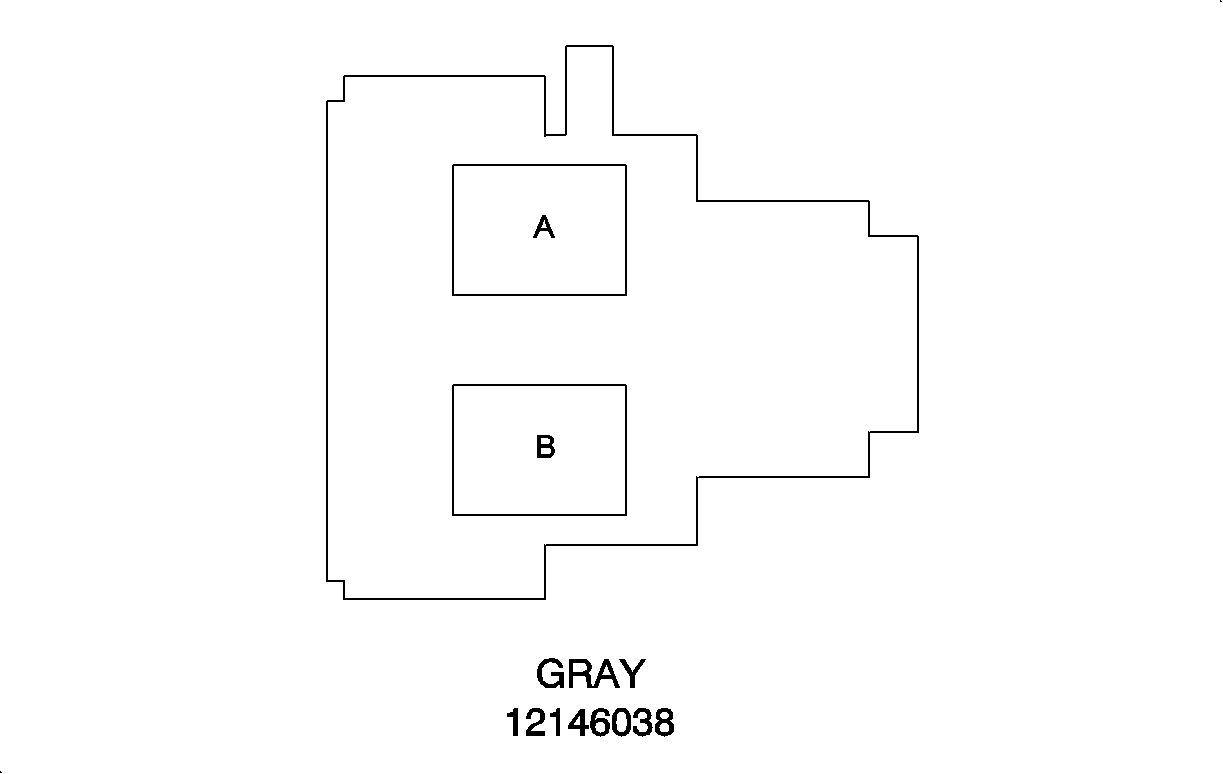

Underhood Junction Block-I/P


Connector Part Information		12146038 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	RED	302	2.0	PWR CONVCE FUSE
B	RED	102A	3.0	IGN 3 FUSE
Location: Engine Compartment-Left Front

Underhood Junction Block-I/P


Connector Part Information		12146036 Black
Cavity	Wire Color	Circuit Number	WireSize	Circuit Function
A1	ORN	1040B	1.0	HAZARD FUSE
A2	ORN	1240	2.0	REAR DEFOG FUSE
A3	ORN	1040A	.35	HAZARD FUSE
A4-A10	--	--	--	--
A11	YEL	317	.35	FOG LAMP RELAY COIL +
A12	--	--	--	-
B1-B8	--	--	--	--
B9	BRN	641A	.35	A/C CNTL RELAY COIL + DRL RELAY COIL +
B10	RED	1633	3.0	ABS RELAY SW
B11-B12	--	--	--	--
C1	ORN	640A	.35	RELAY COIL + ABS FUSE
C2	ORN	240	.35	PARK LP FUSE
C3	PNK	94A	1.0	WASHER PUMP
C4	--	--	--	--
C5	BRN	1295A	.35	TO PCM-EVO LO
C6-C8	--	--	--	--
C9	ORN	855B	.80	ABS SOL
C10	DK GRN	335	.35	COOL FAN RELAY COIL
C11	LT GRN	24A	2.0	BACK-UP LAMPS
C12	GRA	729	.35	A/C RELAY CONTROL
D1-D2	--	--	--	--
D3	BRN	9J	.35	FOG LAMP RELAY COIL
D4	LT GRN/BLK	529	.35	DRL RELAY COIL
D5-D7	--	--	--	--
D8	ORN	855A	.80	ABS SOL
D9	WHT	1294A	.35	TO PCM-EVO HI
D10	PNK	1632	.35	ABS RELAY COIL
D11	--	--	--	--
D12	PNK	1200C	.50	TO LCS HIGH BEAM
E1	ORN	1140	.80	PCM B FUSE
E2	ORN	540	.50	BRAKE FUSE
E3	PNK	439	.35	PCM 1 FUSE
E4	--	--	--	--
E5	BLK	28B	.35	TO I/P BODY INLINE
E6	DK BLU	1201H	.35	I/P CLUSTER HEADLAMP SIGNAL
E7	DK BLU	1201C	.35	TO LCS-LOW BEAM
E8-E9	--	--	--	--
E10	BRN	25	.35	TO CLUSTER-GENERATOR TT
E11	--	--	--	--
E12	PNK	1200	.35	FOG LAMP SWITCH
F1-F2	--	--	--	--
F3	PNK	3B	2.0	TO IPJB FUSES
F4	RED	458	3.0	TO IPJB FUSES-AUTO
F5	LT BLU	14A	.50	TO IPJB
F6	DK BLU	15A	.50	TO IPJB
F7	TAN	31	.35	OIL PRESSURE TT
F8	YEL PPL	575-AUTO 6-MAN	5.0 5.0	STARTER RELAY-AUTO CLUTCH START SW-MAN
F9	BLK	28	.35	TO HORN SW
F10-F12	--	--	--	--
Location: Engine Compartment-Left Front

Underhood Junction Block-Engine


Connector Part Information		12129594 Brown
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	ORN	1140A	.80	PCM-12 V BATT
A2-A4	--	--	--	--
A5	WHT/BLK	1526A	.50	TCC ACTUATOR
A6	--	--	--	--
A7	BRN	1295B-DOHC	.35	EVO SOLENOID-DOHC
A8	PPL	6A 6B	3.0	PRNDL START SW STARTER SOLENOID
A9	WHT	1294B-DOHC	.35	EVO STARTER-DOHC
A10	--	--	--	--
A11	LT BLU	409	3.0	COOLING FAN
A12	--	--	--	--
B1	--	--	--	--
B2	PNK	139E	.80	INJECTOR 4
B3	PNK	239-MAN 239A-AUTO	.50	BACK-UP SWITCH PRNDL REVERSE SW
B4	WHT	1526	.50	G2 ACTUATOR
B5	PNK	139C	.80	INJECTOR 3
B6	PNK	139B	.80	INJECTOR 2
B7	PNK	139A	.80	INJECTOR 1
B8	GRA	416B	.50	5 V REF-1999 ONLY
B9	TAN	31A	.35	OIL PRESSURE SWITCH
B10	BRN/WHT	25A	.35	GENERATOR
B11	LT GRN	24B 24C	.50	BACK-UP SW MAN REVERSE SW AUTO
B12	--	--	--	--
C1-C4	--	--	--	--
C5	PNK	639F	.80	HO2S HEATER POWER
C6-C7	--	--	--	--
C8	GRA	416E	.50	5 V REF-1999 ONLY
C9	GRA	416E-DOHC 516EE-SOHC	.50	5 V REF-1998-ONLY
C10	--	--	--	--
C11	BRN	641	.35	GENERATOR
C12	--	--	--	--
D1-D2	--	--	--	--
D3	PNK	1039	.35	ELEC IGNITION MODULE
D4	LT GRN/BLK	1527A	.50	G4 ACTUATOR
D5	LT GRN	1527	.50	G3 ACUTATOR
D6-D7	--	--	--	--
D8	GRA	416F	.50	5 V REF-1999-ONLY
D9	GRA	416F	.50	5 V REF-1998 0NLY
D10-D11	--	--	--	--
D12	TAN/WHT	451M	.80	HO2 GROUND
E1-E4	--	--	--	--
E5	PNK	639A	.50	PCM
E6	BLK/WHT	451F	.35	GROUND
E7	BLK/WHT	451B	.80	REDUNDANT ENGINE GROUND
E8	BLK/WHT	451E	.35	GROUND
E9	GRA	416B	.35	5 V REF-1998 ONLY
E9	PNK/BLK	429B	.35	PCM-1999 ONLY
E110-E11	--	--	--	--
E12	TAN/WHT	451L	.50	HO2S SIGNAL GROUND
F1-F2	--	--	--	--
F3	PNK	639B	.50	EVAP CANISTER PURGE SOLENOID
F4	RED	1525	.50	TFP ACTUATOR
F5	PNK	639C-DOHC 639CC-SOHC	.50	LINR EGR SOLENOID
F6	--	--	--	--
F7	BLK/WHT	451C	.35	ELC IGN MODULE
F8	BLK/WHT	451K	2.0	PRNDL SWITCH
F9	PNK	639F	.80	IGN TO AIR PUMP SOLENOID-1999 ONLY
F10	--	--	--	--
F11	BRN	436	.35	PCM-1999 ONLY
F12	YEL/BLK	68A-AUTO 68AM-MAN	.35	COOLANT LEVEL INPUT
Locatiion: Engine Compartment-Left Front

Uderhood Junction Block-Forward Lamp


Connector Part Information		12129592 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1-A2	--	--	--	--
A3	PNK	94	1.0	WINDSHIELD WASHER SW
A4	PNK	239C	.35	COOLANT LEVEL SW
A5-A6	--	--	--	--
A7	DK BLU	1201A	.50	RT LO BEAM
A8	DK BLU	1201B	.35	LT LO BEAM
A9	--	--	--	--
A10	BLK	28AA	.35	HORN-HI-1999 ONLY
A11	--	--	--	--
A12	YEL/BLK	68	.35	COOLANT LEVEL SW
B1-B2	--	--	--	--
B3	BRN	9E	.50	RT PARK TURN-HI
B4	BRN	9C	.50	LT PARK TURN-HI
B5	BRN	9A-SL, SW, SC2 9AA-SC1	.50	LT MARK-HI
B6	BRN	9B	.50	RT MARK-HI
B7-B8	--	--	--	--
B9	PNK/BLK	429A	.35	PCM-1998 ONLY
B10	--	--	--	--
B11	PPL	34	.50	RT FOG-HI
B12	PNK	1200A	.80	RT HIGH BEAM
C1-C4	--	--	--	--
C5	DK BLU	15	.50	RT TURN-HI
C6-C10	--	--	--	--
C11	PPL	34A	.50	LT FOG-HI
C12	PNK	1200B	.35	LT HI BEAM
D1	--	--	--	--
D2	ORN	40A	.35	LT HI BEAM
D3	ORN	40B	.35	LT LO BEAM
D4	LT BLU	14	.50	LT TURN-HI
D5-D9	--	--	--	--
D10	RED	702	2.0	AIR PUMP RELAY-1999 ONLY
D11	BLK	28AA	.35	HORN-HI-1998 ONLY
D11	PNK	639X	.80	IGN TO AIR PUMP SOLENOID-1999 ONLY
D12	--	--	--	--
E1-E3	--	--	--	--
E4	BLK	150Z	2.0	LT FORWARD LAMP GROUND
E5	BLK	150G-SL, SW, SC2 150GG-SC1	.50	LT MARK-LO
E6	BLK	150A-SL, SW 150AA-SC	2.0	GROUND
E7-E12	--	--	--	--
F1	ORN	1540A	.35	HORN
F2	ORN	140B	.50	RT LOW BEAM
F3	ORN	140A	.50	RT HIGH BEAM
F4	BLK	150FF	.50	LT PARK/TURN-LO
F5	BLK	150R	.35	LT FOG-LO
F6	BLK	150HH	.35	HORN-LO
F7	--	--	--	--
F8	DK GRN	59	.80	A/C COMPRESSOR CLUTCH COIL-HI
F9-F10	--	--	--	--
F11	RED	78	2.0	AIR PUMP RELAY-1999 ONLY
F12	--	--	--	--
Location: Engine Compartment-Left Front
