Document ID# 883413
1998 Saturn SL2/SC2/SW2

Fascia Applique Replacement - Front Bumper

Removal Procedure

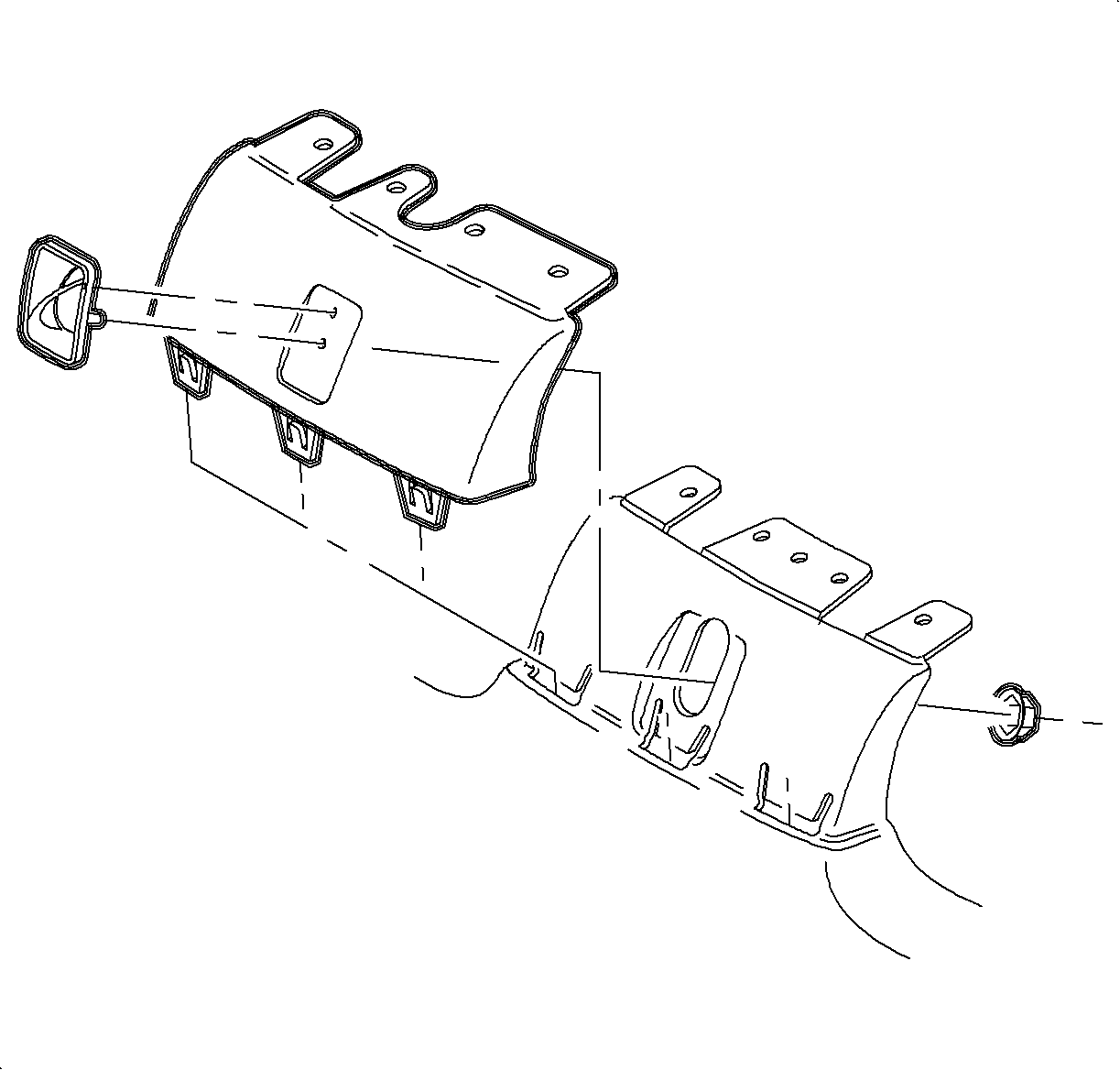

    Object Number: 864764 Size: SH
    Click here for detailed picture of above image.
  1. Remove the front bumper fascia applique upper plastic retainers.
  2. Gently pull the top of the front fascia forward exposing the back of the front fascia.
  3. With a screwdriver, unsnap the lower portion of the applique from the backside.
Installation Procedure
  1. Position the applique to the front fascia. Snap it into place.
  2. Install the upper plastic retainers.
