Wiper Motor Module Replacement

Removal Procedure

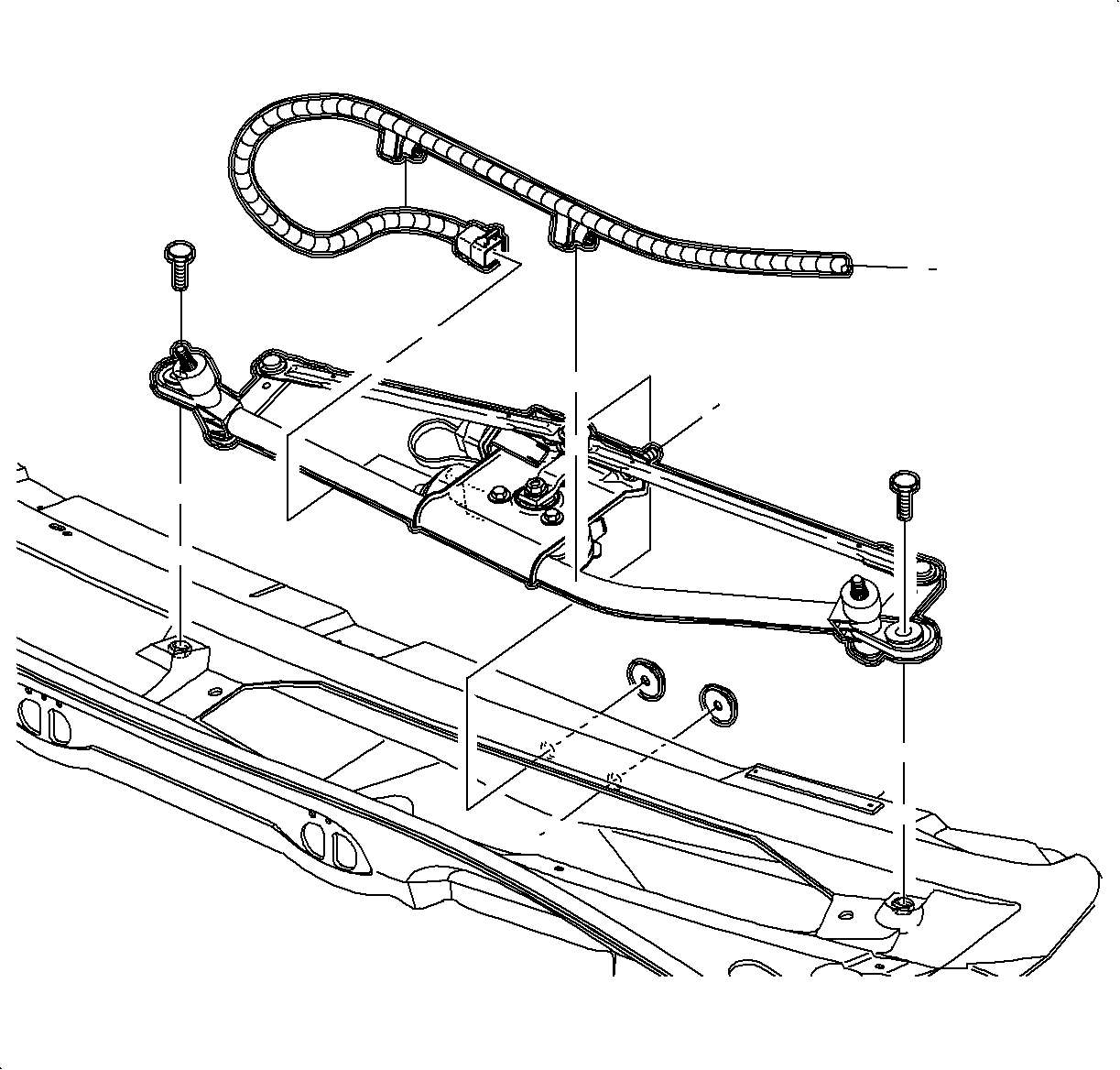

1. Remove the wiper module. Refer to Wiper Motor Replacement .

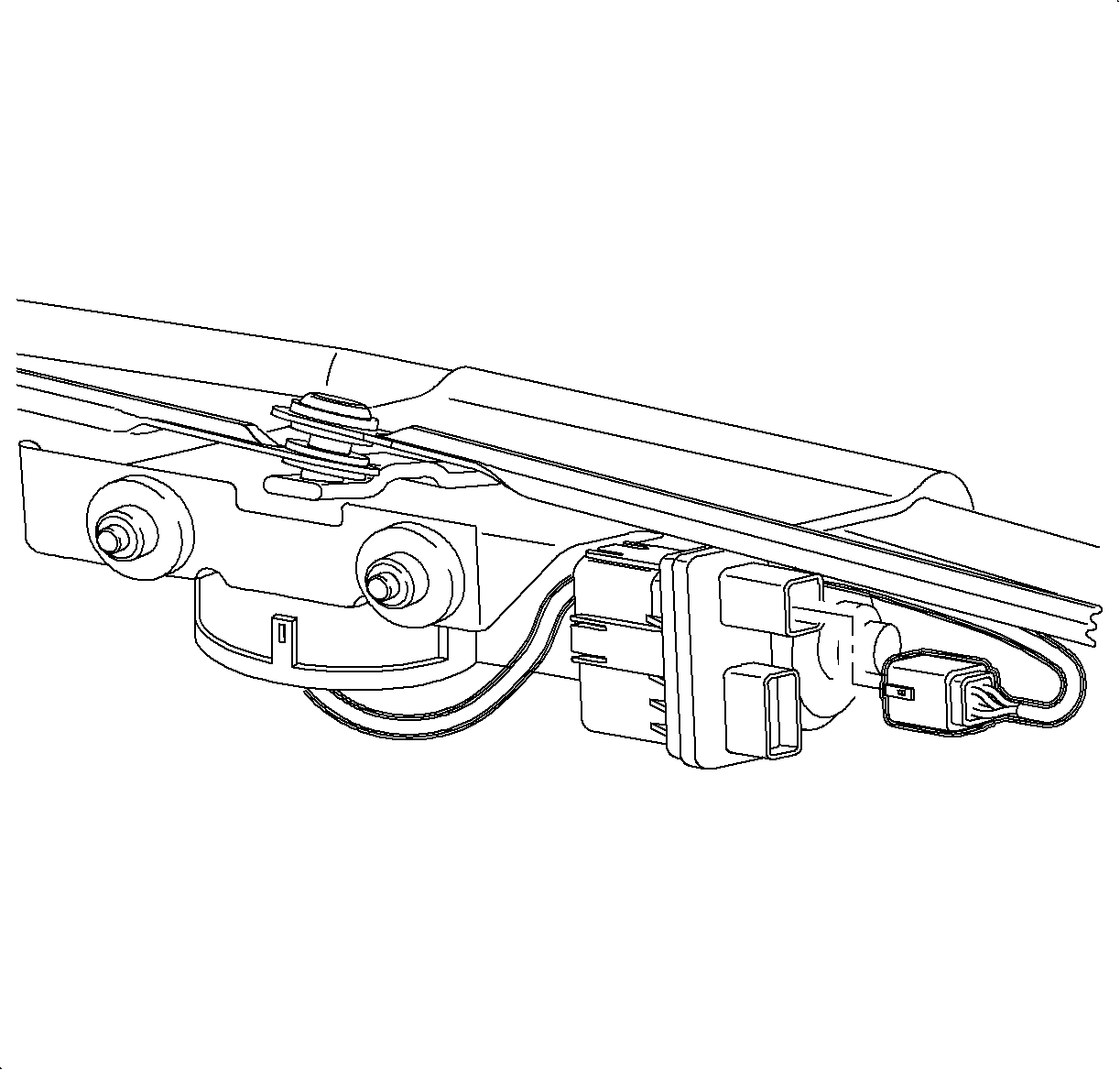

2. Disconnect the wiper control module electrical connector.

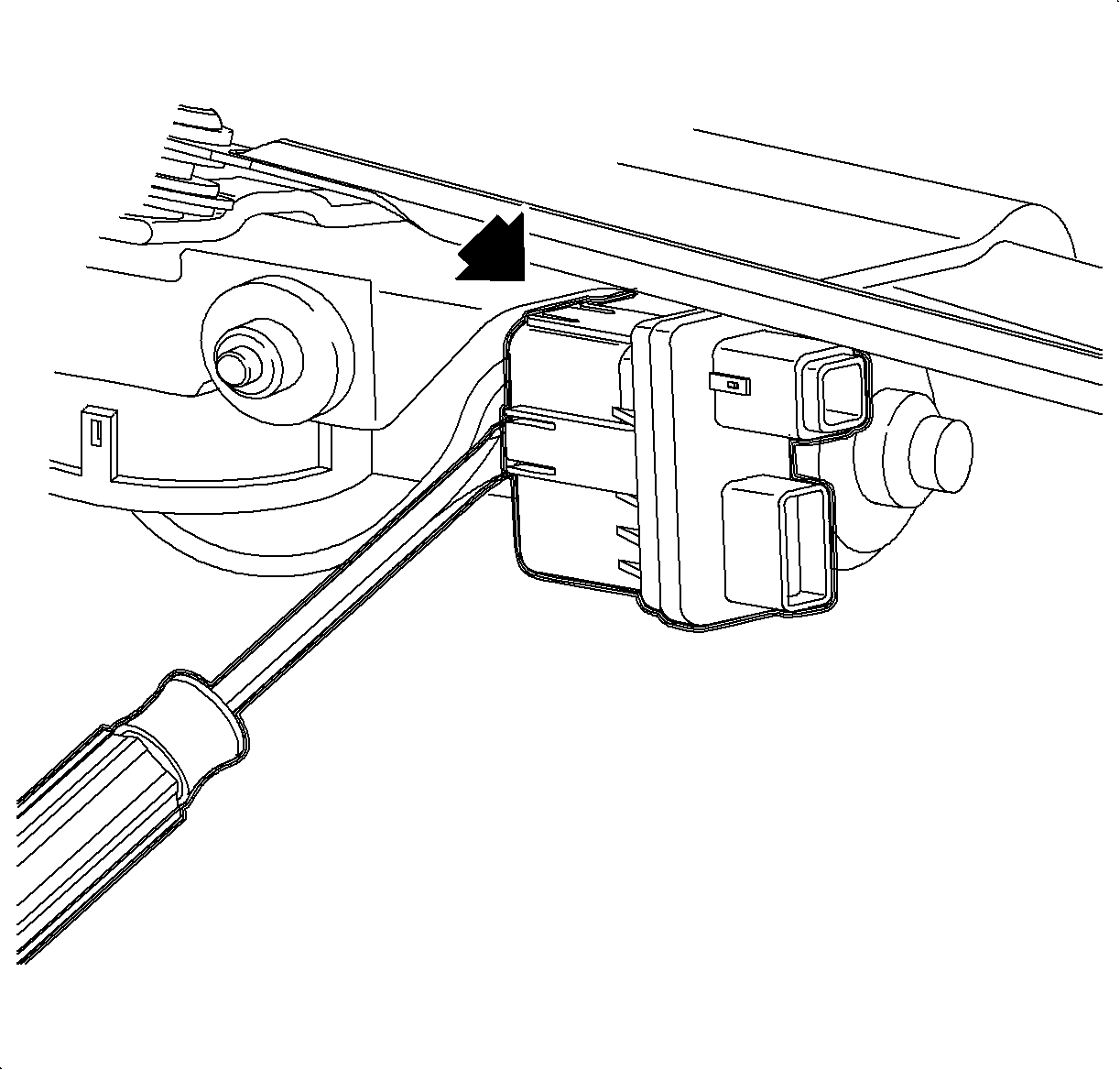

3. Using a thin bladed screwdriver, gently pry the center tabs of the wiper control module retainer arms.

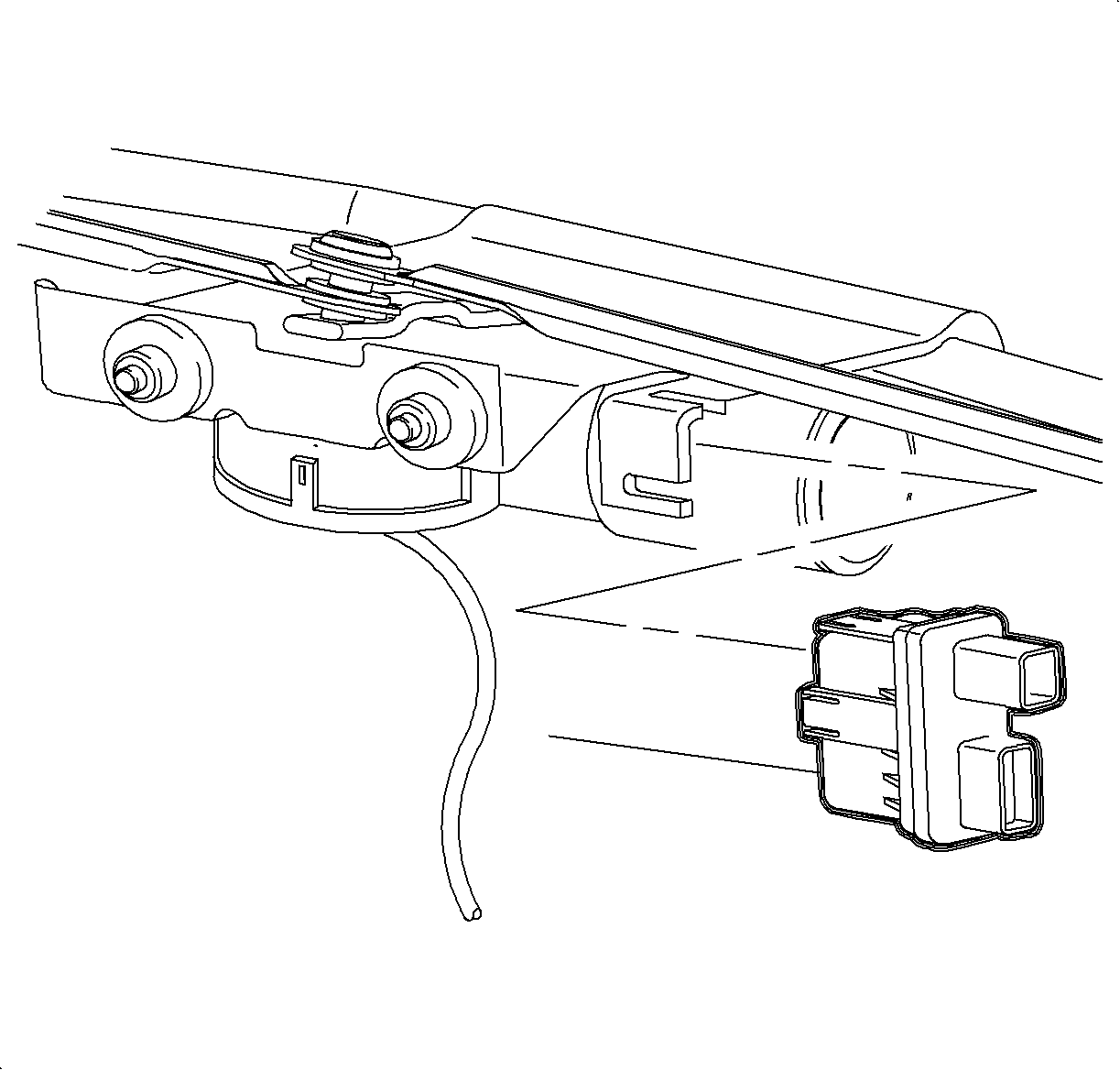

4. Remove the wiper controller from the wiper module.

Installation Procedure

1. Install the wiper controller to the wiper module.




2. Connect the wiper control module electrical connector.




3. Install the wiper module. Refer to Wiper Motor Replacement .
