Document ID# 868908
1998 Saturn SL2/SC2/SW2

Blower Motor Control Processor Replacement RHD Domestic Only

Removal Procedure

    Object Number: 860831 Size: SH
    Click here for detailed picture of above image.
  1. Disconnect the blower motor electrical connector.

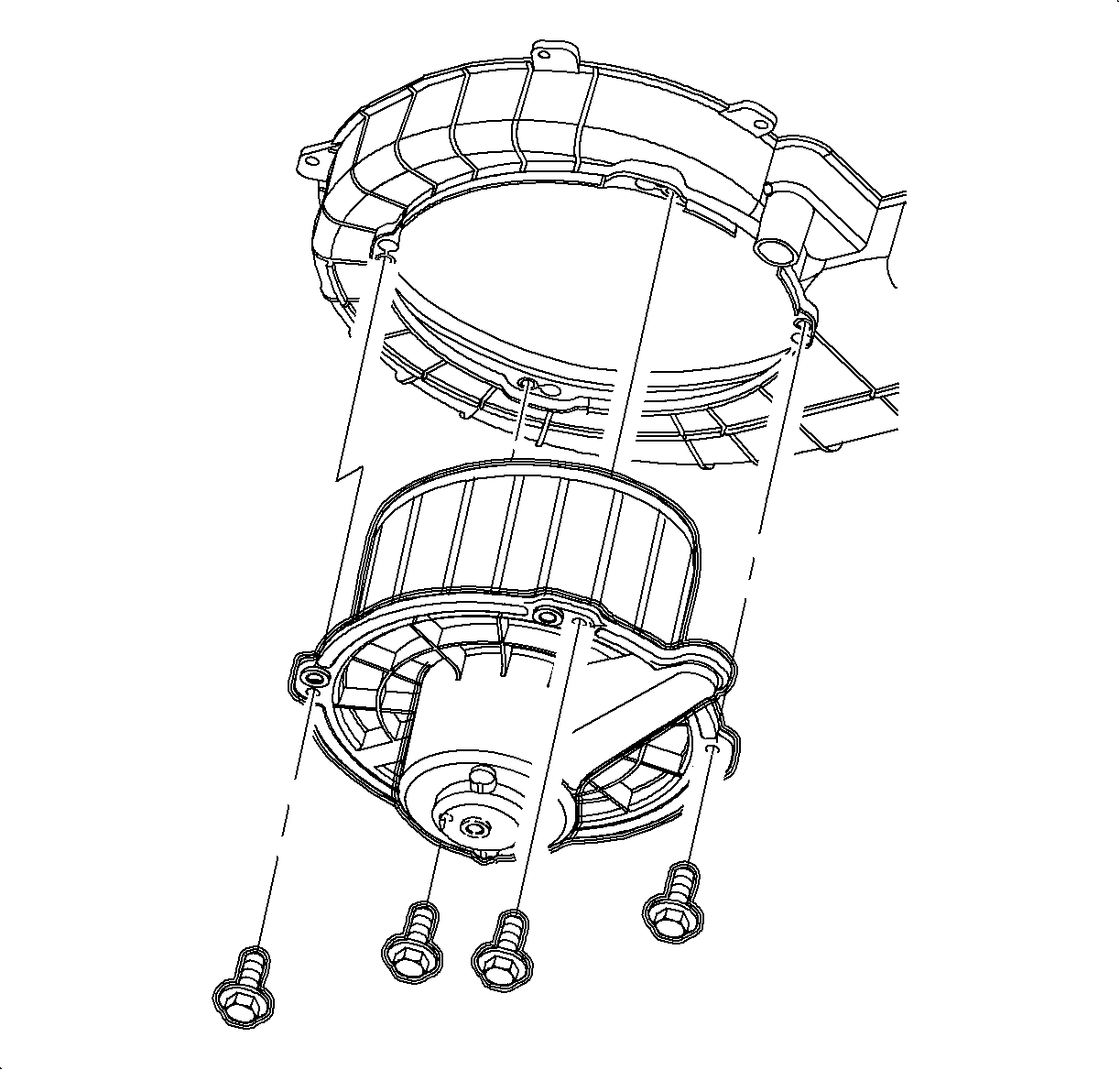

    2. Object Number: 860856 Size: SH
    Click here for detailed picture of above image.
  2. Remove the blower motor mounting screws.
  3. Remove the blower motor assembly.
Installation Procedure

    Object Number: 860856 Size: SH
    Click here for detailed picture of above image.
  1. Install the blower motor assembly.
  2. Install the blower motor mounting screws.
    3. Tighten

    Tighten the blower motor mounting screws 1.7 N·m (15 lbs in).


    Object Number: 860831 Size: SH
    Click here for detailed picture of above image.
  3. Install the electrical connector to the blower motor.
